Data Director Configuration

3.1 Requirements

Before you begin with the procedure for setting up Data Director in Cloud Native Core, ensure that the following requirements are met:

The metadata from NFs
The third-party target that receives the packets
Optional TLS config for For HTTP2 and Synthetic TCP Feeds
The HTTP standards require a response for every message sent. Oracle will provide a configuration option to ignore the response for HTTP2 Feed.
The message acquisition point is configurable (ingress or egreess, or both) at the NF level.
Kafka consumer Feed is enabled only when OCNADD services are on TLS.
Create ACL user prior to creating Kafka feeds.

Note:

With the HTTP2 ignore the response option enabled the OCNADD considers message transfer as successful as soon as data is sent to 3rd party monitoring consumers. OCNADD does not wait for 200 OK response to consider the message transfer as successful. Message retransmission is not attempted. However, for maintaining the connection status to 3rd party monitoring App endpoints, OCNADD still expects response for each post request sent to 3rd party monitoring App.

3.2 Outbound Protocols

Data Director currently supports three Egress Feed types, over which the 5G SBI messages and metadata added by the NFs are forwarded to third-party consumers:

HTTP2 Feed: The HTTP2 Feed is used for monitoring purposes. It employs the HTTP/2 protocol, utilizing JSON as the application layer serialization protocol. Additionally, there is an option to implement TLS for security protection at the transport layer.
Synthetic Feed: The Synthetic Feed operates through a TCP connection, enabling the transmission of synthetic packets. These packets contain comprehensive L2 to L7 information, complete with synthesized layers and necessary information. For added security at the transport layer, optional TLS is available.
Kafka Consumer Feed: The Kafka Consumer Feed allows 3rd-party consumers to retrieve the 5G SBI messages and metadata introduced by the NFs in the form of JSON documents, using the Kafka consumer API. To enhance security during transmission, TLS is employed at the transport layer.

3.2.1 Metadata

The following table lists the components that are part of the available metadata from SCP:

Note:

For more information on each metadata component, see Data Stream Contents.

Table 3-1 Format based on 3GPP

Metadata	Information
correlation-id	This is a unique identifier in the message for correlation within a single transaction. If an intermediate Oracle NF like SCP or SEPP sees a correlation-id custom header in the message, then it forwards the header without any modification. Oracle NFs add the correlation-id custom header in the responses.
consumer-id	This is a 5G NF Instance ID of the NF originating the received message. Depends on the presence of the User-Agent header in the received service request Recommended User-Agent header format: User-Agent:<NF Type>-<NF Instance ID> <NF FQDN>
producer-id	This is a 5G NF Instance ID of the destination NF. Oracle SCP can find the destination NF instance Id using the authority in the service request and learning from the NRF. Other Oracle NFs may not be able to find NF instance id of destination in be able to put destination FQDN
consumer-fqdn	This is a FQDN of the network function originating the received message. Depends on the presence of User-Agent header in the received service request Recommended User-Agent header format: User-Agent:<NF Type>-<NF Instance ID> <NF FQDN>
producer-fqdn	This is an FQDN of the destination NF. It depends on the presence of FQDN in the authority of service request.
hop-by-hop-id	Oracle NFs can add Hop-by-Hop id to identify a request and response pair to the next node. This is required in addition to correlation-id for uniquely identifying the request-response pair in case of re-routing.
reroute-cause	Indicate the re-route cause. Contains one of the following: Circuit breaking: Flag to indicate that a message is an alternate attempt due to circuit breaking functionality at the SCP Outlier detection: Flag to indicate that a message is an alternate attempt due to outlier detection functionality at the SCP Egress-rate-limit: Flag to indicate that a message is an alternate attempt due to egress rate limiting functionality at the SCP producer-nf-congestion: Flag to indicate that a message is an alternate attempt due to producer NF congestion Error received Timeout Not Available
timestamp	This is a timestamp (in nanoseconds) at the traffic feed trigger point when the message is received or forwarded by the SCP. It is an epoch time.
message-direction	This is a parameter to indicate whether a message is ingress to or egress from NF. It can be indicated by putting the traffic feed trigger point name. RxRequest TxRequest RxResponse TxResponse
feed-source	Source of this traffic feed. This contains the key-value of different identity of the node sending the traffic feed. Feed-source : nf-type = SCP nf-fqdn = SCP's FQDN nf-instance-id = SCP's NF instance id pod-instance-id = SCP-worker's pod instance id

3.2.2 Data Director Message

The 5G SBI message that is received or forwarded contains the following components:

HTTP2: HTTP2 Headers - All received HTTP2 standard and 3gpp defined headers.
Received Data Director Message Payload

3.2.2.1 Data Director Message Format

The Data Director supports the following message formats:

HTTP2 Message Format
Synthetic Packet Message Format
Kafka Consumer Egress Feed Message Format

HTTP2 Message Format

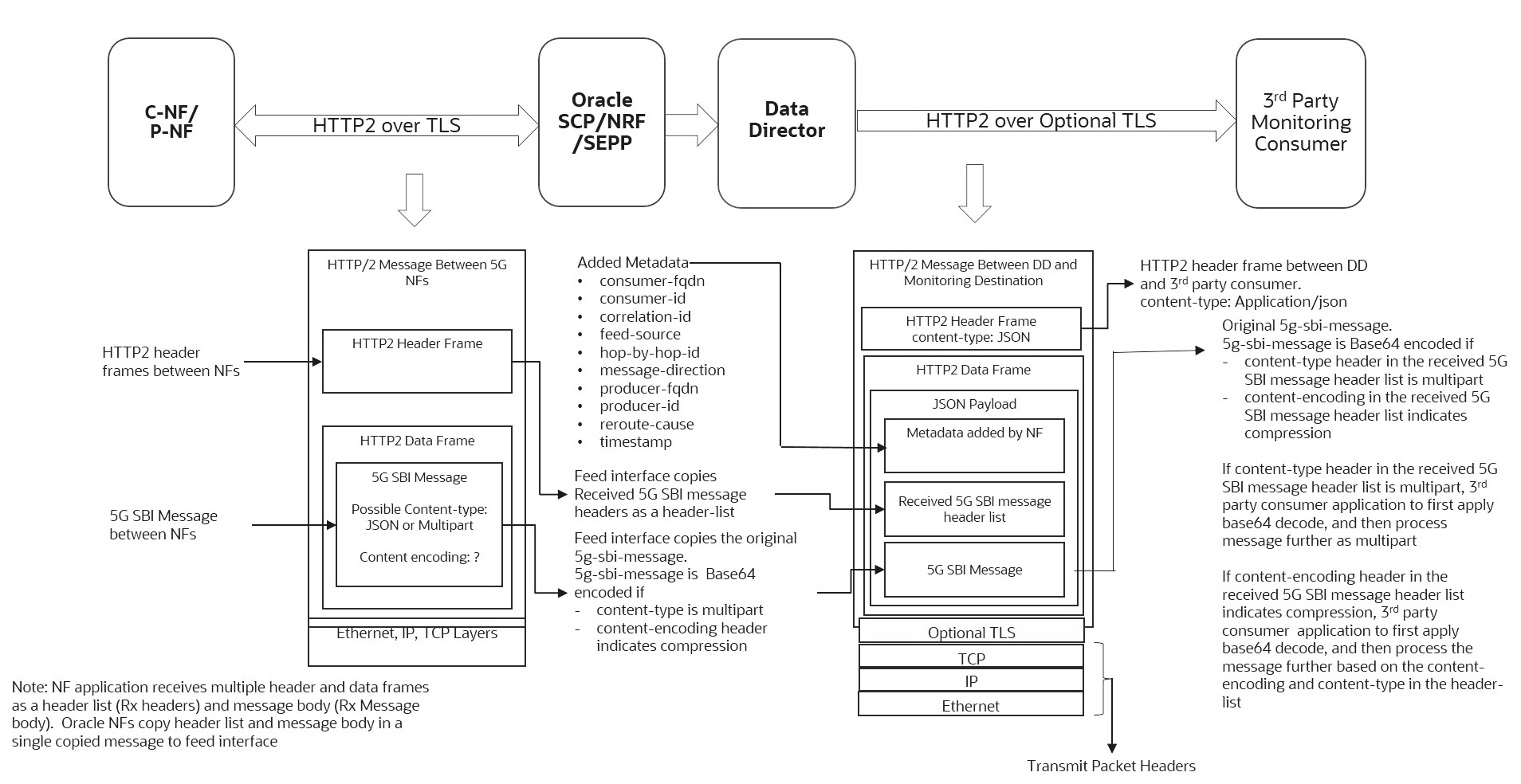

Data Director supports HTTP2 feed for forwarding from Data Director to third-party monitoring consumer applications. 5G monitoring data is forwarded to third-party monitoring consumer using HTTP2 POST requests. The following components are delivered as JSON payload in the HTTP2 data frames:

Original received 5G SBI message headers as a header-list.
Original received 5g sbi data as 5g-sbi-message
Metadata-list added by NF

The 5g-sbi-message forwarded to third-party consumer application is Base64 encoded if:

The content-type header in the received 5G SBI message header list is multipart

Or

The content-encoding in the received 5G SBI message header list indicates compression

If the "content-type" header in the received 5G SBI message header list is labeled as "multipart," the third-party consumer application performs an initial base64 decode. Subsequently, the application proceeds to process the message as multipart content.

When the "content-encoding" header in the received 5G SBI message header list shows compression, the third-party consumer application first applies base64 decode. Then, it processes the message further based on the content-encoding and content-type in the header list.

Synthetic Packet Message Format

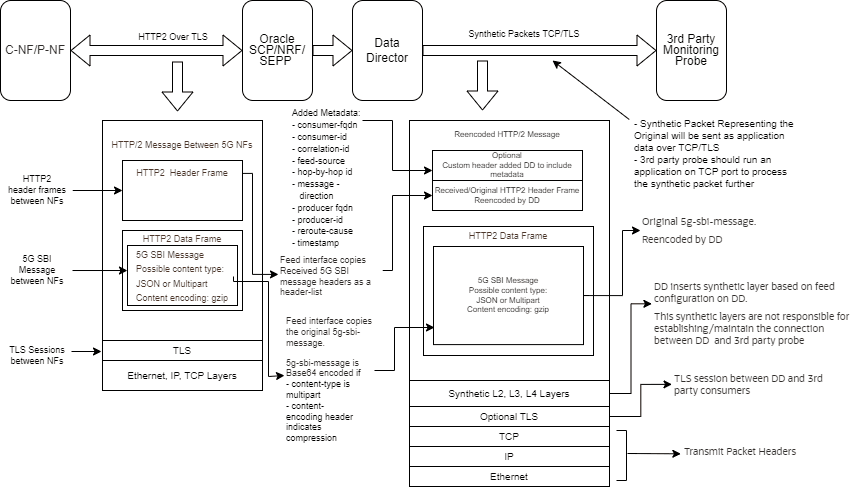

OCNADD converts incoming JSON data into network transfer wire format and sends the converted packets to the third-party monitoring applications in a secure manner. The third-party probe feeds the synthetic packets to the internal monitoring applications. The feature helps third-party vendors to eliminate the need of creating additional applications to receive JSON data and converting the data into probe compatible format, thereby saving critical compute resources and associated costs.

Kafka Consumer Egress Feed Message Format

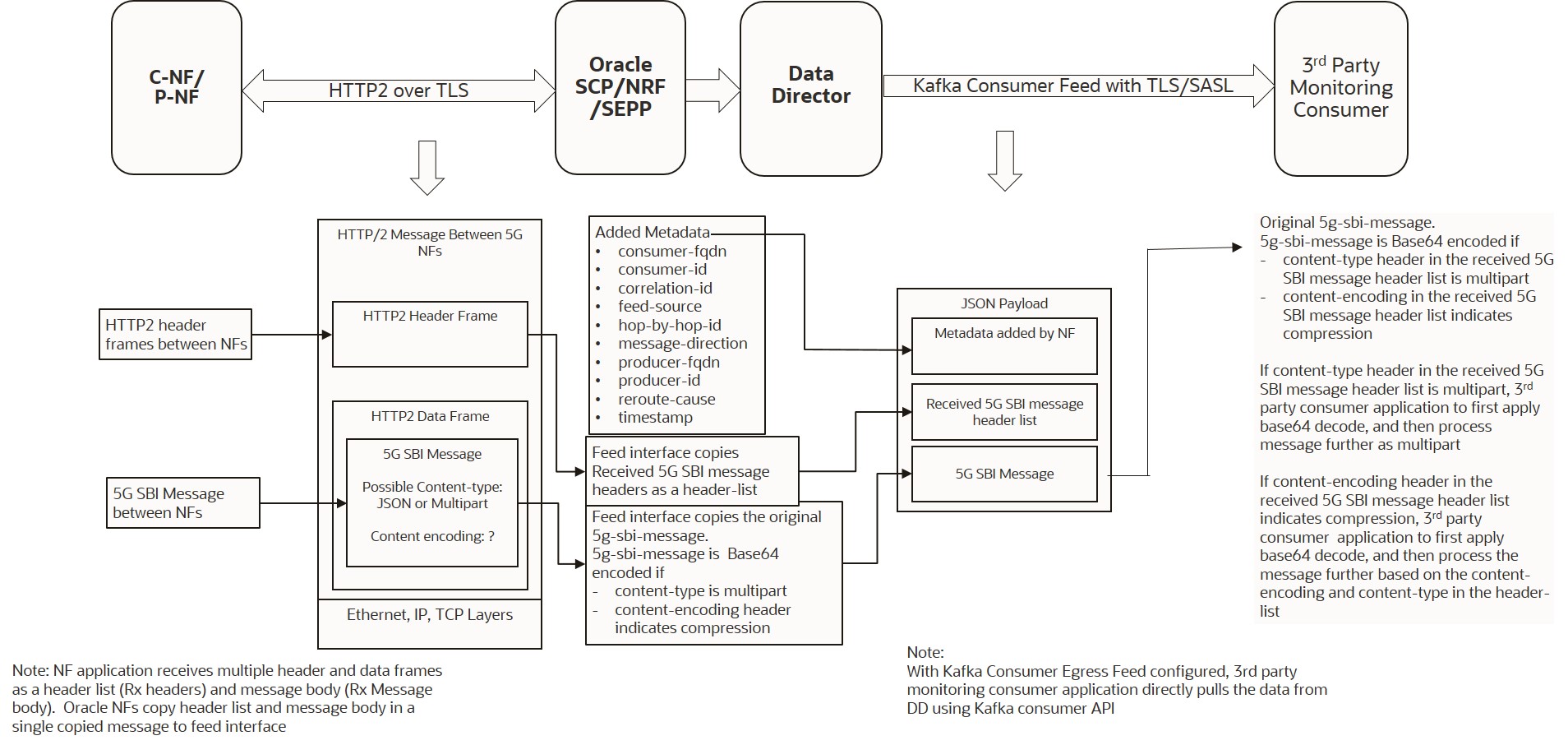

OCNADD supports the external Kafka consumer applications using the external Kafka Feeds. This enables third-party consumer applications to directly consume data from the Data Director Kafka topic, eliminating the need for any egress adapter.

Clients need to be authenticated through either SASL or SSL (mTLS) for authorization by Kafka. As a result, enabling external Kafka feed support requires specific settings to be activated within the Kafka broker. This ensures mandatory authentication of Kafka clients by the Kafka service.

OCNADD only allows authorized and authenticated third-party applications to use the Data Director Kafka service. Application authorization is handled using the KAFKA ACL (Access Control List) functionality. Access control for the external feed is established during Kafka feed creation. Presently, third-party applications are exclusively allowed to READ from a specific topic using a designated consumer group.

3.2.2.2 Third-Party Feed Format

Third-Party HTTP2 Feed Format

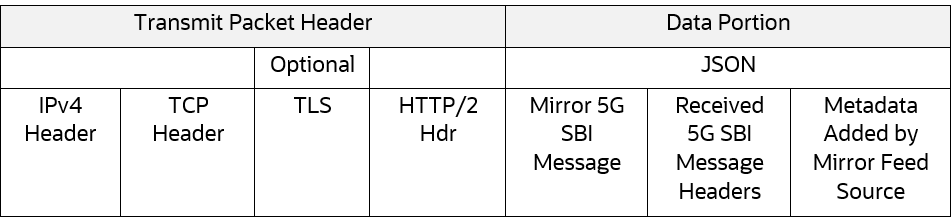

A third-party HTTP2 feed contains the following components:

Figure 3-1 Third-Party HTTP2 Feed Format

Following TLS options are supported:

TLSv1.2 (minimum) with oracle approved TLS Ciphers
TLSv1.2 with Static Key Cipher support (TLS_RSA_WITH_AES_128_GCM_SHA256)
No TLS (H2C)

Third-Party Synthetic Feed Format

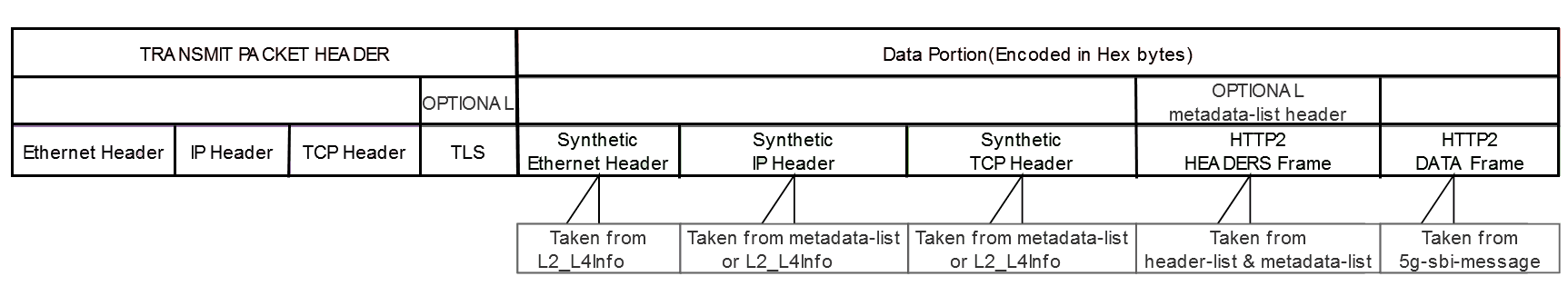

A third-party synthetic feed contains the following components:

3.2.2.3 Example for the JSON Data

Note:

For more information on the metadata list, see Metadata.

Following is an example for the JSON data:

{
    "version":"Major.Minor.Patch",
    "metadata-list":{},
    "header-list":{
        ":authority":"10.75.224.64:30065",
        ":method":"PUT",
        ":path":"/USEast/nudm-uecm/v1/imsi-556670000000000/registrations/amf-3gpp-access",
        ":scheme":"http",
        "content-type":"application/json",
        "3gpp-sbi-target-apiroot":"http://udm1svc.default.svc.cluster.local:8080/USEast",
        "3gpp-sbi-message-priority":"5",
        "content-length":"501",
        "accept-encoding":"gzip",
        "user-agent":"Go-http-client/2.0"
    },
    "5g-sbi-message":{
        "guami":{
            "plmnId":{
                "mcc":"233",
                "mnc":"23"
            },
            "amfId":"100000"
        },
        "pei":"imei-456565651000000",
        "attrib1":"abcdefghijklmnopqurestuvwxqweoeqwowertyo123445678",
        "attrib2":"abcdefghijklmnopqurestuvwxqweoeqwowertyo123445678",
        "attrib3":"abcdefghijklmnopqurestuvwxqweoeqwowertyo123445678",
        "attrib4":"abcdefghijklmnopqurestuvwxqweoeqwowertyo432123445678",
        "attrib5":"abcdefghijklmnopqurestuvwxqweoeqwowert234yo123445678",
        "pcscfRestorationCallbackUri":"http://pcf1.pcf1svc.svc.cluster.local/notification/udmtest"
    }
}

3.3 xDR

xDRs generated by correlation services are stored in corresponding xDR topic as JSON data. External application acting as Kafka consumer can subscribe to the xDR Kafka topic to read the xDR data. For more information on mandatory and optional xRD contents, see Oracle Communications Network Analytics Data Director User Guide.

3.3.1 xDR Format

Following is an example for xDR when includeMessageWithxDR option is set to none.

[
  {
    "version": "1.0.0",
    "beginTime": "2023-01-23T07:03:36.311Z",
    "endTime": "2023-01-23T07:03:36.311Z",
    "configurationName": "corr-test-2",
    "xdrStatus": "SUDR",
    "path": "/nudm-uecm/v1/imsi-208014489186000/registrations/smf-registrations/1",
    "supi": "imsi-208014489186000",
    "methodType": "PUT",
    "producerNfType": "SCP",
    "consumerFqdn": "SMF.5g.oracle.com",
    "producerFqdn": "UDM.5g.oracle.com",
    "contentType": "application/json",
    "ueId": "imsi-208014489186000",
    "pduSessionId": 1,
    "smfInstanceId": "8e81-4010-a4a0-30324ce870b2",
    "snssai": "{\u0022sst\u0022:1,\u0022sd\u0022:\u0022000001\u0022}",
    "pcfInstanceId": "8e81-4010-a4a0-30324823334"
  }
]

Note:

includeMessageWithxDR option allows user to select whether original feed message will be included with xDR or not and If included, which part of message to be included.

Below examples capture xDRs with includeMessageWithxDR

includeMessageWithxDR is set to DATA

[
    // XDR
    {
        "version": "1.0.0",
        "configurationName": "cap4c",
        "beginTime": "2023-06-26T14:40:29.950313200",
        "endTime": "2023-06-26T14:40:29.950313200",
        "xdrStatus": "SUDR",
        ….
    },
    // MESSAGE 1
    {
        "5g-sbi-message":
        {
            No change in data(
                if incoming data to DD is nested, same will be transferred)
        }
    },
    // END OF MESSAGE 1
    // MESSAGE 2
    {
        "5g-sbi-message":
        {
            No change in data(
                if incoming data to DD is nested, same will be transferred)
        }
    }
    // END OF MESSAGE 2
]

includeMessageWithxDR is set to HEADERS_DATA

[
  // XDR
  {
   "version": "1.0.0",
    "configurationName" : "cap4c",
    "beginTime" : "2023-06-26T14:40:29.950313200",
    "endTime" : "2023-06-26T14:40:29.950313200",
    "xdrStatus" : "SUDR",
          ….
  },
  // MESSAGE 1
 {
  "header-list":
     {
      No change in data
     },
   "5g-sbi-message":
     {
      No change in data
     }
  }
  // END OF MESSAGE 1
]

includeMessageWithxDR is set to METADATA_HEADERS_DATA

[
 // XDR
  {
    "version": "1.0.0",
    "configurationName" : "cap4c",
    "beginTime" : "2023-06-26T14:40:29.950313200",
    "endTime" : "2023-06-26T14:40:29.950313200",
    "xdrStatus" : "SUDR",
     ….
  },
  // MESSAGE1
  {
    "metadata-list":{No change in format},
    "header-list":{No change in format},
    "5g-sbi-message":{No change in format}
  },
  // END OF MESSAGE 1
  // MESSAGE2
  {
    "metadata-list":{No change in format},
    "header-list":{No change in format},
    "5g-sbi-message":{No change in format}
  }
  // END OF MESSAGE 2
]

Note:

The format of message would be same that is received in OCNADD from Oracle NFs.
