4 Configuring the NAS

This section provides steps for initial configuration of the Oracle Communications LSMS Network Attached Storage (NAS), which is performed on the LSMS server.

Initial Configuration

The Oracle Communications LSMS Network Attached Storage (NAS) configuration is performed on the LSMS server through the lsmsmgr utility.

The initial configuration is performed on the LSMS server after the fresh installation. If the NAS is connected with the LSMS for the first time, or the TPD has been re-installed on the NAS, the initial configuration is required for the NAS. The NAS will be configured initially through the primary LSMS using tty serial terminal.

  1. From the lsmsmgr menu, select the Initial Configuration option.

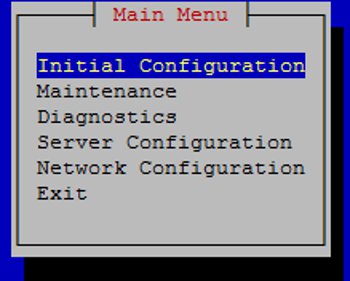

    Figure 4-1 User Interface Main Menu

    img/initial_configuration_lsms.jpg
  2. Select yes for Run All option if all configuration scripts are to be executed. Otherwise, select no and then select the configuration scripts.

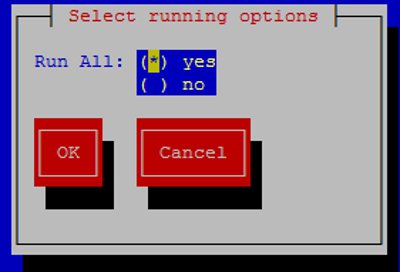

    Figure 4-2 Select Running Option

    img/initial_configuration_lsms_2.jpg

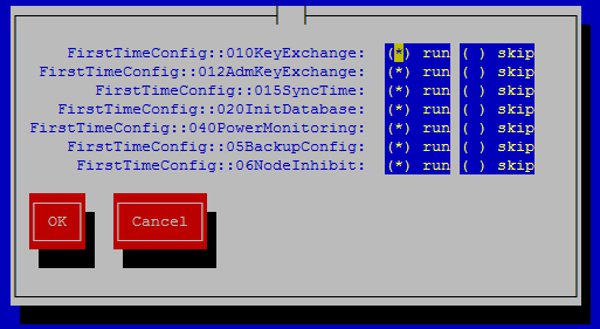

    Figure 4-3 Select Configuration Option

    img/initial_configuration_lsms_3.jpg
  3. The number of backups scheduled on the NAS is currently 4. The configBackup script allows the user to reduce the number of backups ranging from 2 to 4 by entering the following command:
    configBackup [status] [<number of backups>]


    Where [status] displays the number of backups configured and <number of backups> is a number from 2 to 4.
