About the Sample Integration Reference Solution Package

Installing the Emulators

The reference solution uses four emulators to support order processing:

Billing
Shipping
Partner gateway
Provisioning

The SDK includes these emulator artifacts in the SDK/Emulators directory. This directory also provides a readme file that details the setup process. These steps are:

Creating the Emulator Images.
Creating the Emulator Pods.
Configuring the OSM cloud native instance to communicate with the emulators.

In the project specification file, add the following target systems:

Note:

The names you add should match the following list, as the cartridge is configured to use them.

requiredTargetSystems:
  - name: som-emulator
    description: "Emulator for SOM"
  - name: shipping-emulator
    description: "shipping portal"
  - name: partnergateway-emulator
    description: "Emulator for TMF 622 partner gateway"
  - name: po-notification-listener
    description: "622 upstream mock"
  - name: billing-emulator
    description: "Emulator for billing"

In the instance specification file, provide the authentication for the target systems you added as well as the emulator details:

  # Define security scheme for target systems enabled with security
  # For each security scheme defined kubernetes secret should be created using
  # ${CNTK_HOME}/scripts/manage-target-system-credentials.sh script.
  securitySchemes:
......


targetSystems:
  systems:
    po-notification-listener:
      url: http://localhost:8080/mocked/fabric/notification/
      protocol: http
      description:  mock system upstream to COM notifications
    som-emulator:
      url: http://<ip>:<port>/orchestration/<project>/<instance>/mock/tmf-api
      protocol: http
      description:  som emulator
    shipping-emulator:
      url: http://<ip>:<port>/orchestration/<project>/<instance>/mock/tmf-api
      protocol: http
      description:  shipping emulator
    billing-emulator:
      url: http://<ip>:<port>/orchestration/<project>/<instance>/mock/tmf-api
      protocol: http
      description:  billing emulator
    partnergateway-emulator:
      url: http://<ip>:<port>/orchestration/<project>/<instance>/mock/tmf-api
      protocol: http
      description:  Partner Gateway emulator

To validate your deployment, run the following command:

kubectl get pods -n project

This displays the pods for the four emulators.

Loading the Capabilities Cartridge

The capabilities cartridge is provided as a .cpar archive. Load this cartridge into the OCA microservice when you create or upgrade your OSM cloud native instance.

Navigate to the SDK/Samples/TMFCartridges/Build Artifacts directory. The archive is labelled as RI_COM-2025xxxxx.cpar.

Once you have accessed the archive, do the following:

Create a cpar image. Tag and push this image to an appropriate container image repository. For more information about creating a cpar image, see Creating OSM Cloud Native Images.
Add the image details to the OSM cloud native toolkit specificatin files for your OSM cloud native instance. Edit the project specification, adding the image details to the capabilities cartridge section, update the image path based on how the image was pushed:
```
#capabilitiesCartridgeList: []
capabilitiesCartridgeList:
- name: TMF_PO_B2C_Solution
    version: "1.0.0.0.0"
    image: "localhost/tmf_po_b2c_solution-cpar:1.0.0.0.0"
```

Creating or Upgrading OSM Cloud Native

Whether you currently have an OSM cloud native instance running or not, you need to make adjustments to the specification files in the cloud native toolkit. You need to update the specification file to apply configuration that is needed to integrate with SCD. Do the following:

Update the OSM cloud native specification files:
1. Enable OCA and specify its image in the project specification file.
2. Uncomment OCA related annotations in the project specification file.
3. Specify the capabilities cartridge list, as described in Step 2, in Loading the Capabilities Cartridge.
4. Add the SCD callback URL in the instance specification file.
```
# OSM Cartridge Assembler
#osm-cartridge-assembler: {} # This empty declaration should be removed if adding items here.
osm-cartridge-assembler:
  # SCD Base URL
  scdBaseURL: "http://<ip>:8001"
```
Create the ocaOidc secret using the manage-credentials script in the cloud native toolkit. The first set of OIDC credentials you create should be used for accessing OCA.

Note:
You will need this information when you are setting up the connection to Solution Designer.
You will be prompted asking if you want to create credentials for SCD. Choose 1 to create the credentials. This second set of OIDC credentials are needed to enable OCA's callback to SCD.
Create the ingress.
Create your OSM cloud native instance.

To validate the setup, use the following command:

kubectl get pods -n namespace

You should see the OCA pod running.

Use the following command to access the logs for the OCA pod:

kubectl logs -n namespace <oca pod>

Towards the end of the log, you will see a statement showing that the capabilities cartridge is successfully loaded:

[main] [INFO ] [oracle.comms.ordermanagement.Main] - Loaded Capability Cartridges are -
[main] [INFO ] [oracle.comms.ordermanagement.Main] - TMF_PO_B2C_Solution/1.0.0.0.0

The URL to test if the OCA microservice is up and knows about the capabilities cartridge is:

http://<instance>.<project>.osm.org:30305/orchestration/<project>/<instance>/cartridgeAssembler/v1/capabilitiesManifest

Note:

Save this URL as you will need it while setting up the connection with Solution Designer.

Installing the Product Model

To install the product model:

Navigate to SDK/Samples/TMFCartridges/ProductModel and locate the script productSpecLoader.sh and the readme file, README.md.
Review the README.md file to find out any prerequistites you need to complete.
After completing the prerequisite steps, run the script productSpecLoader.sh with the initiative ID and the commercial domain ID to load the product specifications into the specified initiative with the specified commercial domain.
```
productSpecLoader.sh $INITIATIVE_ID $COMMERCIAL_DOMAIN_ID
```

Importing the Capabilities Manifest File

To import the manifest file:

Navigate to SDK/Samples/TMFCartridges/BuildArtifacts and locate the capabilities manifest file RI_COM-2025xxxxxx-capabilitiesManifest.json.
Log in to Solution Designer and navigate to the Fulfillment application.
Click Import and select, or drag and drop the manifest file. Click Import to import the file.

The tabs at the bottom of the page show you some of the entities that are available in the capabilities cartridge such as Fulfillment Patterns, Fulfillment Functions, and Fulfillment Systems.

Updating the Product Model

The SCD model does not contain certain information that is needed, which you need to add manually. Complete the following steps to add this information:

Create the following product specifications:
- Bundled Offering Product Specification
- Promotional Offering Product Specification
- Product Offering Pricing Product Specification
- Wireless Data CPE Product Specification. Within this, add the following commercial parameters:
  - IMEI
  - Type
  - Brand
  - Model (Text)

Create converters:

Navigate to Common Elements and select Converters from the bottom of the page.
Here, add a new converter, called bandwidth, and select the type measurement.

Add the following entries:

Unit of Measure	Value
KB	1
MB	1024
GB	1048576

Add a second converter, called roamingAreaMap, and select the type Value Map.

Add the following entries:

Input	Output
All	ALL
Canada	CA
USA	US
Europe	EU
Schengen Area	SA
Middle East	ME
Australia and New Zealand	ANZ
National	NTL
International	INTL
Asia	AS

Use converters on product specification parameters:
1. Open the Data Roaming Product Specification and navigate to Parameter Mapping.
2. Here, edit the mappings for Roaming Area to Roaming Zone. Click the icon to add a converter, choose roamingAreaMap and click Save. Repeat this step for the Voice Roaming Product Specification and the Text Roaming Production Specification.
3. Open the Wireless Data Bandwidth Product Specification and navigate to Parameter Mapping.
4. Here, edit the mappings. Click the icon to add the converter for monthly quota to monthly atribute. Select the bandwidth converter and click Save.

Creating the Fulfillment Model

To create the fulfillment model:

Navigate to the PSR Models application.
Click the ellipses and select Create Product Fulfillment Model from the menu that opens.
Name your model, and select the Capabilities Cartridge. Click Continue. The Select commercial doman step opens.
Select the Mobile Domain. The Build Model step opens.
In the Build Model step, you can configure products and map them to the CFS. You can also update or remove existing mappings as needed. Once you have done that, click Continue. The Configure Parameters step opens.
You do not need to make any changes in the Configure Parameters step as the parameters and parameter mappings are made available while importing the product model. Click Continue.

Define fulfillment by editing the canvas that opens. Add the following Product-Fulfillment mappings.

Product Specification	Fulfillment Pattern
Bundled Offering Product Specification Product Offering Pricing Product Specification	Billing Only
Promotional Offering Product Specification	Non Billing Item
Wireless Handset Product Specification	Shipped Product
Digital TV Product Specification	Simple Product
SIM Card Product Specification	Shipped Service
All Remaining Product Specifications	Simple Service

Create the following routing rules, exactly as provided below. This will allow you to validate the basics with the existing product orders.

Rule	Product Centric	Function	Condition	Route To	Granularity
Shipping Rule	No	ShipOrderFunction	None	Shipping System	WholeGranularity
Billing Rule	No	FulfillBillingFunction	None	EmulatedBilling	ServiceBundleGranularity
ProvisioningRule	No	ProvisionOrderFunction	None	Emulated_SOM	WholeGranularity
ProdProvRule	Yes	ProductProvisionOrderFunction	Case1: Channel contains "Amazon" Case2: Channel contains "Disney" default:	AmazonPrime Disney PartnerGateway	OrderItemGranularity OrderItemGranularity WholeGranularity

In the Publishing Center, publish your initiative to your workspace, where a connection with OSM is configured.

Submitting Product Orders

Install the collection of product orders that you can submit to OSM.

Open Postman and click Import.
In the window that opens, navigate to the OSM SDK: SDK/Samples/TMFCartridges/ProductOrders/RI-COM-2025xxxxx.json.
Set the following variable values for the collection:
- The OIDC scope for the gateway microservice
```
GW_SCOPE :  tmf
```
- The OIDC client id for the gateway microservice
```
GW_CLIENT_ID : osm_api
```
- The OIDC secret for the gateway microservice
```
GW_SECRET: OIDC secret
```
- The OIDC token URL for the gateway microservice
```
TOKEN_URL: OIDC token URL
```
- The OSM cloud native project name
```
PROJECT:
```
- The OSM cloud native instance name
```
INSTANCE:
```
Once you have updated the values for the variables, you can submit an order to OSM gateway for processing.

The orders in the following sections demonstrate various aspects of the default fulfillment model.

Order VPO41010_E_1531

Navigate to the OSM order orchestration UI to validate the Order State, the Version and the Order Transformation.

Order State: The order should be in the Completed state. This confirms that your emulators are configured properly and are handling the messages exchanged for the system interactions.
Version: The cartridge version should match the version seen in SCD after a successful publish action.
Order Transformation: You should see five Transformed Order Lines. This indicates that five CFS line items were created, using both the Primary and Auxiliary mappings. The Wireless Data CFS line has an example of both the converters.

The Wireless Data Bandwidth PS has a Monthly Quota attribute on the inbound order of 20 GB. The transformed line representing the CFS shows the Monthly Quota attribute, which is the KB conversion.

Similarly, the Roaming Area attribute on the Data Roaming PS is converted from Europe in the inbound order to EU in the transformed line, representing the CFS.

The transformed lines also show that the Service Specification Name and Id fields are also auto populated. No explicit mapping of these values is required. The OCA microservice maps these values during cartridge assembly.

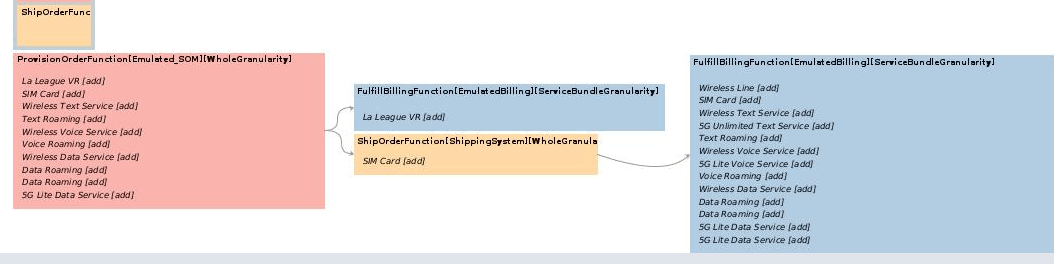

Figure 5-1 VPO41010_E_1531 Order Orchestration Plan

Description of "Figure 5-1 VPO41010_E_1531 Order Orchestration Plan"

Order VPO41010_E_1204

This order contains four product order items for the Digital TV PS. Each line item specifies a different channel selection, which demonstrates the use of the routing rules you created. If you look at the orchestration plan in the OSM order orchestration UI, you will see the following:

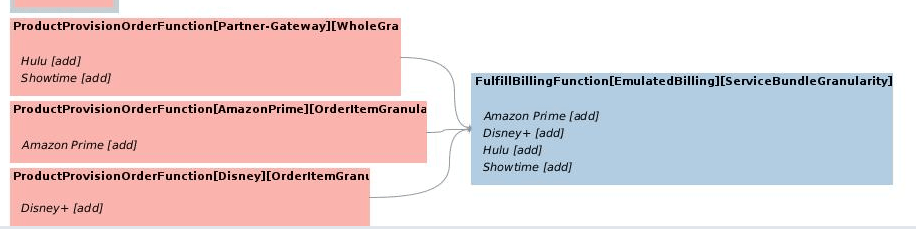

Figure 5-2 VPO41010_E_1204 Order Orchestration Plan

Description of "Figure 5-2 VPO41010_E_1204 Order Orchestration Plan"

This confirms the routing rule configuration, wherein the channel selection of Amazon Prime goes individually to the Amazon Prime system. Similarly, the channel selection of Disney+ goes individually to the Disney System. All other channel selections go to the Partner-Gateway system at whole granularity, or all together.

Additionally, all lines go together to the Emulated Billing system.

5 About the Sample Integration Reference Solution Package
