Project Risk - Cost Overview Dashboard
Description: .
Number of Canvases: 3
Default Canvas: Project Risk Overview
Canvas/Dashboard Name: Project Risk - Cost Overview
Data Source(s): P6 - EPPM
Subject Area: P6 – Activity, P6 - Project History
Datasets: Not applicable
Dashboards

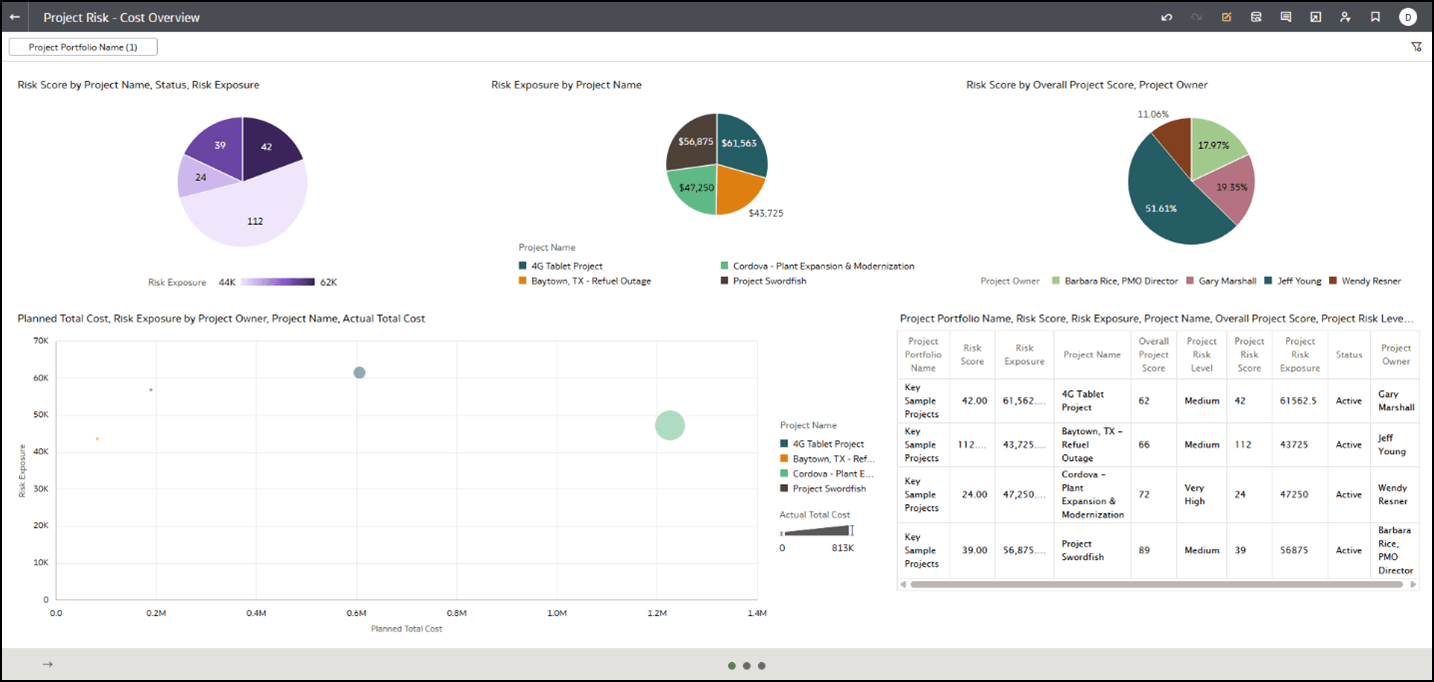

Figure 4-12 Project Risk Overview

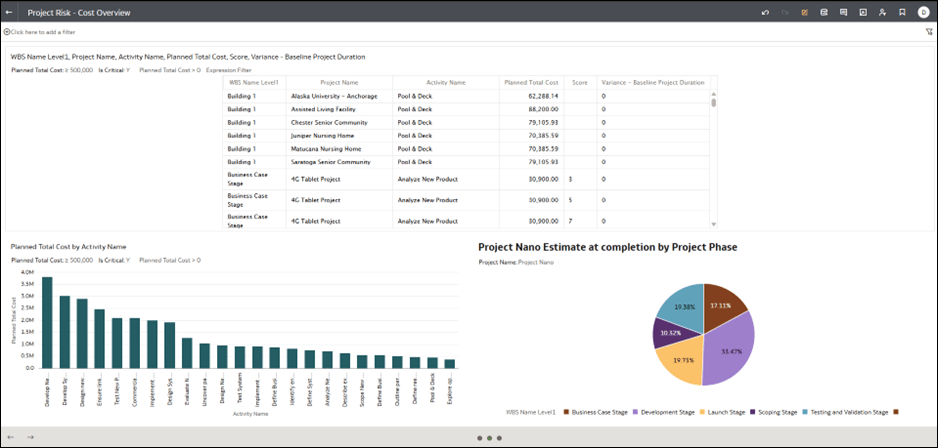

Figure 4-13 Project Risk Overview-Project Nano

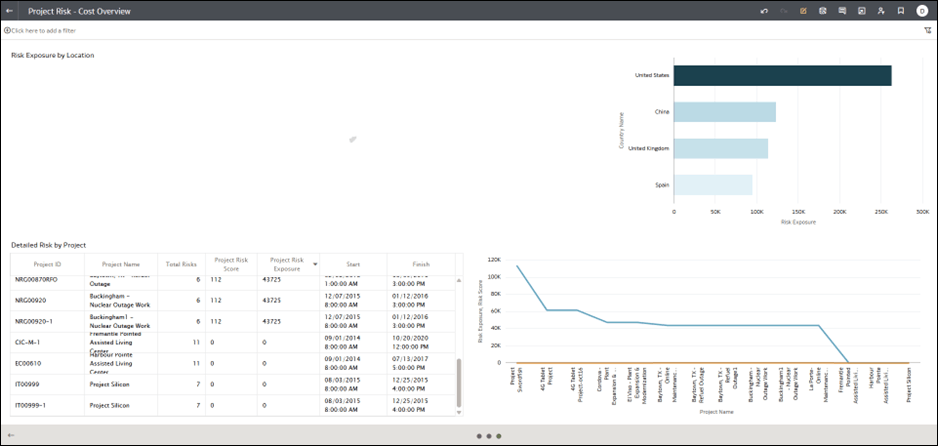

Figure 4-14 Risk Analysis
Table 37: Project Risk - Cost Overview - Dimensions
| Canvas | Dimension / Attribute | Subject Area / Dataset |
|---|---|---|
|
Project Risk Overview Project Nano Risk Analysis |
Project Name |
P6 – Activity P6 - Project History |
| Project Risk Overview | Project Status | P6 - Project History |
| Project Risk Overview | Project Score | P6 - Project History |
| Project Risk Overview | Project Owner | P6 - Project History |
| Project Risk Overview | Portfolio Name | P6 - Project History |
| Project Risk Overview | Project risk Level | P6 - Project History |
|
Project Risk Overview Risk Analysis |
Project Risk Score |
P6 – Activity P6 - Project History |
|
Project Risk Overview Risk Analysis |
Project Risk Exposure |
P6 – Activity P6 - Project History |
| Project Nano | WBS Name Level 1 | P6 – Activity |
| Project Nano | Activity Name | P6 – Activity |
| Project Nano | Risk Score | P6 – Activity |
| Project Nano | Variance-Baseline Project Duration | P6 – Activity |
| Risk Analysis | Country Name | P6 – Activity |
| Risk Analysis | Project ID | P6 – Activity |
| Risk Analysis | Start | P6 – Activity |
| Risk Analysis | Finish | P6 – Activity |
Table 38: Project Risk - Cost Overview - Measures
| Canvas | Fact / Measure | Measure Type | Subject Area / Dataset |
|---|---|---|---|
| Project Risk Overview | Risk Score | Fact | P6 - Project History |
| Project Risk Overview | Risk Exposure | Fact | P6 - Project History |
| Project Risk Overview | Planned Total Cost | Fact | P6 - Project History |
| Project Risk Overview | Actual Total Cost | Fact | P6 - Project History |
| Project Nano | Planned Total Cost | Fact | P6 – Activity |
| Project Nano | Estimate At Completion (Cost) | Fact | P6 – Activity |
| Risk Analysis | Risk Exposure | Calculated from Fact | P6 – Activity |
| Risk Analysis | Total Risks | Calculated from Fact | P6 – Activity |
| Risk Analysis | Risk Score | Calculated from Fact | P6 – Activity |
Table 39: Project Risk - Cost Overview - Filters
| Canvas | Filter Type | Is Expression Filter | Dimension / Attribute / Measure | Subject Area / Dataset |
|---|---|---|---|---|
| Project Risk Overview | Dashboard | No | Portfolio Name | P6 - Project History |
| Project Nano | Visual | No | Planned Total Cost | P6 – Activity |
| Project Nano | Visual | No | Critical | P6 – Activity |
| Project Nano | Visual | Yes | Planned Total Cost | P6 – Activity |
| Project Nano | Visual | No | Project Name | P6 – Activity |
| Risk Analysis | Visual | No | Risk Exposure | P6 – Activity |
| Risk Analysis | Visual | No | Total Risks | P6 – Activity |
Table 40: Project Risk - Cost Overview - Calculated Members
| Calculated Member | Expression | Source | Subject Area / Dataset |
|---|---|---|---|
| Risk Exposure | SUM("Primavera - Activity"."General - (Project)"."Project Risk Exposure") | Derived From Fact | P6 – Activity |
| Total Risks | COUNT(DISTINCT "Primavera - Activity"."Risk"."Risk Id" by "Primavera - Activity"."General - (Project)"."Project ID") | Derived From Fact | P6 – Activity |
| Risk Score | SUM("Primavera - Activity"."General - (Project)"."Project Risk Score") | Derived From Fact | P6 – Activity |
