Install Admin Tool

This page will guide you in installing the Oracle Utilities Analytics Warehouse Admin Tool component.

Note:

All the tasks below need to be followed in sequential order.

Prerequisites

Before installing the OUAW Admin Tool component, verify the following:

  • Ensure Oracle Database Server Enterprise is installed on the database server.

  • Ensure Java 17 is installed on the application servers.

  • Ensure Oracle Fusion Middleware Infrastructure 14.1.2.0 is installed on the application server.

  • Ensure Oracle APEX is downloaded on the application server and database server.

  • Ensure Oracle REST Data source (ORDS) is downloaded on the application server.

See Perform Pre-Installation Steps for OUAW for more information.

Install APEX on the Database Server

This section provides the steps to install Apex 24.2.

Note:

Make sure the same OS user installs all software, and replace all parameters enclosed in <> with actual values.

  1. Navigate to the Apex extracted directory. Example: </u01/ouaw/apex>

  2. Connect to the Oracle Utilities Analytics Warehouse Database with sys user and execute the following commands in order:

    • sqlplus sys/<SYS USER PASSWORD>@<DATABASE SERVICE NAME> as sysdba
    • @apxrtins.sql <Tablespace name> <Tablespace name> <Temp Tablespace name> /i/

      Example: @apxrtins.sql <CISTS_01> <CISTS_01> <TEMP> /i/

    • @apxchpwd.sql

      A sample output for @apxchpwd.sql is shown below. Provide the inputs and store it for future reference.
      SQL> @apxchpwd.sql
...set_appun.sql
================================================================================
This script can be used to change the password of an Application Express instance
administrator.
If the user does not yet exist, a user record will be created.
================================================================================
Enter the administrator's username [ADMIN]
User "ADMIN" does not yet exist and will be created.
Enter ADMIN's email [ADMIN] <admin email id>
Enter ADMIN's password [] Created instance administrator ADMIN.
    • ALTER USER APEX_PUBLIC_USER ACCOUNT UNLOCK;
ALTER USER APEX_PUBLIC_USER IDENTIFIED BY APEX_PUBLIC_USER;

    • @apex_rest_config.sql

      A sample output for @apex_rest_config.sql is shown below. Provide the inputs and store it for future reference.
      SQL> @apex_rest_config.sql
Enter a password for the APEX_LISTENER user          []
Enter a password for the APEX_REST_PUBLIC_USER user          []
...set_appun.sql
...setting session environment
...create APEX_LISTENER and APEX_REST_PUBLIC_USER users SQL>

Note:

Make sure that you save the passwords for APEX_Listener user and APEX_REST_PUBLIC_USER

Configure APEX Workspace for OUAW

On the database server, navigate to the AdminTool directory from the installer zip file (Oracle Utilities Analytics Warehouse V25.10.0.0 Multiplatform.zip), connect to the database with the sys user, and execute the following scripts in order:
  • To connect to the database with the sys user:
    sqlplus sys/<SYS USER PASSWORD>@<DATABASE SERVICE NAME> as sysdba
  • To create a workspace and configure the users:
    @CreateAppWorkspace.sql
  • To import the OUAW application run:
    @DeployAdminApp.sql

Install ORDS on the Application Server

This section provides the steps to install ORDS 25.1.1.

Installing ORDS 25.1.1

  1. Create the configuration and installation log directories on the application server to configure ORDS.

    Example:

    mkdir -p </u01/ouaw/ords_configuration>

    mkdir -p </u01/ouaw/ords_install_log>

  2. Navigate to the ORDS extracted directory on the application server and make sure that the Apex extracted directory is available in the location.

    Example: </u01/ouaw/ords>

  3. To install ords, execute the following commands:
    export JAVA_HOME=</u01/ouaw/java17>
export PATH=$JAVA_HOME/bin:$PATH
/u01/ouaw/ords/bin/ords --config /u01/ouaw/ords_configuration  install --interactive --log-folder /u01/ouaw/ords_install_log

    Note:

    See below an example of the command prompt, in which default options will appear enclosed in square brackets [ ]. Use these options or provide the necessary inputs for your requirement.
    ORDS: Release 25.1 Production on Tue Nov 11 12:17:33 2025

Copyright (c) 2010, 2025, Oracle.

Configuration:
/scratch/ouawcicd/ords_configuration

The configuration folder /scratch/ouawcicd/ords_configuration  does not contain any configuration files.

Oracle REST Data Services - Interactive Install

Enter a number to select the TNS net service name to use from /scratch/ouawcicd/Database_base/Ora_home/network/admin/tnsnames.ora or specify the database connection
[1] OUACICDB     SERVICE_NAME=OUACICDB
[2] OUAW906DB    SERVICE_NAME=OUAW906DB
[S] Specify the database connection
Choose [1]: <target pdb service name>
Provide database username with administrator privileges.
Enter the administrator username: sys
Enter the database password for SYS AS SYSDBA:

Retrieving information.
ORDS is not installed in the database. ORDS installation is required.

Enter a number to update the value or select option A to Accept and Continue
[1] Connection Type: TNS
[2] TNS Connection: TNS_NAME=OUAW906DB TNS_FOLDER=/scratch/ouawcicd/Database_base/Ora_home/network/admin
Administrator User: SYS AS SYSDBA
[3] Database password for ORDS runtime user (ORDS_PUBLIC_USER): <generate>
[4] ORDS runtime user and schema tablespaces:  Default: SYSAUX Temporary TEMP
[5] Additional Feature: Database Actions
[6] Configure and start ORDS in Standalone Mode: Yes
[7] Protocol: HTTP
[8] HTTP Port: 8080
[9] APEX static resources location:
[A] Accept and Continue - Create configuration and Install ORDS in the database
[Q] Quit - Do not proceed. No changes
Choose [A]: 3
Enter your choice for the runtime user password (ORDS_PUBLIC_USER)
[S] Specify your own password
[G] Generate password
[C] Cancel - No Changes
Choose [G]: S
Enter the database password for ORDS_PUBLIC_USER:
Confirm password:
Enter a number to update the value or select option A to Accept and Continue
[1] Connection Type: TNS
[2] TNS Connection: TNS_NAME=OUAW906DB TNS_FOLDER=/scratch/ouawcicd/Database_base/Ora_home/network/admin
Administrator User: SYS AS SYSDBA
[3] Database password for ORDS runtime user (ORDS_PUBLIC_USER): <specified password>
[4] ORDS runtime user and schema tablespaces:  Default: SYSAUX Temporary TEMP
[5] Additional Feature: Database Actions
[6] Configure and start ORDS in Standalone Mode: Yes
[7] Protocol: HTTP
[8] HTTP Port: 8080
[9] APEX static resources location:
[A] Accept and Continue - Create configuration and Install ORDS in the database
[Q] Quit - Do not proceed. No changes
Choose [A]: 6
Enter a number to update the value or select option A to Accept and Continue
[1] Connection Type: TNS
[2] TNS Connection: TNS_NAME=OUAW906DB TNS_FOLDER=/scratch/ouawcicd/Database_base/Ora_home/network/admin
Administrator User: SYS AS SYSDBA
[3] Database password for ORDS runtime user (ORDS_PUBLIC_USER): <specified password>
[4] ORDS runtime user and schema tablespaces:  Default: SYSAUX Temporary TEMP
[5] Additional Feature: Database Actions
[6] Configure and start ORDS in Standalone Mode: No
[A] Accept and Continue - Create configuration and Install ORDS in the database
[Q] Quit - Do not proceed. No changes
Choose [A]:
The setting named: db.connectionType was set to: tns in configuration: default
The setting named: db.tnsAliasName was set to: OUAW906DB in configuration: default
The setting named: db.tnsDirectory was set to: /scratch/ouawcicd/Database_base/Ora_home/network/admin in configuration: default
The setting named: plsql.gateway.mode was set to: proxied in configuration: default
The setting named: db.username was set to: ORDS_PUBLIC_USER in configuration: default
The setting named: db.password was set to: ****** in configuration: default
The setting named: feature.sdw was set to: true in configuration: default
The global setting named: database.api.enabled was set to: true
The setting named: restEnabledSql.active was set to: true in configuration: default
The setting named: security.requestValidationFunction was set to: ords_util.authorize_plsql_gateway in configuration: default
2025-11-11T12:20:06.063Z INFO        Installing Oracle REST Data Services version 25.1.1.r1411642 in OUAW906DB
2025-11-11T12:20:07.418Z INFO        ... Verified database prerequisites
2025-11-11T12:20:07.773Z INFO        ... Created Oracle REST Data Services proxy user
2025-11-11T12:20:08.189Z INFO        ... Created Oracle REST Data Services schema
2025-11-11T12:20:08.744Z INFO        ... Granted privileges to Oracle REST Data Services
22025-11-11T12:20:11.076Z INFO        ... Created Oracle REST Data Services database objects
2025-11-11T12:20:21.818Z INFO        Completed installation for Oracle REST Data Services version 25.1.1.r1411642. Elapsed time: 00:00:15.732

2025-11-11T12:20:21.856Z INFO        Completed configuring PL/SQL gateway user for Oracle REST Data Services version 25.1.1.r1411642. Elapsed time: 00:00:00.37

2025-11-11T12:20:21.858Z INFO        Log file written to /scratch/ouawcicd/ords_install_log/ords_install_2025-11-11_122005_98638.log

  4. Navigate to the ORDS directory. You will find the ords.war.

    Example: cd </u01/ouaw/ords>

  5. To create i.war, complete these steps.

    1. Create a directory which is the source for your web archive. In that directory, create a WEB-INF directory with the following web.xml and weblogic.xml.
      mkdir -p /u01/ouaw/temp/WEB-INF
    2. Create web.xml and weblogic.xml inside WEB-INF folder.
      cd /u01/ouaw/temp/WEB-INF
      web.xml
      <?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE web-app PUBLIC
"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/j2ee/dtds/web-app_2_3.dtd">

<web-app>
<!-- This Web-App leverages the alternate doc-root functionality in WebLogic to serve static content
For WebLogic refer to the weblogic.xml file in this folder
-->
</web-app>
      weblogic.xml
      <weblogic-web-app xmlns="http://www.bea.com/ns/weblogic/weblogic-web-app">

<!-- This element specifies the context path the static resources are served from -->
<context-root>/i</context-root>

<virtual-directory-mapping>
    <!-- This element specifies the location on disk where the static resources are located -->
    <local-path>/scratch/apex/apex_21.2_en/images</local-path>
    <url-pattern>/*</url-pattern>
</virtual-directory-mapping>

</weblogic-web-app>

      Note:

      <local-path> is the path of apex image folder.
    3. To create i.war with the web.xml and weblogic.xml files, execute the following command:
      export JAVA_HOME=</u01/ouaw/java17>
export PATH=$JAVA_HOME/bin:$PATH

jar cMf i.war WEB-INF/web.xml WEB-INF/weblogic.xml

    Note:

    For more information, refer to Deploying Oracle REST Data Services.

Create the Apex Domain

This section describes how to create the apex domain. The apex domain is configured on the application server using the ords.war and i.war files generated in the previous procedure.

  1. Navigate to the following directory: <FMW 14c HOME>/oracle_common/common/bin.

  2. Add JAVA_HOME/bin to the PATH variable.
    export JAVA_HOME=<JAVA HOME PATH>
export PATH=$JAVA_HOME/bin:$PATH
  3. Execute the following command to launch the Oracle Fusion Middleware Configuration Wizard for <apex_domain> configuration:
    ./config.sh

  4. On the Create Domain screen, select Create a new domain, and click Next.

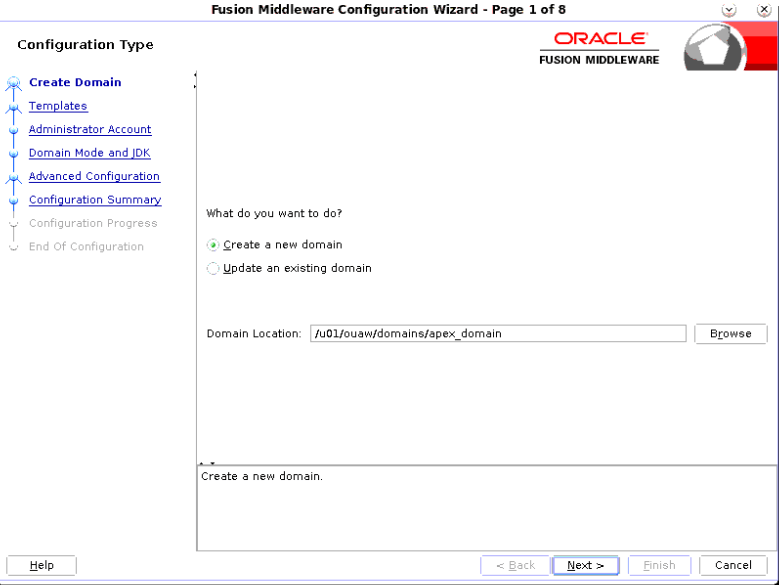

    Create Domain screen gives the user an option for creating a new domain, and another one for updating an existing one. Below the options list, there's a field to define the domain location.

    Field Name and Description Value
    Domain Location: Enter the location where the apex_domain can be created. Example: </u01/ouaw/domains/apex_domain>

  5. On the Templates page, below the Available Templates list, select Basic WebLogic Server Domain and click Next.

    Templates screen showing the list of available templates.There's a text field for filtering results.

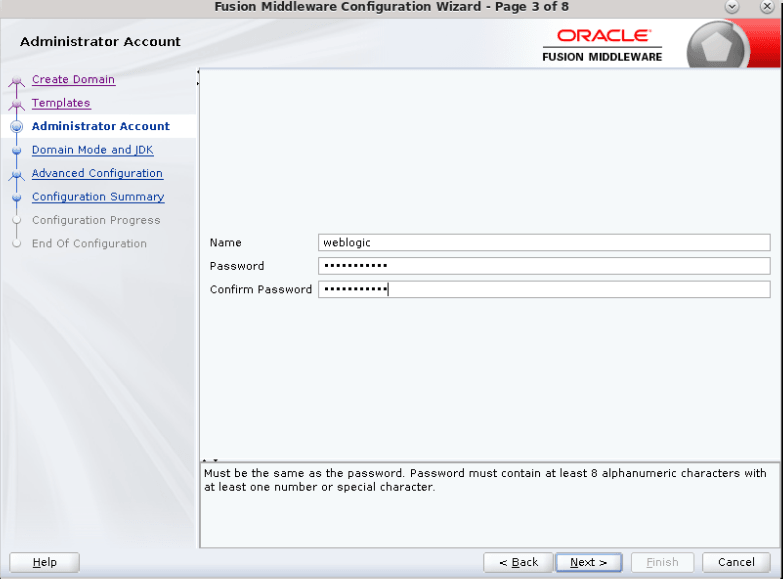

  6. On the Administrator Account page, enter the following values and click Next.

    Administrator Account screen, where the user is to enter his user name, and set a password.

    Field Name and Description Value
    Name: Enter the user name. weblogic
    Password: Enter the WebLogic user password. <weblogic user password>
    Confirm Password: Enter the same WebLogic user password as above. <weblogic user password>

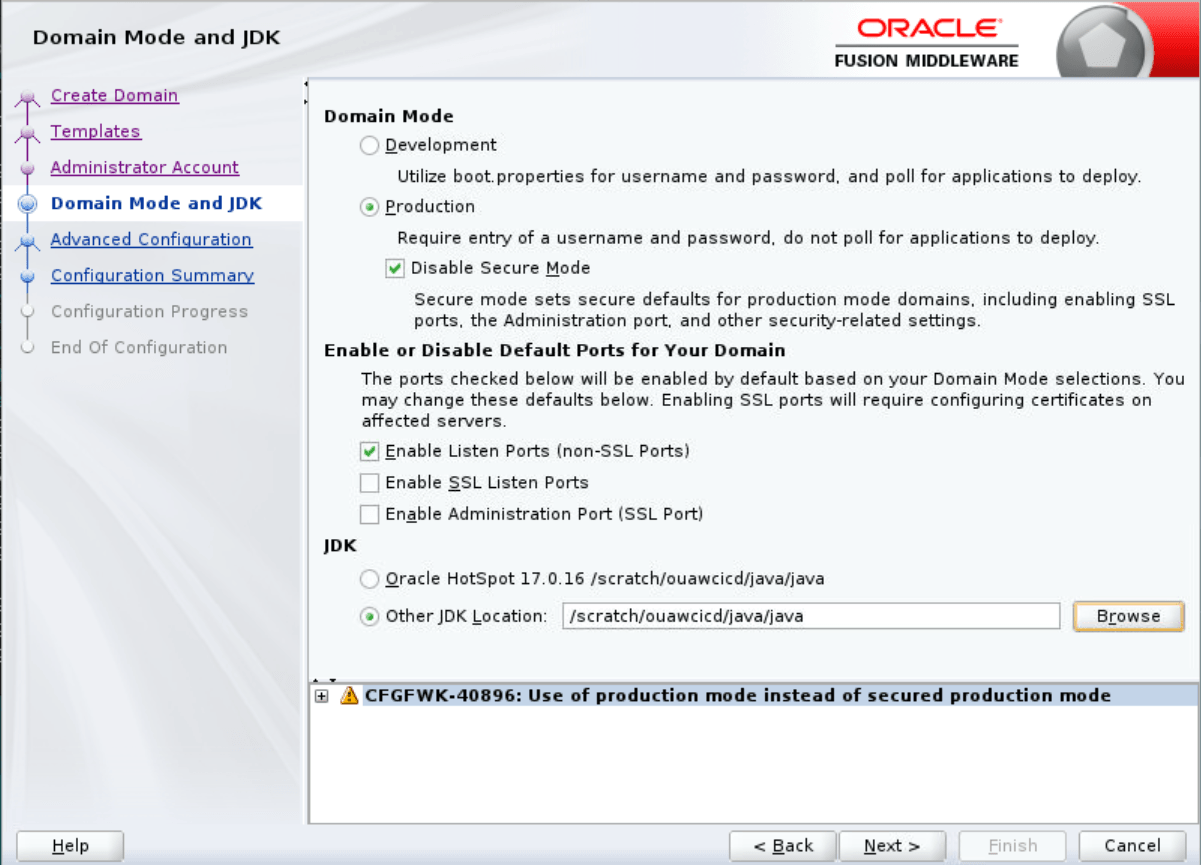

  7. On the Domain Mode and JDK page, select the options as per your requirement, and click Next. The image below shows the option to configure NON SSL Domain.


    Select Production option under Domain Mode, and Other JDK Location under JDK.

    Field Name and Description Value
    Domain Mode: Select the appropriate domain mode. Production mode
    Disable Secure Mode: Check as per your requirement
    Enable or Disable Default Ports for Your Domain: Check as per your requirement
    JDK: Select the JDK location using a browser. Example: <JAVA HOME>

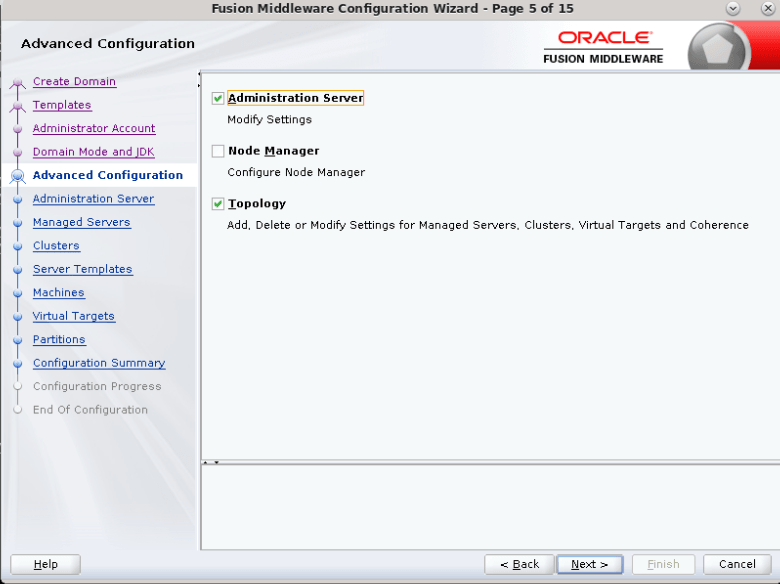

  8. On the Advanced Configuration page, select Administration Server and Topology.

    Advanced Configuration screen shows three options with their respective checkboxes.

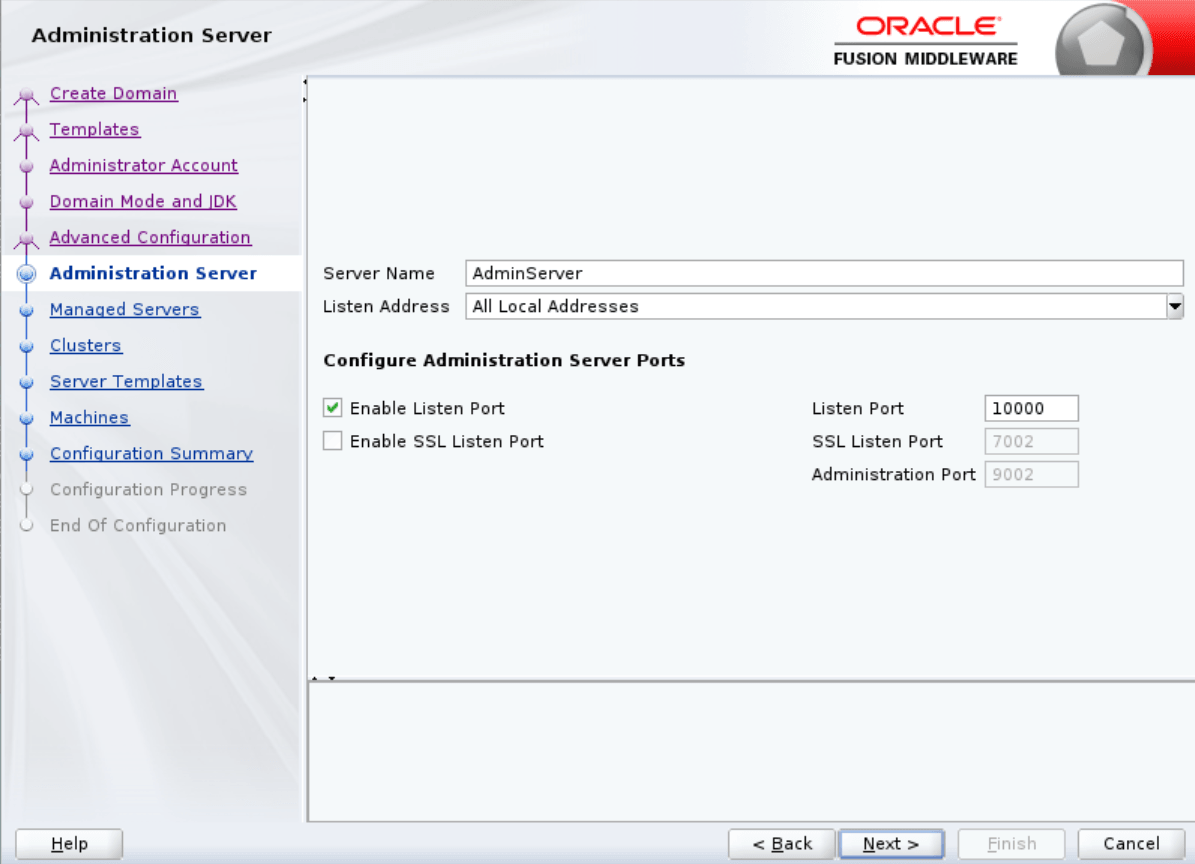

  9. On the Administration Server page, enter the values as in the table below, and click Next.


    Administration Server screen shows the three fields to be populated by the user in accordance with the table.x

    Field Name and Description Value
    Server Name: Enter the Admin server name. AdminServer
    Listen Address: Enter the listen address. All local addresses
    Enable Listen Port: For NON-SSL Select the checkbox as per your requirement
    Enable SSL Listen Port: For SSL Select the checkbox as per your requirement
    Listen Port: Enter the listen port number.

    Example: <12000>

    NON-SSL Port
    SSL Listen Port: Enter the SSL listen port number. For SSL Domain

  10. On the Managed Servers page, enter the following values to add a managed server. Click Next.

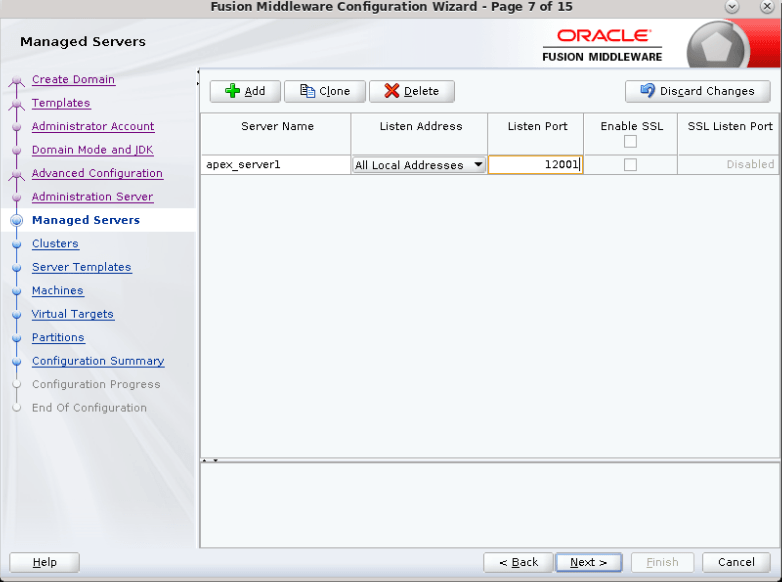

    Managed Servers screen displays a five column table containing the name, the listen address, and the listen port; the fourth column has a checkbox for enabling SSL, and the fifth column shows the SSL Listen Port status.

    Field Name and Description Value
    Server Name: Enter the managed server name. Example: <apex_server1>
    Listen Address: Enter the listen address. All local addresses.
    Listen Port: Enter the listen port number. Example: <12001>

  11. Click Next on the Clusters, Server Templates, Machines, Virtual Targets and Partitions pages respectively. There is nothing to add or change to these pages.

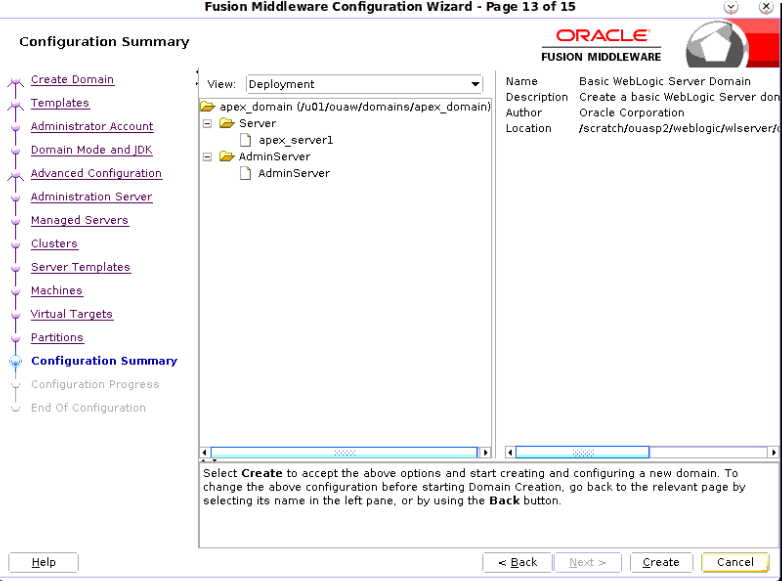

  12. On the Configuration Summary page, click Create .

    Configuration Summary screen displays details on the configuration, such as the folder structures.

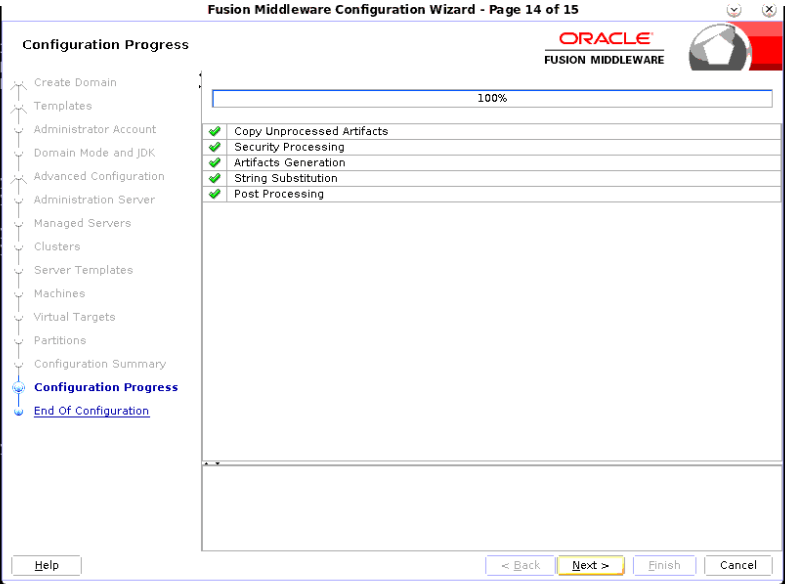

  13. On the Configuration Progress page, wait until the progress bar is 100% complete and then click Next.

    This screen shows the configuration's progress percentage.

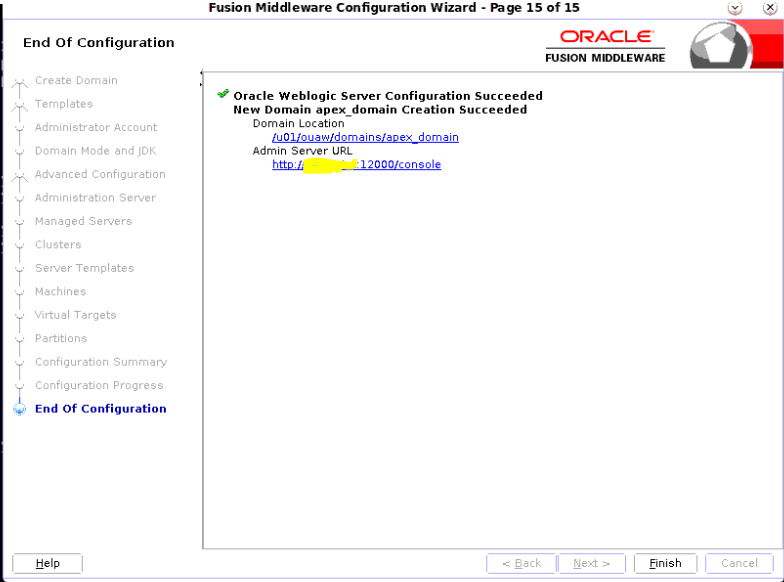

  14. On the End Of Configuration page, you will find the domain path and the administration server URL that will be used in the following steps. Click Finish.

    This screen shows the configuration status, the domain location, and the administration server URL.

Start the Apex Domain

  1. Navigate to the appropriate <apex_domain>.

    Example: cd <apex_domain>

  2. Create the boot.properties file under the AdminServer and Managed Server '<APEX DOMAIN>/servers' location.
    mkdir -p AdminServer/security
mkdir -p apex_server1/security
  3. Enter the following lines to boot.properties:
    username=weblogic
password=weblogic123
  4. Start the administration server and managed server apex_server1.
    cd <APEX DOMAIN>/bin
nohup ./startWebLogic.sh > adminserver.log 2>&1 &
nohup ./startManagedWebLogic.sh apex_server1 > apex_server1.log 2>&1 &

Install the ords.war and i.war Files

Installing ords.war and i.war in WebLogic 14c

Note:

To access the WebLogic 14c admin console, you need to install the WebLogic Remote Console in your system. Refer to WebLogic Remote Console for more information.

  1. Log in to the <apex domain> WebLogic administration console.

    This is the WebLogic administration console.

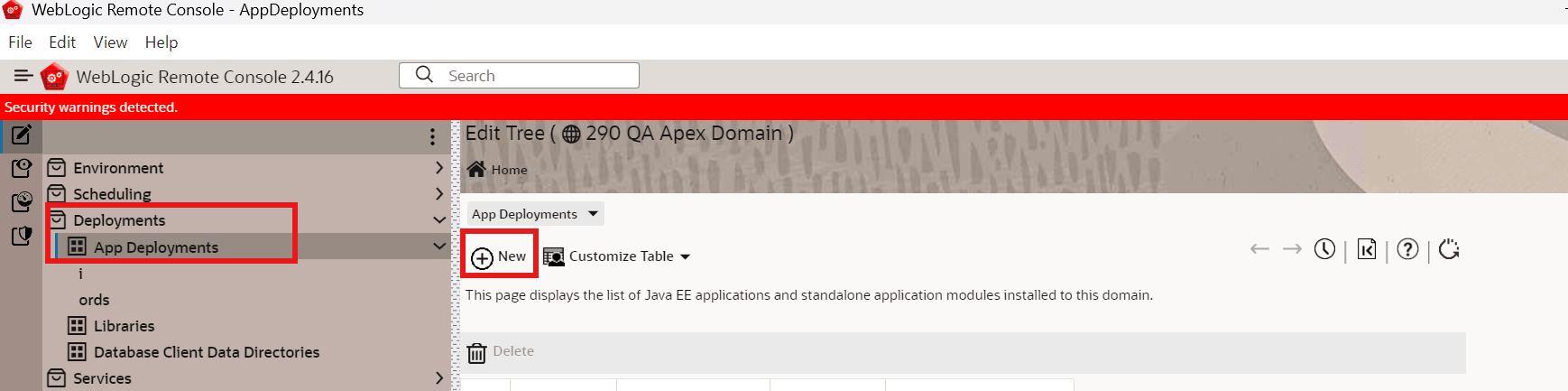

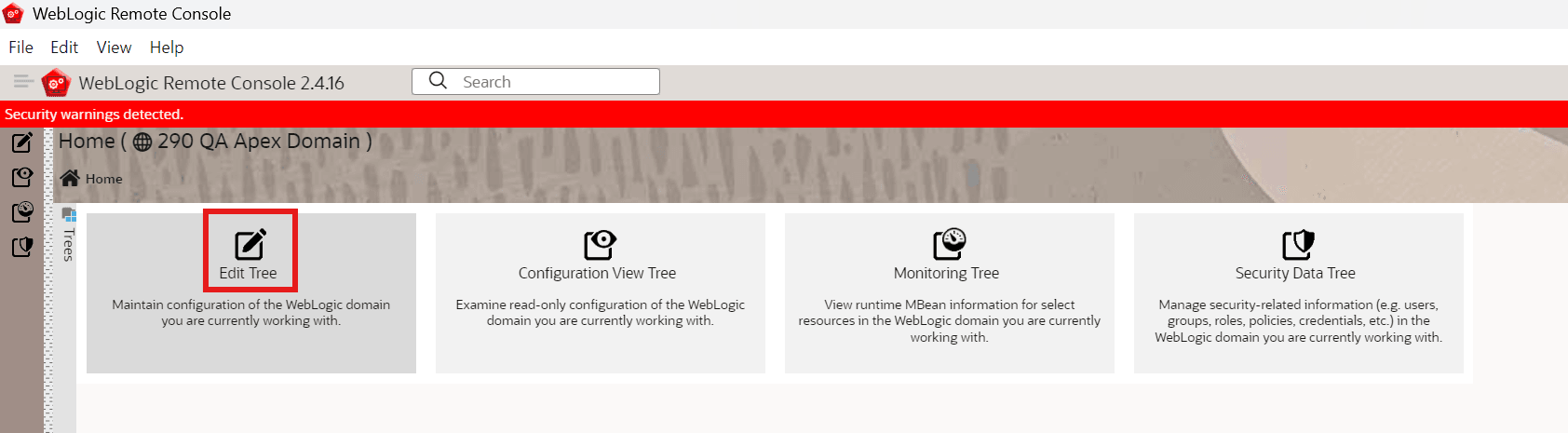

  2. Navigate to Edit Tree > Deployments > App Deployments > New.

    This allows you to maintain the configuration of the WebLogic domain you are currently working with.

    This allows you to create a Java EE application or standalone application module that will be installed in the domain you are currently working with.

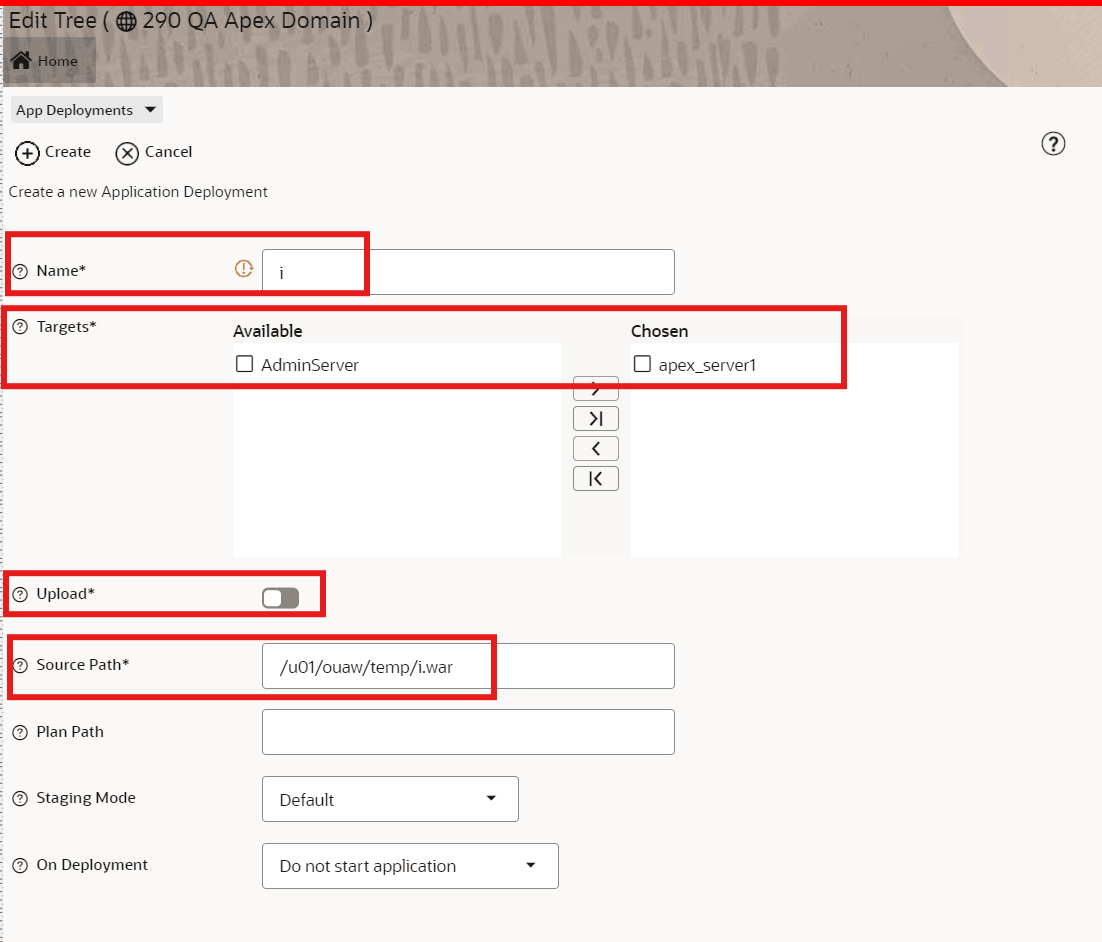

  3. Enter the appropriate values for Name (Example: i), Targets (Example: Apex Managed Server apex_server1), and Source Path (Example: full path of the i.war file location).

    This populates the general information of the application deployment.

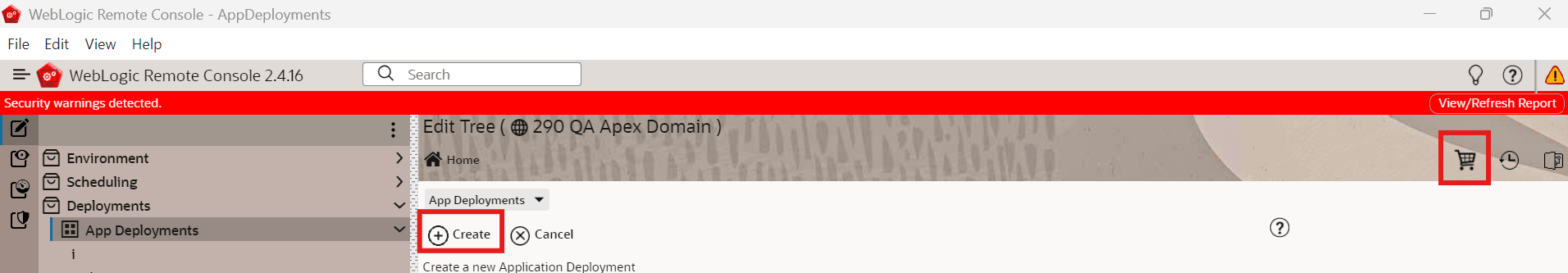

  4. Click Create and Save then the Commit Changes (img/ouaw-weblogic-remote-console-commit.png) button.

    This creates and saves your new application deployment.

  5. Repeat steps 2 to 4 to deploy the ords.war file.

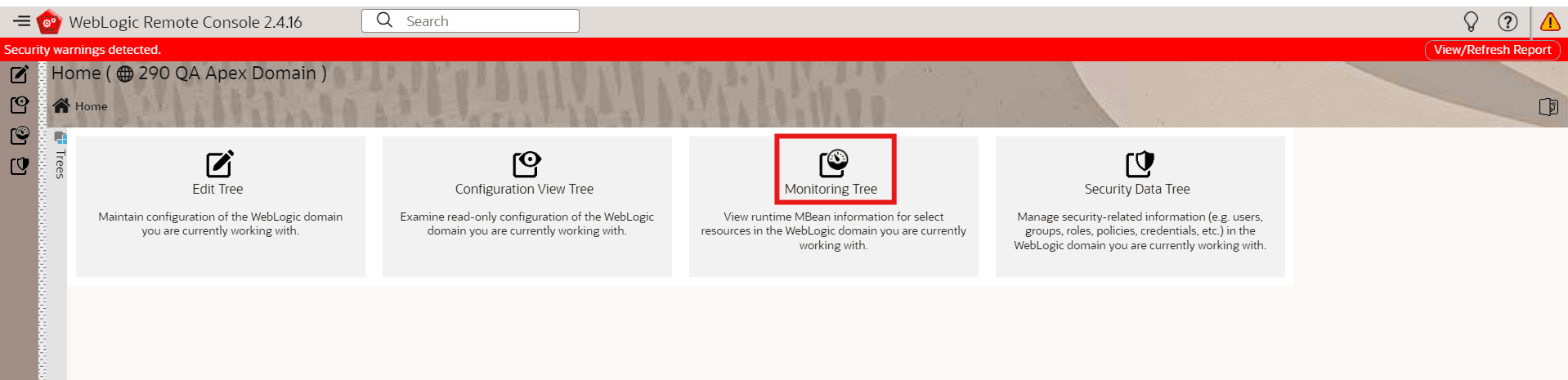

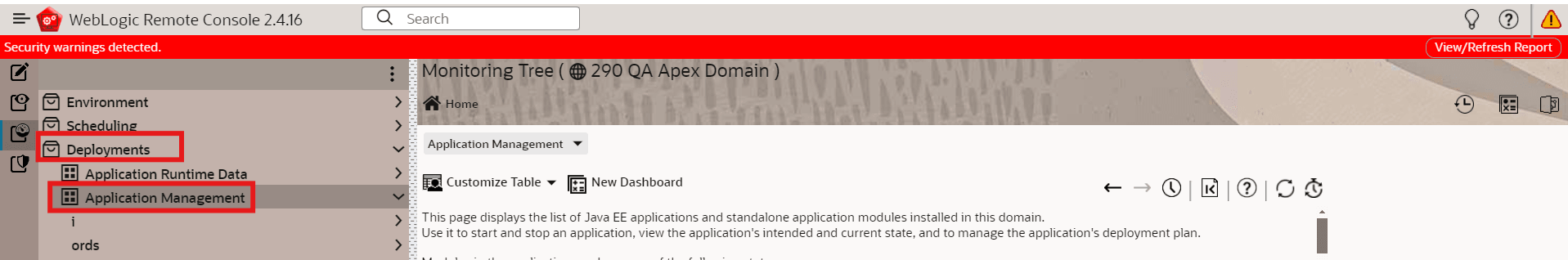

  6. Navigate to Monitoring Tree > Deployments > Application Management.

    This enables you to view runtime MBean information for select resources in the WebLogic domain you are currently working with.

    This enables you to view runtime MBean information for select resources in the WebLogic domain you are currently working with.

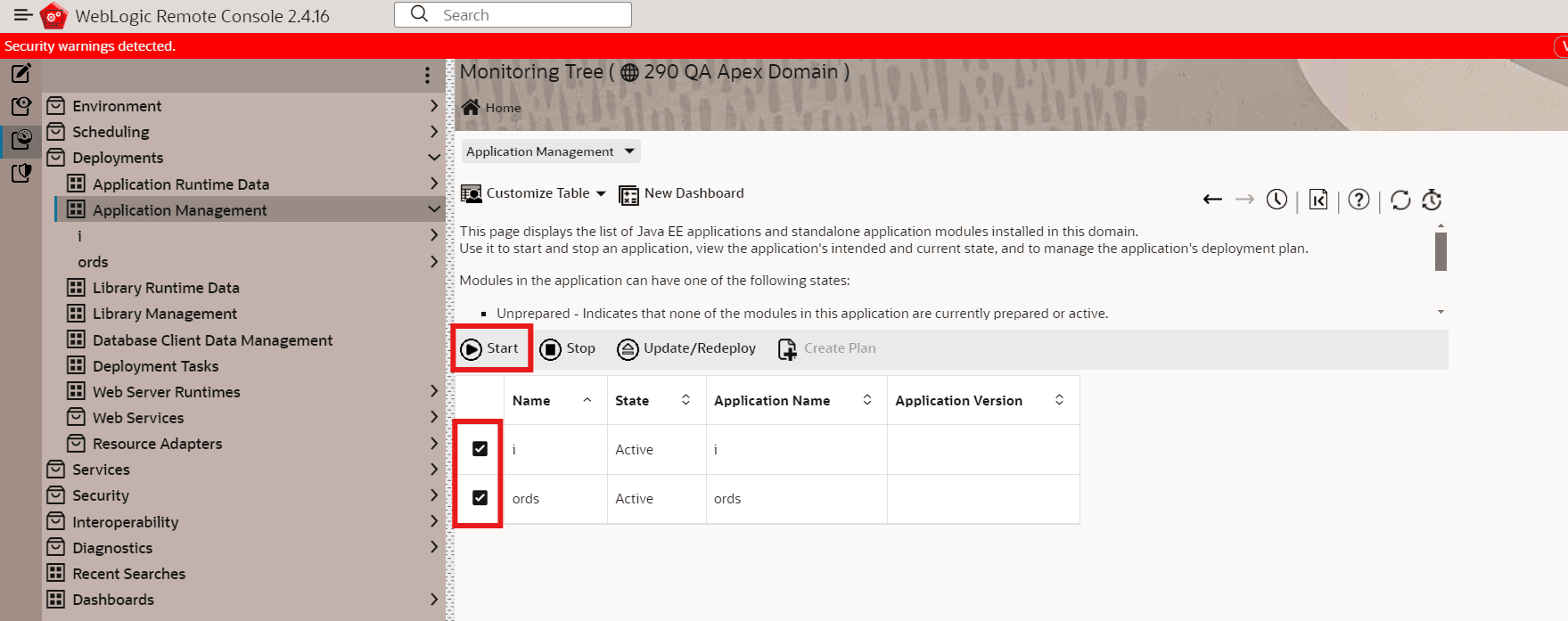

  7. Select the i and ords checkboxes then click Start > Servicing All Requests.

    This allows you to select and monitor the app deployment in the WebLogic domain you are currently working with.

  8. Stop the Apex administration and managed servers.

  9. Add this parameter to the end of setDomainEnv.sh, which is in the Apex Domain/bin folder.
    JAVA_OPTIONS="${JAVA_OPTIONS} -Dconfig.url=/u01/ouaw/ords_configuration"

    Note:

    Dconfig.url is the path of ords configuration folder.

  10. Restart the Apex administration and managed servers.

Access the AdminTool

  1. Access the AdminTool from the following URL: http://<hostname>:<apex_server1_port>/ords/f?p=104

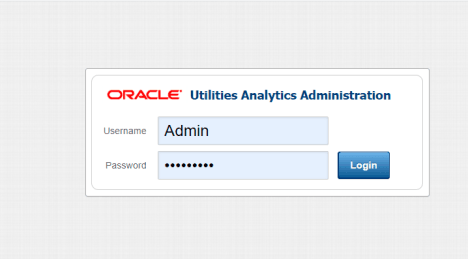

  2. Provide the following credentials to access the Admin Tool.

    Username: Admin

    Password: Admin_123

    Oracle Analytics Administration login screen.

    Note:

    After logging in to the application for the first time, you will be asked to change your password.

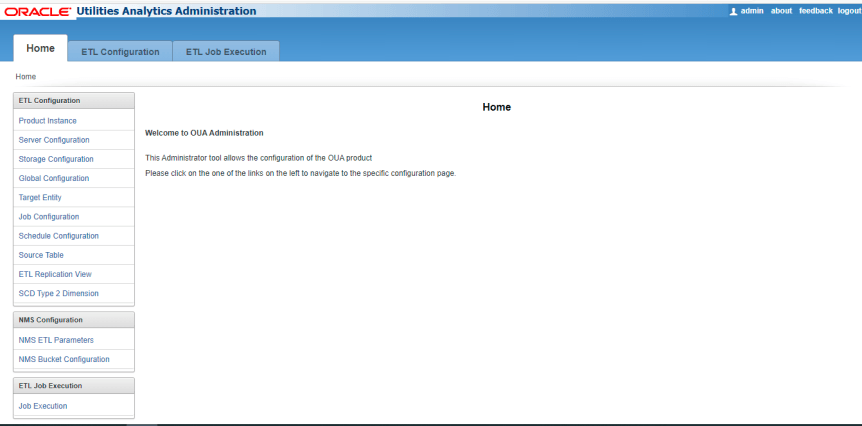

  3. After logging in, you can get the following Admin Tool access to ETL Configuration and ETL Job Execution.

    Oracle Utilities Analytics Administration Home tab. Find the mentioned sections in the left-hand pane.

Change Default Password of the Admin User

This section describes the APEX API used to change the password of the admin user. This script should be run after connecting to the database as user SYSTEM. Replace the string 'New password' below with the new password for the admin account before running the script.
begin

wwv_flow_api.set_security_group_id(p_security_group_id=>nvl(wwv_flow_application_install.get_workspace_id,2090606133849294));end;
/
begin
apex_util.edit_user(
p_user_id => '1467765078687596',
p_user_name => 'ADMIN',
p_web_password => 'New password',
p_new_password => 'New password'
);
end;
/
commit;
/

Note:

It is strongly recommended that you change the default password after logging in.
