Verify Domain Structures
Important! Please note that the screenshots/UI may differ from Oracle SOA 12c to 14c.
Verify the following domain structures:
JMS Server
Verify CCB2-MDM2JMS server - CCB2MDM2JS
In the Administration console, under the Domain Structure, expand the Services (click the + sign next to it), expand the Messaging (click the + sign next to it), and then click JMS Servers.
File Store
Verify CCB2-MDM2FileStore - CCB2MDM2FS

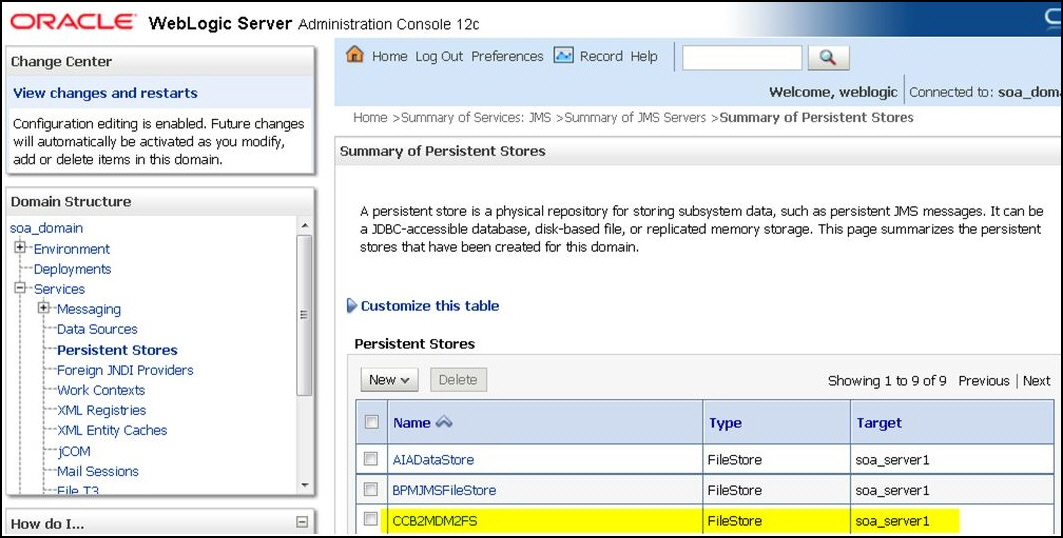

In the Administration console, under the Domain Structure, expand the Services (click the + sign next to it), and then click Persistent Store.
Verify that the JMSFileStorePath is correct and the directory has ‘write’ permissions.
JMS Module
Verify CCB2-MDM2 JMS Module - CCB2MDM2JM

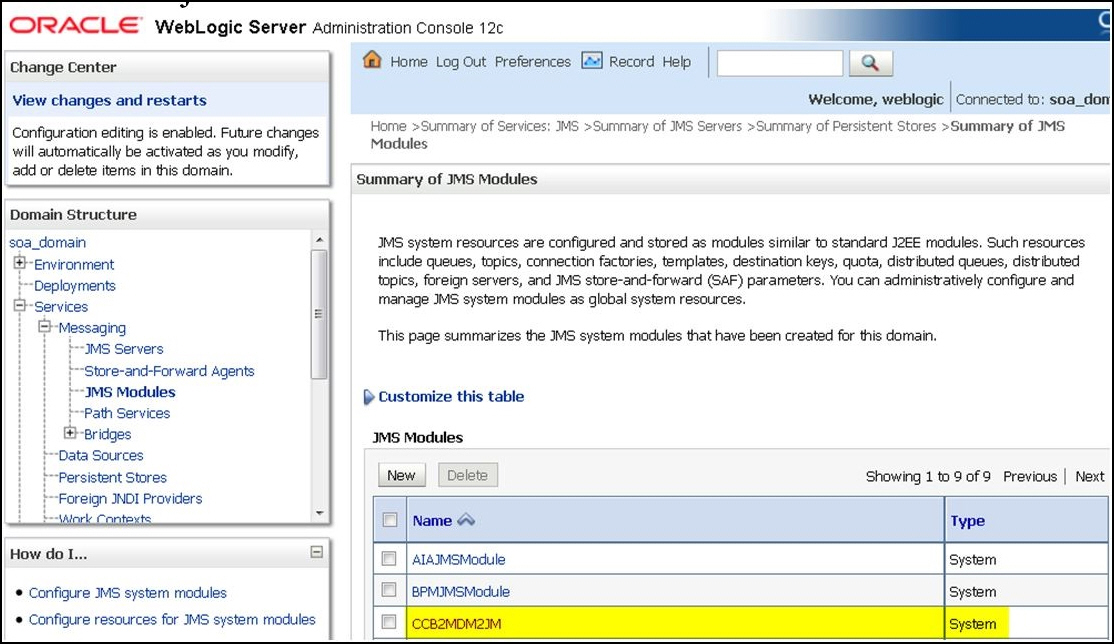

In the Administration console, under the Domain Structure, expand the Services (by clicking the + sign next to it), expand the Messaging (by clicking the + sign next to it), and then click JMS Modules.
Sub Deployment
Verify CCB2-MDM2 SubDeployment - CCB2MDM2SD

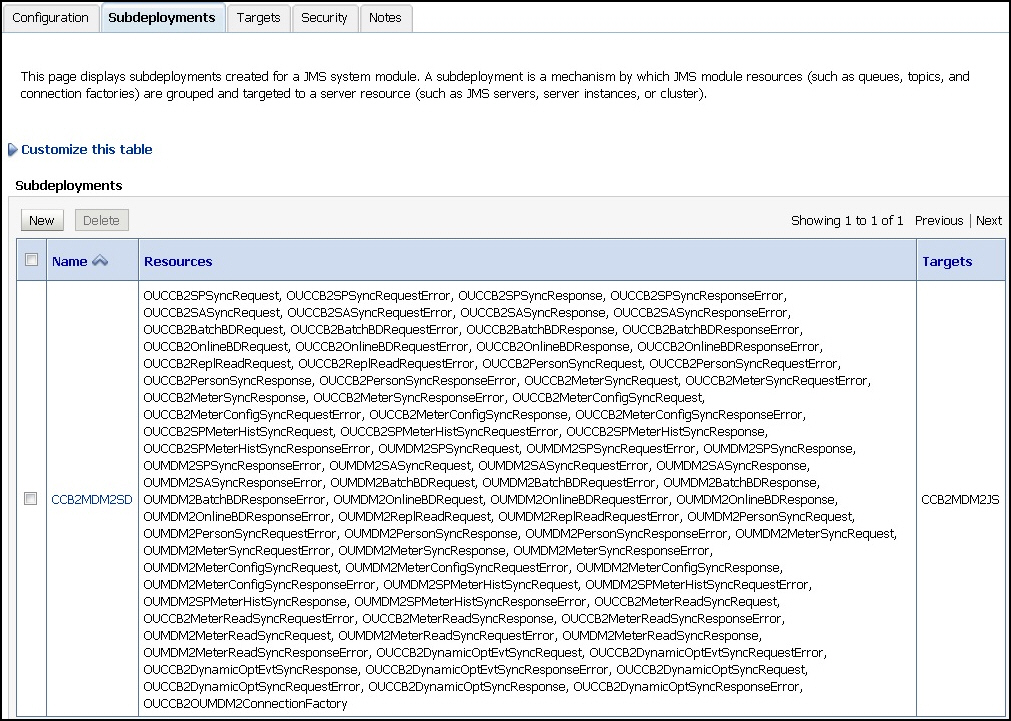

In the Administration console, under the Domain Structure, expand the Services (click the + sign next to it), expand the Messaging (click the + sign next to it), and then click JMS Modules. Select the CCB2MDM2JM JMS module and click on the Subdeployments tab.
JMS Adapter Outbound Connection Pool
Verify eis/wls/[edge application]Queues

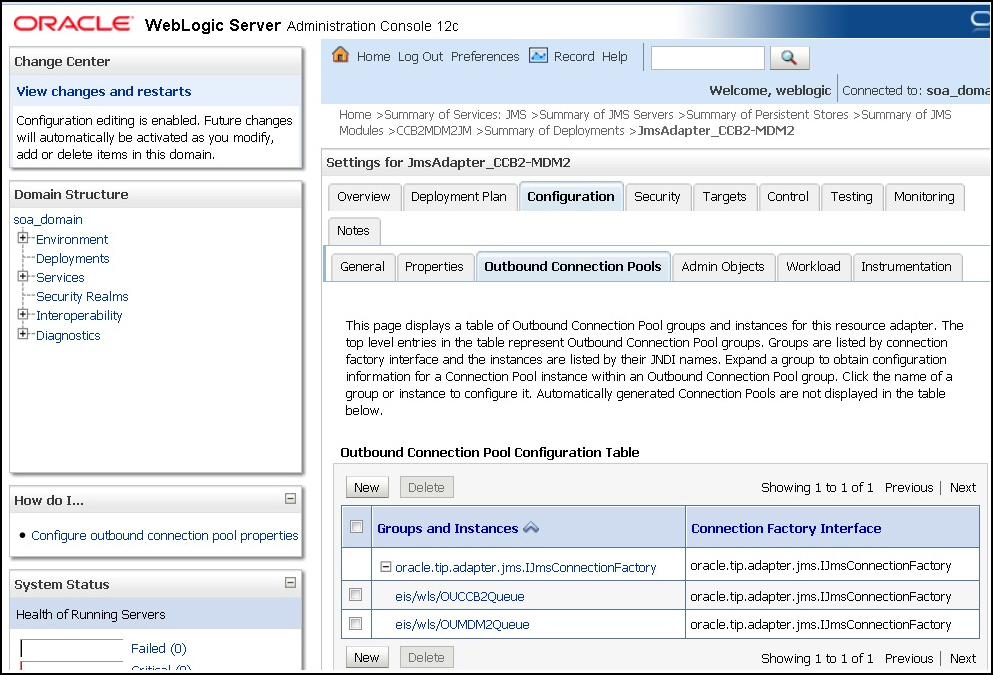

In the Administration console, under the Domain Structure, expand the Deployments (by clicking the + sign next to it) and find the .rar file name with JmsAdapter_CCB2-MDM2. Click on it and click on the Configuration tab and in that, click on the Outbound Connection Pools tab.
Expand “oracle.tip.adapter.jms.IJmsConnectionFactory”. There should be 2 connection pool instances deployed:
• “eis/wls/OUCCB2Queue”
• “eis/wls/OUMDM2Queue”
JMS Connection Factory and JMS Queues
Verify OUCCB2MDM2ConnectionFactory and JMS Queues List
In the Administration console, under the Domain Structure, expand the Services (click the + sign next to it), and then expand the Messaging (click the + sign next to it), and then click JMS Modules. Select the CCB2MDM2JM JMS module
Request/Response Queues
Verify that all the listed queues along with the ConnectionFactory are created as part of the installation:
• Connection Factory: OUCCB2MDM2ConnectionFactory
• Queues:
Module | Request/Response Queues | Corresponding Error Queues |
|---|---|---|
CCB Service Point Sync | OUCCB2SPSyncRequest OUCCB2SPSyncResponse | OUCCB2SPSyncRequestError OUCCB2SPSyncResponseError |
CCB Service Agreement Sync | OUCCB2SASyncRequest OUCCB2SASyncResponse | OUCCB2SASyncRequestError OUCCB2SASyncResponseError |
CCB Batch Billing Determinants | OUCCB2BatchBDRequest OUCCB2BatchBDResponse | OUCCB2BatchBDRequestError OUCCB2BatchBDResponseError |
CCB Online Billing Determinants | OUCCB2OnlineBDRequest OUCCB2OnlineBDResponse | OUCCB2OnlineBDRequestError OUCCB2OnlineBDResponseError |
CCB Replacement Reads Notification | OUCCB2ReplReadRequest | OUCCB2ReplReadRequestError |
CCB Person Information Sync | OUCCB2PersonSyncRequest OUCCB2PersonSyncResponse | OUCCB2PersonSyncRequestError OUCCB2PersonSyncResponseError |
CCB Meter Information Sync | OUCCB2MeterSyncRequest OUCCB2MeterSyncResponse | OUCCB2MeterSyncRequestError OUCCB2MeterSyncResponseError |
CCB Meter Configuration Information Sync | OUCCB2MeterConfigSyncRequest OUCCB2MeterConfigSyncResponse | OUCCB2MeterConfigSyncRequestError OUCCB2MeterConfigSyncResponseError |
CCB Service Point – Meter History Information Sync | OUCCB2SPMeterHistSyncRequest OUCCB2SPMeterHistSyncResponse | OUCCB2SPMeterHistSyncRequestError OUCCB2SPMeterHistSyncResponseError |
MDM Service Point Sync | OUMDM2SPSyncRequest OUMDM2SPSyncResponse | OUMDM2SPSyncRequestError OUMDM2SPSyncResponseError |
MDM Service Agreement Sync | OUMDM2SASyncRequest OUMDM2SASyncResponse | OUMDM2SASyncRequestError OUMDM2SASyncResponseError |
MDM Batch Billing Determinants | OUMDM2BatchBDRequest OUMDM2BatchBDResponse | OUMDM2BatchBDRequestError OUMDM2BatchBDResponseError |
MDM Online Billing Determinants | OUMDM2OnlineBDRequest OUMDM2OnlineBDResponse | OUMDM2OnlineBDRequestError OUMDM2OnlineBDResponseError |
MDM Replacement Reads Notification | OUMDM2ReplReadRequest | OUMDM2ReplReadRequestError |
MDM Person Information Sync | OUMDM2PersonSyncRequest OUMDM2PersonSyncResponse | OUMDM2PersonSyncRequestError OUMDM2PersonSyncResponseError |
MDM Meter Information Sync | OUMDM2MeterSyncRequest OUMDM2MeterSyncResponse | OUMDM2MeterSyncRequestError OUMDM2MeterSyncResponseError |
MDM Meter Configuration Information Sync | OUMDM2MeterConfigSyncRequest OUMDM2MeterConfigSyncResponse | OUMDM2MeterConfigSyncRequestError OUMDM2MeterConfigSyncResponseError |
MDM Service Point – Meter History Information Sync | OUMDM2SPMeterHistSyncRequest OUMDM2SPMeterHistSyncResponse | OUMDM2SPMeterHistSyncRequestError OUMDM2SPMeterHistSyncResponseError |
CCB Meter Read Sync | OUCCB2MeterReadSyncRequest OUCCB2MeterReadSyncResponse | OUCCB2MeterReadSyncRequestError OUCCB2MeterReadSyncResponseError |
MDM Meter Read Sync | OUMDM2MeterReadSyncRequest OUMDM2MeterReadSyncResponse | OUMDM2MeterReadSyncRequestError OUMDM2MeterReadSyncResponseError |
CCB Dynamic Option Event | OUCCB2DynamicOptEvtSyncRequest OUCCB2DynamicOptEvtSyncResponse | OUCCB2DynamicOptEvtSyncRequestError OUCCB2DynamicOptEvtSyncResponseError |
CCB Dynamic Option Sync | OUCCB2DynamicOptSyncRequest OUCCB2DynamicOptSyncResponse | OUCCB2DynamicOptSyncRequestError OUCCB2DynamicOptSyncResponseError |
MDM Dynamic Option Event | OUMDM2DynamicOptEvtSyncRequest OUMDM2DynamicOptEvtSyncResponse | OUMDM2DynamicOptEvtSyncRequestError OUMDM2DynamicOptEvtSyncResponseError |
MDM Dynamic Option Sync | OUMDM2DynamicOptSyncRequest OUMDM2DynamicOptSyncResponse | OUMDM2DynamicOptSyncRequestError OUMDM2DynamicOptSyncResponseError |
CCB Bill Cycle Sync for MDM V2.1.0.3 | OUCCB2BillCycleSyncRequest OUCCB2BillCycleSyncResponse | OUCCB2BillCycleSyncRequestError OUCCB2BillCycleSyncResponseError |
MDM Bill Cycle Sync for MDM V2.1.0.3 | OUMDM2BillCycleSyncRequest OUMDM2BillCycleSyncResponse | OUMDM2BillCycleSyncRequestError OUMDM2BillCycleSyncResponseError |
CCB Bill Cycle Sync for MDM V2.2.x | OUCCB2BillCycleSyncRequestV2 OUCCB2BillCycleSyncResponseV2 | OUCCB2BillCycleSyncRequestErrorV2 OUCCB2BillCycleSyncResponseErrorV2 |
MDM Bill Cycle Sync for MDM V2.2.x | OUMDM2BillCycleSyncRequestV2 OUMDM2BillCycleSyncRequestErrorV2 | OUMDM2BillCycleSyncResponseV2 OUMDM2BillCycleSyncResponseErrorV2 |
Note: If JMSMODULENAME!JMSQUEUENAME does not exist in the rows of the Destinations table, it means there are problems with the installation.
If some of the composites or artifacts mentioned in the document are not available in the integration environment, ensure that all the relevant functional patches are applied in the integration environment.
JDBC Configurations
To verify the JDBC configuration, follow these steps:
1. Navigate to Home > Deployments.
2. Verify that DbAdapter_CCB2-MDM2.rar is deployed, and is in Active state.
3. Verify the eis/DB/CCB2-MDM2ErrorHandling connection factory details to ensure the connection-factory location matches with that defined in the JCA files. Follow these steps:
a. Click DbAdapter_CCB2-MDM2 on the Deployments table.
b. On the Configuration tab, click Outbound Connection Pools.
c. Expand javax.resource.cci.ConnectionFactory to check the eis/DB/CCB2-MDM2ErrorHandling connection factory instance.
4. Ensure the database details are as required:
a. On the left pane, navigate to Services > Data Sources.
b. Click the CCB2-MDM2EHDS data source to check the JNDI Name: jdbc/CCB2-MDM2EHDS.
5. Click Connection Pool to check the URL and properties.
6. Click Monitoring, click Testing, select the target server, and then click Test Data Source. Verify that the data source has been configured successfully.
