Integration Overview

The Oracle Utilities Work and Asset Cloud Service Integration to Oracle Field Service supports the Oracle Utilities Work and Asset Cloud Service (WACS) work activities in the field using Oracle Field Service (OFS).

A work activity can:

• Be created and planned in Oracle Utilities Work and Asset Cloud Service.

• Be scheduled in Oracle Field Service.

• Have the work in the field recorded in Oracle Field Service.

• Be completed in Oracle Utilities Work and Asset Cloud Service based on the details entered in the field.

This section provides an overview of the following:

• WACS and WAM

• End-to-End Integration

• Field Work Functions

• Functional Integration Flows

• Additional Work Integration Flows

• Truck Storeroom Integration Flows

• Supporting Integration Flow

WACS and WAM

The Oracle Utilities Work and Asset Cloud Service integration to Oracle Field Service can be used both for cloud and on-premises deployments either between:

• Oracle Utilities Work and Asset Cloud Service and Oracle Field Service; or

• Oracle Utilities Work and Asset Management and Oracle Field Service

Important! In this document, references to the integration with Oracle Utilities Work and Asset Cloud Service also apply to the integration with Oracle Utilities Work and Asset Management.

End-to-End Integration

The integration provides end-to-end integration processes that involve functionality in the following applications:

• Oracle Integration Cloud

• Oracle Utilities Work and Asset Cloud Service

• Oracle Field Service

Oracle Integration Cloud

Oracle Integration Cloud manages the integration flows between Oracle Utilities Work and Asset Cloud Service or Oracle Utilities Work and Asset Management and Oracle Field Service:

• Transforming and transporting data

• Handling errors that occur within the integration layer

Oracle Utilities Work and Asset Cloud Service

Outbound messages in Oracle Utilities Work and Asset Cloud Service are used to pass data from Oracle Utilities Work and Asset Cloud Service to Oracle Field Service via Oracle Integration Cloud. The outbound message types that are used for creating, updating, and cancelling activities are recorded in the Oracle Utilities Work and Asset Cloud Service Activity Type.

Inbound web services are used in Oracle Utilities Work and Asset Cloud Service to receive data passed from Oracle Field Service via Oracle Integration Cloud. The inbound web service used for this integration has the Work Order Activity Integration web service category.

Oracle Field Service

An accelerator in Oracle Field Service supports Oracle Utilities Work and Asset Cloud Service related field work functions.

Field Work Functions

The integration supports both Oracle Utilities Work and Asset Cloud Service work activities and Oracle Utilities Work and Asset Cloud Service construction work activities.

For construction work activities, the field work details for both installation and removal compatible units can be recorded in Oracle Field Service using the accelerator.

For standard, non-construction, work activities the accelerator allows field work details to be recorded in Oracle Field Service for the following:

• Installation, removal and replacement of assets

• Attachment and removal of components

• Use of stock items

In addition, the following can be created in Oracle Field Service using the accelerator:

• Service histories

• Measurements

• Timesheets

• Equipment and miscellaneous resource usage

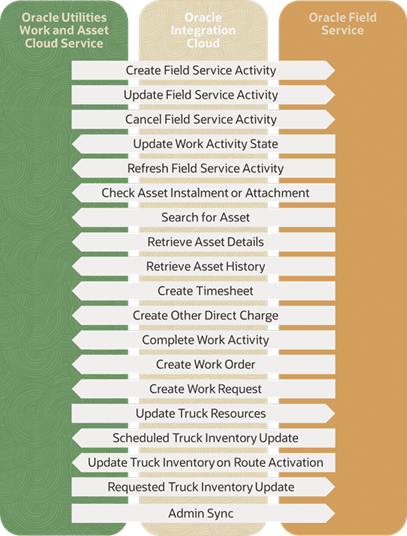

Functional Integration Flows

The Oracle Utilities Work and Asset Cloud Service integration to Oracle Field Service includes the following functional integration flows:

• Send Activity Details Integration Flows

• Perform and Complete Activity Integration Flows

Note that in the follwoing descriptions, work activity refers to both construction and non-construction work activities.

Send Activity Details Integration Flows

• Create Field Service Activity

This integration flow creates an activity in Oracle Field Service for a Oracle Utilities Work and Asset Cloud Service work activity when the work activity transitions to ‘Sent’.

OIC Process: Oracle Utilities WACS OFSC Activity Process (OUTL-BA-WACS_OFSC_ACTIVITY_PROC)

• Update Field Service Activity

This integration flow is initiated when a work activity is resent from WACS. The integration flow updates the corresponding activity in OFS with the latest WACS work activity details.

OIC Processes:

• Oracle Utilities WACS OFSC Activity Process (OUTL-BA-WACS_OFSC_ACTIVITY_PROC)

• Oracle Utilities OFSC WACS Activity Pull Update (OUTL-BA-OFSC_WACS_ACTV_UPDT_PULL)

• Cancel Field Service Activity

This integration flow is initiated when a work activity is cancelled in Oracle Utilities Work and Asset Cloud Service. The integration flow cancels the corresponding activity in Oracle Field Service provided this activity is pending or enroute.

OIC Process: Oracle Utilities WACS OFSC Activity Process (OUTL-BA-WACS_OFSC_ACTIVITY_PROC)

• Update Work Activity State

This integration flow updates the state of a work activity in Oracle Utilities Work and Asset Cloud Service to ‘In Progress’ when the corresponding activity is started in Oracle Field Service.

OIC Process: Oracle Utilities OFSC WACS Activity Interim Status (OUTL-BA-OFSC_WACS_ACTIVITY_STAT)

• Refresh Field Service Activity

This integration flow is initiated when a user in Oracle Field Service selects the Refresh Activity action for an activity. The integration flow updates the activity details in Oracle Field Service with the latest details from the corresponding work activity in Oracle Utilities Work and Asset Cloud Service.

OIC Process: Oracle Utilities OFSC WACS Activity Pull Update (OUTL-BA-OFSC_WACS_ACTV_UPDT_PULL)

Perform and Complete Activity Integration Flows

• Check Asset Instalment or Attachment

The integration flow is triggered when recording in Oracle Field Service that an asset is being installed or attached. It checks that it is valid in Oracle Utilities Work and Asset Cloud Service for the asset to be installed at the location or for the asset to be attached to the other asset.

OIC Process : Oracle Utilities OFSC WACS Asset Query (OUTL-BA-OFSC_WACS_ASSET_QUERY) with Operation 'default'

• Search for Asset

This integration flow is used when a field worker is entering follow up or new work in Oracle Field Service. It allows the field worker to search for an asset in Oracle Utilities Work and Asset Cloud Service.

OIC Process: Oracle Utilities OFSC WACS Asset Query (OUTL-BA-OFSC_WACS_ASSET_QUERY) with Operation 'assetQueryForPickup'

• Retrieve Asset Details

This integration flow retrieves details about an asset from Oracle Utilities Work and Asset Cloud Service. It is used during the entry of new or follow up work in Oracle Field Service.

OIC Process: Oracle Utilities OFSC WACS Asset Query (OUTL-BA-OFSC_WACS_ASSET_QUERY) with Operation 'assetQueryDetailsPickup'

• Retrieve Asset History

The integration flow retrieves from Oracle Utilities Work and Asset Cloud Service details about previous service histories, measurements, and activities related to an asset. This flow is used when the Asset History screen is opened in Oracle Field Service and also when searches are performed within the Asset History screen.

OIC Process: Oracle Utilities OFSC WACS Asset Query (OUTL-BA-OFSC_WACS_ASSET_QUERY) with Operation 'assetQueryDetailsHistory'

• Create Timesheet

This integration flow passes timesheet details entered in Oracle Field Service to Oracle Utilities Work and Asset Cloud Service. It is triggered when timesheet details are completed in Oracle Field Service. In Oracle Utilities Work and Asset Cloud Service, the integration results in the creation of a Timesheet Detail record. If there is no non-cancelled Timesheet record for the employee and time period, a new Timesheet record is also created.

OIC Integration Flow: Oracle Utilities OFSC WACS Resource Usage Details (OUTL-BA-OFSC_WACS_RES_USAGE_SEND)

• Create Other Direct Charge

This integration flow passes the details of an equipment and other resource usage entered in Oracle Field Service to Oracle Utilities Work and Asset Cloud Service. It is triggered when the details of equipment usage and other charges are completed in Oracle Field Service. In Oracle Utilities Work and Asset Cloud Service, the integration results in the creation of an Other Direct Charges Detail record. If there is not an Other Direct Charges record for the employee in a non-final state, a new Other Direct Charges record is also created.

OIC Process: Oracle Utilities OFSC WACS Resource Usage Details (OUTL-BA-OFSC_WACS_RES_USAGE_SEND)

• Complete Work Activity

When an activity is completed in Oracle Field Service, the Complete Work Activity integration flow initiates completion of the processing for the corresponding work activity in Oracle Utilities Work and Asset Cloud Service.

For activities that do not have segments, the completion of the activity in Oracle Field Service initiates the completion of the corresponding work activity in Oracle Utilities Work and Asset Cloud Service. For the activity that does have segments (such as an activity whose duration spans multiple days), the completion of the last segment initiates completion of the corresponding work activity in Oracle Utilities Work and Asset Cloud Service.

For construction work activities that have segments, completion of a segment which is not the last segment in Oracle Field Service results in an interim completion in Oracle Utilities Work and Asset Cloud Service. An interim completion involves the processing of completion details (example: installing a planned asset), but the work activity does not transition to complete.

In addition to initiating activity completion processing, the Complete Work Activity integration flow also initiates the creation of a material request and the issuing of this request when the activity in Oracle Field Service has recorded the use of material from a truck.

OIC Integration Flow: Oracle Utilities OFSC WACS Activity Complete (OUTL-BA-OFSC_WACS_ACTIVITY_COMP)

Additional Work Integration Flows

• Create Work Order

This integration flow creates a work order and work activity in Oracle Utilities Work and Asset Cloud Service based on the details entered in Oracle Field Service. It is invoked when the entry of the work order details is completed in Oracle Field Service. The work order can be for new or follow up work.

OIC Process: Oracle Utilities OFSC WACS Work Order (OUTL-BA-OFSC_WACS_WORK_ORDER)

• Create Work Request

This integration flow creates a work request in Oracle Utilities Work and Asset Cloud Service based on the details entered in Oracle Field Service. It is invoked when the entry of the work request details is completed in Oracle Field Service. The work request can be for new or follow up work.

OIC Process: Oracle Utilities OFSC WACS Work Request (OUTL-BA-OFSC_WACS_WORK_REQ)

Truck Storeroom Integration Flows

• Update Truck Resources

The flow creates and updates Oracle Field Service truck resources based on the mobile storerooms in Oracle Utilities Work and Asset Cloud Service. This integration flow is initiated from Oracle Integration Cloud. It can be either run on an adhoc basis when needed or scheduled in Oracle Integration Cloud to run periodically.

OIC Process: Oracle Utilities WACS OFSC Storeroom Admin Sync (OUTL-BA-WACS_OFSC_STRM_ADMN_SYNC)

• Scheduled Truck Inventory Update

The integration flow replaces the inventories of truck resources in Oracle Field Service with the current contents of the corresponding Oracle Utilities Work and Asset Cloud Service mobile storerooms. It is invoked from Oracle Integration Cloud. It can be scheduled to run periodically. Note that, optionally, this integration flow can be used instead of the Scheduled Truck Inventory Update integration flow.

OIC Process: Oracle Utilities WACS OFSC Schedule Storeroom Sync (OUTL-BA-WACS_OFSC_SCH_STRM_SYNC)

• Update Truck Inventory on Route Activation

This integration flow is initiated when a resource’s route is activated. It replaces the inventories of the truck resources with the current contents of the corresponding Oracle Utilities Work and Asset Cloud Service mobile storerooms for the truck resources linked to the resource whose queue was activated. Note that, optionally, the Scheduled Truck Inventory Update integration flow can be used instead of the Update Truck Inventory on Route Activation integration flow.

OIC Process: Oracle Utilities OFSC WACS Route Activation (OUTL-BA-OFSC_WACS_RTE_ACTIVATION)

• Requested Truck Inventory Update

This integration flow allows a fieldworker to update the contents of a truck resource in Oracle Field Service with the latest details from the corresponding mobile storeroom in Oracle Utilities Work and Asset Cloud Service. It is initiated from Oracle Field Service for a specific truck.

OIC Process: Oracle Utilities OFSC WACS Storeroom Sync (OUTL-BA-OFSC_WACS_STOREROOM_SYNC)

Supporting Integration Flow

• Admin Sync

The integration flow populates Oracle Field Service with Oracle Utilities Work and Asset Cloud Service administration data such as overtime types, downtime reasons, and activity types. It is initiated from Oracle Field Service. It can be either run on an adhoc basis when needed or scheduled in Oracle Integration Cloud to run periodically.

OIC Integration Flow: Oracle Utilities WACS OFSC Admin Data Sync (OUTL-BA-WACS_OFSC_ADMIN_SYNC)
