1.13.2 View Transaction Code

This topic describes the systematic instructions to view the list of configured codes.

Specify User Name and Password, and login to Home screen.

1. From Home screen, under Menu, click Corporate DDA.
   The Corporate DDA pane displays.
2. Under Corporate DDA, click Configurations.
   The Configurations pane displays.
3. Under Configurations, select Transaction Code and click View.
   The View screen displays.
4. Alternatively, you can search the configuration via Menu Item Search field. Specify the configuration name Transaction Code and select Corporate DDA-->Configurations-->Transaction Code-->View.
   The View screen displays.

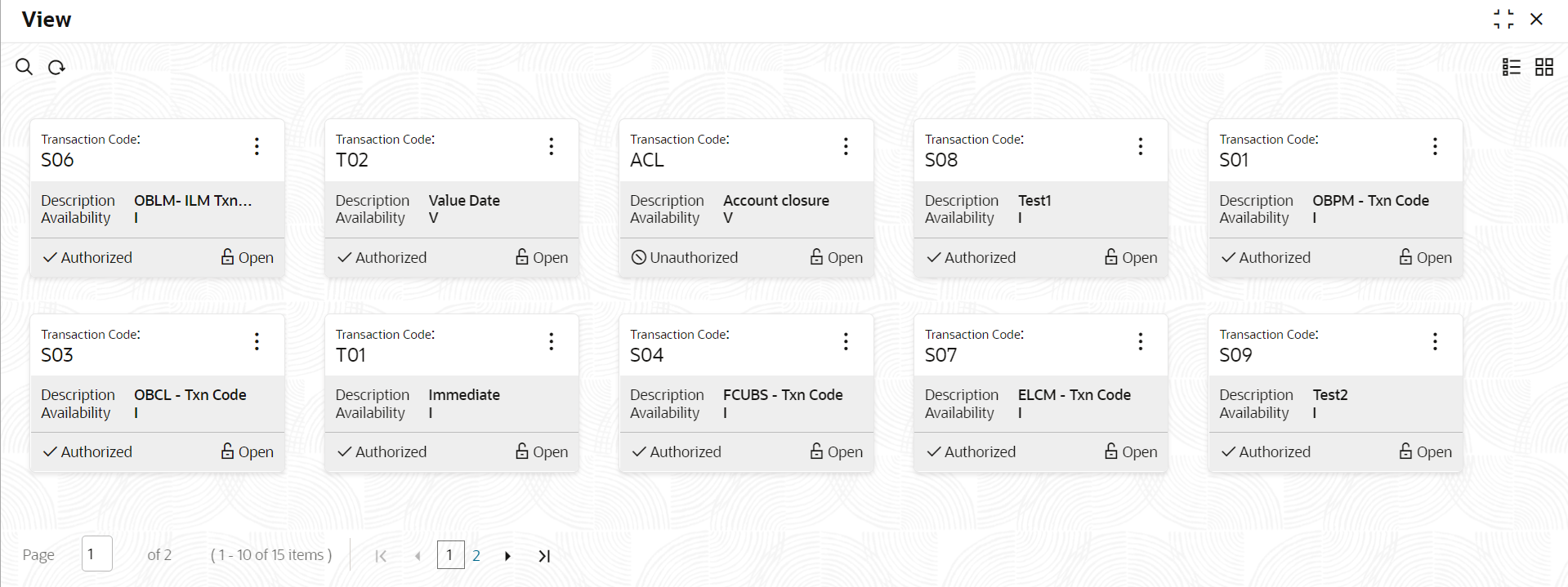

   Figure 1-42 View Transaction Code









   For more information on fields, refer to the field description table below.

   Table 1-45 View Transaction Code - Field Description

   Field	Description
   Transaction Code	Displays the Transaction Code.
   Description	Displays the description of the transaction code.
   Availability Information	Displays the value A, V or I.
   Authorization Status	Displays the authorization status of the record. Authorized Rejected Unauthorized
   Status	Displays the status of the record. Open Closed

   Click the menu icon on the tile to perform the following actions.

   • Unlock the maintenance parameter to make amendments.
   • Close the parameter maintenance.
   • View the details of that parameter maintenance.
   • Authorize the parameter maintenance depending on user rights.
   • Search for a particular parameter by clicking the search icon at the left corner of the section.
   • Change views by selecting the option from the right corner of the section. The two view options available are tile view and list view.
   • Click Audit to view the Maker, Checker, Status and Modification No.
   • Select the Error & Overrides option to view all existing errors or warnings on the page.
