2.2 View Branch Parameters

This topic describes the systematic instructions to view the list of configured branch parameters.

1. Click Account Configurations, and under Account Configurations, click Branch Parameters.
2. Under Branch Parameters, click View.
   The View screen displays.

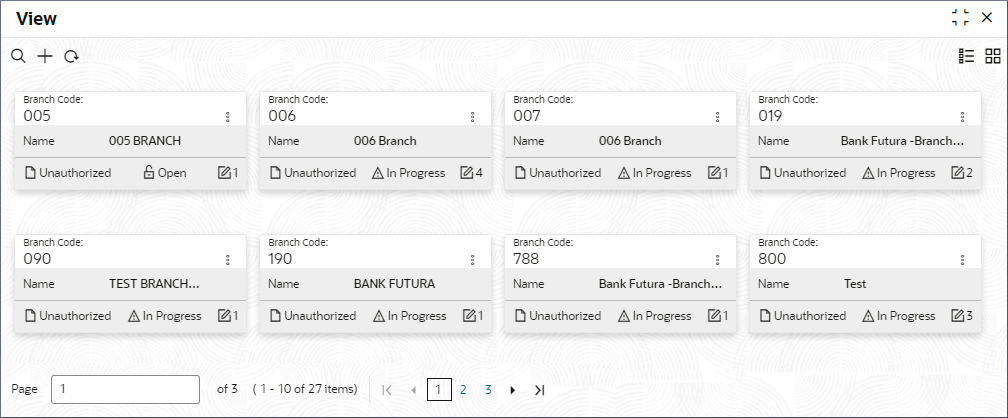

   Figure 2-4 View Branch Parameters





   Description of "Figure 2-4 View Branch Parameters"




   Tip:

   Click or to switch between the Tile view and the List view.

   Table 2-6 Branch Parameters Tile - Field Description

   Field	Description
   Branch Code	Displays the branch code.
   Name	Displays the name of the branch.
   Authorization	Displays the authorization status of the record. Authorized Rejected Unauthorized
   Status	Displays the status of the record. Open Closed

   The following table describes the action items in the More Options () menu and the action items on the page.

   Table 2-7 Action Items Description

   Action Item	Description
   Unlock	Unlock a record and make amendments.
   Close	Close a record to prevent it from being unlocked and amended.
   View	View the details of a record.
   Delete	Delete a record. Note: Once deleted, the component can no longer be used to define an entity. But entities already defined using the component can continue to use it.
   Reopen	Reopen a closed record.
   Authorize	Authorize a record to make it active and available to define entities. Note: Creator of a record cannot authorize the component. Another user with authorize permissions can.
   Audit	Select to view the Maker, Checker, Status, and Modification Number of a record.
   Errors and Overrides	Select to view all existing errors or warnings on the page.

   Note:

   The actions you can perform depend on your role and the record status.
3. View the details of a Branch Parameters tile.
   1. Click and select View.
      The Branch Parameters Maintenance page displays the Branch Parameters in different tiles.

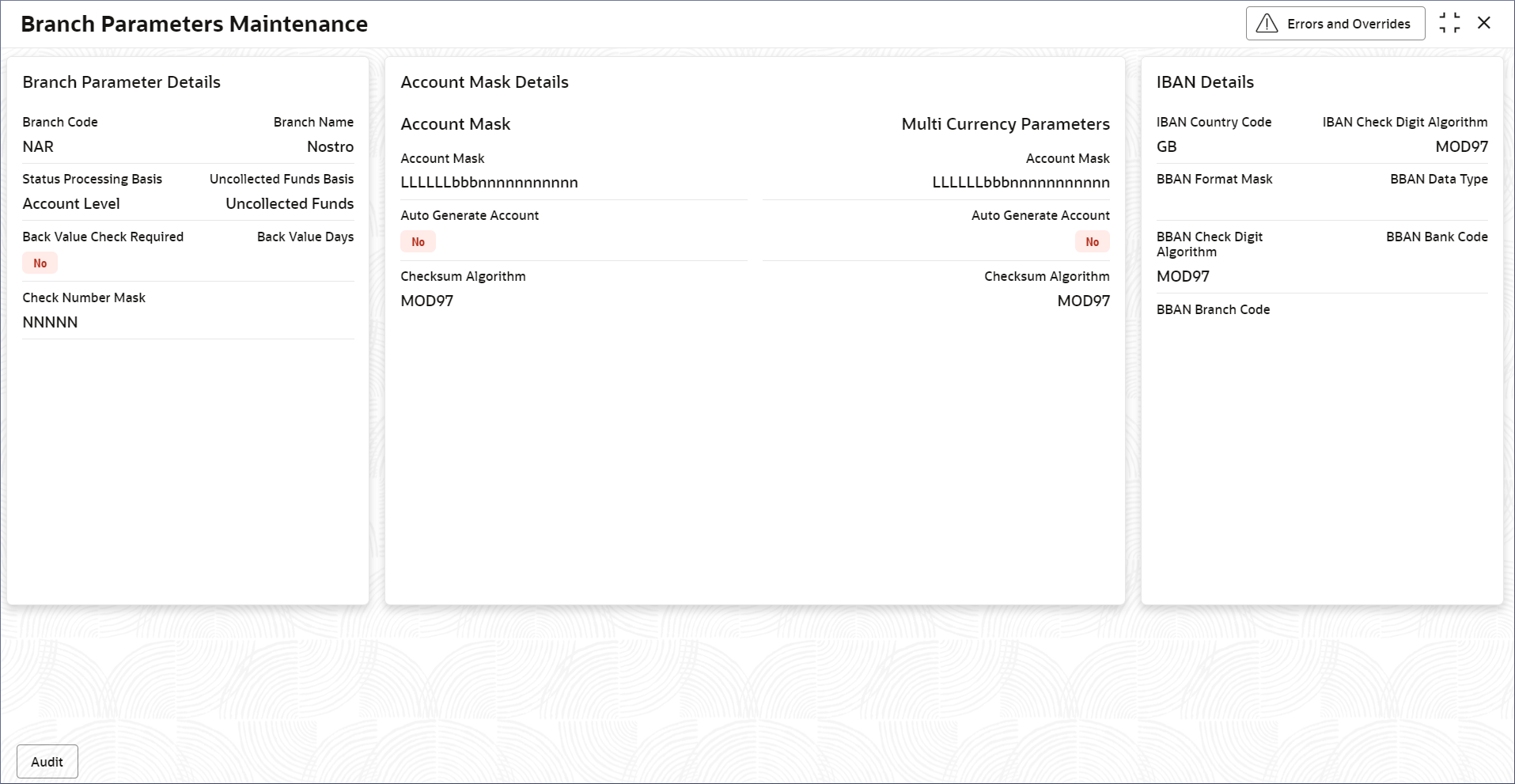

      Figure 2-5 Branch Parameters Maintenance view





      Description of "Figure 2-5 Branch Parameters Maintenance view"




      Note:

      To know more about the fields, see Configure Branch Parameters.
   2. Hover over an Account Mask in the Account Mask Details tile.
      The composition of the account mask displays.

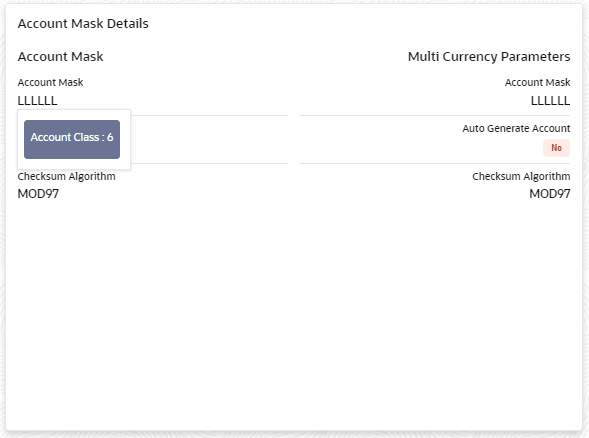

      Figure 2-6 Account Mask Details





      Description of "Figure 2-6 Account Mask Details"




      The pop-up shows that the Account Mask is composed of 6 characters from the Account Class.

4. Unlock and update Branch Parameters.
   1. Click and select Unlock.
      The Branch Parameter Maintenance page displays.
   2. Update the Branch Parameter details as necessary.

   Note:

   To know more about updating Branch Parameter details, see Configure Branch Parameters.
5. Approve or Reject unauthorized Branch Parameters.
   1. From the Search Filter, search for the required record that is in an Unauthorized and Open state.
   2. Click and select Authorize.
      The View page displays.

      Figure 2-7 Approve the Record





      Description of "Figure 2-7 Approve the Record"




      Table 2-8 Authorize View

      Field Name	Description
      Mod Number<N>	Indicates the number of times the record was modified. Where N represents the number of modifications. Note: For a newly created record the modification number is 1.
      Done By	Name of the user who performed the latest modification.
      Done On	Date on which the record was modified.
      Record Status	The status of the record. Note: To authorize a record, its status should be Open.
      Once Auth	Specifies if the record was authorized at least once. Note: For a newly created record, the value is No.
      Compare (Button)	Click to compare the modified record with the previous version of the record.
      View (Button)	Click to display the record details.

   3. Click the check box besides Mod Number<N> to select the modified record.
   4. Click Approve or Reject.
      The Confirm dialog displays.
   5. Enter any remarks and click Confirm.
      A toast message confirms the successful approval or rejection of the record.
