4 Configure Deposit Services

User can maintain the routing configuration of the Oracle Banking Routing Hub in the common core for deposit transitions of the Oracle Banking Retail Lending Cloud Services to create, update, and query the host system.

The user should construct the host name according to the template below:

obpm-apigateway-router.fsgbu-obcbcs-<environment>—obfc-<account name> Port: 8080

The values for environment and account name are available in the app-shell URL as provisioned: https://<account name>.obcs.ocs.oc-test.com/<environment>/app-shell/.

The environment value mapping from URL to OBRH Integration configuration is as follows:

Table 4-1 Environment Value Mapping

Environment	URL Value	OBRH Configuration Value
Premium Non Production	non-prod	nonprod
Premium Pre-Production	pre-prod	preprod
Premium Production	prod	prod
Partner	partner	partner
Standard Non Production	non-prod-std	nonprod-std
Standard Pre-Production	pre-prod-std	preprod-std
Standard Production	prod-std	prod-std

For example:

Table 4-2 Environment Value Mapping

Account Name	Environment Provisioned	OBRH Integration Host Name
demobank1	Standard - Non Production	obpm-apigateway-router.fsgbu-obcbcs-nonprod-std—obfcdemobank1
demobank1	Standard - Production	obpm-apigateway-router.fsgbu-obcbcs-prod-std—obfcdemobank1
demopartner	Partner	obpm-apigateway-router.fsgbu-obcbcs-partner—obfcdemopartner

Note:

Port will be 8080, that is common for all the environment.

Follow the steps below, to edit implementation details:

1. From the menu, under Core Maintenance, search Service Consumers.
   The Service Customers screen is displayed.

   Figure 4-1 Service Consumers - Search





   Description of "Figure 4-1 Service Consumers - Search"



2. From the List of Service Consumers field, search OBRA_RDDA and click View More.
   The search result is displayed.

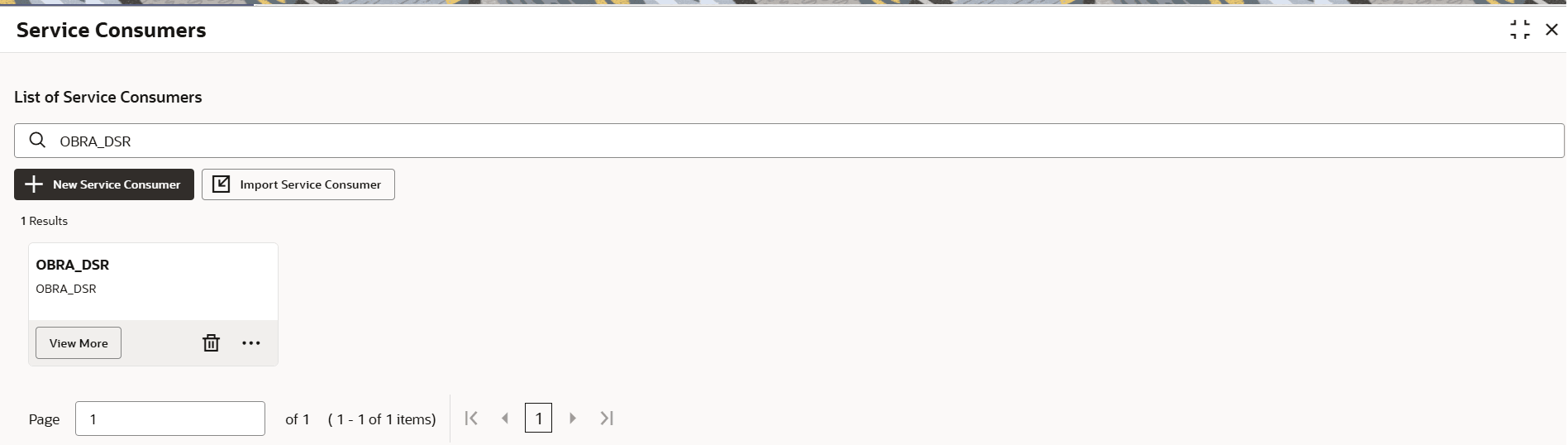

   Figure 4-2 Service Consumers





   Description of "Figure 4-2 Service Consumers"



3. Navigate to the Service Provides tab, search for OBPM, and click View More.
   The details are displayed.

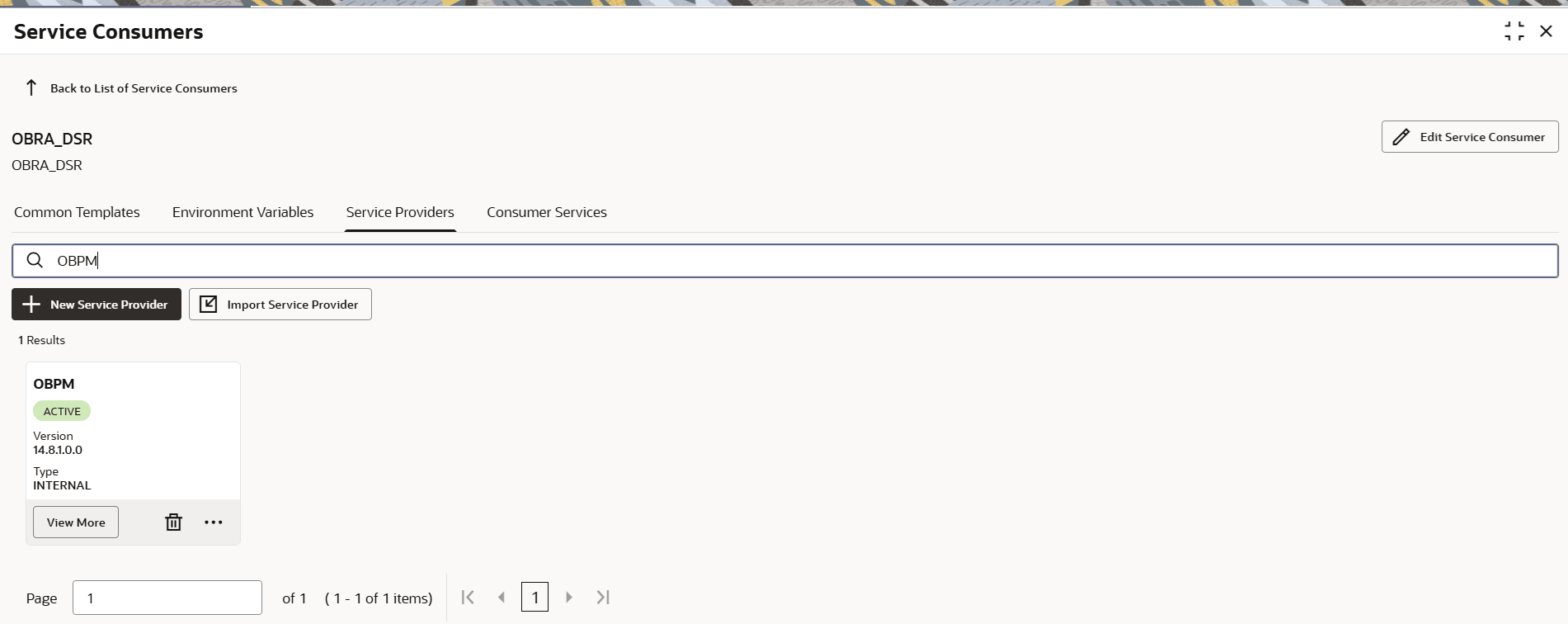

   Figure 4-3 Service Providers tab





   Description of "Figure 4-3 Service Providers tab"



4. From the Actions field, click the Edit icon.

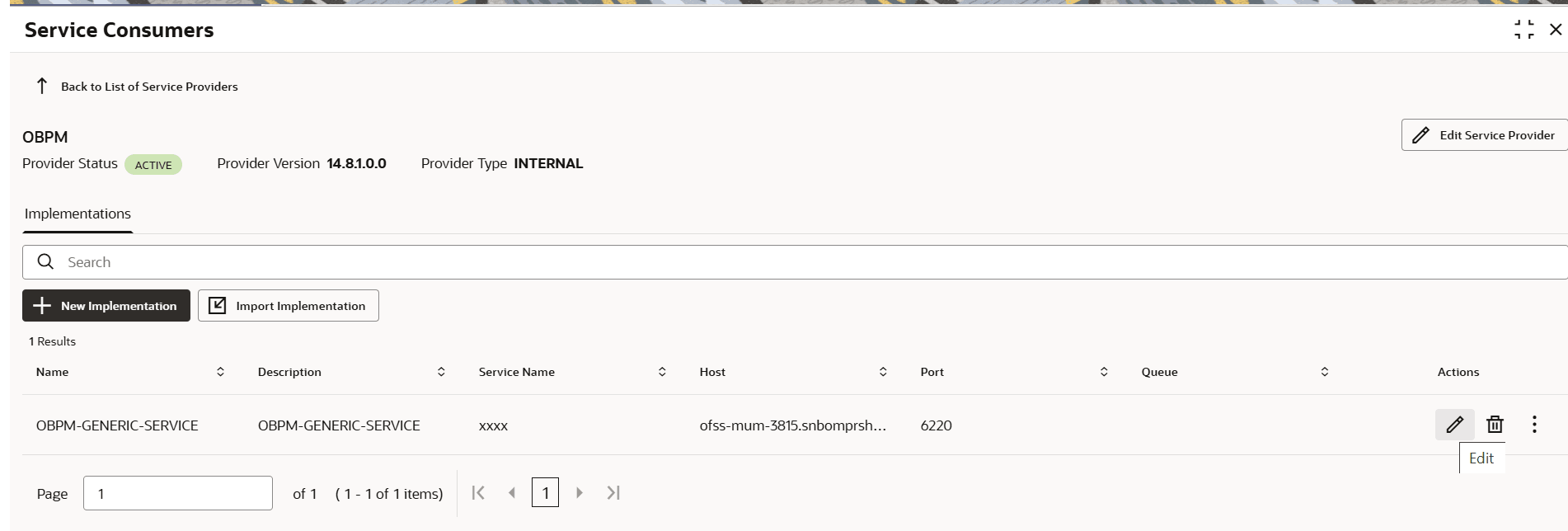

   Figure 4-4 Implementations





   Description of "Figure 4-4 Implementations"



5. Add host and port for OBPM service as per the template shared by OBPM team.

   Note:

   Template: obpm-apigateway-router.fsgbu-obcbcs-<environment>—obfc-<account name> Port: 8080

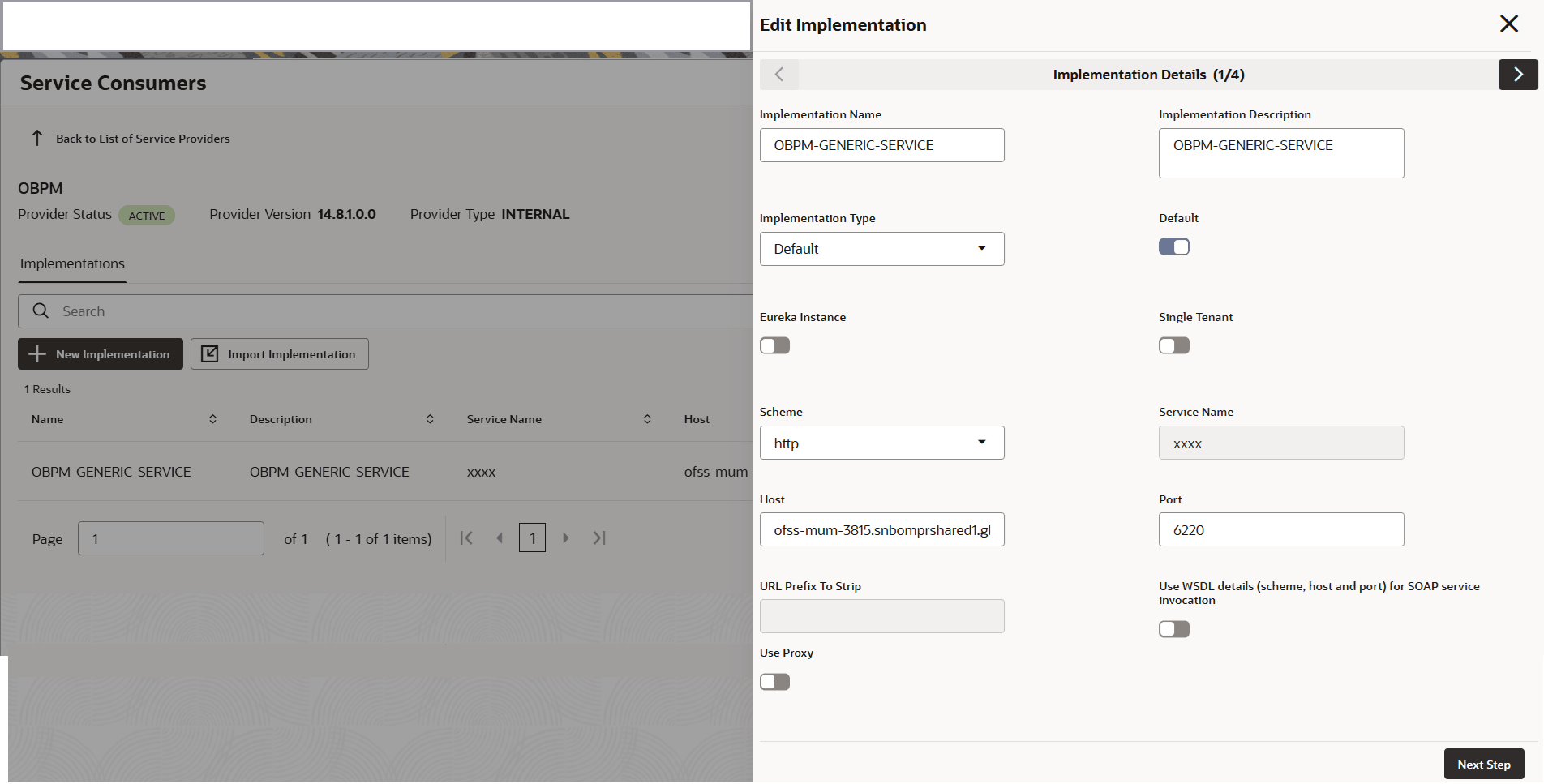

   Figure 4-5 Implementation Details





   Description of "Figure 4-5 Implementation Details"



6. Click Next Step, until you see the Save button.

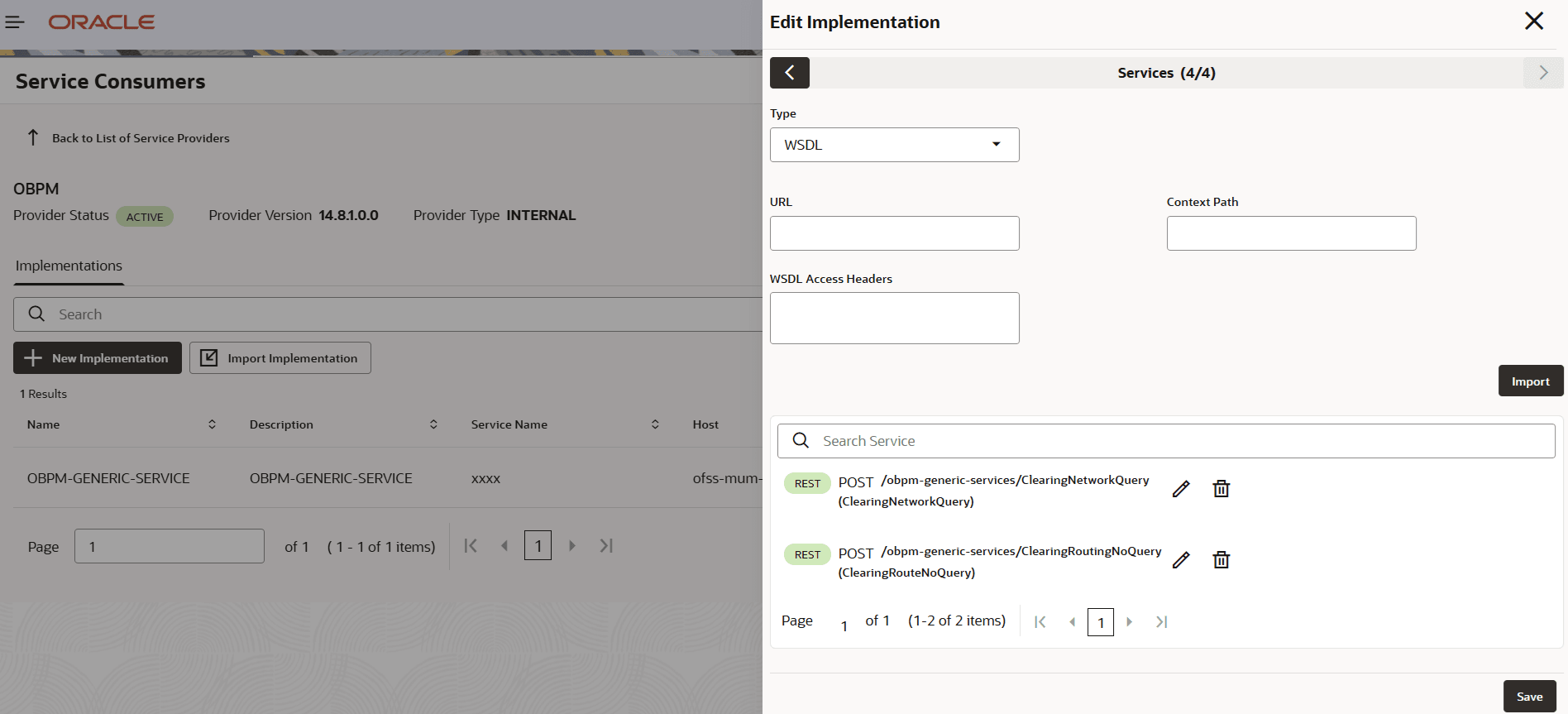

   Figure 4-6 Edit Implementation





   Description of "Figure 4-6 Edit Implementation"



7. Click Save.
