45.2.1 Experience Mapping Search

This topic describes the systematic instruction to Brand Mapping Search option.

To view the brand mapping details:

  1. Navigate to one of the above paths.
    The Experience Builder screen appears.
  2. Click the Mapping tab.
    The Experience Builder - Mapping screen appears.

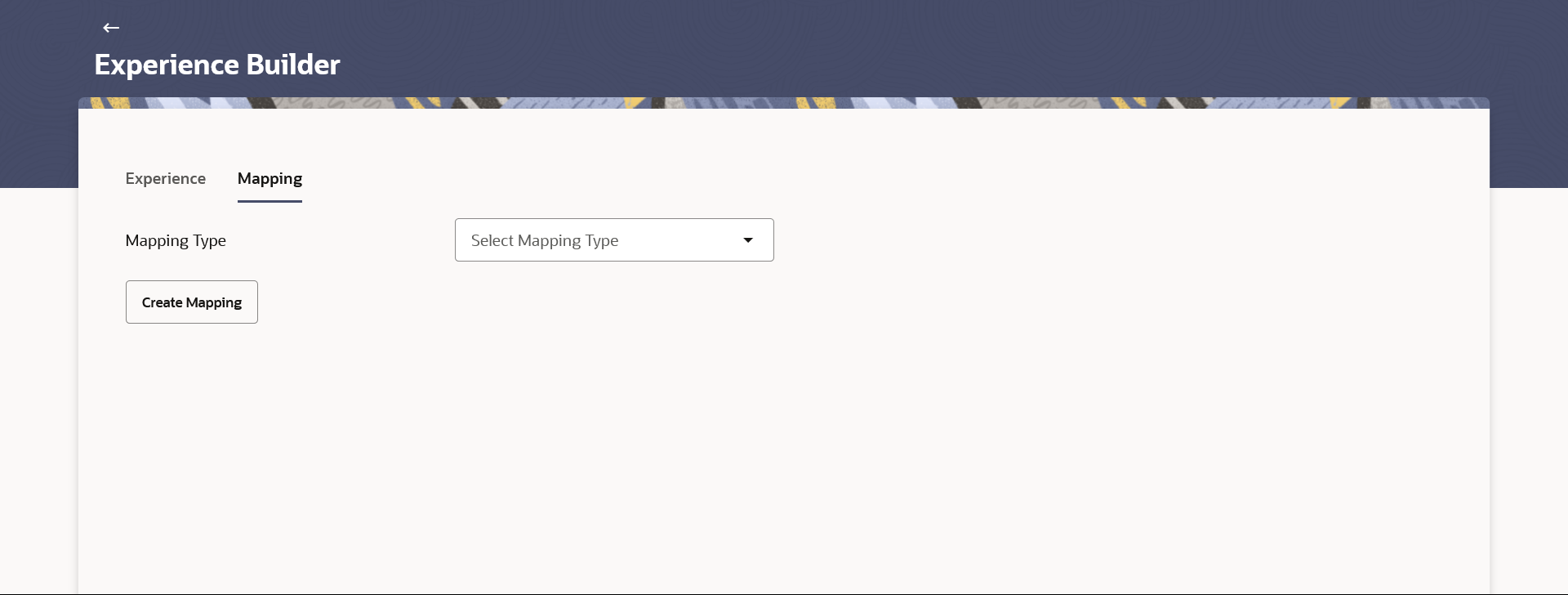

    Figure 45-10 Mapping


    Description of Figure 45-10 follows
    Description of "Figure 45-10 Mapping"

    Note:

    The fields which are marked as Required are mandatory.

    For more information on fields, refer to the field description table.

    Table 45-7 Mapping - Field Description

    Field Name Description
    Mapping Type A list of options for the mapping type to search which brand it is mapped to appear.
    The options are:
    • User
    • Party
    • Segment
    • User Type
    • Entity
  3. From the Mapping Type list, select the option for which you want to view the mapping.
    The Experience Builder – Search Results appear.

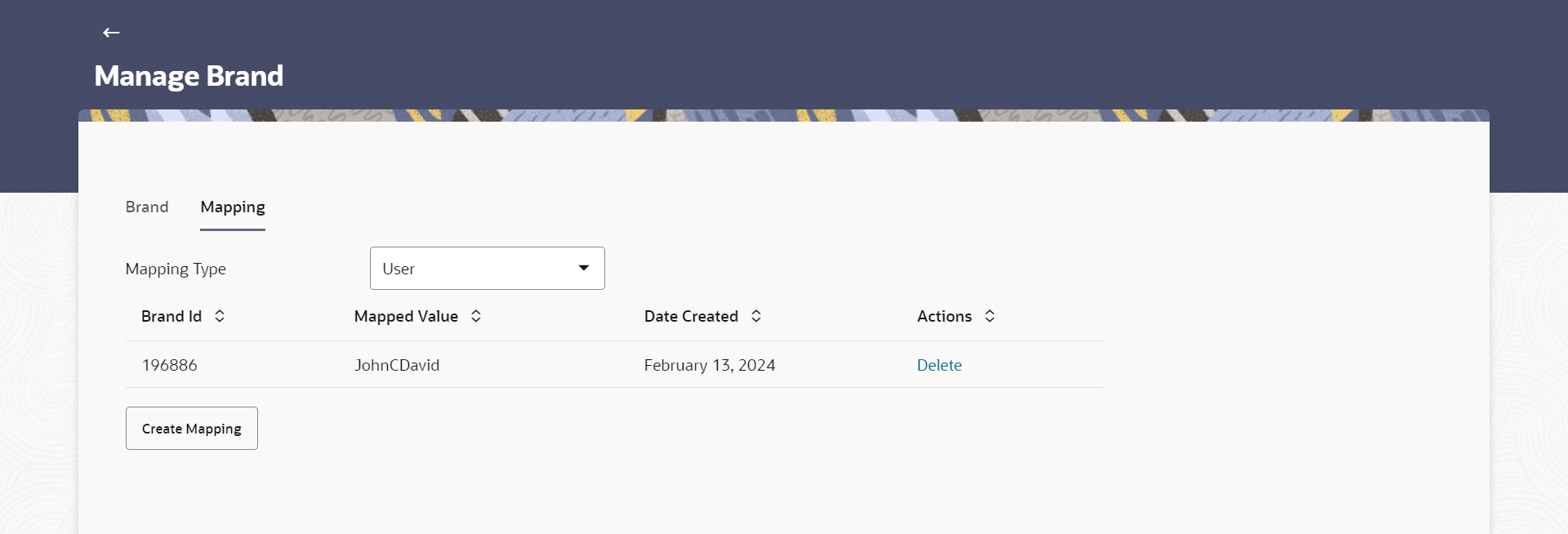

    Figure 45-11 Experience Builder - Brand Mapping Summary


    Description of Figure 45-11 follows
    Description of "Figure 45-11 Experience Builder - Brand Mapping Summary"

    Note:

    The fields which are marked as Required are mandatory.

    For more information on fields, refer to the field description table.

    Table 45-8 Experience Builder - Brand Mapping Summary - Field Description

    Field Name Description
    Experience Mapping Summary Information specified in below fields are related to brand mapping summary.
    Brand Id The identification number of the mapped theme.
    Mapped Value The value, which is mapped to the experience.
    The mapped value depends on the selected mapping type. For example,

    If the mapping type is user the mapping value will be user ID,

    If the mapping type is party the mapping value will be party ID,

    If the mapping type is role the mapping value will be user role, such as Corporate Retail and Administrator,

    If the mapping type is entity the mapping value will be entities.

    Mapping Type The level at which the experience is mapped.
    Date Created The date on which the experience mapping was performed.
    Actions The available actions that can be performed against the experience mapping are displayed.
    The options can be:
    • Delete
  4. Click Delete against a record to delete the experience mapping.
    • Click Create Mapping in the Help Panel, to create a experience mapping.

Parent topic: Mapping
