2.4 Retail Accounts

This topic describes the systematic instructions for the retail accounts integration.

Configure Account Services, as user can maintain the routing configuration of the Oracle Banking Routing Hub in the common core for Teller Servicing transitions of the Oracle Banking Branch to create, update, and query the host system.

On the Home screen, click Core Maintenance.
Under Inter Connect, click Routing Hub, and then select Service Consumers or specify Service Consumers in the search and select the screen.
The Service Consumers screen is displayed.

Figure 2-7 Service Consumers

Description of "Figure 2-7 Service Consumers"
Select New Service Consumer and create below service consumers:
1. Specify CASA_DETAILS_ EXT_PROVIDER.

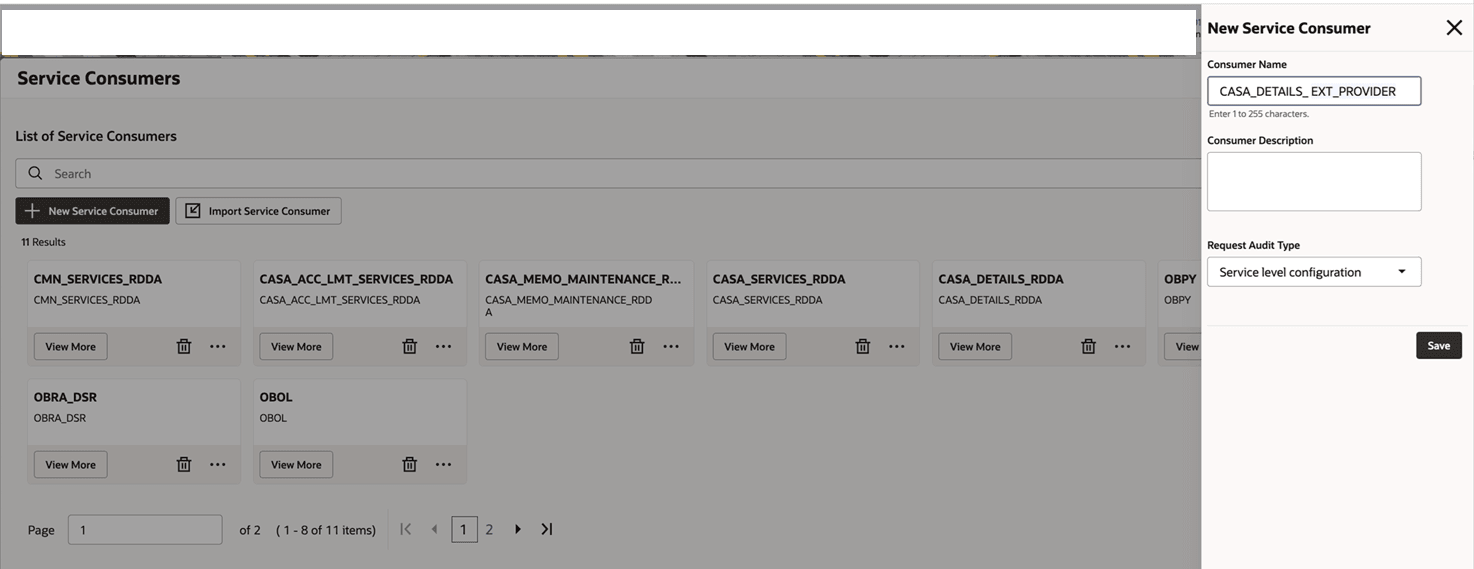

  Figure 2-8 New Service Consumer - CASA_DETAILS_ EXT_PROVIDER

  Description of "Figure 2-8 New Service Consumer - CASA_DETAILS_ EXT_PROVIDER"
2. Specify CASA_SERVICES_ EXT_PROVIDER.

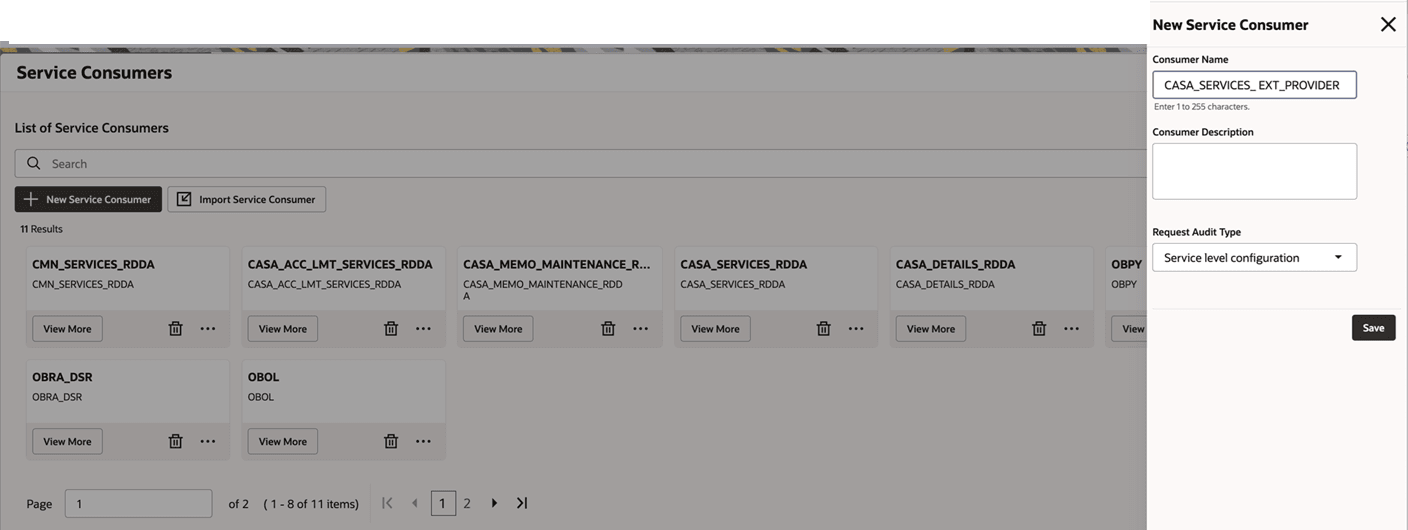

  Figure 2-9 New Service Consumer - CASA_SERVICES_ EXT_PROVIDER

  Description of "Figure 2-9 New Service Consumer - CASA_SERVICES_ EXT_PROVIDER"
3. Specify CASA_ACC_LMT_SERVICES_EXT_PROVIDER.

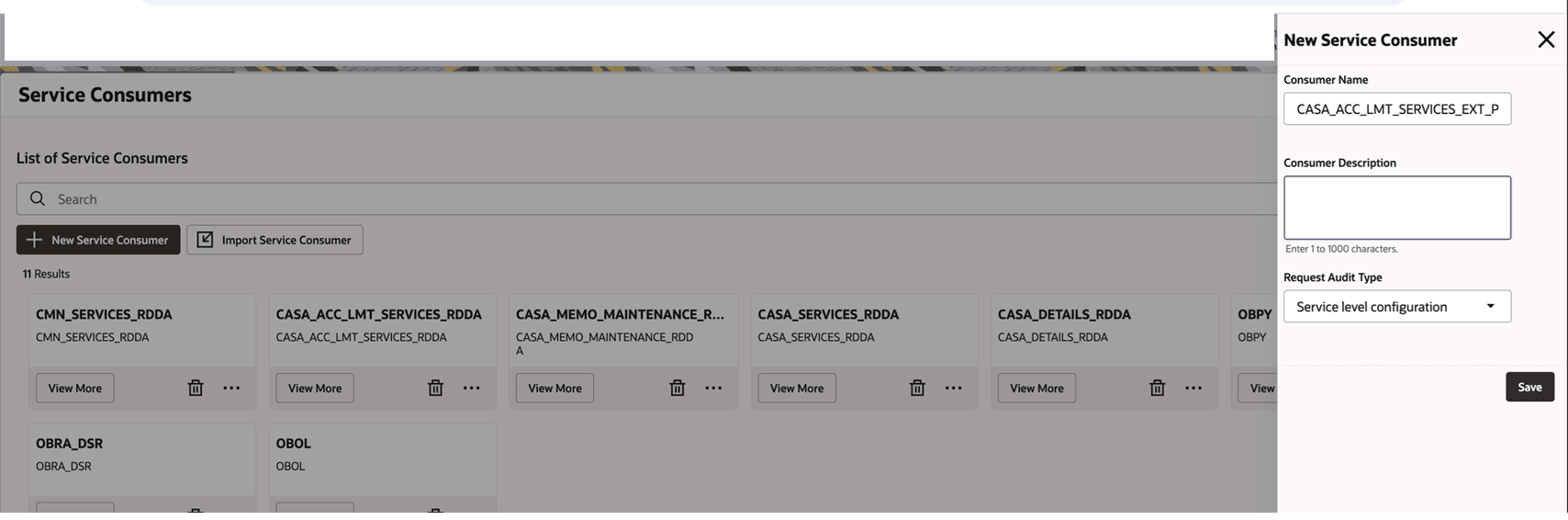

  Figure 2-10 New Service Consumer - CASA_ACC_LMT_SERVICES_EXT_PROVIDER

  Description of "Figure 2-10 New Service Consumer - CASA_ACC_LMT_SERVICES_EXT_PROVIDER"
Select Save.
The new consumer service is saved successfully.
Create all Consumer Services as mentioned below:
- QueryCardBinMaint
- GetAutoDepIns
- ModifyAutoDepIns
- CloseAutoDepIns
- QueryLovData
- QueryAccountDoc
- QueryDocType
- UpdateDocument
- AMNT_MODIFY_HANDOFF
- AMNT_CLOSE_HANDOFF
- amountBlockSummary
- accBalanceQuery
- QueryMessageReport
- QueryConsAmountBlk
- CreateConsAmountBlk
- ModifyConsAmountBlk
- GetChequeList
- ModifyChequeStatus
- QueryUncollectedFunds
- ReleaseUncollectedFunds
- QueryArchivedCheque
- QueryAccountClass
- QueryAccClass
- QueryAccClassDetail
- QueryAccClassOBO
- QueryAccClassRestr
- GetParty
- QueryDocTypeSearch
- RelTrackReceivableFetch
- RelTrackReceivableHandoff
- DelTrackReceivableFetch
- DelTrackReceivableHandoff
- AccountBranchTransferLogSummary
- AccountBranchTransferLogDetail
- AccountBranchTransferLogResubmitRequest
- CreateTaxWaiver
- AufLimitFetch
- AufLimitHandoff
- PrimaryPartyChangeHandoff
- ValidatePrimaryPartyChange
- MinimumRequiredBalance
- ValidateAccountPreferences
- QueryAccountPreferences
- AccountPreferencesHandoff
- SummaryStopPayment
- CloseStopPayment
- ModifyStopPayment
- QueryStopPayment
- ValidateCharges
- CreateGarnishment
- ModifyGarnishment
- CloseGarnishment
- SaveCourtesyPay
- accOperatingInstruction
- GetCourtesyPay
- QueryChequeStopPref
- GetAccountHolderInfo
- GetCustomerAccountDetails
- GetCustAccBalance
- GetAccountStandingInstructions
- GetAccountAlerts
- GetAccountSummary
- GetCustAccLimits
- GetAccountAmountsAndDates
- GetCustomerSummary
- GetPersonalInfo
- GetCasaSummary
- GetAccountLastTxnsDetails
- RevertCharges
- ModifyCusRelationMaint
- UpdateCharges
- ValidateSweepSetup
- ValidateModCustAddr
- ValidateTod
- ValidateActStmtFreq
- ValidateNominee
- ValidateAuf
- ValidateAuf
- ValidateDocUpd
- QueryAccountGarnish
- QueryGarnishAccountInfo
- QueryAccountGarnishParams
- ModifySIInstr
- ModifySICycle
- ModifySIUpdate
- ModifySIUpdate
- NomineeDetailsFetch
- NomineeDetailsUpdate
- CardStatusChangeFetch
- AccountAddressUpdate
- ModifyJointHolderMaint
- UpdateAccStatFreq
- QueryJointHolderMaint
- FetchDormantAccDate
- AccountStatementRequest
- CreateAutoDepIns
- AMNT_HANDOFF
- SweepInstruction
- CreateTempOverdraftLimit
- AccountTransactionsInquiry
- AccountBranchTransfer
- StandingInstructionPayment
- CardStatusChangeUpdate
- StopChequeRequest
- ActivateDormantAcct
- ActivateDormantAcct
- FetchDormantAccDetails
- AccountStatusChangeRequest
- QueryTempOverdraftLimit
- AccountStatusChangeFetch
- CreateAccClassTransfer
- AccountAddressFetch
- QueryMSI
- ChequeBookRequest
- QueryAccStatFreq
- ModifySICancel
- DefaultDepositAccCls
- ModifySweepIn
- ModifySweepOut
- QueryTDAccounts
- QuerySweepInSetup
- CreateSweepInSetup
- DebitCardDetailsFetch
- CreateCardMasterfcubs
- QueryCardLimit
- UpdateCardLimitRequest
- CreateCardCustomerfcubs
- ChequeStatusInquiry
- QueryCASASweepHistory
- QuerySwitchCardList
- QuerySwitchCardTypeLimit
- AccountClosureValidateOBRA
- AccountClosureValidateOBPM
- AccountClosureInitiateIcOnlineLiquidtn
- AccountClosureValidateOBRL
- AccountClosureValidateOBIC
- AccountClosureValidateOBDEP
- AccountClosureInitiateMarkAccountClosure
- AccountClosureMarkAccountAsClosed
- AccountClosureInitiateAccountSettlement
- AccountClosureMarkStatusToOpen
- AccountAddressUpdateUS
- AccountAddressFetchUS
- FetchBusinessProductDetails
- getCustAcctAdhocConsolidatedStmt
- AdhocConsolidatedAcctStmt
- getAdhocConsolAcctStmtChildRefNo
- getAdhocConsolAcctStmtDownload
- QueryBankParameters
- IRANomineeDetailsUpdate
- IRAAccountCloseDistribution
- IRAAccountClsrInitiateMarkAccountClosure
- IRAAccountClosureMarkAccountAsClosed
- IRAAccClosureMarkStatusToOpen
- IRAAccClosureMarkStatusToOpen
- IRAaccBalanceInquiryQuery
- QueryRegDTransactionDetails
- CreateCustAccountLmt
- AccountClosureGetAccruedAmount
- ModifyCustAccountLmt
- TDAmountBlockCreate
- TDAmountBlockDelete
- TDAmountBlockModify
- ELCMAmountBlockCreate
- ELCMAmountBlockModify
- ELCMAmountBlockDelete
- ELCMAmountBlockInrModify
- AccountClosureGetClosureDate
- ValidateModCustAddrRW
- IRAAccountPreferencesHandoff
- IRAUpdateAccStatFreq
- IRAModifyCusRelationMaint
- IRAActivateDormantAcct
- IRAAccountStatusChange
- IRAAccountAddressUpdateUS
- IRAAccountClosureValidateOBRA
Note:
Refer Routing Hub Configuration User Guide for creation of Service Provider and configuring consumer services.
