2.3 Teller

This topic describes the systematic instructions for the teller integration.

To perform teller transactions, user need to maintain the routing configuration of the Oracle Banking Routing Hub in the common core to create, update, and query the host system.

1. On the Home screen, click Core Maintenance.
2. Under Inter Connect, click Routing Hub, and then select Service Consumers or specify Service Consumers in the search icon bar and select the screen.
   The Service Consumers screen is displayed.

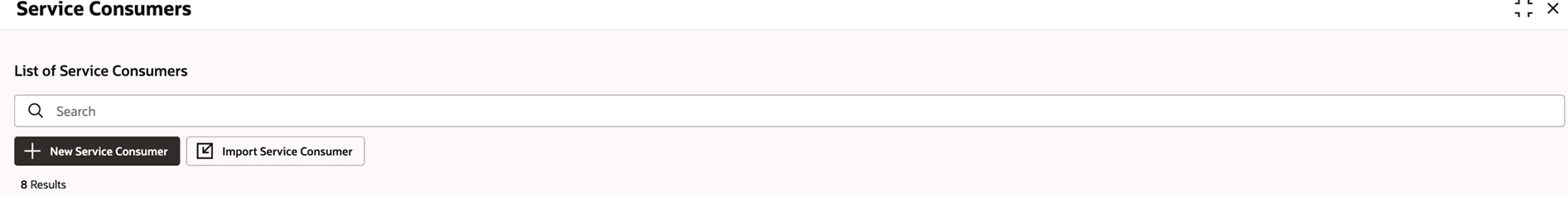

   Figure 2-5 Service Consumers





   Description of "Figure 2-5 Service Consumers"



3. Select New Service Consumer.
   The New Service Consumer section is displayed.

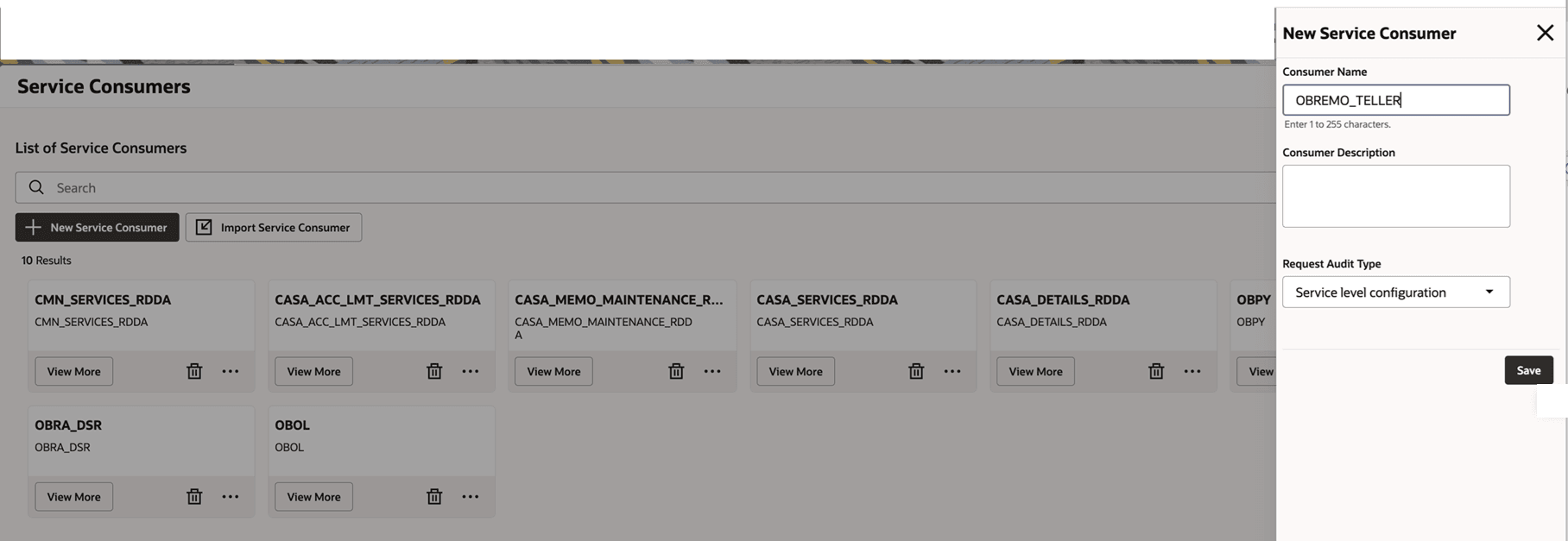

   Figure 2-6 New Service Consumer - OBREMO_TELLER





   Description of "Figure 2-6 New Service Consumer - OBREMO_TELLER"



4. In the New Service Consumer section, specify OBREMO_TELLER in the Consumer Name field.
5. Select Save.
   The new consumer service is saved successfully.

   Note:

   For service consumer services invokeExtAccounting and invokeGLAccounting, user needs to append the source name of the account while creating service consumer in the OBRH.
6. Create all Consumer Services as mentioned below.
   • postSinglePayOut
   • postInsRevalidation
   • postInsDuplicate
   • createEca
   • postInstrumentIssue
   • postInClgReturn
   • postClearingRoutingNoQuery
   • postOutClgReturn
   • postInstrumentPaymentReversal
   • invokeExtAccounting
   • invokeEcaAction
   • postInstrumentInquiry
   • invokeExtAccAuth
   • getAvailableBalance
   • postOutClg
   • invokeGLAccounting
   • postBookTransferReversal
   • postInstrumentPay
   • invokeExtAccUnAuth
   • invokeExtAccDelete
   • fetchSignatureDetailsRDDA
   • postInClg

   Note:

   Refer Routing Hub Configuration User Guide for creation of Service Provider and configuring consumer services.
