2.1.4 Integration Parameters Maintenance

To capture details of integration parameters maintenance screen

Specify the User ID and Password, and login to Homepage.

1. On the homepage, type OLDINPRM and click next arrow.
   The Integration Parameters Maintenance screen is displayed.

   Note:

   The fields which are marked in asterisk red are mandatory fields.

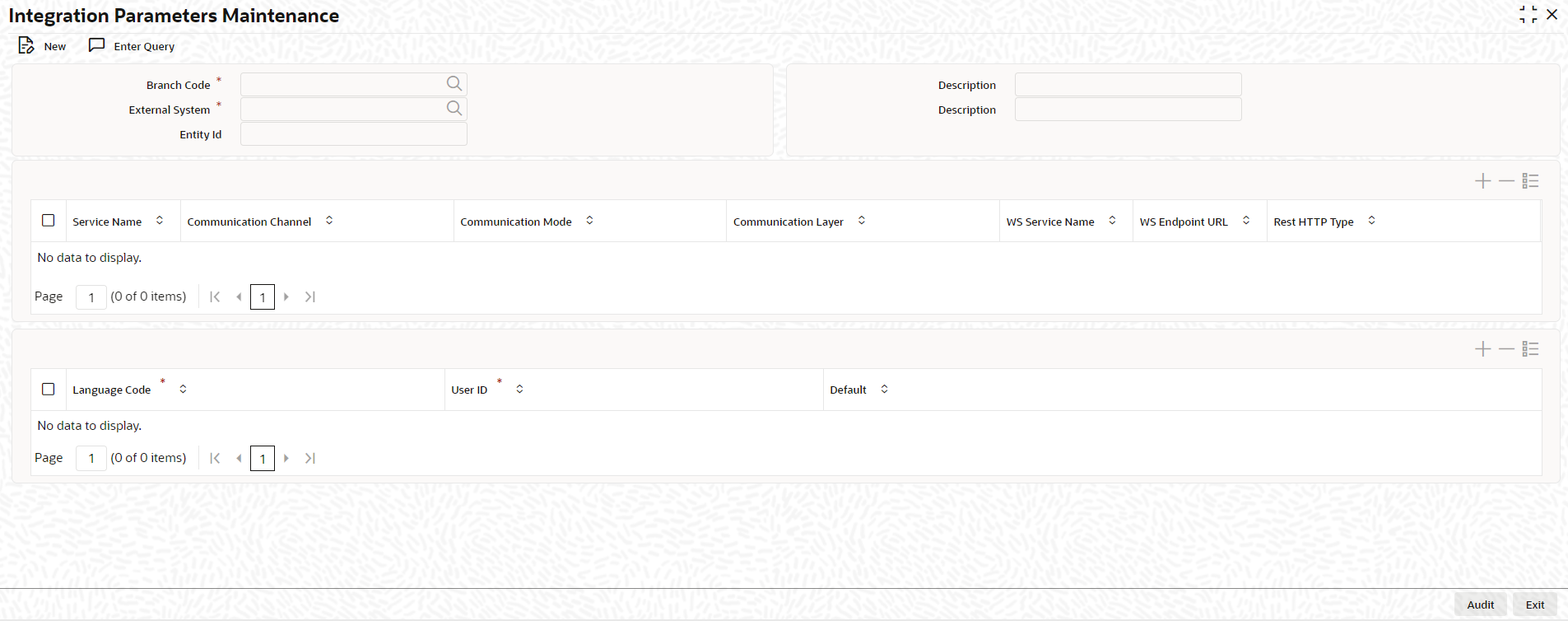

   Figure 2-4 Integration Parameters Maintenance





   Description of "Figure 2-4 Integration Parameters Maintenance"



2. You can enter below details in this tab. For information on fields, refer to the field description table.

   Note:

   Ensure you maintain an active record with all required fields and Service Name as PMSinglePaymentService in Integration Parameters Maintenance screen.

   Table 2-3 Integration Parameters

   Field	Description
   Branch Code	Specify as ALL in case the integration parameters are common for all branches. Or Maintain for individual branches.
   External System	Specify external system as INTBANKING.
   External User	Specify the User ID to be passed on the payment request to OBPM.
   Service name	Specify service name as PMSinglePayOutService.
   Communication Channel	Specify the communication channel as Web Service.
   Communication Mode	Specify the communication mode as ASYNC.
   Communication Layer	Specify the communication layer as Application.
   WS Service Name	Specify the web service name as PMSinglePayOutService.
   WS Endpoint URL	Specify the WSDL of the services as Payment Single Payment Service WSDL link.
   WS User	Maintain the OBPM user with access to all branches and auto authorize facility.
