14.4 Modify Event Mapping Record

This topic provides systematic instructions about the procedure to modify an event mapping record.

To modify any event mapping record, the record must be in an authorized state. The unauthorized record can be modified only by the user who created the record.

1. From Home screen, select Credit Facilities. Under Credit Facilities, select Maintenance.
2. Under Maintenance, select Notifications. Under Notifications, select View Event Mapping.
   The View Event Mapping screen is displayed.

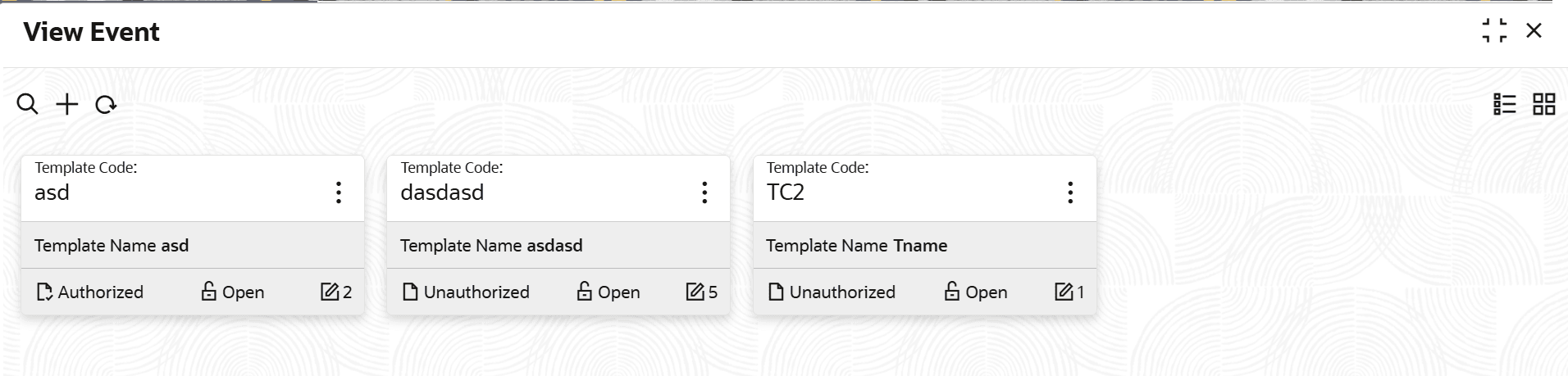

   Figure 14-8 View Event Mapping





   Description of "Figure 14-8 View Event Mapping"



3. Click the list view icon at the top right corner to change the table view to list view.
   The View Event Mapping screen is displayed as shown below.

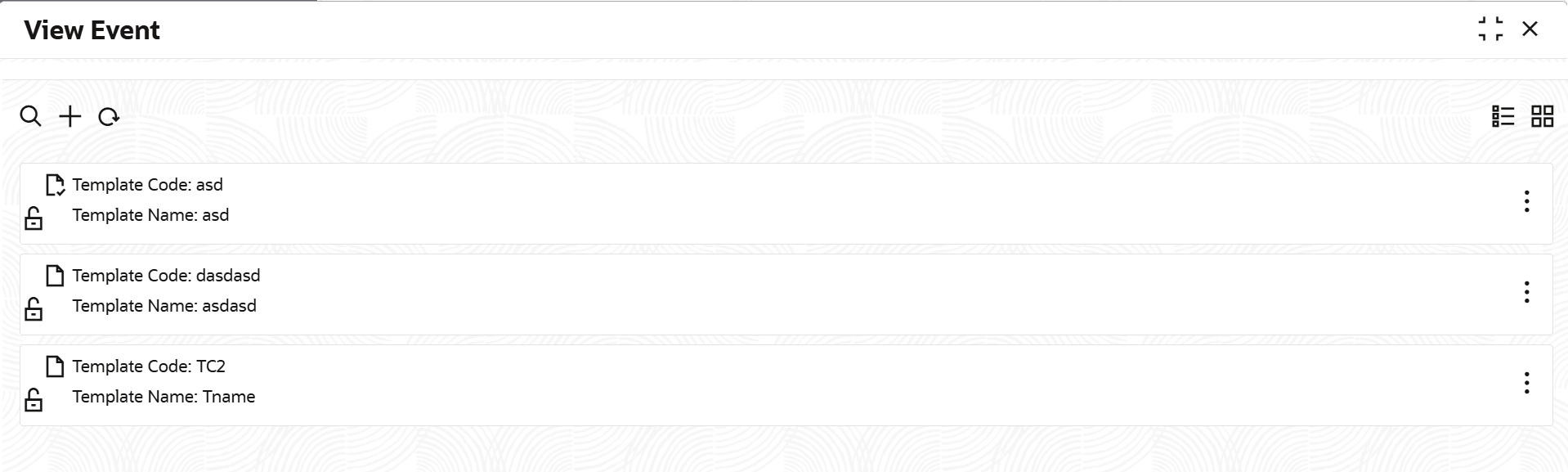

   Figure 14-9 View Event Mapping List





   Description of "Figure 14-9 View Event Mapping List"



4. Click the search icon to search the required event mapping record.
   The search bar is displayed as shown below.

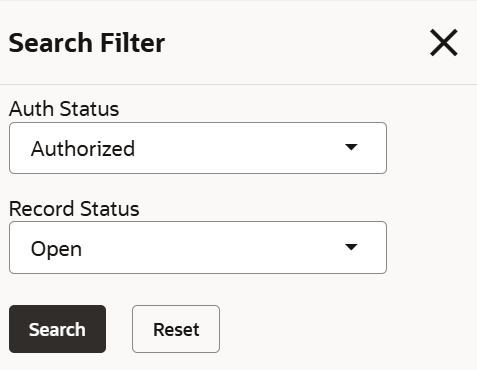

   Figure 14-10 View Event Mapping Record - Search





   Description of "Figure 14-10 View Event Mapping Record - Search"



5. Select the status of event mapping record based on description in the following table.

   Table 14-5 View Event Mapping - Search - Field Description

   Field	Description
   Auth Status	Select the authorization status of the event mapping record. The available options are: Authorized Unauthorized
   Record Status	Select the Record Status of the event mapping record. The available options are: Open Closed

6. Click Search.
   The records that match the search parameters are displayed.
7. In the View Event Mapping screen, click the refresh icon to refresh the record list.
8. Click the add icon to create record.
9. Click on the action icon in the required record and select Unlock.
   The Event Mapping screen is displayed in edit mode.
10. Modify the required details.
11. Click Save.
    The record will be modified upon authorization.
