1.2 Login & OTP Generation

Once the registration is successful, from the subsequent logins user has to use the PIN to login into the PaySecure application. Post authentication, user will be provided with an option to either select the user for which OTP is to be generated (if multiple users are registered using same application) or to register another user on same device and application.

To generate OTP or login into PaySecure application:

1. Register on soft token application (PaySecure Application).

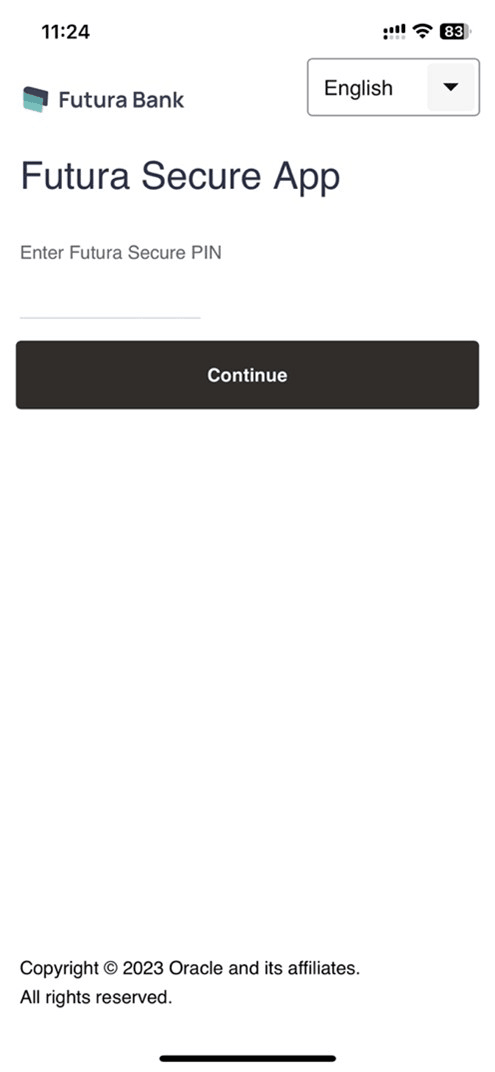

   Figure 1-4 PaySecure PIN





   Description of "Figure 1-4 PaySecure PIN"




   Table 1-4 Field Description

   Field Name	Description
   Enter PIN	Enter the PIN to login into the application.

2. Enter the PIN, and click Continue.
   The Choose User screen appears.

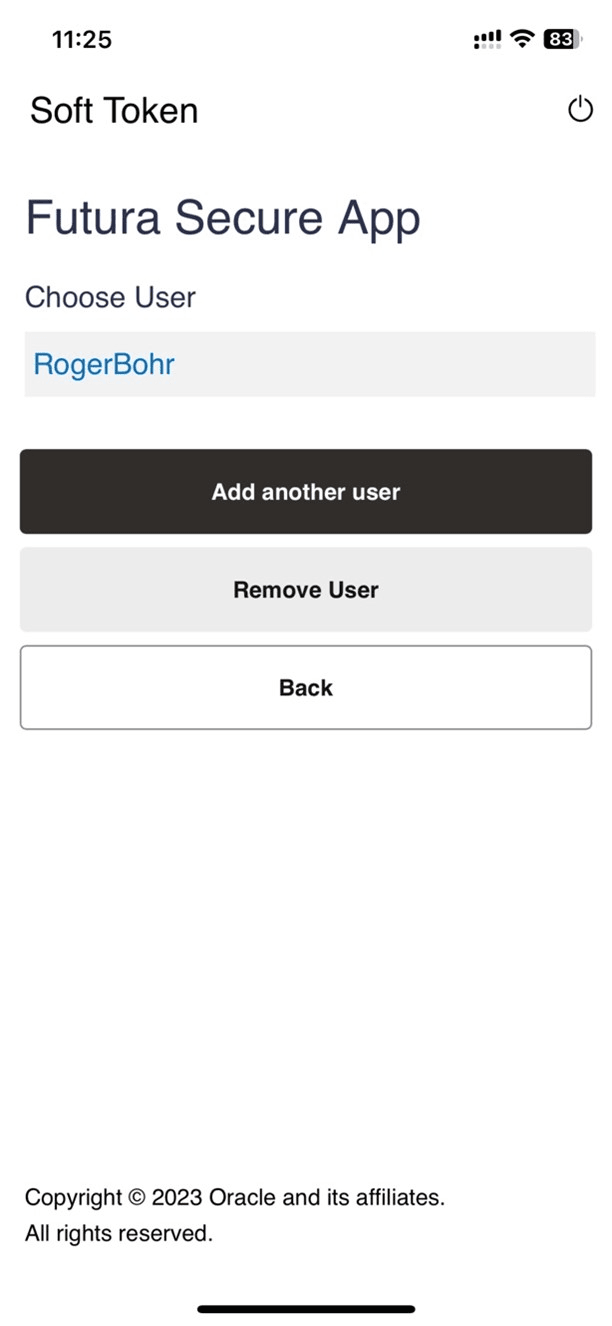

   Figure 1-5 Choose User





   Description of "Figure 1-5 Choose User"



3. Select the user. The user is prompted to enter the code.

   OR

   Click Add Another User to add another
         account. For more information refer Registrationsection.

   OR

   Click Remove User.

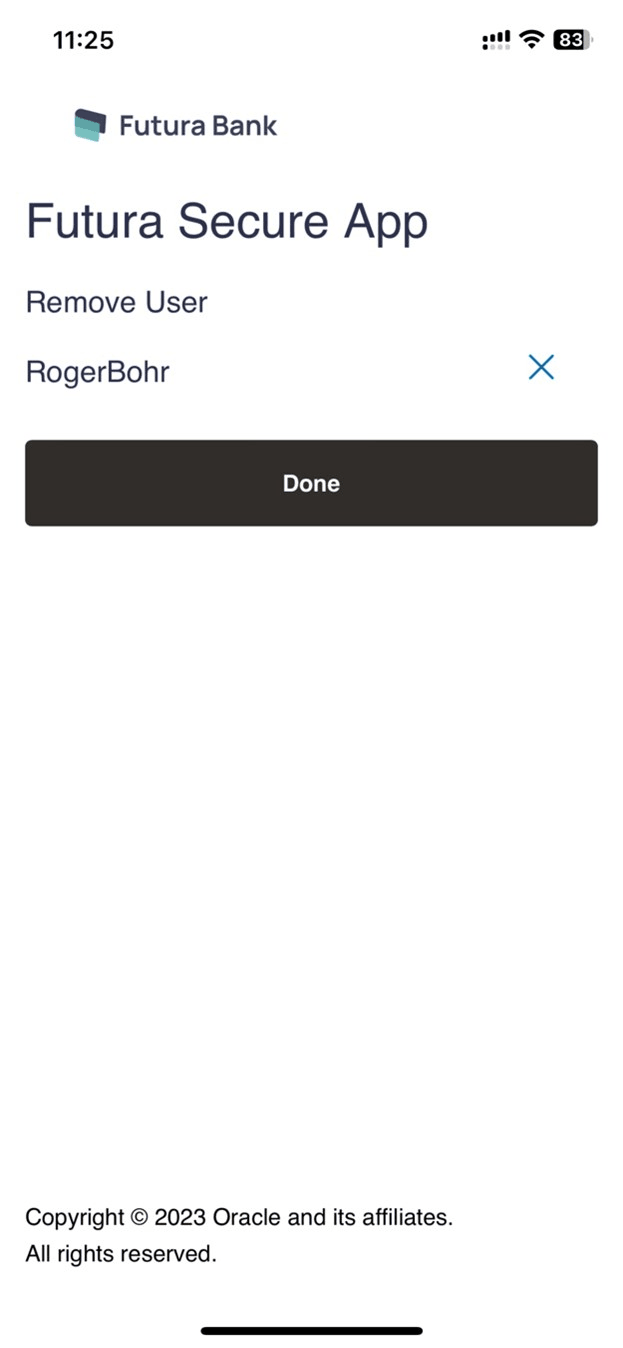

   Figure 1-6 Remove User





   Description of "Figure 1-6 Remove User"






   Description of "Figure 1-6 Remove User"



4. Click icon against a user to remove a user.

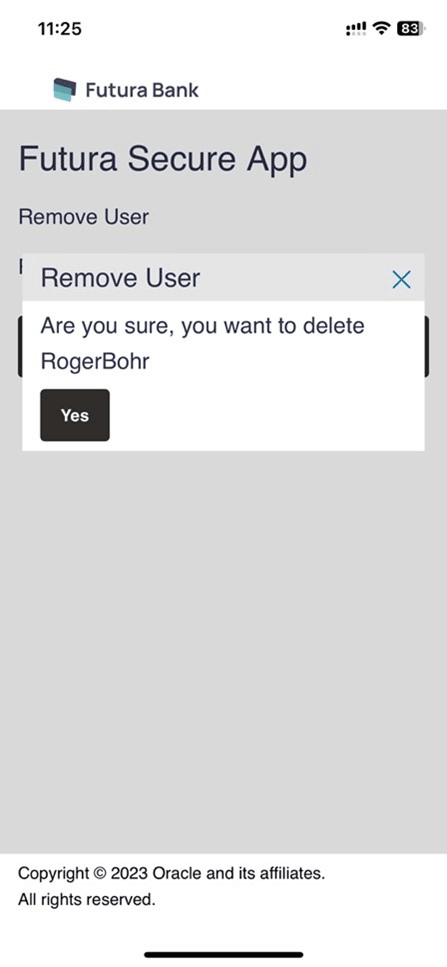

   A popup message appears prompting to confirm the user deletion.
5. Click Yes to delete the user. User deleted message is displayed.

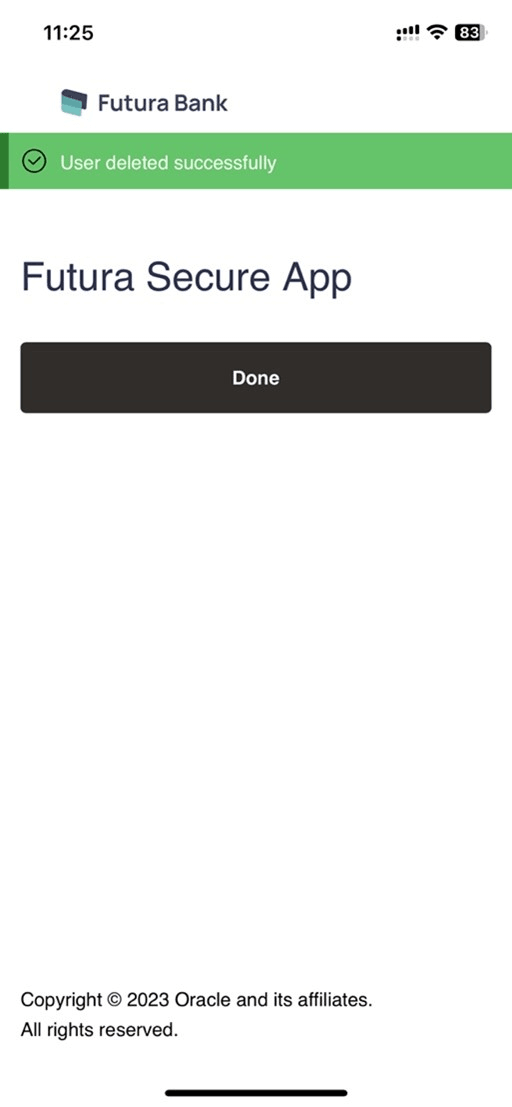

   User deleted message is displayed.

   Figure 1-7 Soft Token Code





   Description of "Figure 1-7 Soft Token Code"



6. Click Done.

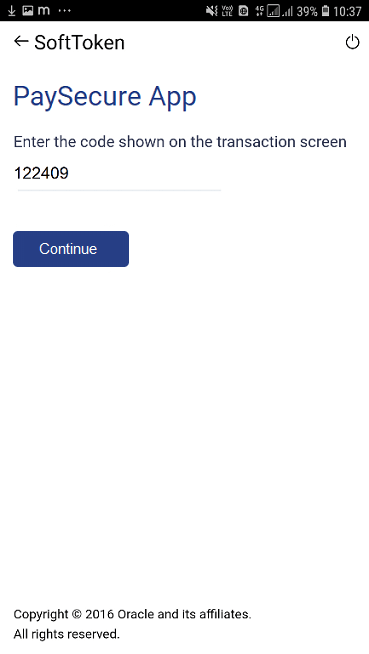

   Figure 1-8 Soft Token Code





   Description of "Figure 1-8 Soft Token Code"




   Table 1-5 Field Description

   Field Name	Description
   Enter Code	The Soft Token code displayed on transaction screen.

7. In the Enter the code field, enter the code appear on transaction screen.
8. Click Continue to proceed to next screen.
   The Soft Token code generated successfully.

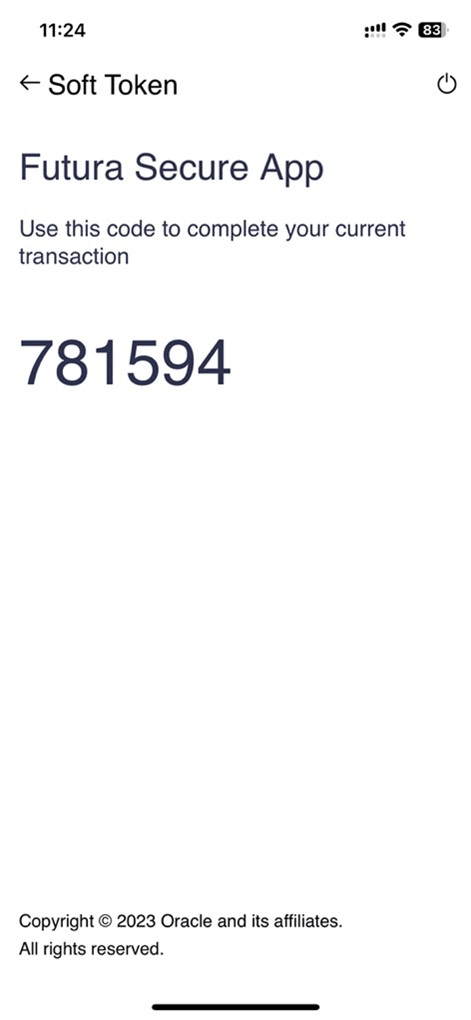

   Figure 1-9 Generated Soft Token Code (HOTP based)





   Description of "Figure 1-9 Generated Soft Token Code (HOTP based)"



9. Use the generated Soft Token PIN to complete the current transaction.

   Note:

   For the Time based Soft Token Code, the code dynamically changes after every 30 sec. User has to configure App while installing and choose TOTP (Time-based one-time password) option which is a temporary passcode.

   By default HOTP (HMAC-based one-time password (OTP) algorithm) is selected, which is internet based.

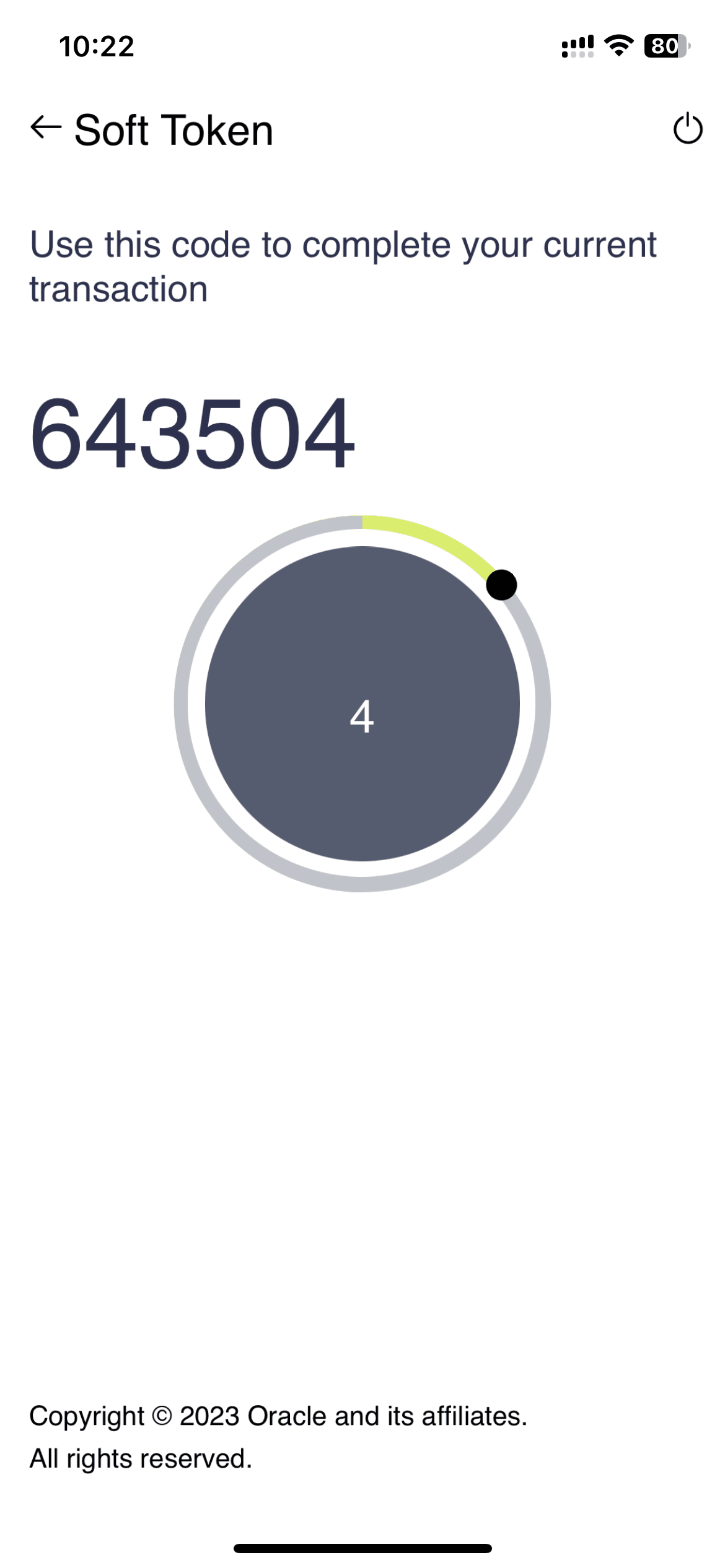

   Figure 1-10 Generated Soft Token Code (TOTP based)





   Description of "Figure 1-10 Generated Soft Token Code (TOTP based)"
