2.7 WebLogic configuration for OAuth

This topic describes the systematic instruction to WebLogic configuration for OAuth option.

To enable OAuth support on WebLogic server follow below mentioned steps.

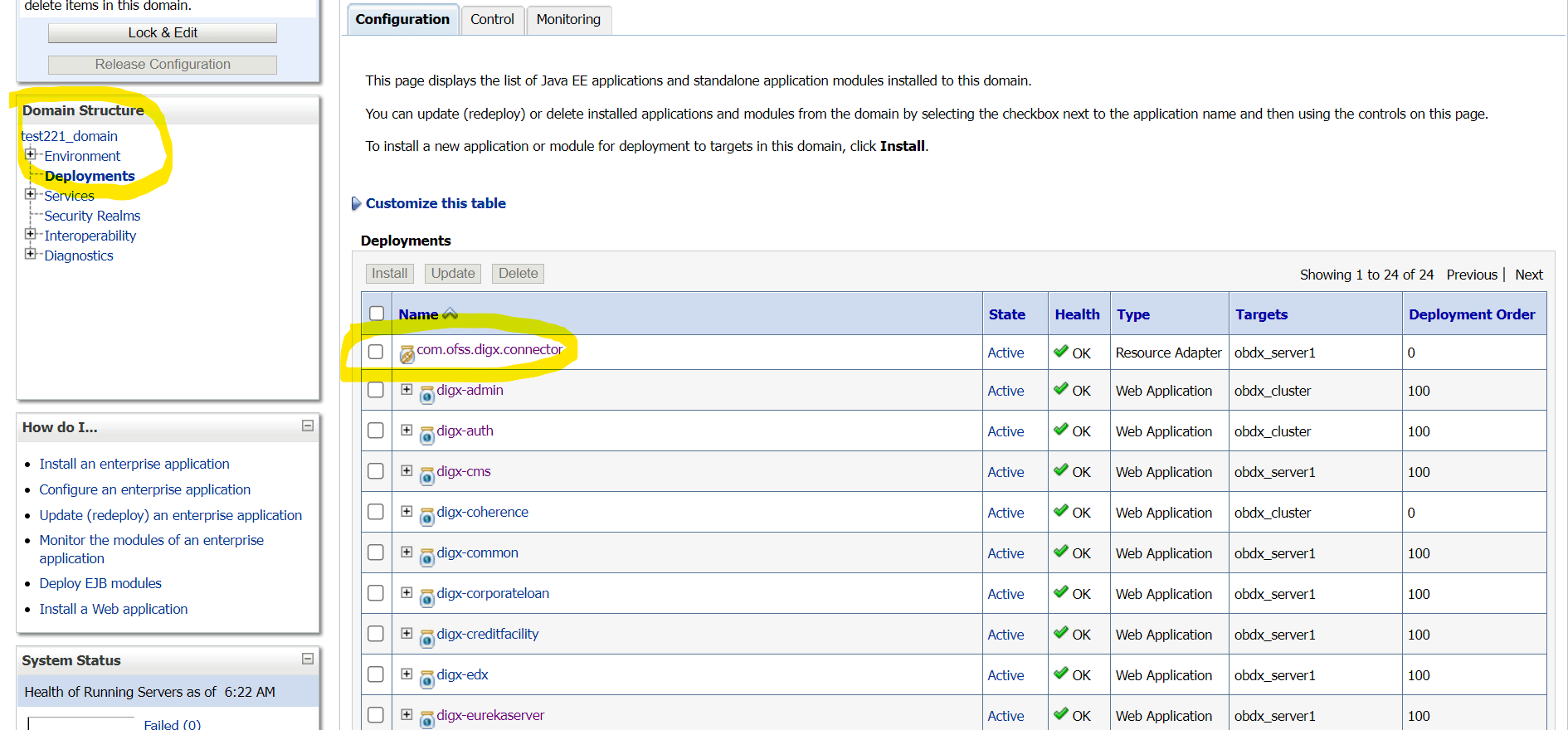

  1. Login to WebLogic console with admin login and navigate to “Domain Structure” → “Deployments”.
  2. Click on “com.ofss.digx.connector”
  3. Navigate to “Configuration” → “Outbound Connection Pools” tab and click on New.

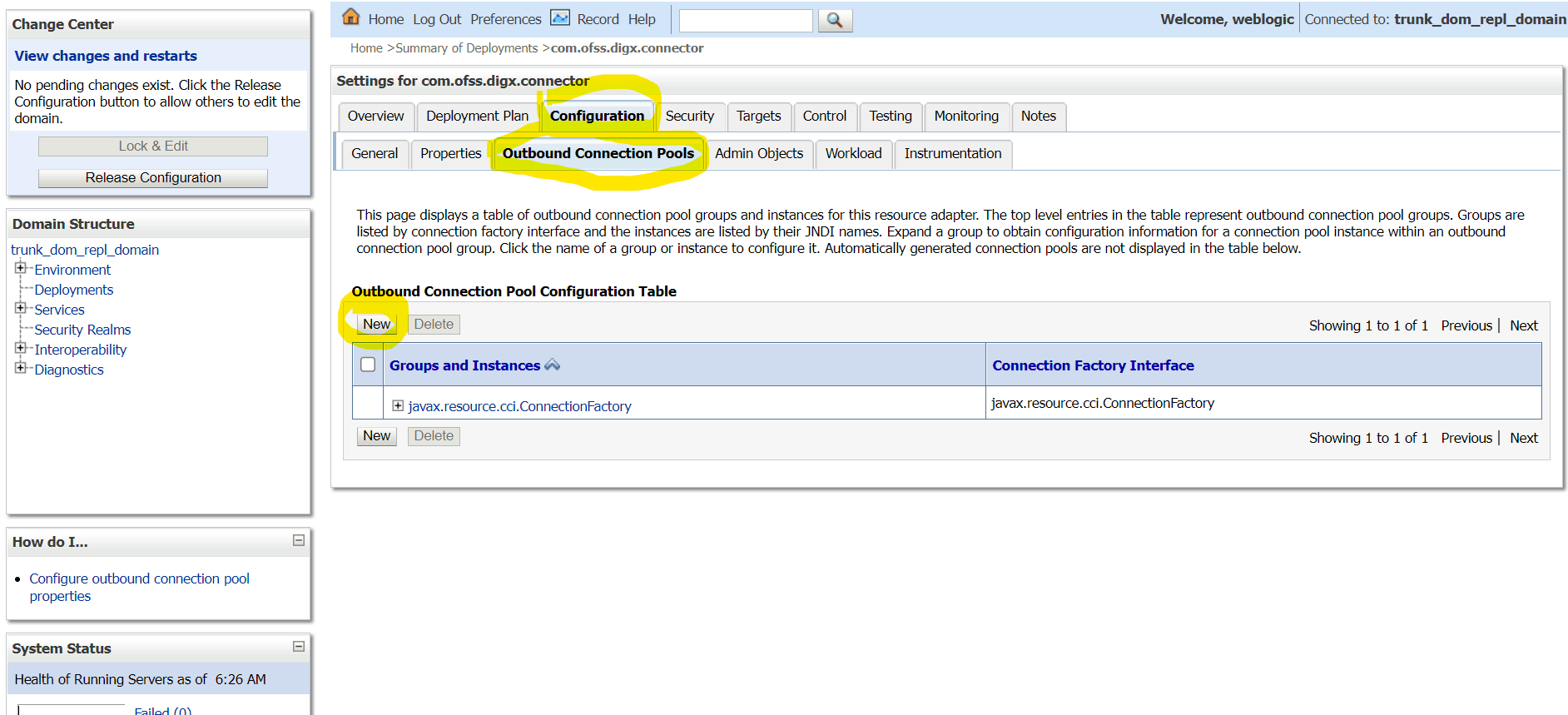

    Figure 2-41 Outbound Connection Pools Configuration


    Description of Figure 2-41 follows
    Description of "Figure 2-41 Outbound Connection Pools Configuration "

  4. Select “javax.resource.cci.ConnectionFactory” and click on Next.

    Figure 2-42 Outbound Connection Group Configuration


    Description of Figure 2-42 follows
    Description of "Figure 2-42 Outbound Connection Group Configuration "

  5. Enter JNDI name as ra/DIGXConnectorSSOKEY and click on Finish.

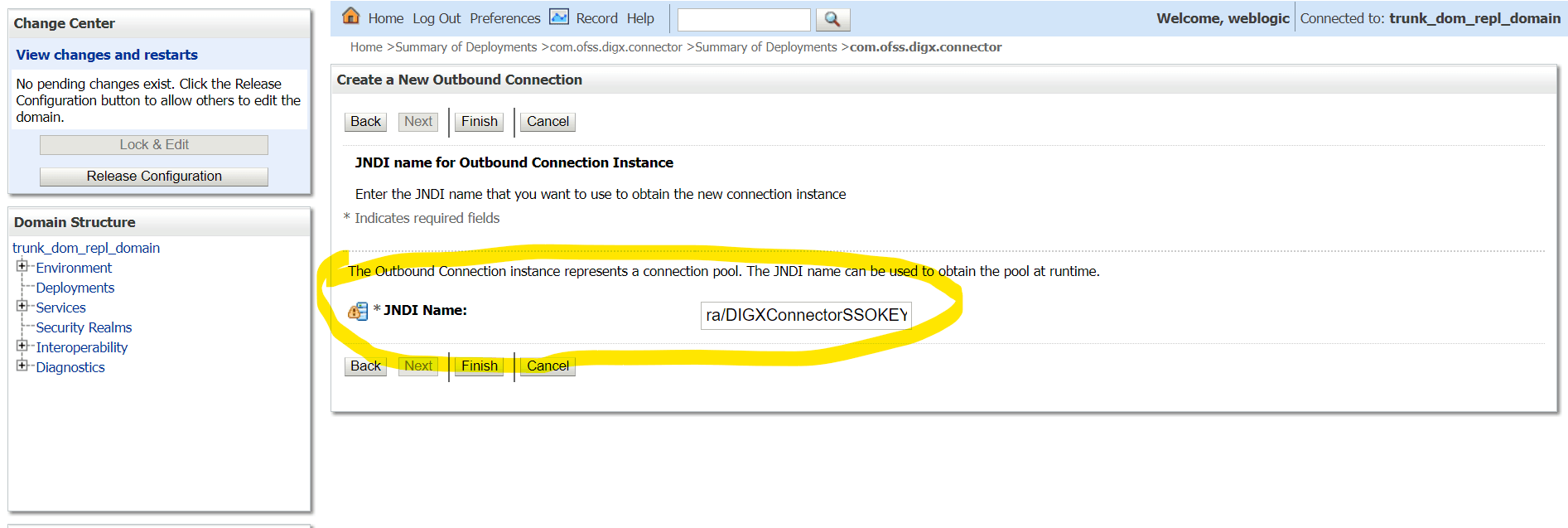

    Figure 2-43 JNDI Configuration for Outbound Connection


    Description of Figure 2-43 follows
    Description of "Figure 2-43 JNDI Configuration for Outbound Connection "

  6. Again navigate to “Domain Structure” → “Deployments”.
  7. Click on “com.ofss.digx.connector”.
  8. Navigate to “Security” → “Outbound Credentials Mapping” tab and click on New.

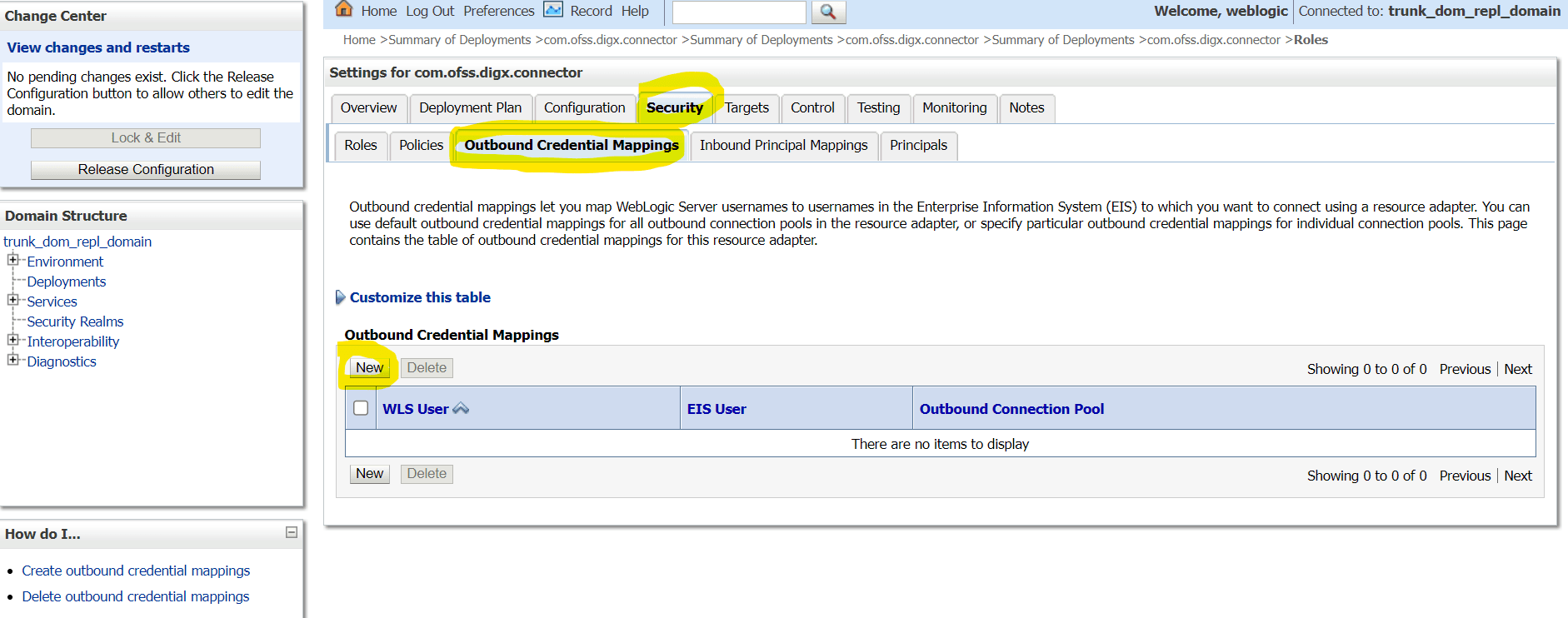

    Figure 2-45 Outbound Credentials Mappings


    Description of Figure 2-45 follows
    Description of "Figure 2-45 Outbound Credentials Mappings "

  9. Select “ra/DIGXConnectorSSOKEY” by navigating using next button. Once selected as shown in below screenshot, click on Next.

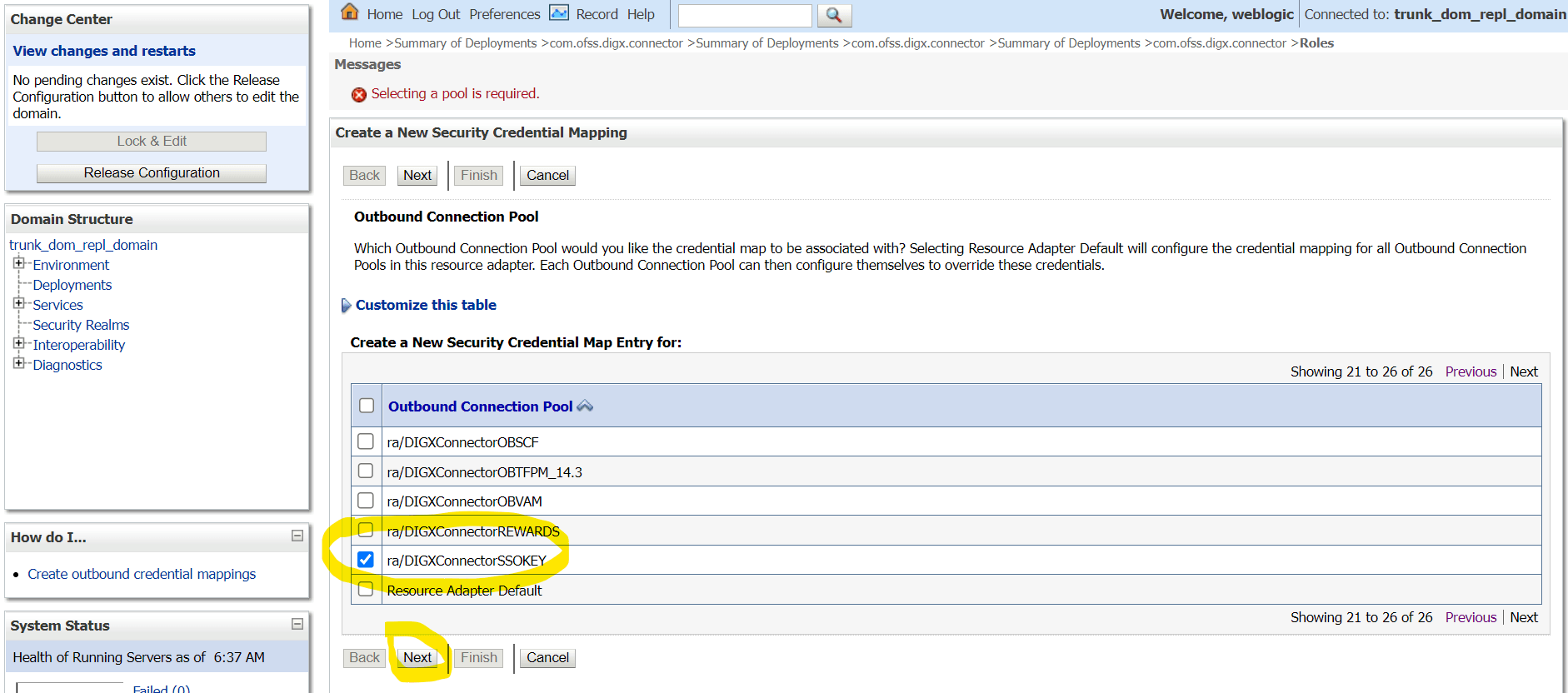

    Figure 2-46 Create New Security Credentials Mappings


    Description of Figure 2-46 follows
    Description of "Figure 2-46 Create New Security Credentials Mappings"

  10. Select “Default User” and click on Next.

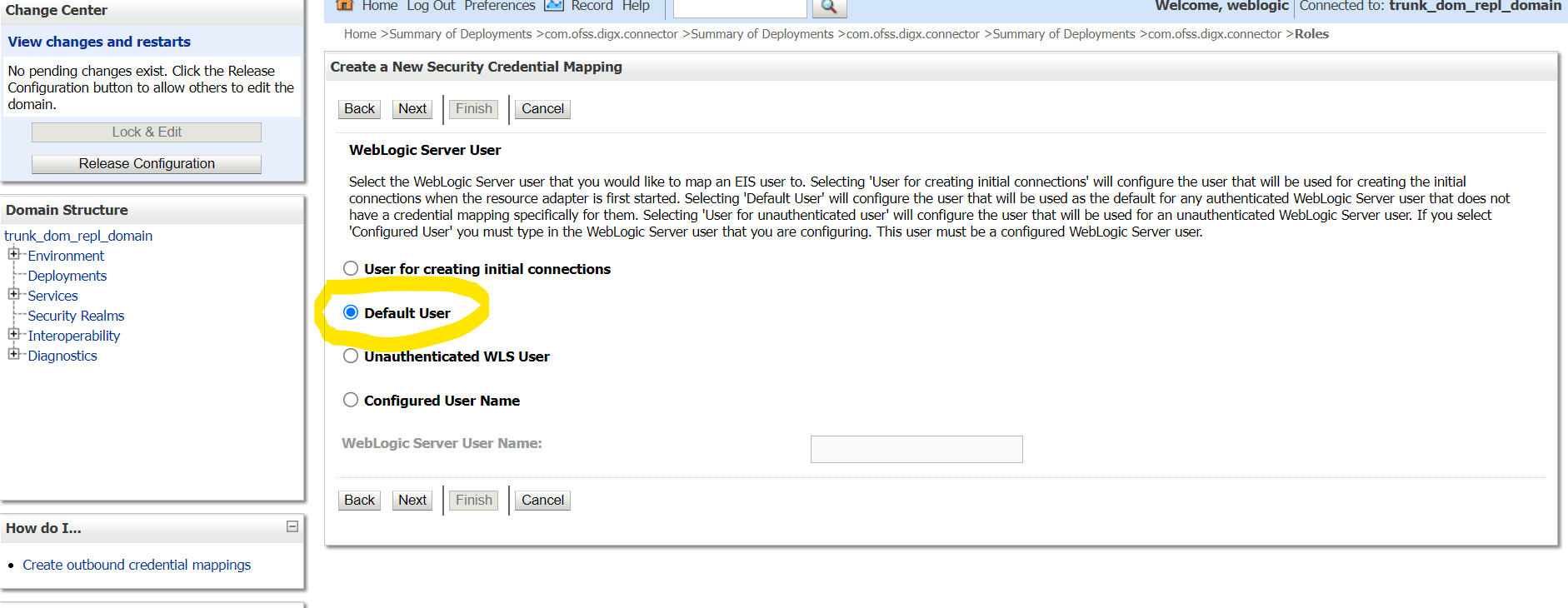

    Figure 2-47 Create New Security Credentials Mappings


    Description of Figure 2-47 follows
    Description of "Figure 2-47 Create New Security Credentials Mappings"

  11. Provide the below mentioned field values as given below.
    1. EIS User Name: - Client ID save in txt file generated from IDCS in section 3.5, step 6.
    2. EIS Password: - Client Secret save in txt file generated from IDCS in section 3.5, step 6.
    3. EIS User Name: - Client Secret save in txt file generated from IDCS section 3.5, step 6.

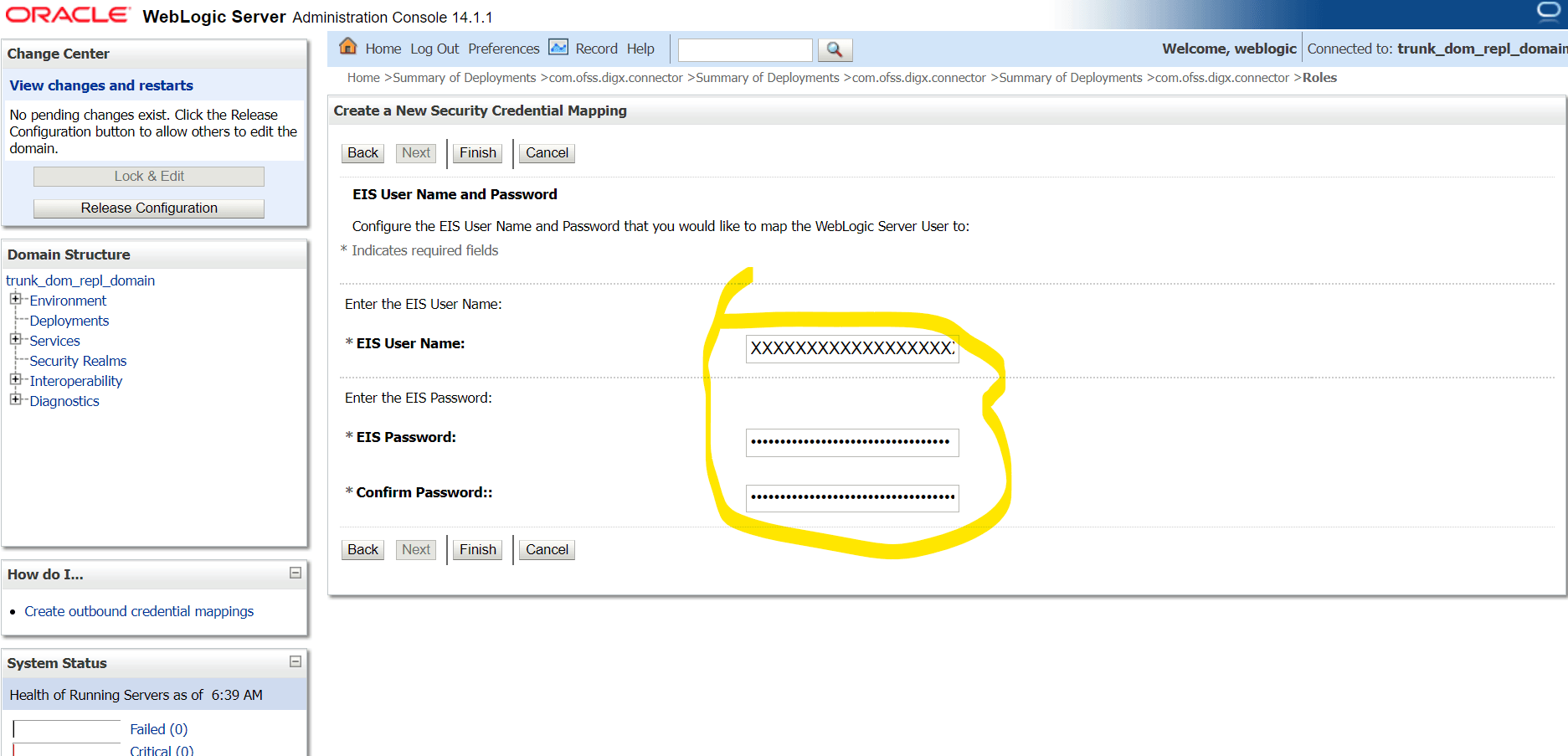

    Figure 2-48 Configure EIS UIS Username / Password


    Description of Figure 2-48 follows
    Description of "Figure 2-48 Configure EIS UIS Username / Password"

  12. Click on Finish to save the configuration.

Parent topic: Configuration
