9.1 Prerequisites

This topic describes about the detailed information about the ELCM - OFSAA Integration.

The following maintenance activities must be done for successful Enterprise Limits Management - Enterprise Collateral Management Interaction:

In Enterprise Limits Management

• Source code in the Upload Source Maintenance (CODSORCE) screen must be maintained as EXTECM to authenticate external system. The external Enterprise Collateral Management system requires this Source Code to access External Collateral Service in Enterprise Limits Management

Sample screen:

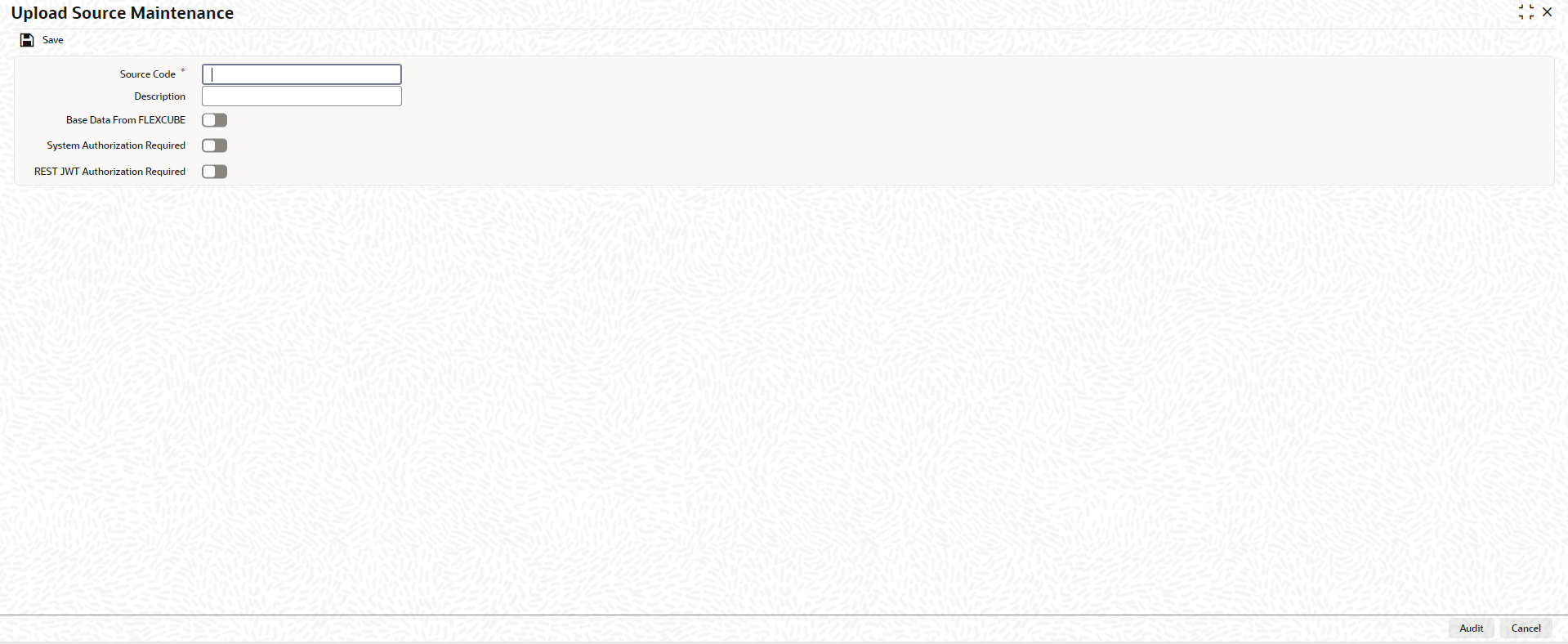

Figure 9-1 Upload Source Maintenance

Description of "Figure 9-1 Upload Source Maintenance"

• Amendables for External Collateral service must be defined in the Gateway Amendment Maintenance screen (GWDAMDMT)

Sample Screens:

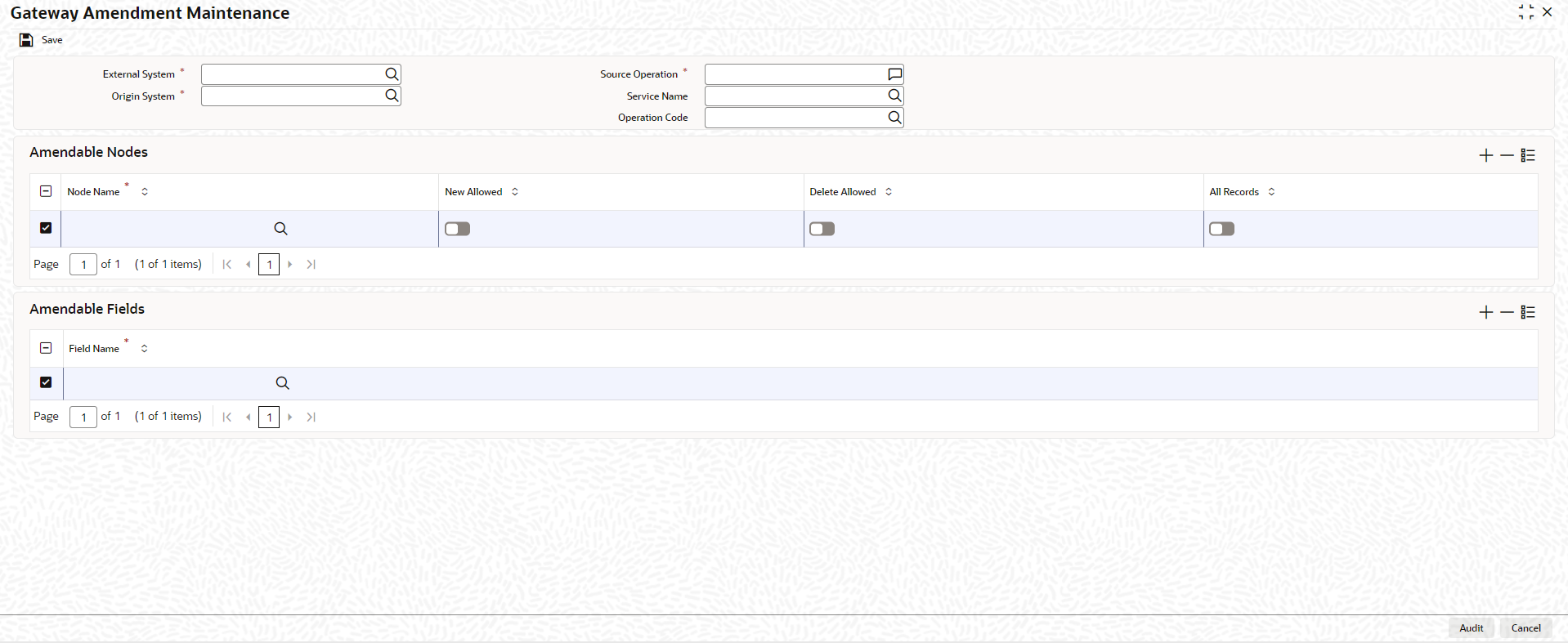

Figure 9-2 Gateway Amendment Maintenance

Description of "Figure 9-2 Gateway Amendment Maintenance"

• In the External System Maintenance screen (GWDETSYS), EXTECM must be provided as External System. This external system will be used by the external Enterprise Collateral Management system to call Enterprise Limits Management

Sample Screen:

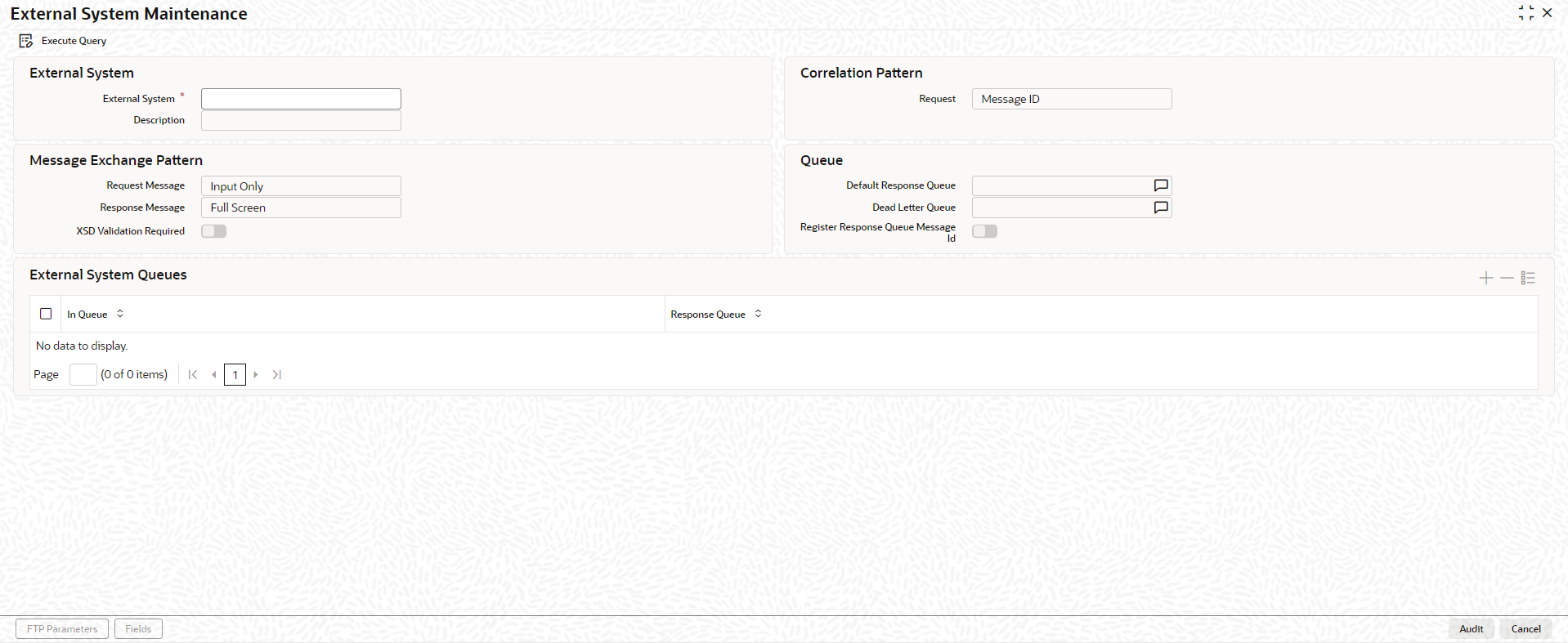

Figure 9-3 External System Maintenance

Description of "Figure 9-3 External System Maintenance"

• In the External System Function screen (GWDETFUN), Actions for the Function ID (GCDECOLT) need to be configured for using the service

Sample Screens:

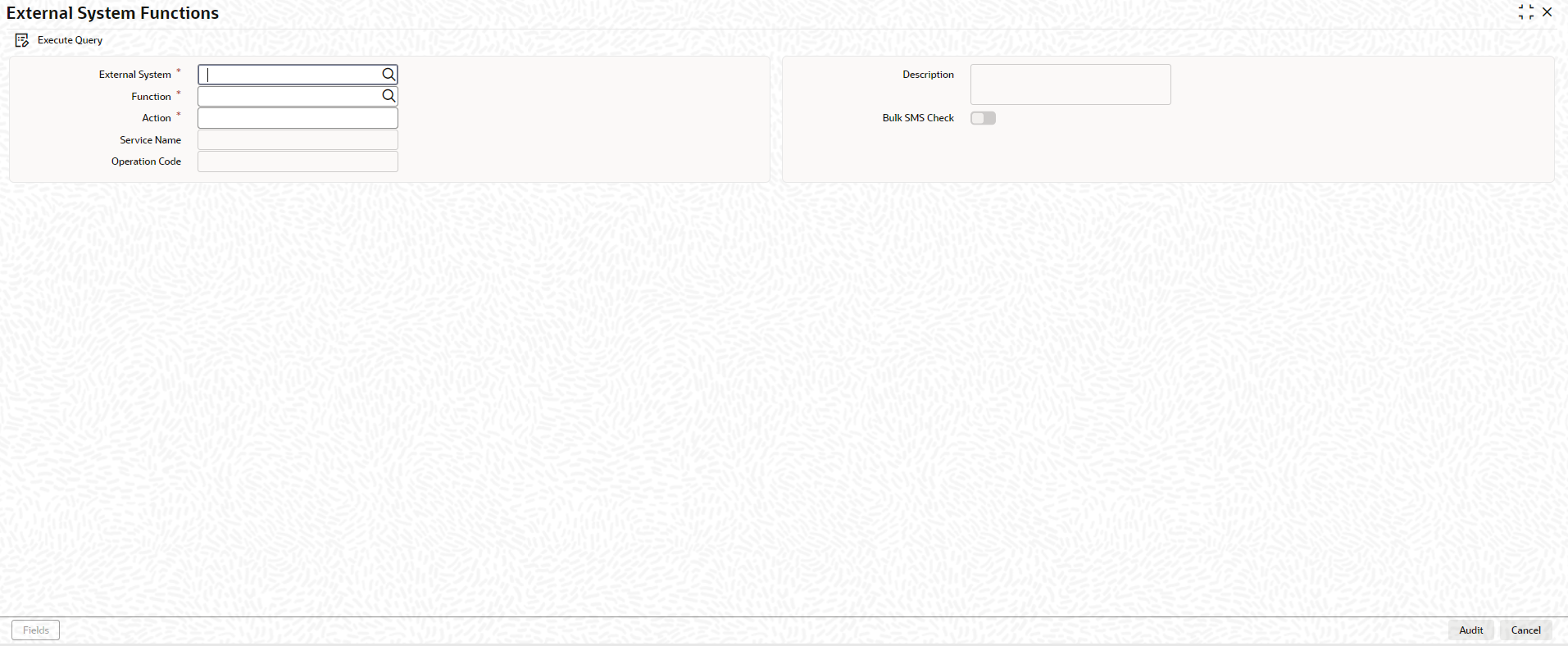

Figure 9-4 External System Function

Description of "Figure 9-4 External System Function"

In Enterprise Collateral Management:

• In the External System Maintenance screen (GEDEXMNT), WSDL URL of the Enterprise Limits Management application must be captured for the external system EXTECM.

Sample screen:

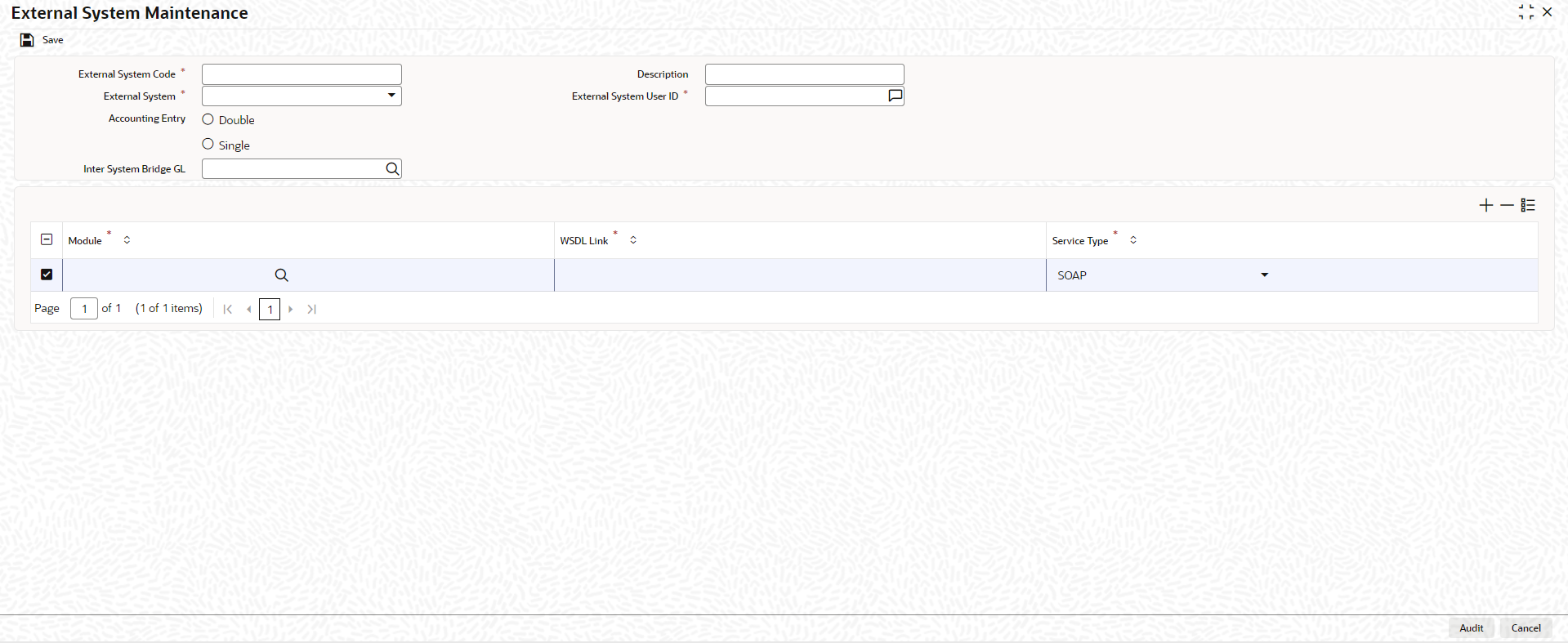

Figure 9-5 External System Maintenance

Description of "Figure 9-5 External System Maintenance"
