7 Functionality Demonstration- Screen Child Refresh
This topic provides an overview of Screen Child Refresh Functionality.
In the unresolvable-reference.html#GUID-BA41A2CA-2C82-46C1-BDDB-21AED5818DED topic, STDCIFDC is refreshed with the latest
STDCIFD. The figure below shows the preview of
STDCIFD and STDCIFDC
main screens before screen child refresh.

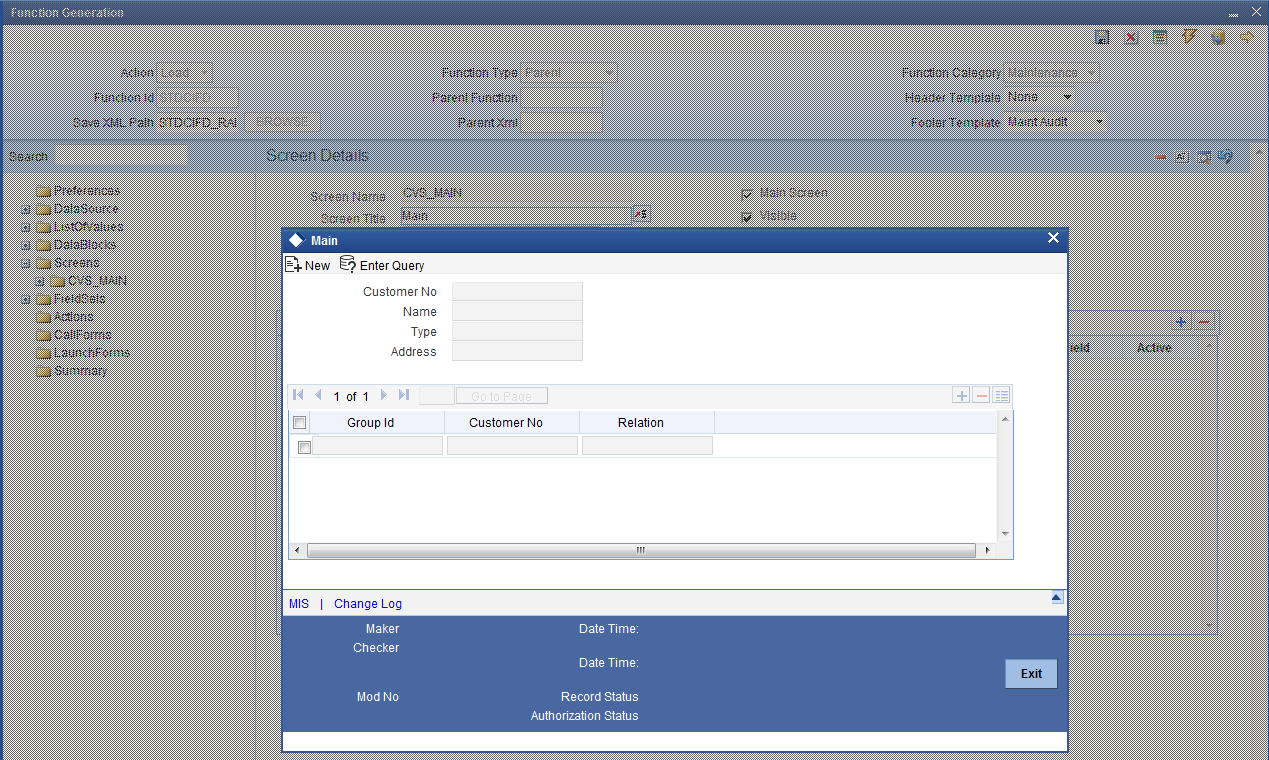

Figure 7-1 STDCIFD- Before Screen Child Refresh

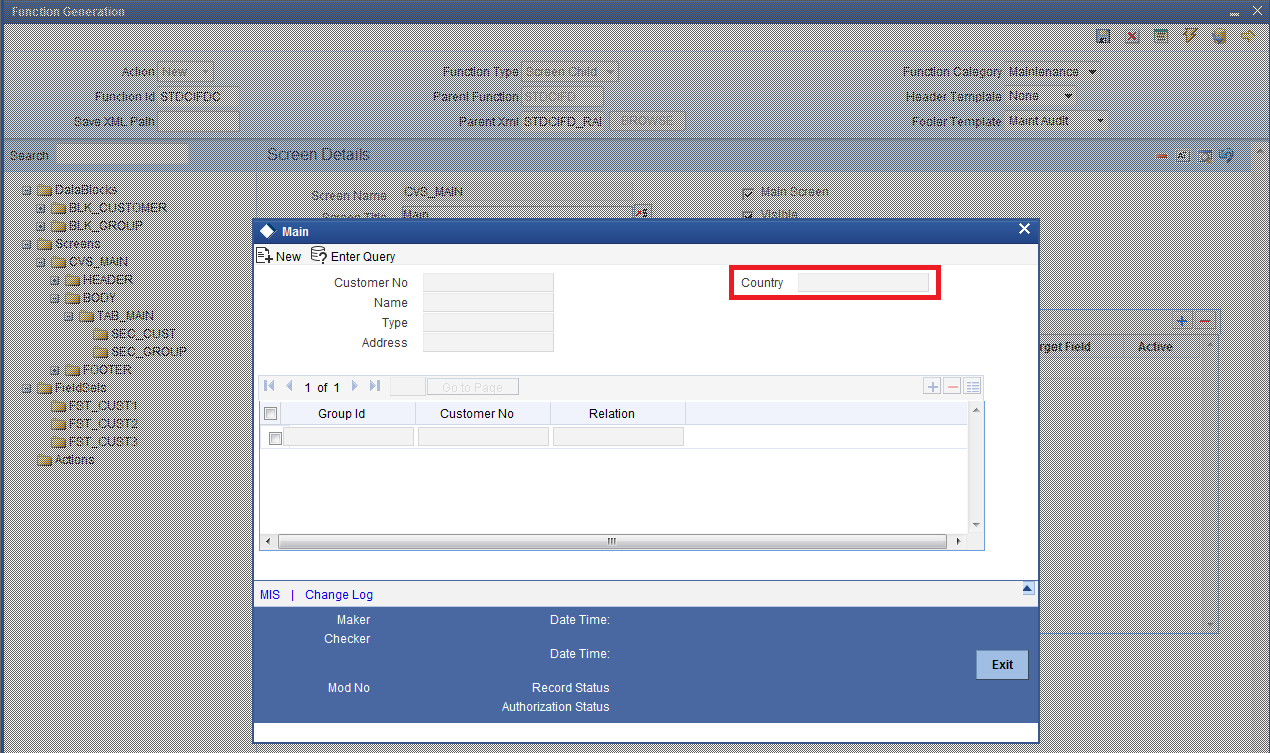

Figure 7-2 STDCIFDC- Before Screen Child Refresh
Let assume that some changes are done in STDCIFD as part of
the current release. The new field has been added and introduced to the screen. Preview
of STDCIFD main screen after changes is shown below. Find the
newly added fields (Nationality and
Language) placed in a new fieldset highlighted in the
figure.

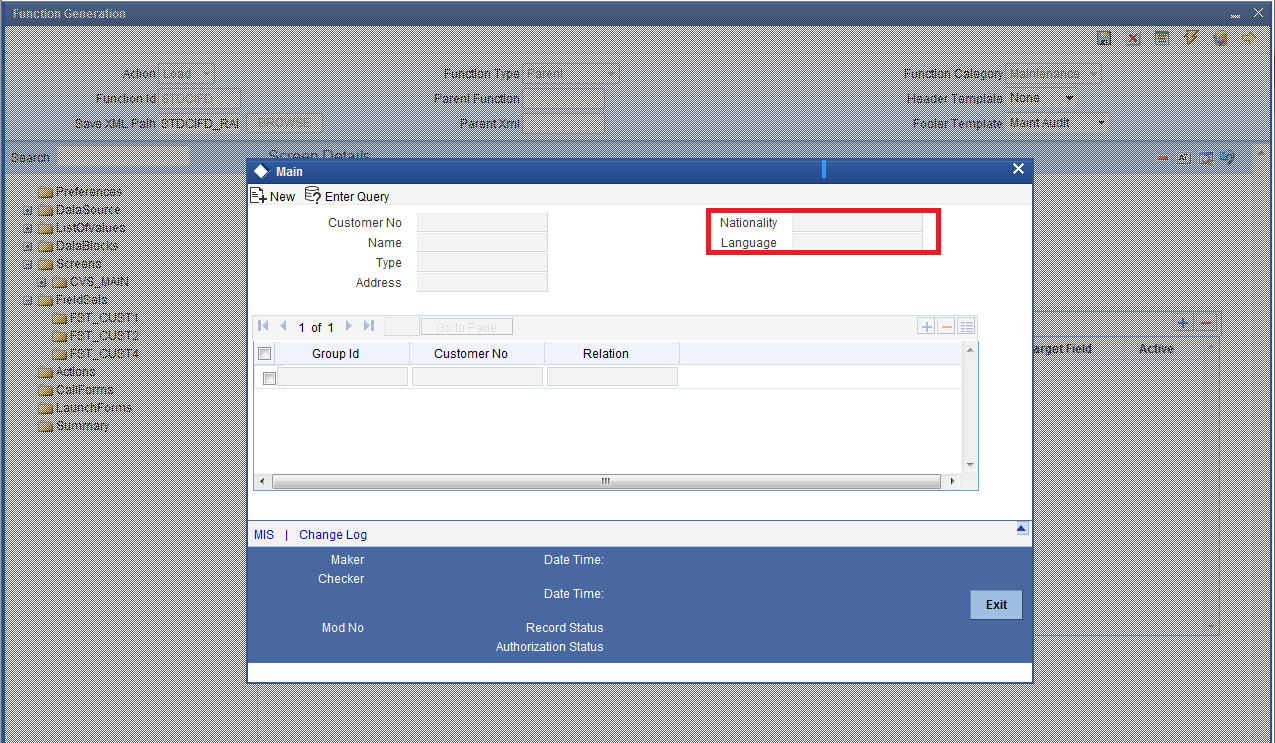

Figure 7-3 STDCIFD- Post Screen Child Refresh
Do Screen Child Refresh for STDCIFDC
with the latest parent (i.e. STDCIFD with new fields and
fieldset). Regenerate system units for the refreshed RADXML and deploy.

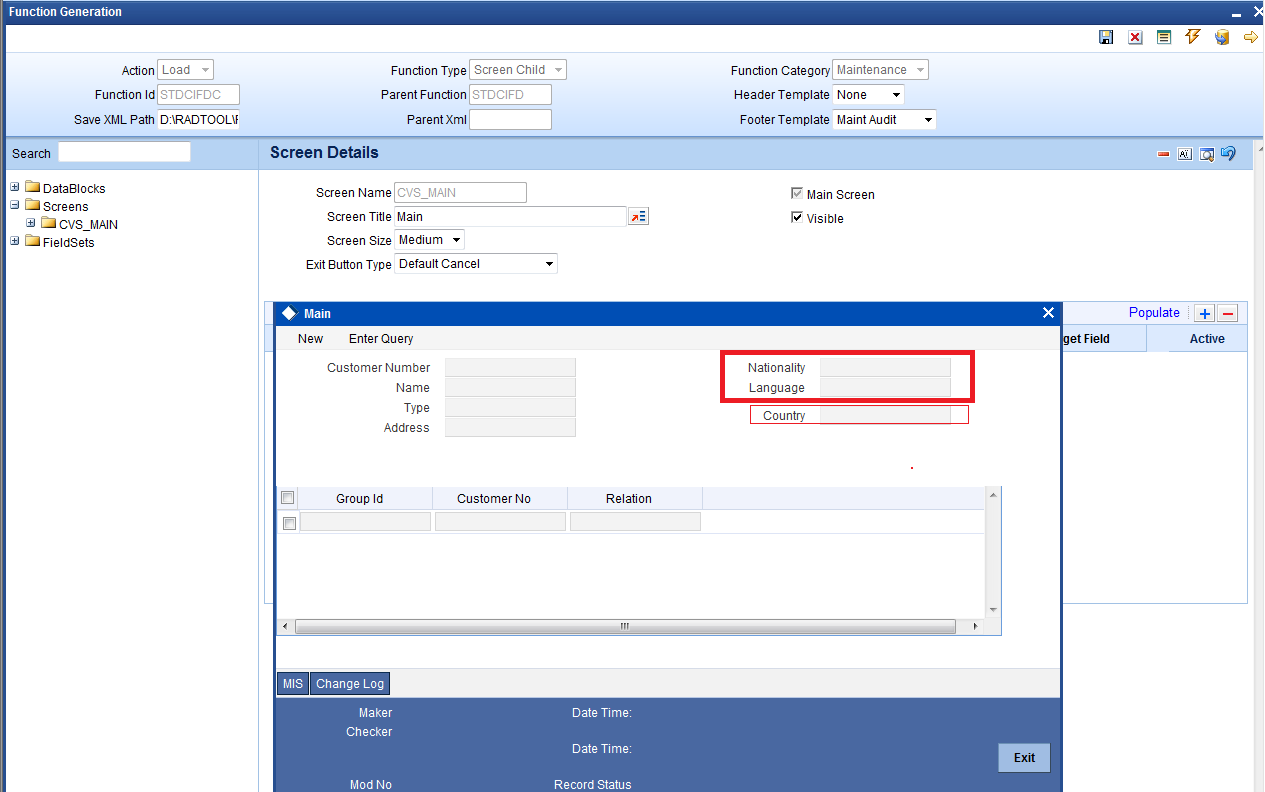

Figure 7-4 STDCIFDC- Post Screen Child Refresh
Here the user can find that new fields and field set added in the parent has come in the screen child while the original screen child changes have also been retained.
