8 Functionality Demonstration- Source Refresh
This topic provides an overview of Source Refresh Functionality.
In the above section process for upgrading a 12.0 custom release function Id (STDCIFD) with its 12.2 version is explained.
The figure below shows the preview of the STDCIFD screen as
used by the bank (i.e.12.0 custom version). In the custom version, the Auto
Generate button which was present in the 12.0 Kernel version was not
required; hence made hidden. The highlighted section shows the original position of the
Auto Generate button in the Kernel version of 12.0.

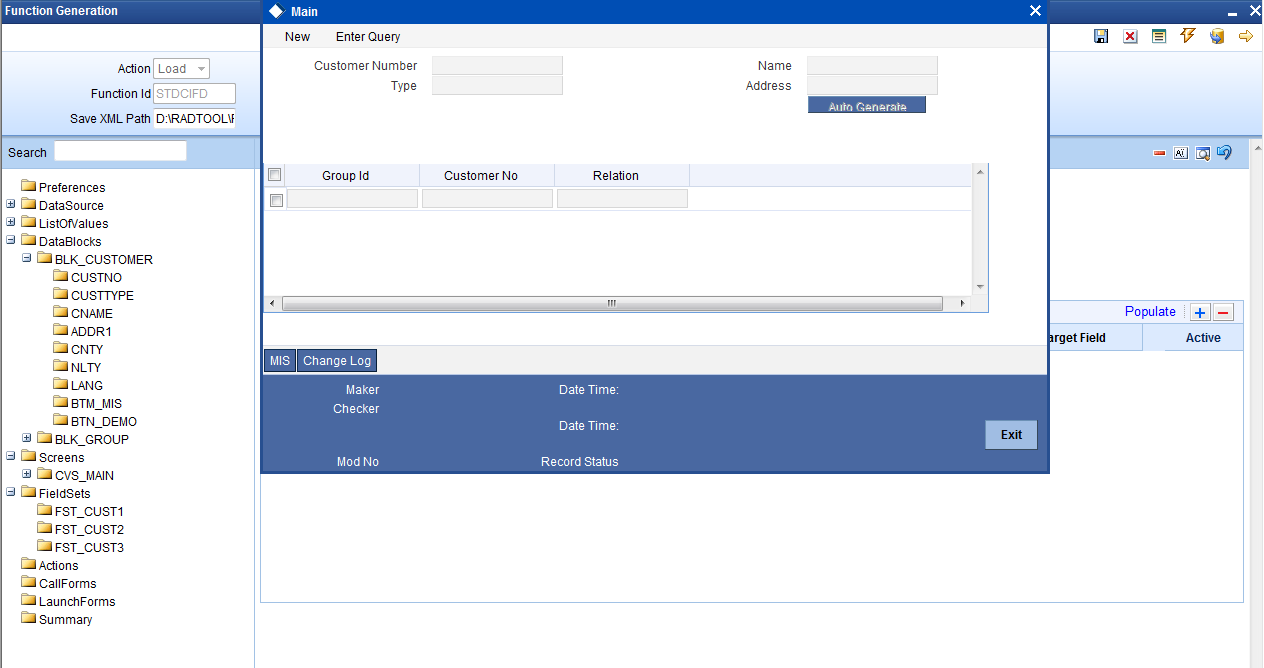

Figure 8-1 STDCIFD Screen- 12.0 Kernel version

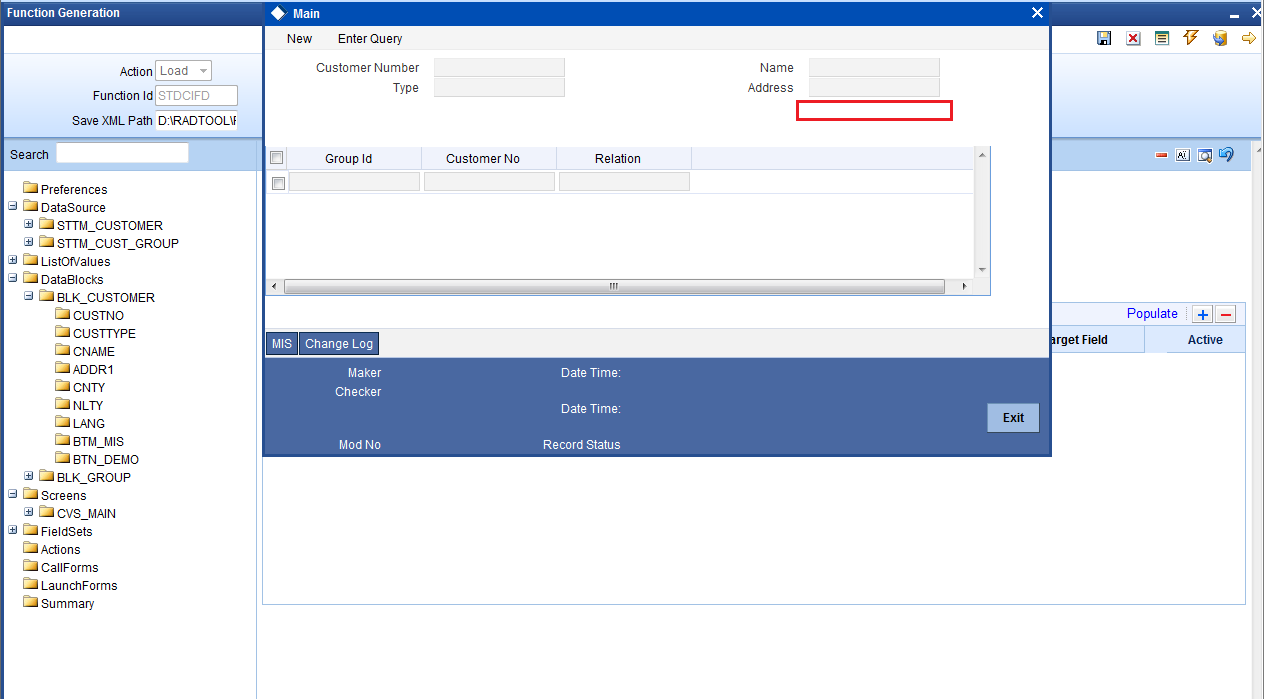

Figure 8-2 STDCIFD Screen- 12.0 Custom Kernel version
The figure below shows the preview of the 12.2 Kernel version of STDCIFD.
Some of the changes done in the 12.2 Kernel version are highlighted in the above
figure:

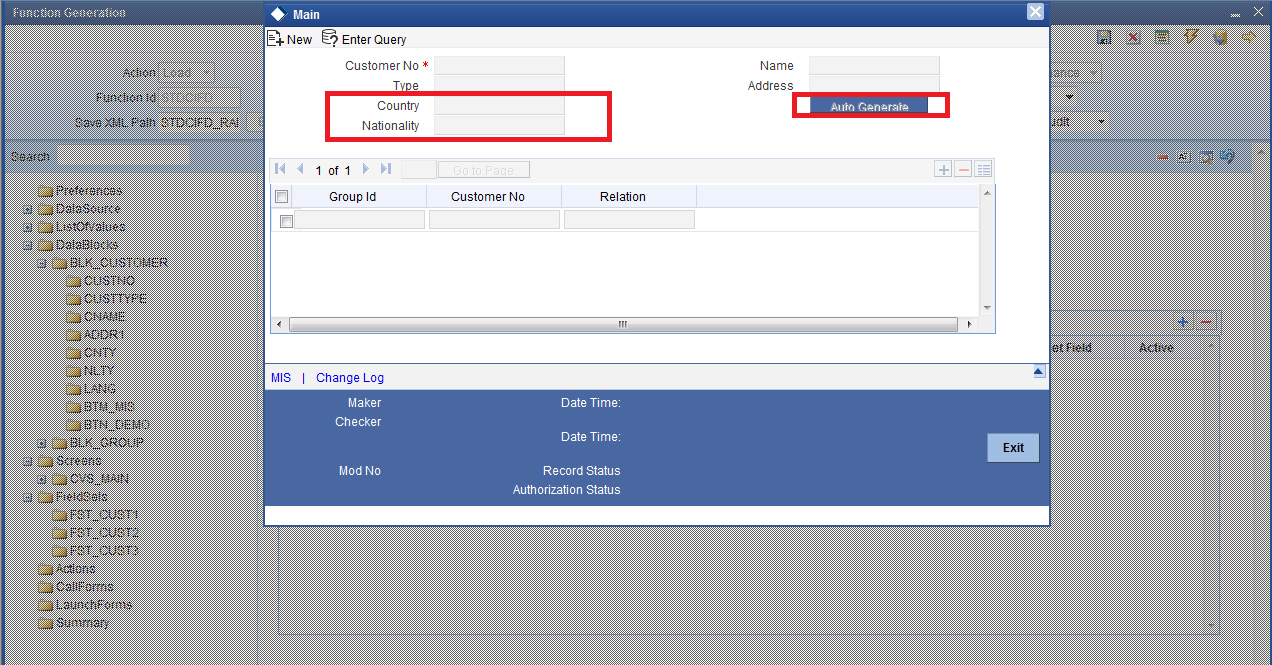

Figure 8-3 STDCIFD Screen- 12.2 Kernel version
- Country field is added.
- Nationality field is added.
Note:
The Auto Generate button has been retained in the 12.2 Kernel version from the 12.0 Kernel.Do Source Refresh as explained in the previous section.
Regenerate all system units (main package, language XML, sys js, XSDs, etc) and deploy
them in the Flexcube server. Compile/Deploy Kernel sources (kernel packages, kernel js,

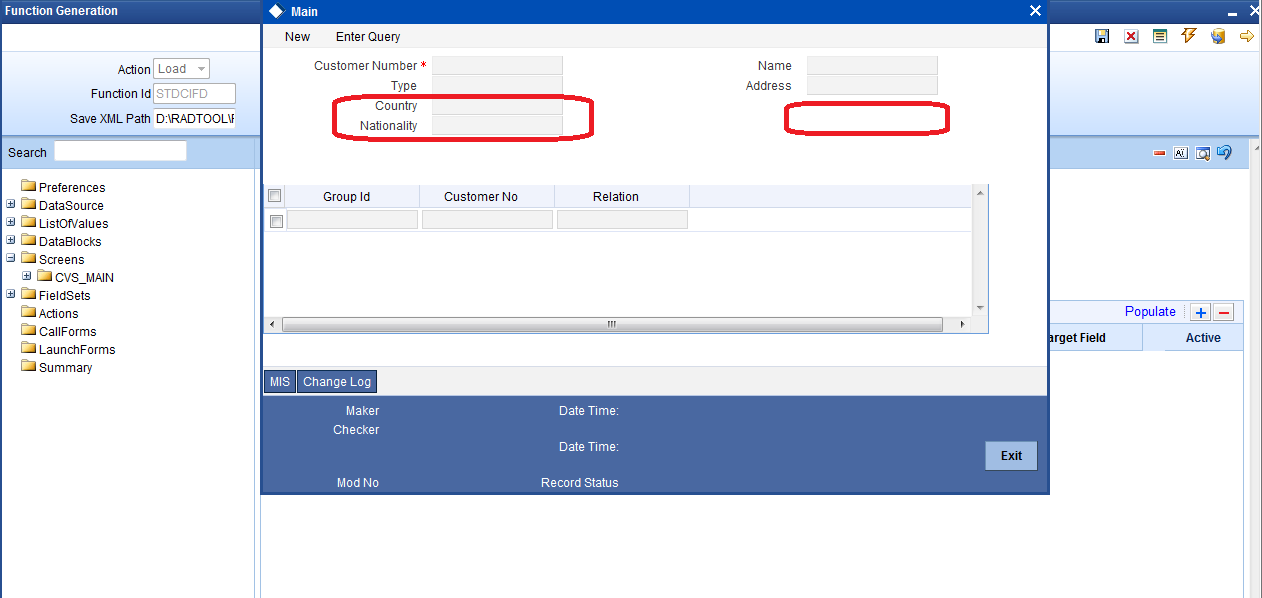

etc) from the base release (12.2 here) in the Flexcube server. The figure below shows
the preview of the screen after Source Refresh.
Here the user can observe that changes from 12.2 Kernel are now reflected in the custom version also:
- Country field in the body has come in the refreshed file.
- Nationality field of the body has also come up in the refreshed screen from the base version.
- Auto Generate button has not come in the Refreshed screen even though it was present in the base screen. This is because it was made hidden in the custom version. Custom changes are retained.
