11 Create New Screens

This topic provides systematic instructions to create a new screen.

1. In the Function Generation screen, right-click on the Screens node and select Add option from the right-click menu.
   Add Screen window displays.

   Figure 11-1 Add Screen





   Description of "Figure 11-1 Add Screen"



2. Specify the Screen Name field.
   Screen Name should start with CVS_<Name>.
3. Specify the Screen Details and click on the Save icon to create a new screen.
   A new screen gets created and displays under the Screen node.

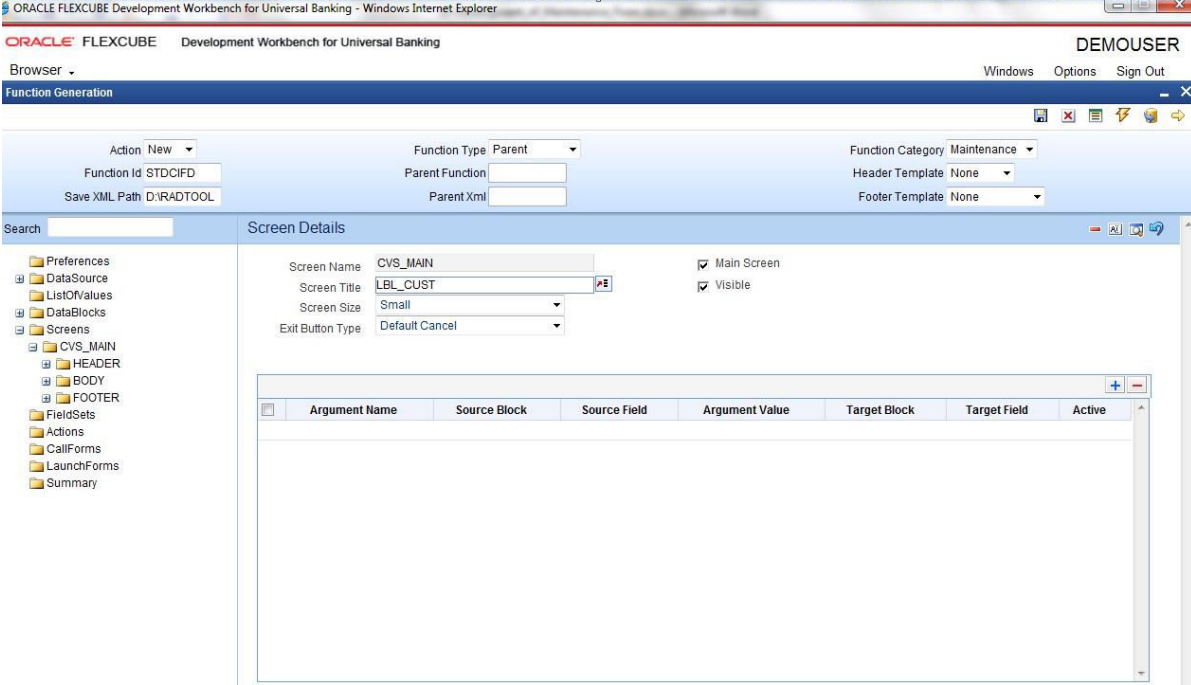

   Figure 11-2 Screen Details- New Screen





   Description of "Figure 11-2 Screen Details- New Screen"




   By default screens are divided into 3 parts:

   • Header
   • Body
   • Footer

   One Main Screen is Mandatory and Tabs can be defined on any of the screen portions as required. User can add Sections to Tabs. Each section can be divided into Partitions.
4. To add a new Section to Tab, right-click on the Tab and then select Add option.
   The Add Section screen displays.

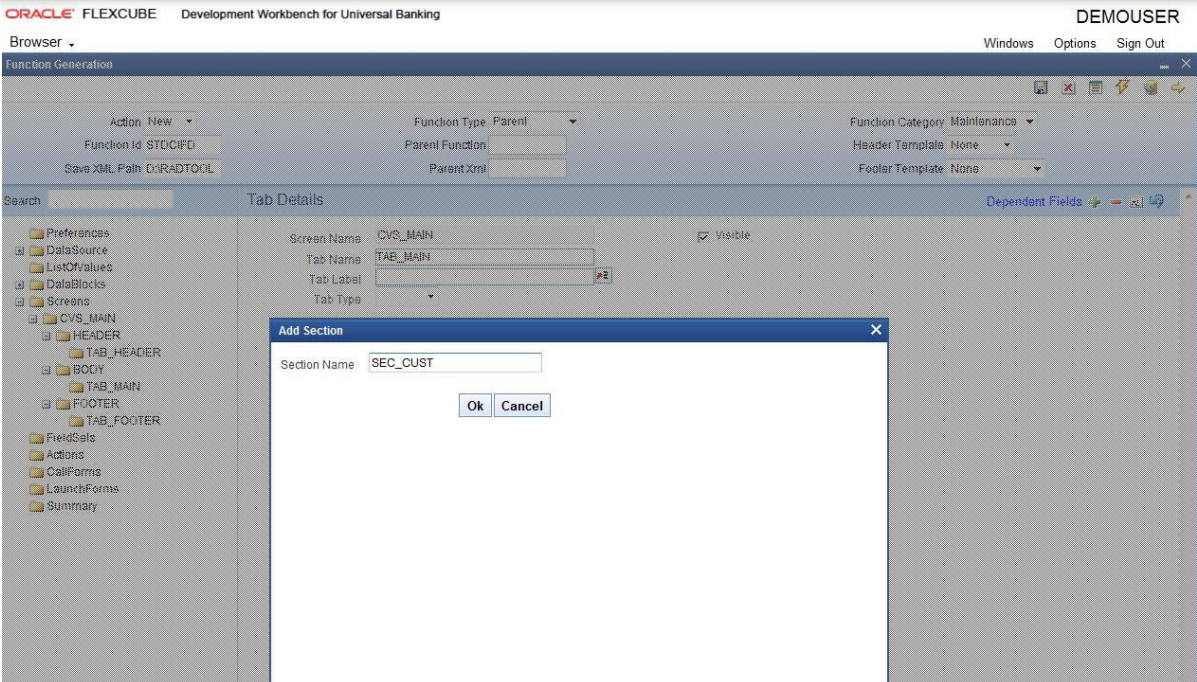

   Figure 11-3 Add Section





   Description of "Figure 11-3 Add Section"



5. Specify the Section Name field and click OK.
   A new Section gets created and displays under the respective Tab.

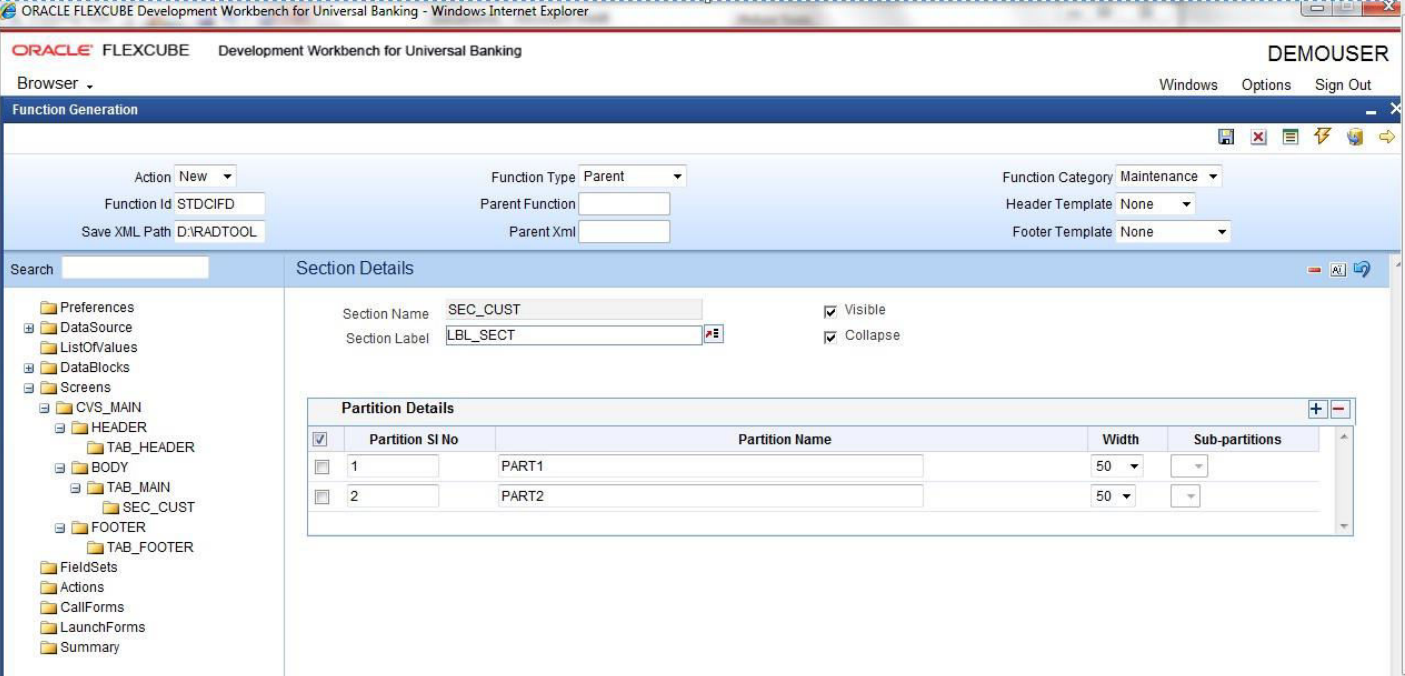

   Figure 11-4 Screen Details





   Description of "Figure 11-4 Screen Details"
