2.2 Create Property Files

This topic explains systematic instructions to create the property file for the Gateway application.

1. Start Oracle FLEXCUBE Universal Banking Solutions Installer by clicking the FCUBSInstaller.bat from INSTALLER\SOFT\GUI.
   The Welcome To Oracle FLEXCUBE Universal Banking Installer screen displays.

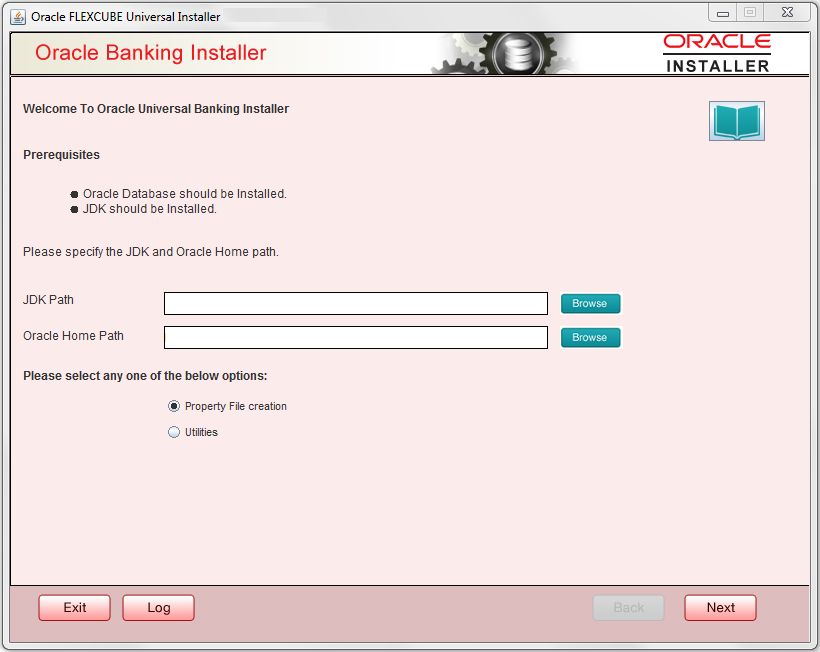

   Figure 2-1 Welcome To Oracle FLEXCUBE Universal Banking Installer





   Description of "Figure 2-1 Welcome To Oracle FLEXCUBE Universal Banking Installer"



2. On the Welcome To Oracle FLEXCUBE Universal Banking Installer screen, click Browse, and specify the JDK Path and Oracle Home Path.
3. On the Welcome To Oracle FLEXCUBE Universal Banking Installer screen, select the Property File Creation option, and click Next.
   The Select One of the Components screen displays.

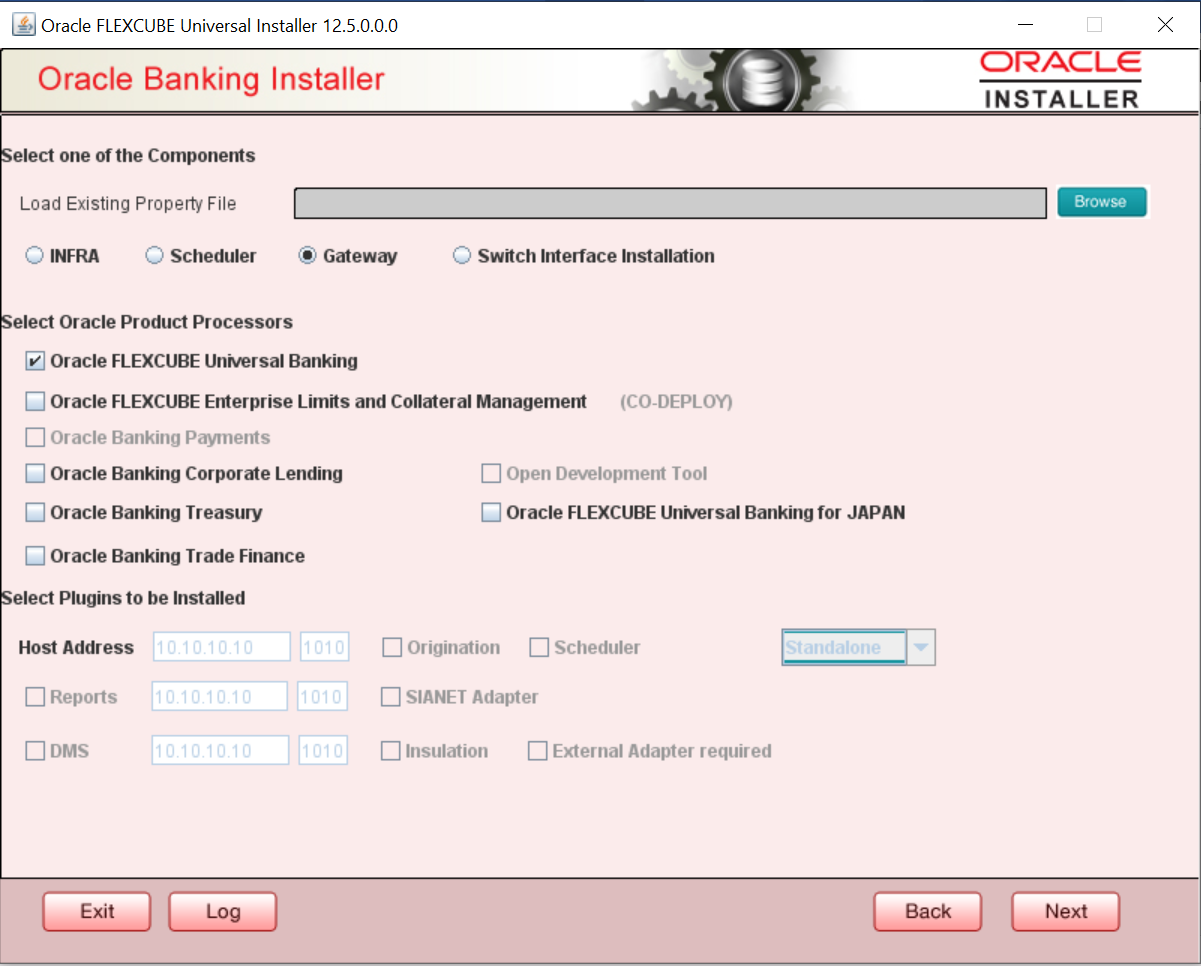

   Figure 2-2 Select One of the Components





   Description of "Figure 2-2 Select One of the Components"



4. Select the Gateway component, and click Next.
   The Environment Details screen displays.

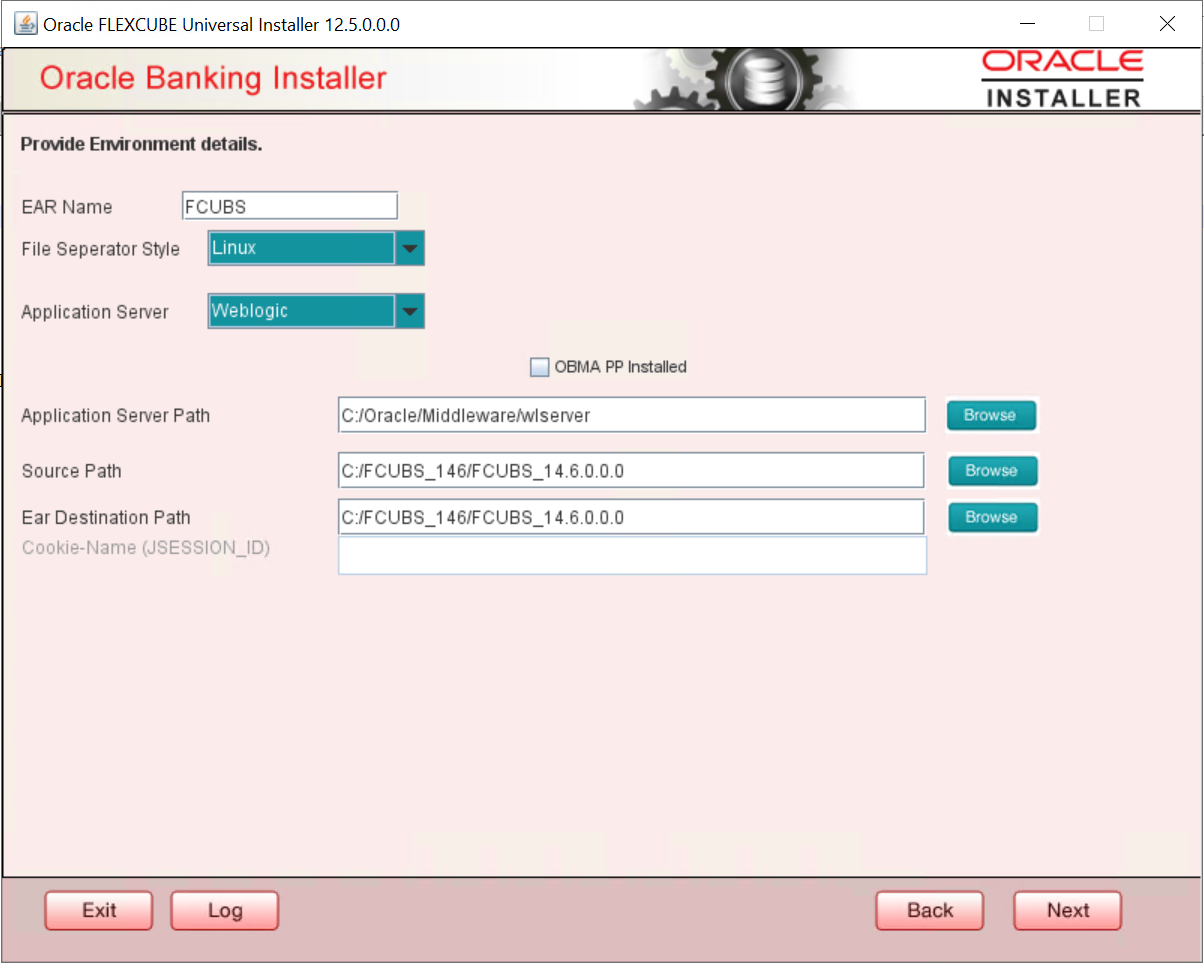

   Figure 2-3 Environment Details





   Description of "Figure 2-3 Environment Details"



5. Specify the EAR Name, Application Server Path, Source Path, and EAR destination path, and then click Next.
   The Gateway Property File Creation screen displays.

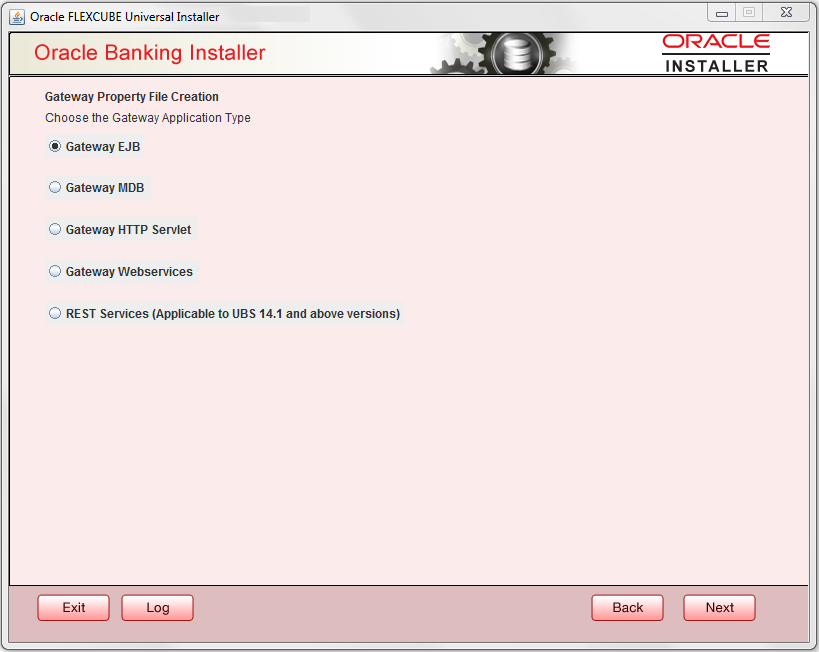

   Figure 2-4 Gateway Property File Creation





   Description of "Figure 2-4 Gateway Property File Creation"




   To create a property file through Gateway EJB, Gateway MDB, Gateway HTTP Servlet, Gateway Webservices, and REST Services (Applicable to UBS 14.1 and above versions), refer to the following topics:

   1. unresolvable-reference.html#GUID-C26FB041-FF31-48E5-92C1-920292110BB8
   2. unresolvable-reference.html#GUID-EEE57C3B-D0BF-46BA-88B9-D885C0A0E046
   3. unresolvable-reference.html#GUID-14A9634F-E361-448E-A054-F939D02D527A
   4. unresolvable-reference.html#GUID-20C289C5-B023-4D6E-BDDF-A6FA6A59A1B0
   5. unresolvable-reference.html#GUID-B47A7D56-9C9F-4723-AD53-1D52A749CBD1

• Gateway EJB Application
  This topic explains systematic instructions to create a property file by choosing Gateway EJB as the application type.
• Gateway MDB Application
  This topic provides systematic instructions to create a Property File by choosing Gateway MDB Application as the application type.
• Gateway HTTP Servlet Application
  This topic explains systematic instructions to create a property file through the Gateway HTTP Servlet application type.
• Gateway Webservices Application
  This topic explains systematic instructions to create a property file through the Gateway Webservices application type.
• REST Services Application
  This topic explains systematic instructions to create a property file through the REST Services application type.
