1.21 Process SWIFTNet FTA Connector Definition Summary

This topic explains systematic instructions to process the SWIFTNet FTA connector definition summary.

Note:

The fields which are marked in asterisk are mandatory.

1. On Homescreen, type MSSFTACN in the text box, and click Next.
   The SWIFTNet FTA Connector Definition Summary screen displays.

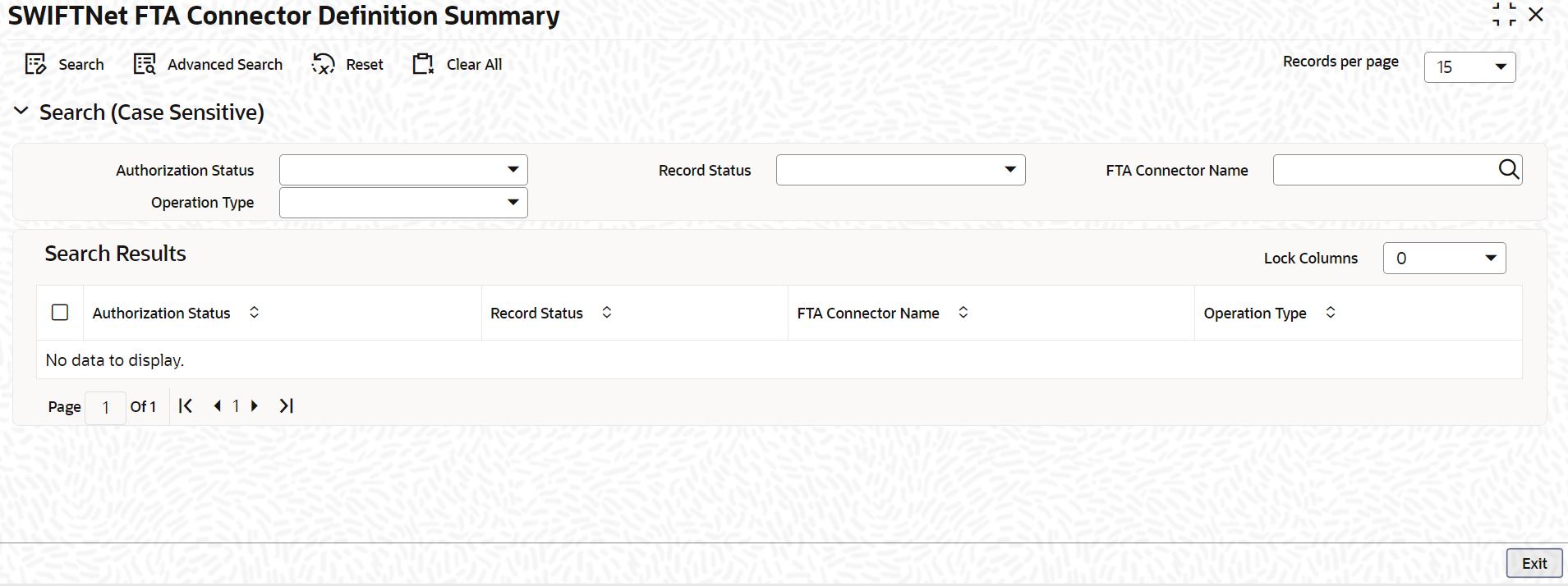

   Figure 1-22 SWIFTNet FTA Connector Definition Summary





   Description of "Figure 1-22 SWIFTNet FTA Connector Definition Summary"



2. On the SWIFTNet FTA Connector Definition Summary screen, specify the fields.

   For more information on fields, refer to the field description table.

   Table 1-24 SWIFTNet FTA Connector Definition Summary - Field Description

   Field	Description
   FTA Connector Name	Click Search and specify the FTA Connector Name from the list of values.
   Operation Type	Select the operation type from the drop-down list: Inbound Outbound
   Authorization Status	Select the status of the authorization from the drop-down list: Authorized Unauthorized Rejected
   Record Status	Select the record status from the drop-down list: Open Closed

3. Click Search after specifying the search parameters.
   The system identifies all records satisfying the specified criteria and displays the following details for each one of them:

   • FTA Connector Name
   • Operation Type
   • Authorization Status
   • Record Status
4. Click Exit to end the transaction.
