2.1.7 Set EMS FTP/FTPS Properties

This topic explains the EMS FTP/FTPS properties.

1. Click the Next button and the following screen is displayed.
   Oracle FLEXCUBE Universal Installer - Property File Creation - EMS FTP/FTPS screen is displayed.

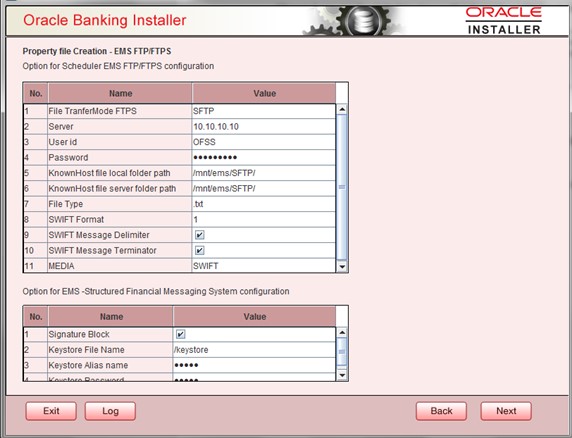

   Figure 2-16 Oracle FLEXCUBE Universal Installer - Property File Creation - EMS FTP/FTPS





   Description of "Figure 2-16 Oracle FLEXCUBE Universal Installer - Property File Creation - EMS FTP/FTPS"



2. On the Oracle FLEXCUBE Universal Installer - Property File Creation - Scheduler EMS Queue screen, specify the EMS FPT/FTPS fields.

   Table 2-10 Property File Creation - EMS FTP/FTPS Configuration

   Fields	Description
   File Transfer Mode FTPS	Specify the mode of transferring files to EMS. Enter one of the following: FTPS (FTP over SSL) SFTP(Secure FTP) HTTP(Hyper Text Transfer Protocol) Note: FTP is File Transfer Protocol.
   Server	Specify the server IP address for the selected file transfer mode.
   User Id	Specify the User Id to access the server of the file transfer mode.
   Password	Specify the password to for the above User Id.
   Known Hosts Local Folder path	Specify the local path for knownhosts file generation. This is required only when the File transfer mode is SFTP.
   Known Hosts server folder path	Specify the server path for knownhosts file pick-up. This is required only when the File transfer mode is SFTP. Please copy the generated knownhosts file to the given server path.
   File Type	Specify the type of file that is transferred. By default, the Installer sets it as .txt.
   SWIFT Format	Specify the SWIFT format.
   SWIFT Message Delimiter	Specify the character which is used as the message delimiter.
   SWIFT Message Terminator	Specify the character which is used as the message terminator.

3. On the Oracle FLEXCUBE Universal Installer - Property File Creation - Scheduler EMS Queue screen, specify the EMS- Structured Financial Messaging System configuration fields.
   For more information, refer the field description table.

   Table 2-11 Property File Creation - EMS Structured Financial Messaging System

   Fields	Description
   Signature Block	Check this box to enable signature block.
   Keystore File Name	Specify the keystore file name.
   Keystore Alias Name	Specify the keystore alias name.
   Keystore Password	Specify the keystore password.

4. Once you have specified the above details, click the Next button and the system displays the next screen.
