2.6 Maintain SSO Parameters

This topic explains systematic instructions to maintain SSO parameters.

LDAP is an external directory system that stores the details regarding user ids and passwords. Once SSO has been enabled for the bank, the SSO parameters need to be maintained. This can be done using the Single Sign On Maintenance screen.

Note:

The fields which are marked in asterisk are mandatory.

1. On Homescreen, type SMDSOPRM in the text box, and click Next.
   The Single Sign On Maintenance screen displays.

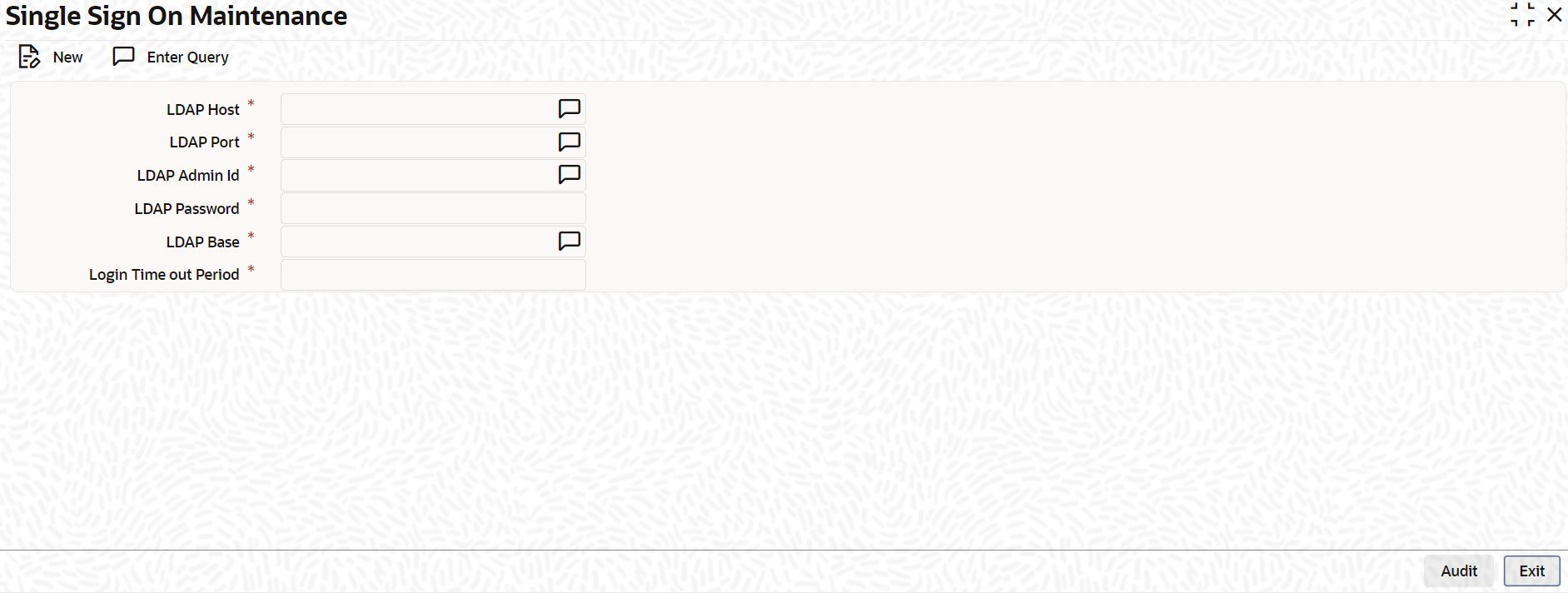

   Figure 2-6 Single Sign On Maintenance





   Description of "Figure 2-6 Single Sign On Maintenance"



2. On the Single Sign On Maintenance screen, specify the fields.

   For more information on fields, refer to the field description table.

   Table 2-5 Single Sign On Maintenance - Field Description

   Field	Description
   LDAP Host	Type the machine or server name where LDAP (Oracle Internet Directory) is installed.
   LDAP Port	Specify the network port number where the LDAP (Oracle Internet Directory) listens to the server.
   LDAP Admin id	Specify the admin user ID of the LDAP (Oracle Internet Directory).
   LDAP Password	Specify the password for the LDAP admin user which is provided during installation.
   LDAP Base	Specify the directory information tree (DIT) structure under which the data is to be stored, which is provided during installation. This is used while validating the user present in the LDAP (Oracle Internet Directory).
   Login Time Out Period	Specify the allowable idle time (in seconds) that a user can spend without performing any activity, after logging in to the system.

3. Click Exit to end the transaction.
