7 Test Case Definition

This topic explains the systematic instructions to define the test case.

1. On the Home Screen, under Browser, expand Test Case Definition and click on Detailed.
   Test Case Master screen is displayed.

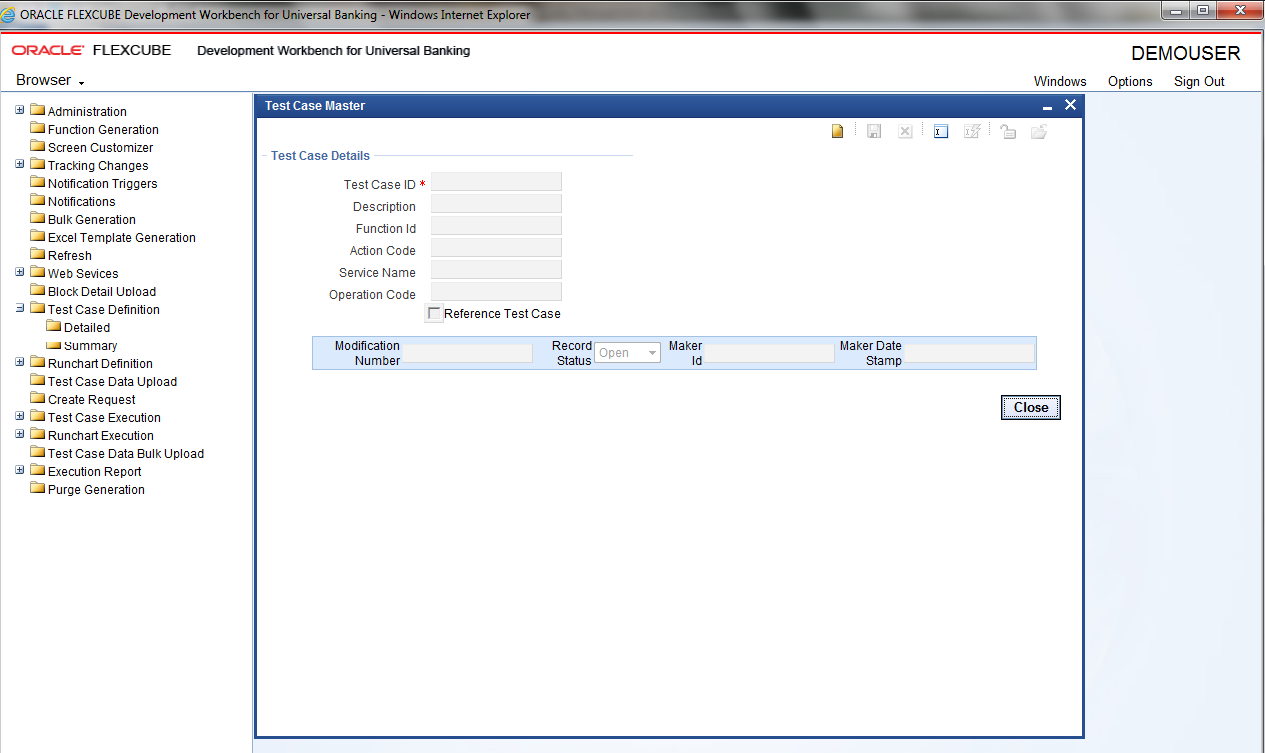

   Figure 7-1 Test Case Master





   Description of "Figure 7-1 Test Case Master"



2. On the Test Case Master screen, to create new test case click the first command.
   Test Case Master screen is displayed.

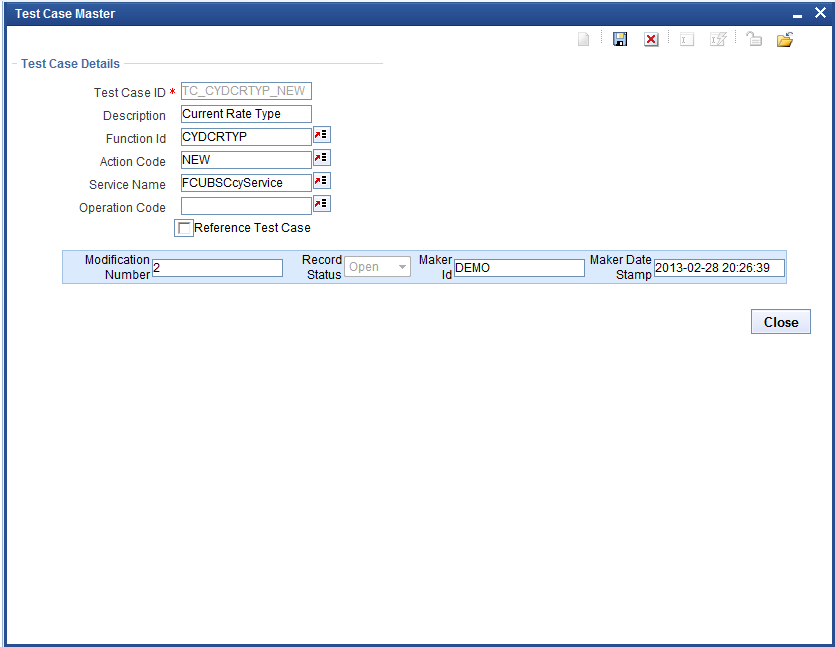

   Figure 7-2 New Test Case





   Description of "Figure 7-2 New Test Case"



3. Click on Save, to save the test case details.
4. To query the data, click on the fourth command (add icon)
5. To get the queried data, click on the fifth command. (add icon)

   Note:

   Function Id and Action code combination is used to take care of FCUBS requests, while Service Name and Operation Code is used to take care of Web Services requests.
6. Click on Close button.
   Test Case Master screen is closed.
7. On the Home Screen, under Browser, expand Test Case Definition and click on Summary.
   Test Case Master Summary screen is displayed.

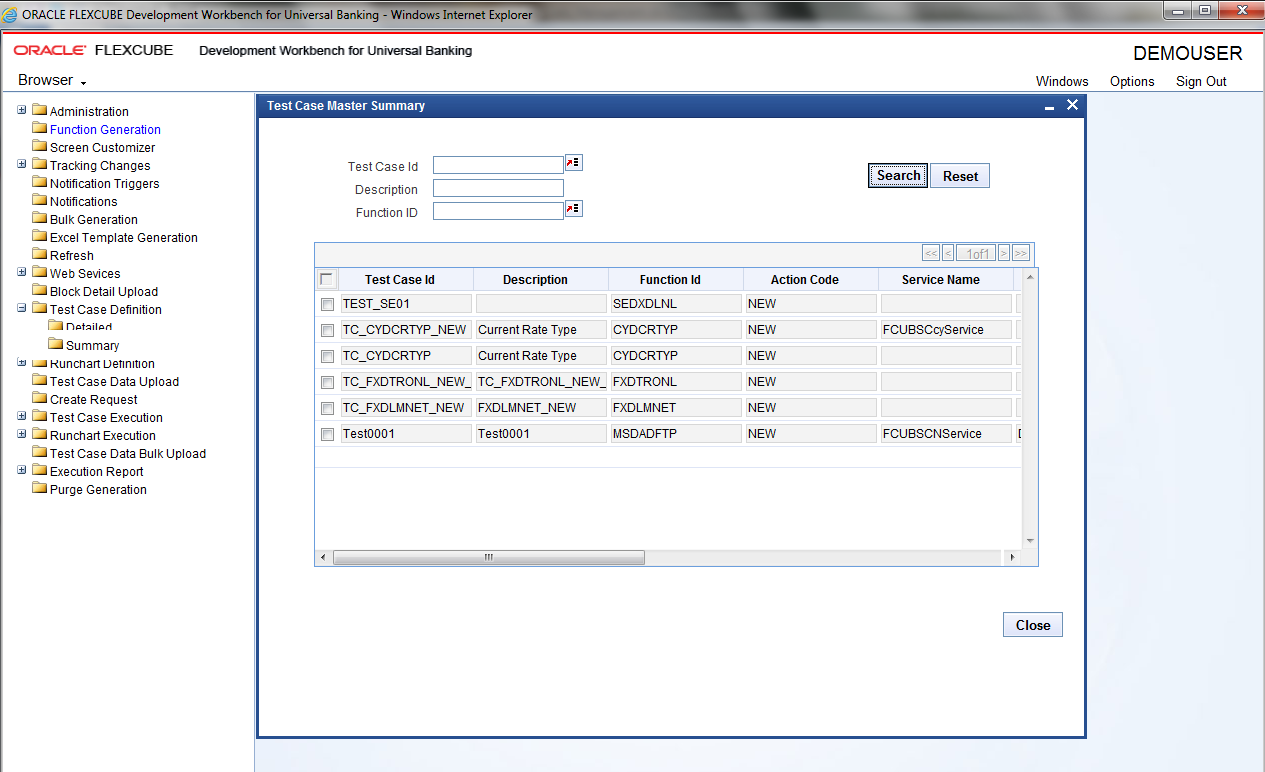

   Figure 7-3 Test Case Master Summary





   Description of "Figure 7-3 Test Case Master Summary"



8. On the Test Case Master Summary screen, by default the system displays the available test cases.
9. To search for a specific test case, specify the fields on the Test Case Master Summary screen.
   For more information on fields, refer to the field description table.

   Table 7-1 Test Case Master Summary

   Field	Description
   Test Case Id	Specify the Test Case Id or click the choose option. The system displays the available Test Case ID's in the system.
   Description	Specify the description.
   Function ID	Specify the Function ID or click the choose option. The system displays the available Function ID's in the system.

10. After specifying any of the fields, click Search to view the test case.
