4.1 Machines Configuration
This topic provides systematic instructions to configure the machine.
- Click on the Environment drop-down option and then click on the Machines.Summary of Machines screen displays.

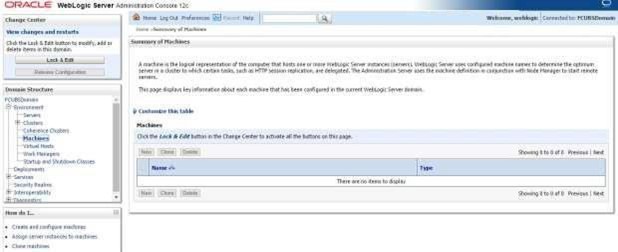

Figure 4-1 Summary of Machines- TBD Redwood
- Click on the New button.Create a New Machine- Machine Identity screen displays.

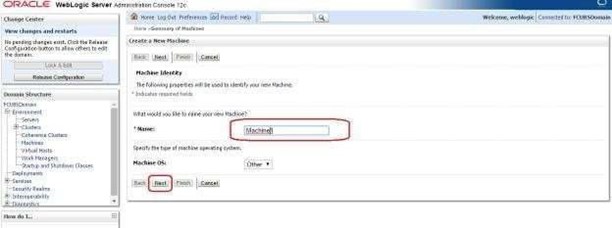

Figure 4-2 Create a New Machine- Machine Identity (TBD Redwood)
- Enter the Name field for the machine and click on the Next button.Create a New Machine- Node Manager Properties screen displays.

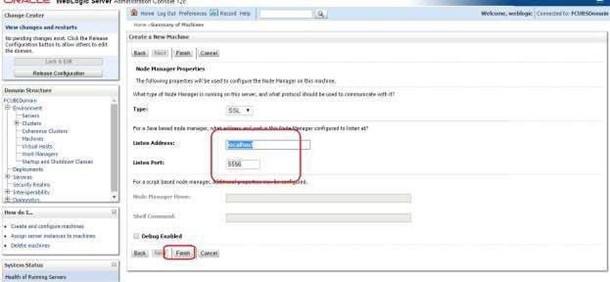

Figure 4-3 Create a New Machine- Node Manager Properties (TBD Redwood)
- Enter the Listen Address and Listen Port and click on the Finish button.Listen Port is the port mentioned in nodemanager.properties file.The Machine is created and Summary of Machines screen displays.

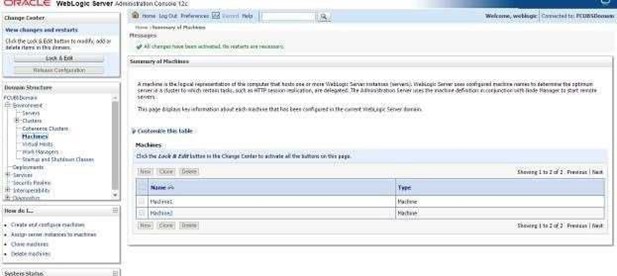

Figure 4-4 Summary of Machines- TBD Redwood
- Before starting the managed servers, ensure that the Node manager Status of all the machines is Reachable.
- In the Admin console, navigate through the Domain Structure left panel to Environment drop-down option and then click on the Machines.Summary of Machines screen displays.

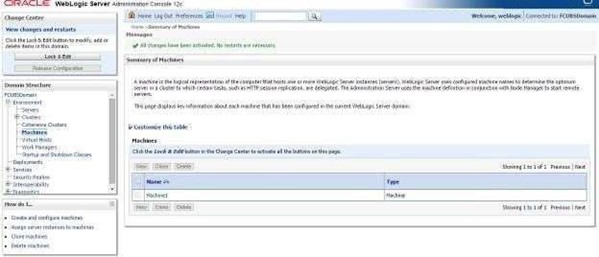

Figure 4-5 Summary of Machines- TBD Redwood
- Go to newly created Machine1.Settings for Machine1 screen displays.
Figure 4-6 Settings for Machine1- TBD Redwood
- Click on the Monitoring tab and then click on the Node Manager Status.Status of Machine1 displays.Machine Status should be Reachable.

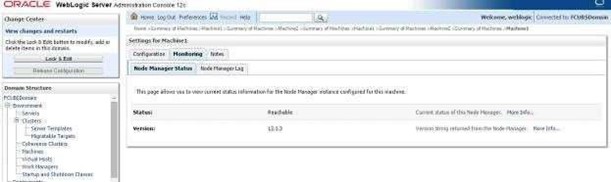

Figure 4-7 Settings for Machine1- TBD Redwood
- In the Admin console, navigate through the Domain Structure left panel to Environment drop-down option and then click on the Machines.
