7.3 Configure Foreign Server

This topic explains systematic instructions to configure the foreign server.

1. In the Settings for MDB_MODULE screen, click ForeignServer-1 in the Summary of Resources table.

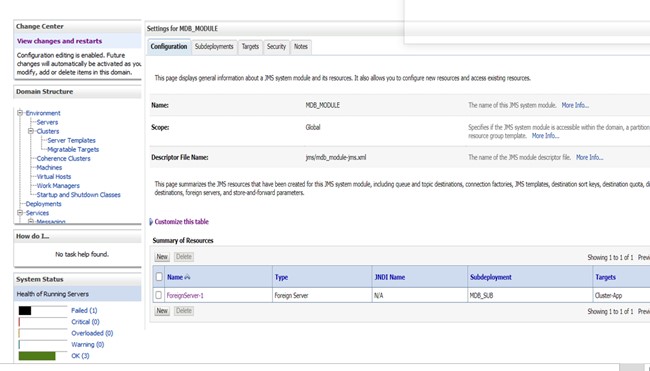

   Figure 7-13 Settings for MDB_MODULE

   The Settings for ForeignServer-1 screen displays.

   Figure 7-14 Settings for ForeignServer-1





   Description of "Figure 7-14 Settings for ForeignServer-1"



2. Under the Configuration- General tab, enter the JNDI Connection URL as Cluster URL (JMS Managed Servers), and then click Save.
   The Cluster URL get saved.

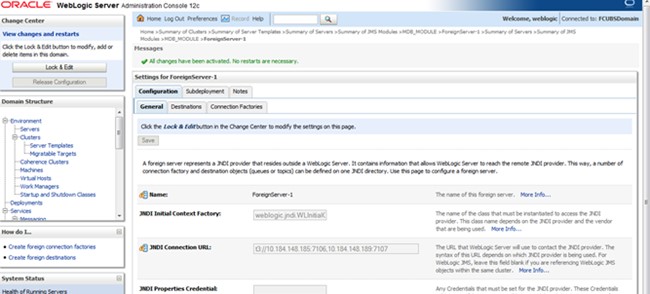

   Figure 7-15 Configuration- General





   Description of "Figure 7-15 Configuration- General"



3. Click the Configuration- Connection Factories tab, and then click New.
   Create a New Foreign JMS Connection Factory screen displays.

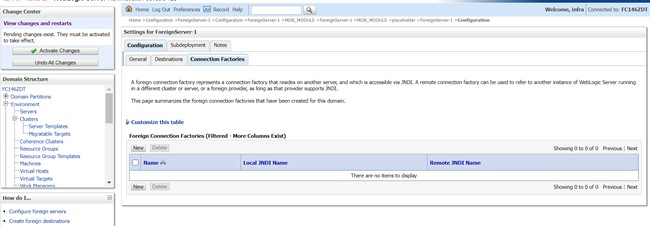

   Figure 7-16 Create a New Foreign JMS Connection Factory





   Description of "Figure 7-16 Create a New Foreign JMS Connection Factory"



4. Enter the fields Name, Local JNDI Name and Remote JNDI Name as a MDBQCF, and click OK to create the foreign connection factory.
   MDBQCF foreign connection factory is created, and displays in Foreign Connection Factories table.

   Figure 7-17 Foreign Connection Factories





   Description of "Figure 7-17 Foreign Connection Factories"



5. Click the Configuration- Destination tab.
   The Foreign Destinations tab opens under the Settings for ForeignServer-1 screen.

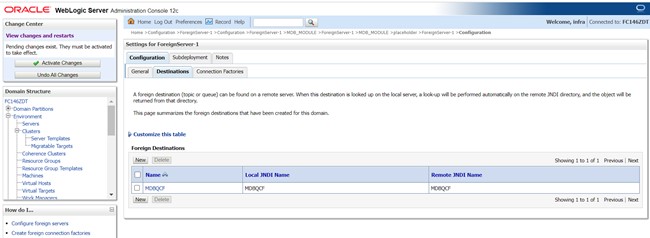

   Figure 7-18 Foreign Destinations





   Description of "Figure 7-18 Foreign Destinations"



6. Click New to create the Queue.
   The Create a New Foreign JMS Destination screen displays.

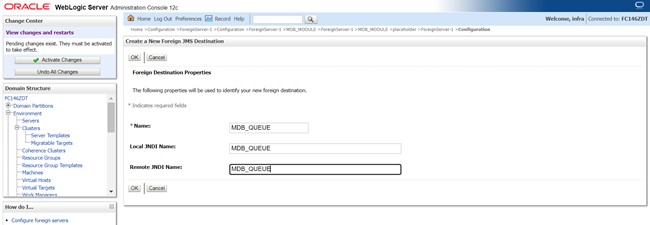

   Figure 7-19 Create a New Foreign JMS Destination





   Description of "Figure 7-19 Create a New Foreign JMS Destination"



7. Enter the Queue name fields as MDB_QUEUE, and then click OK.
   MDB_QUEUE is created, and displays under the Foreign Destinations table.

   Figure 7-20 Settings for ForeignServer-1





   Description of "Figure 7-20 Settings for ForeignServer-1"



8. Similarly Create MDB_QUEUE_RESPONSE, MDB_QUEUE_DLQ.
9. After creating all the resources, Restart the Admin and Managed Servers.
