7.2 Create Foreign Server

This topic provides systematic instructions to create the Foreign server.

1. In MDB_MODULE, click the Configuration tab, and then click New.

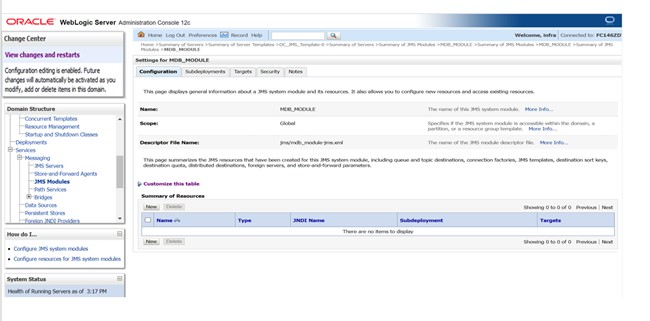

   Figure 7-5 Settings for MDB_MODULE





   Description of "Figure 7-5 Settings for MDB_MODULE"



   Create a New JMS System Module Resource screen displays to choose the type of resources.

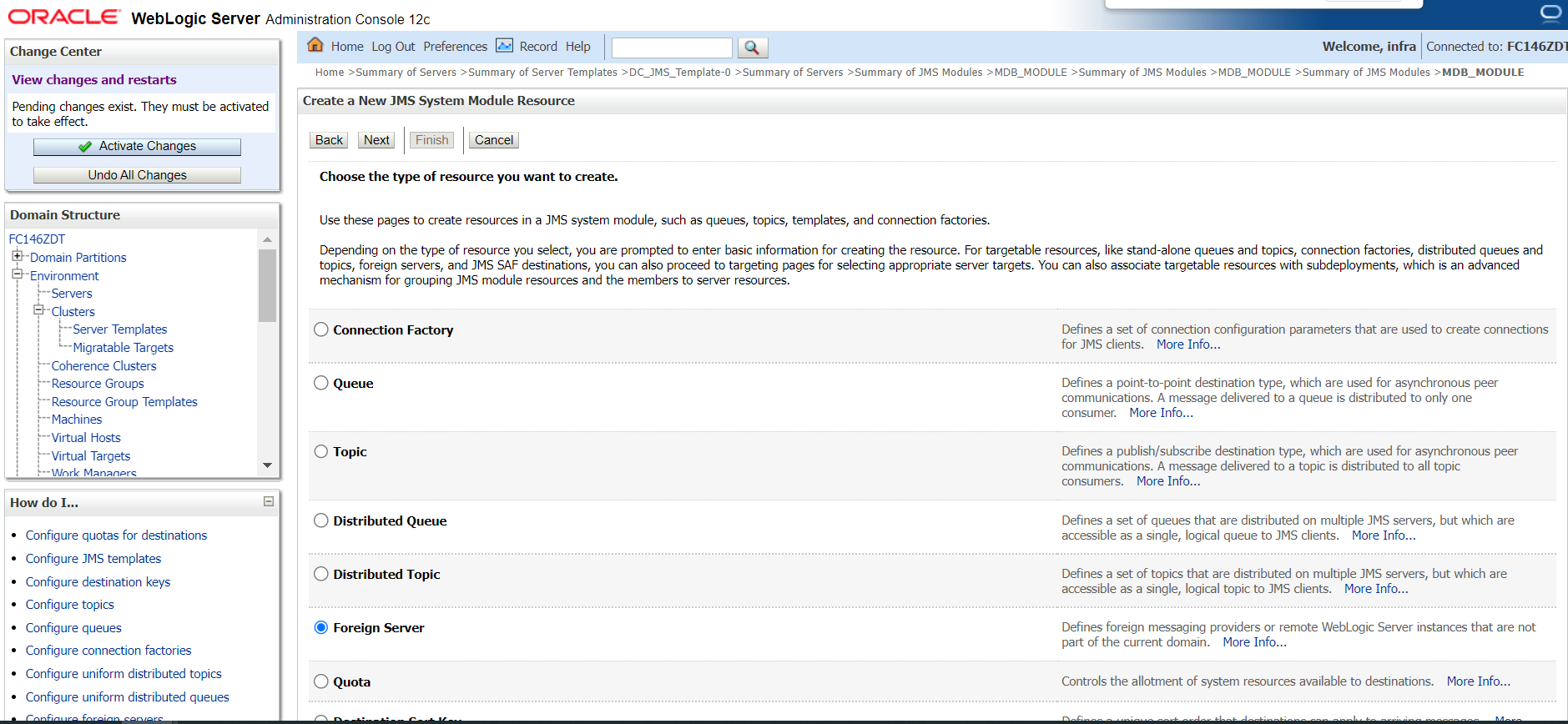

   Figure 7-6 Create a New JMS System Module Resource





   Description of "Figure 7-6 Create a New JMS System Module Resource"



2. Select the Foreign Server resource, and click Next.
   Create a New JMS System Module Resource screen displays to define foreign server properties.

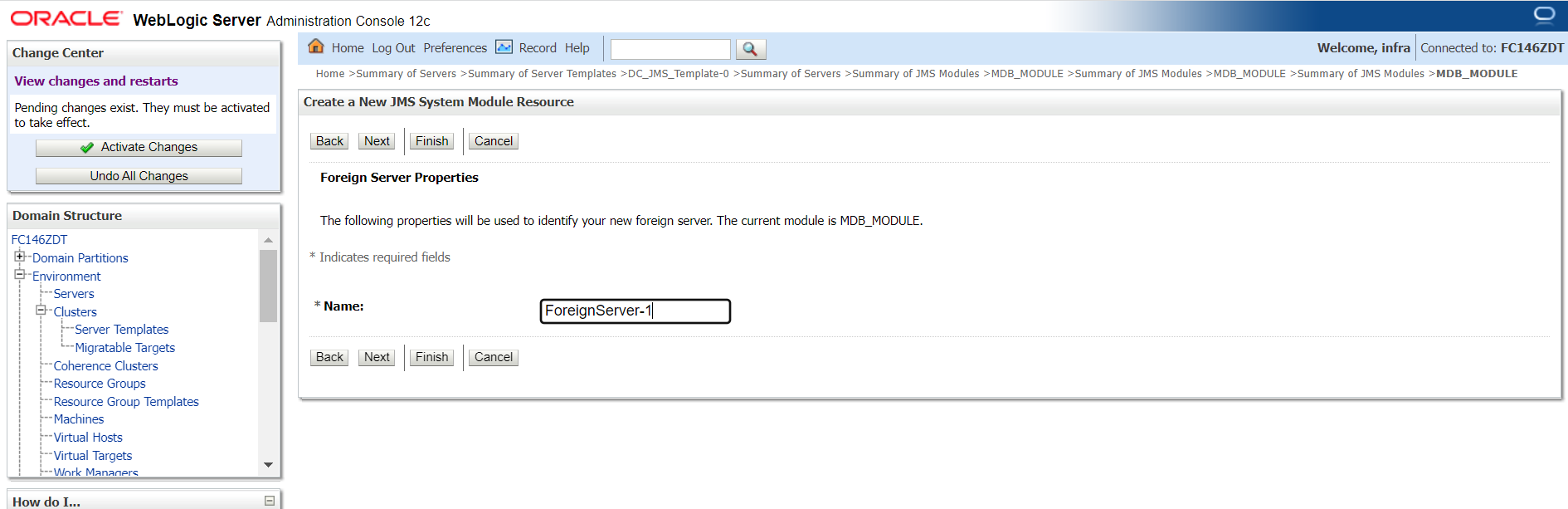

   Figure 7-7 Create a New JMS System Module Resource





   Description of "Figure 7-7 Create a New JMS System Module Resource"



3. Enter Name of the foreign server, and then click Next.
   The Create a New JMS System Module Resource screen displays to target foreign server module.

   Figure 7-8 Create a New JMS System Module Resource





   Description of "Figure 7-8 Create a New JMS System Module Resource"



4. Click the Advanced Targeting tab.
   The Create a New JMS System Module Resource screen displays to select sub deployment target.

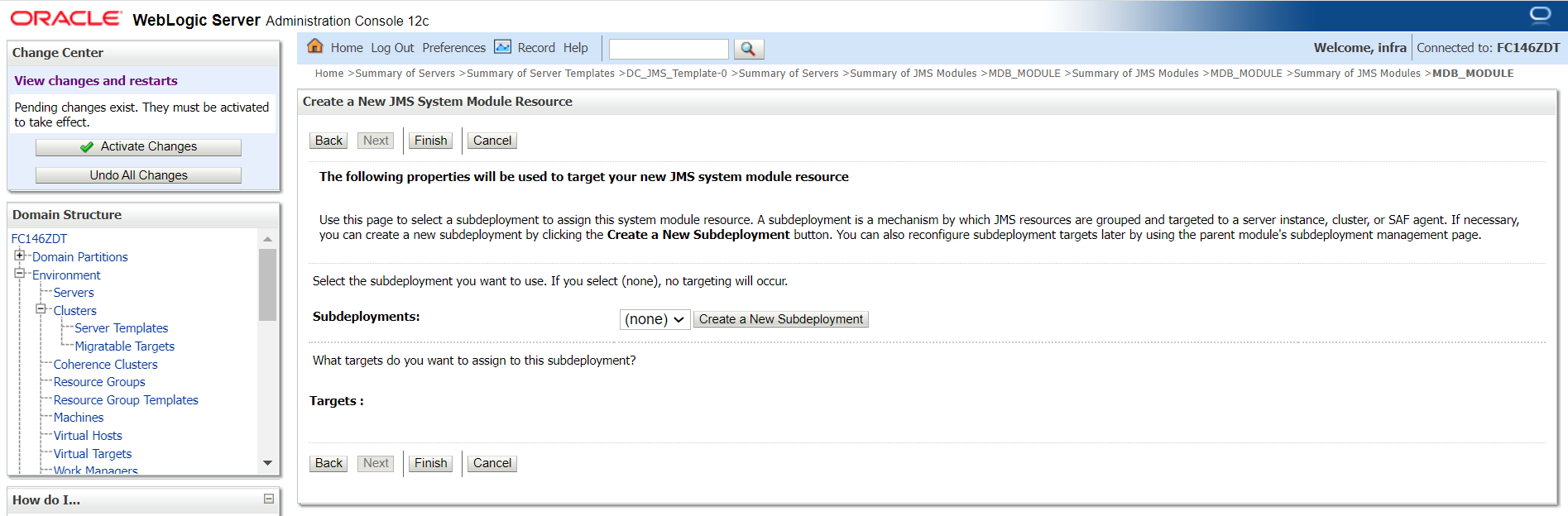

   Figure 7-9 Create a New JMS System Module Resource





   Description of "Figure 7-9 Create a New JMS System Module Resource"



5. Click the Create a New Subdeployment tab.
   The Create a New Subdeployment screen displays.

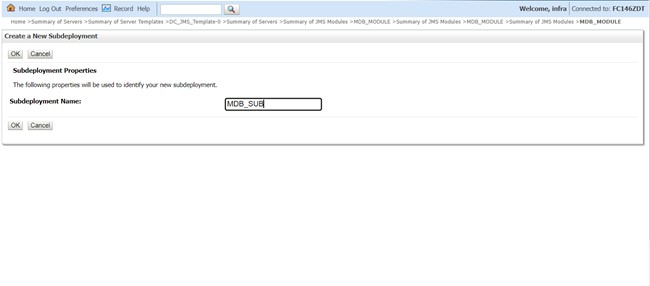

   Figure 7-10 Create a New Subdeployment





   Description of "Figure 7-10 Create a New Subdeployment"



6. Enter Subdeployment Name as MDB_SUB, and click OK.
   The Create a New JMS System Module Resource screen displays to target MDB_SUB module.

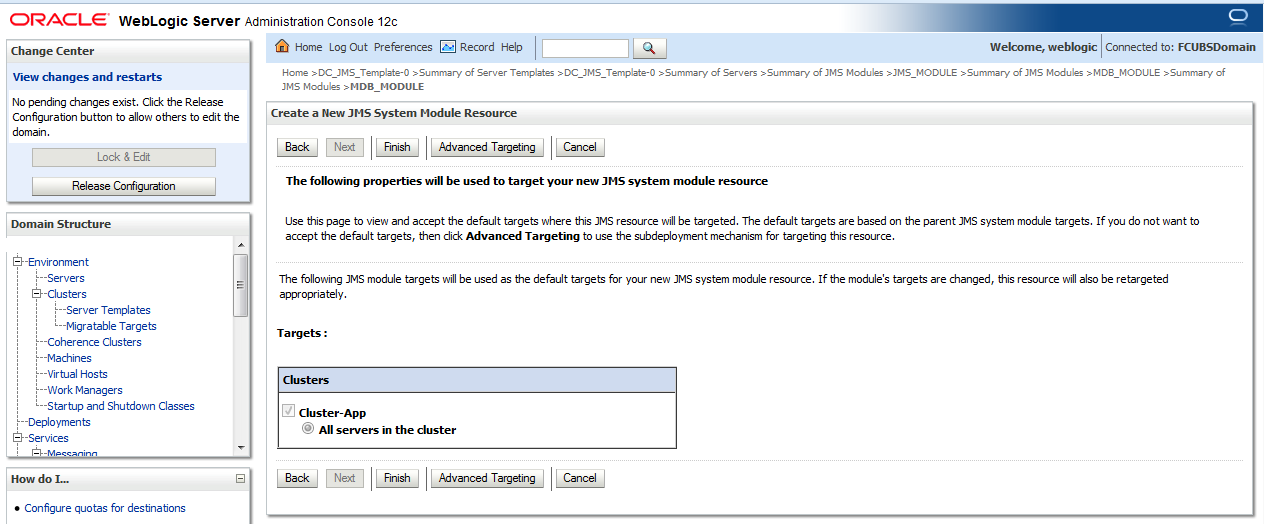

   Figure 7-11 Create a New JMS System Module Resource





   Description of "Figure 7-11 Create a New JMS System Module Resource"



7. Select Targets as a Cluster-App, and then click Finish.
   The foreign server is created.

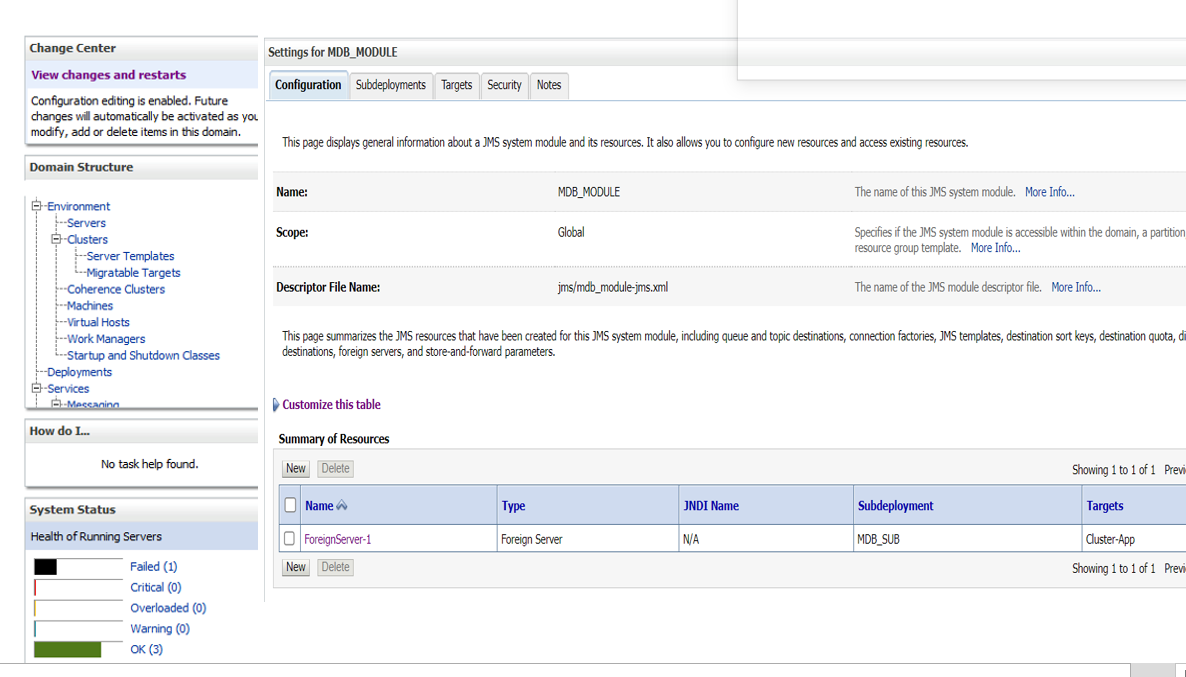

   Figure 7-12 Settings for MDB_Module - Message





   Description of "Figure 7-12 Settings for MDB_Module - Message"
