5.5 Create Connection Factory

This topic explains systematic instructions to create the Connection Factory.

1. From the Domain Structure left panel, navigate to the Services drop-down option, and click Messaging and then click JMS Modules.

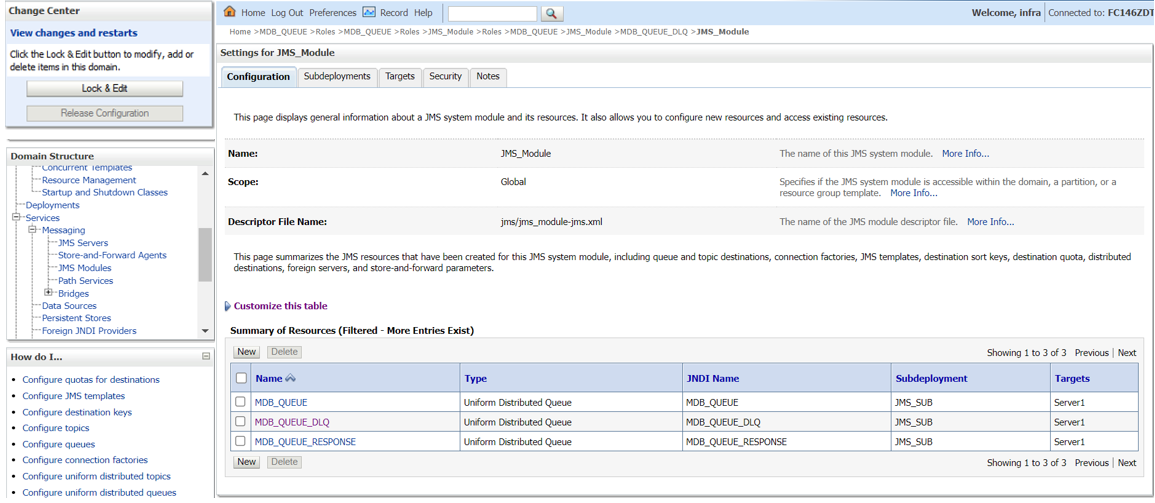

   The Settings for JMS_Module screen displays.

   Figure 5-17 Settings for JMS_Module





   Description of "Figure 5-17 Settings for JMS_Module"



2. Click the Configuration tab, and then click New.

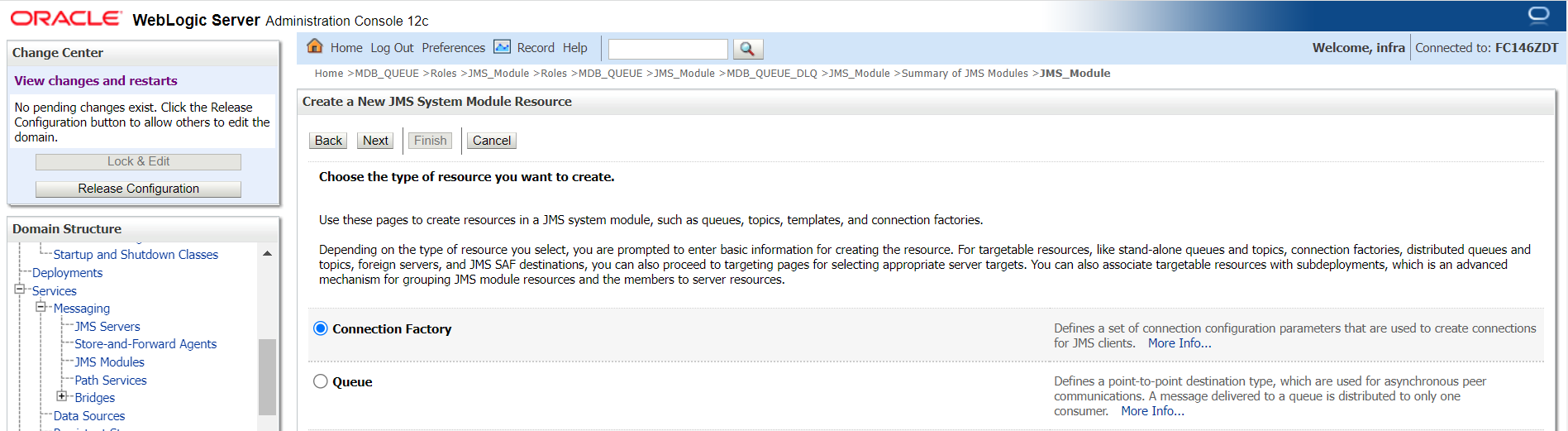

   The Create a New JMS System Module Resource screen displays to choose the type of resource.
3. Select the resource Connection Factory, and click Next.
   The Create a New JMS System Module Resource screen displays to specify the resource.

   Figure 5-18 Create a New JMS System Module Resource





   Description of "Figure 5-18 Create a New JMS System Module Resource"

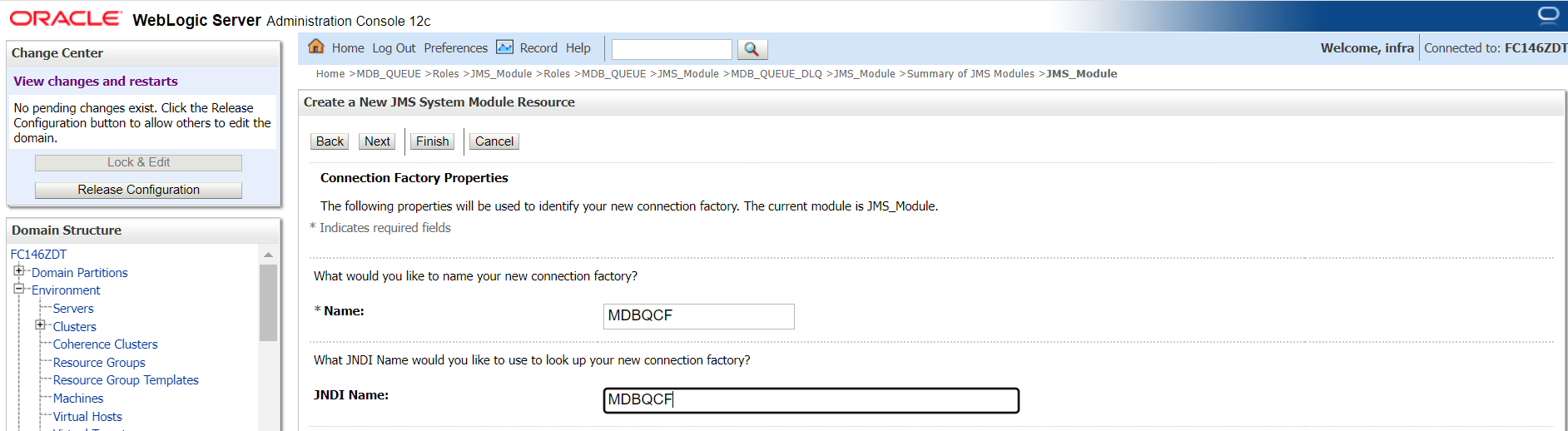

4. Specify the Name for connection factory, and then click Next.

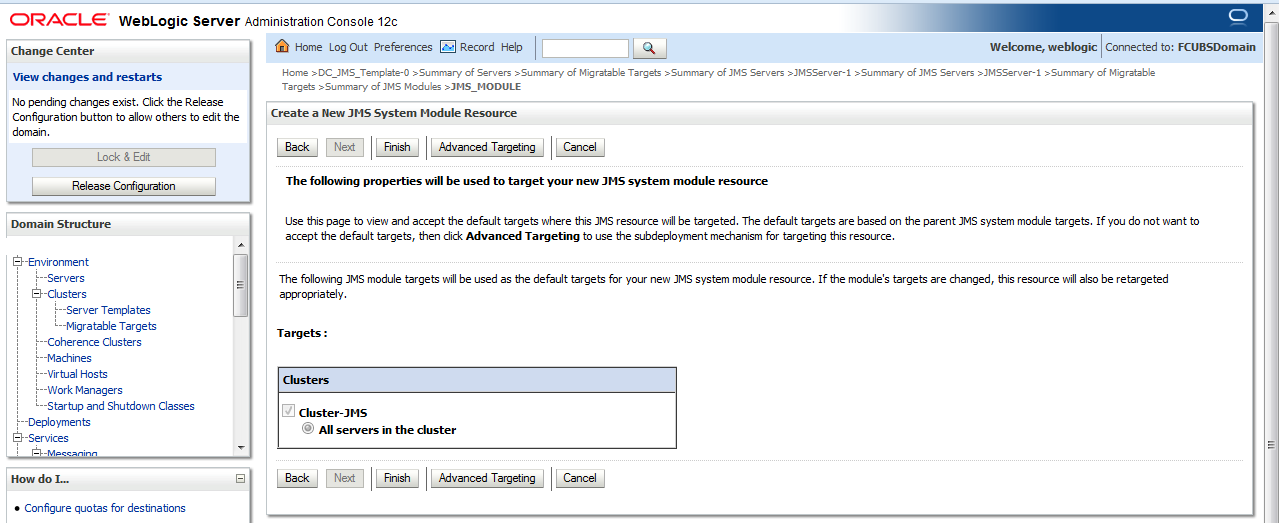

   The Create a New JMS System Module Resource screen displays to target new JMS module resource.

   Figure 5-19 Create a New JMS System Module Resource





   Description of "Figure 5-19 Create a New JMS System Module Resource"




   Figure 5-20 Create a New JMS System Module Resource

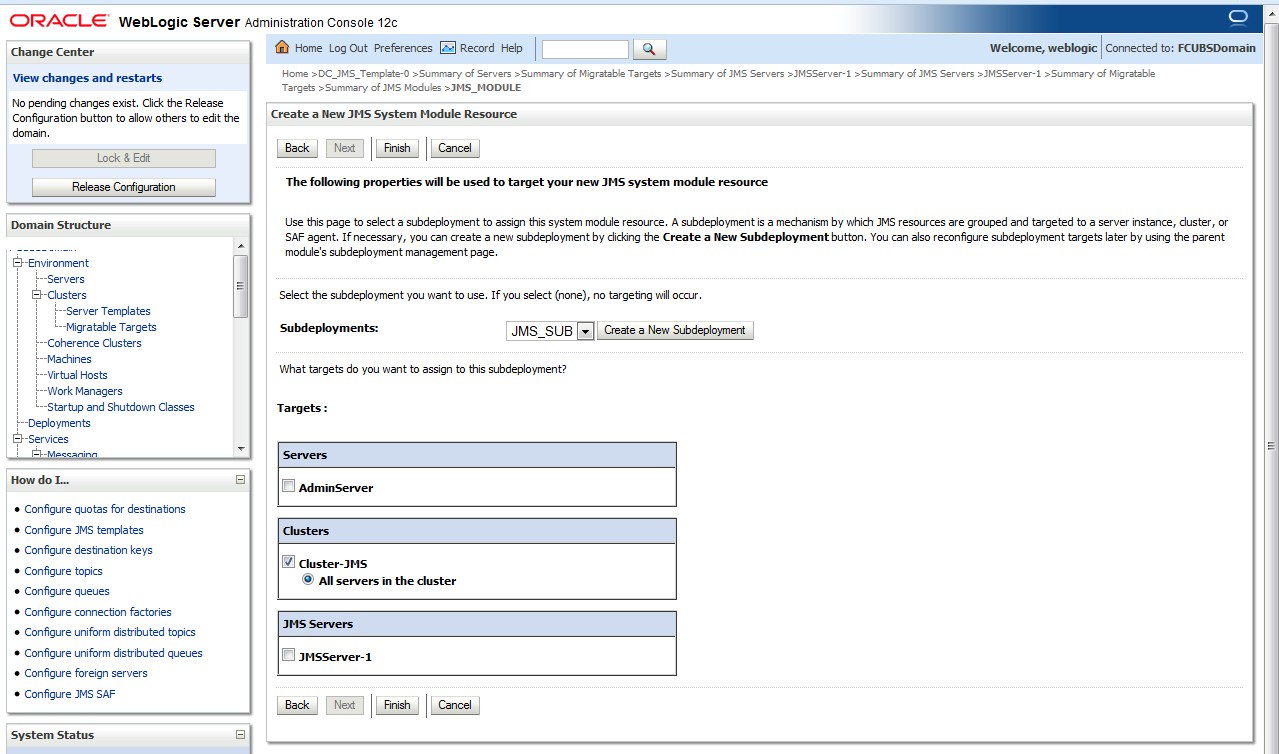

5. Click Advanced Targeting.

   Figure 5-21 Create a New JMS System Module Resource





   Description of "Figure 5-21 Create a New JMS System Module Resource"



6. Select JMS_SUB as Subdeployments, and then click Finish.
   The Connection Factory is created, and displays under the Summary of Resources tab.

   Figure 5-22 Settings for JMS_Module- Summary of Resources





   Description of "Figure 5-22 Settings for JMS_Module- Summary of Resources"

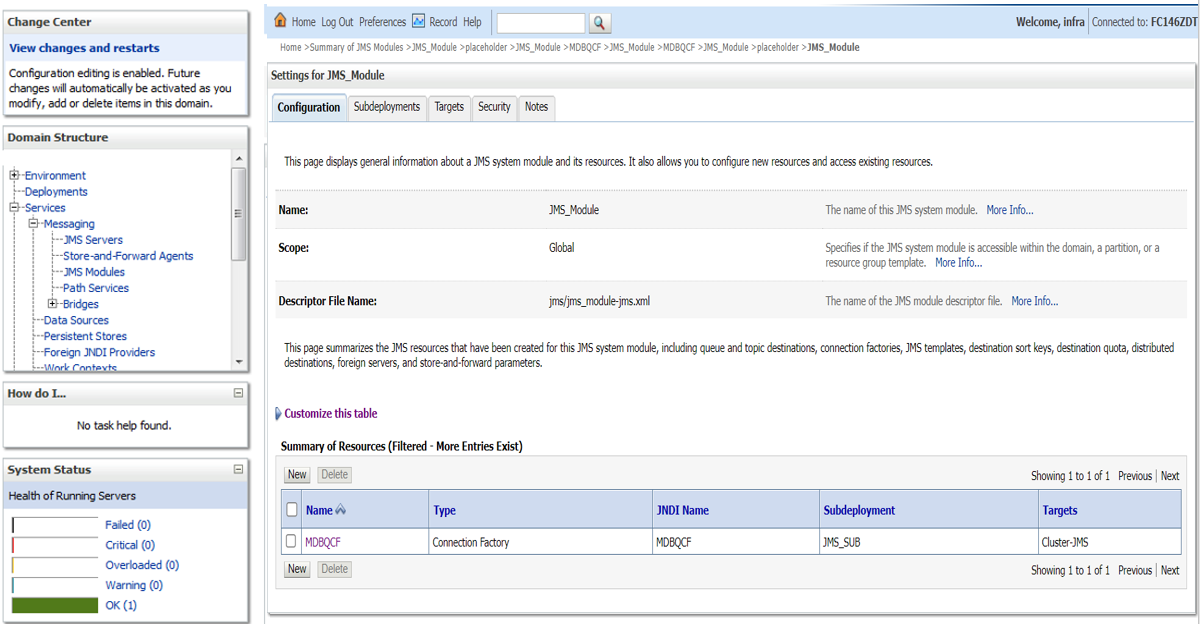

7. New connection Factory is Created.

   Figure 5-23 Settings for JMS_Module





   Description of "Figure 5-23 Settings for JMS_Module"
