6 Restart Server

This topic explains systematic instructions to restart the JMS servers.

1. Increase the heap size of both DC_JMS_1 and DC_JMS_2 clusters.

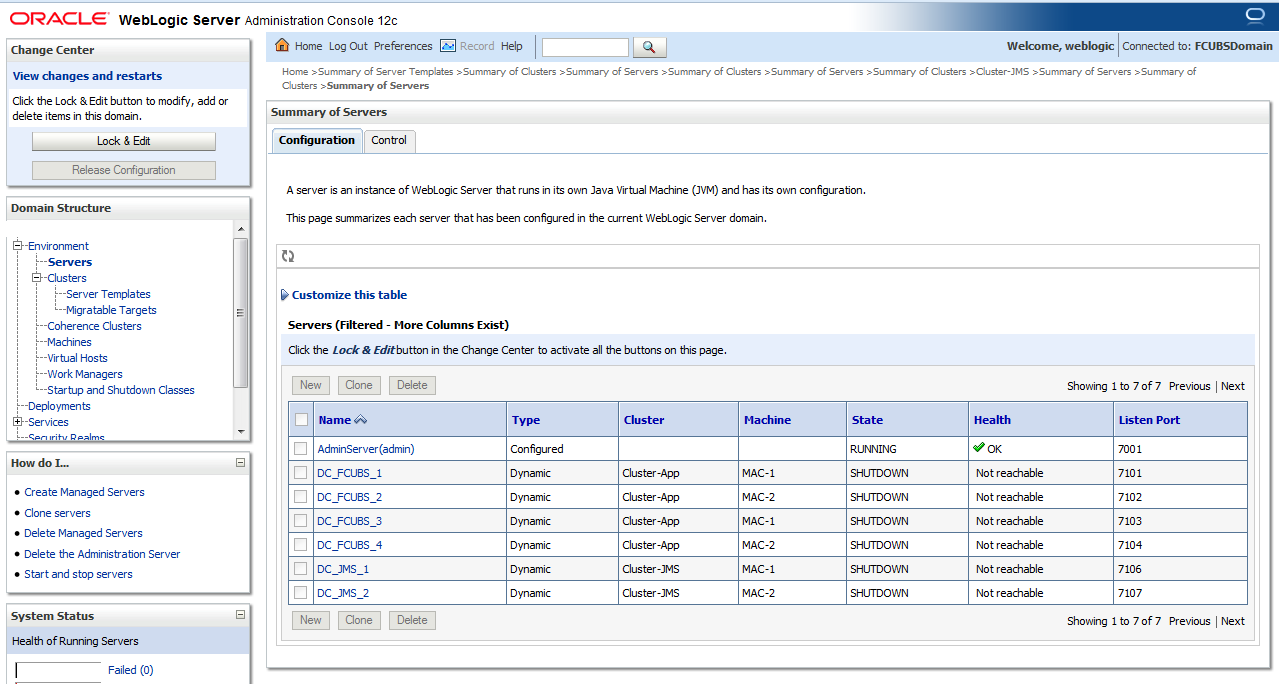

   Figure 6-1 Summary of Servers





   Description of "Figure 6-1 Summary of Servers"



2. Select the cluster DC_JMS_Template-0, and click the Server Start tab.
   The Settings for DC_JMS_Template-0 screen displays.

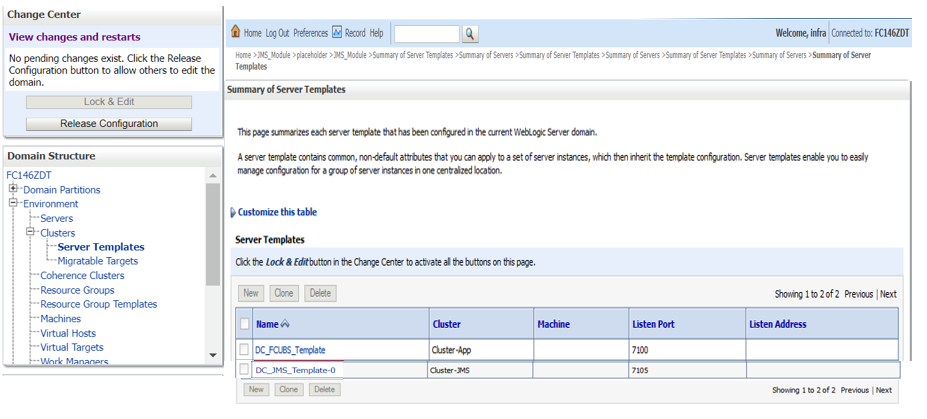

   Figure 6-2 Summary of Server Templates





   Description of "Figure 6-2 Summary of Server Templates"



3. Enter –XX:MaxPermSize=512m in an Arguments section.
   Settings for DC_JMS_Template-0 is displayed.

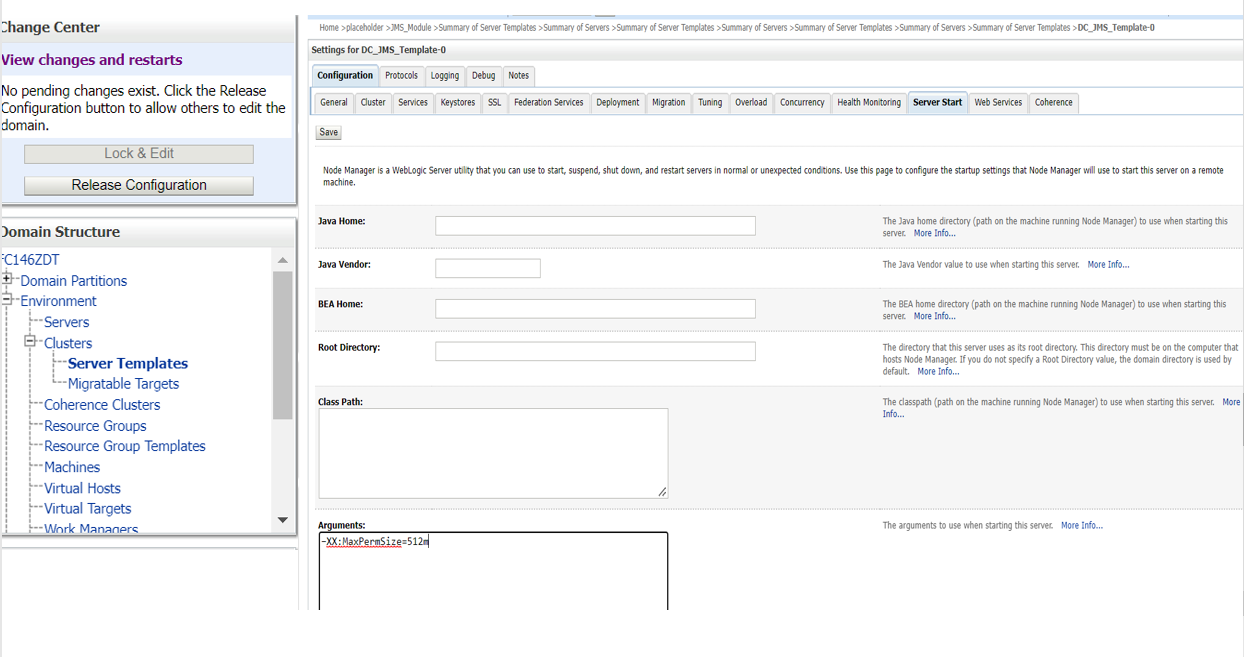

   Figure 6-3 Settings for DC_JMS_Template-0





   Description of "Figure 6-3 Settings for DC_JMS_Template-0"



4. Restart the AdminServer and DC_JMS_1 and DC_JMS_2 managed servers.
