5.1 Create JMS Module

This topic explains systematic instructions to create the JMS Module.

1. Under the Domain Structure left panel, navigate to the Services drop-down option, and click Messaging, and then JMS Modules.
   The Summary of JMS Module screen displays.

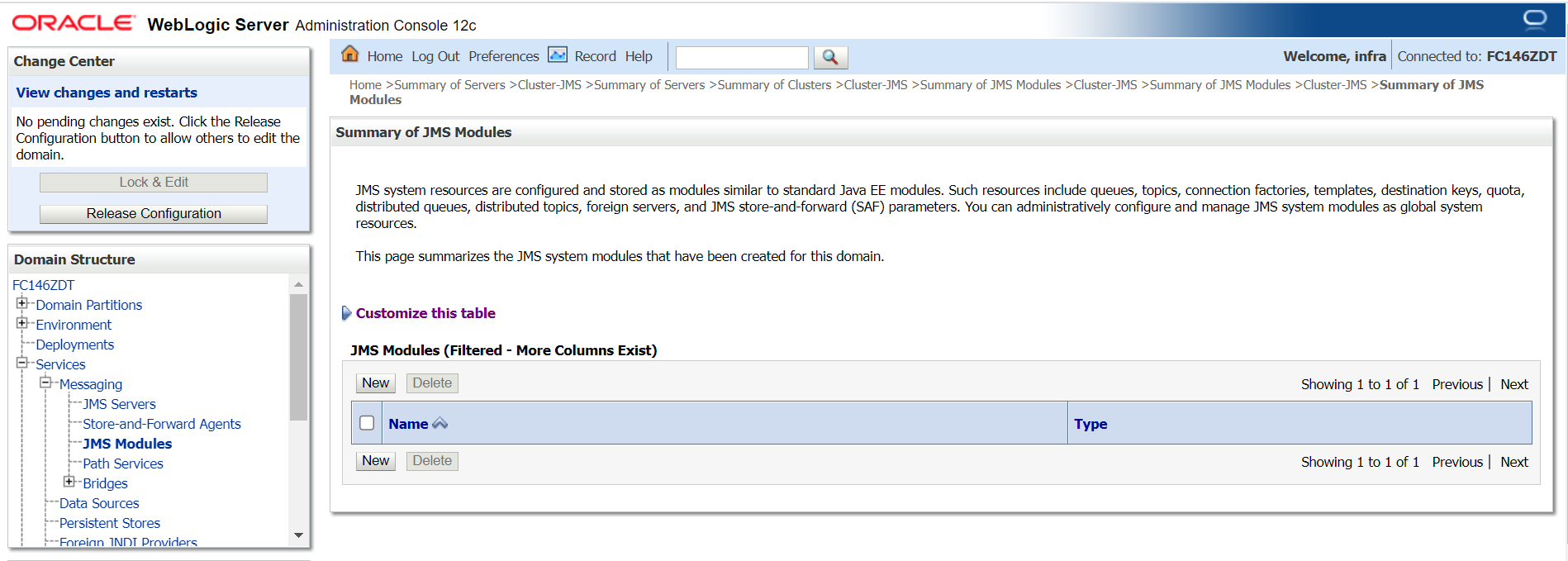

   Figure 5-1 Summary of JMS Module





   Description of "Figure 5-1 Summary of JMS Module"



2. Click New under the JMS Module tab.
   The Create JMS System Module screen displays.

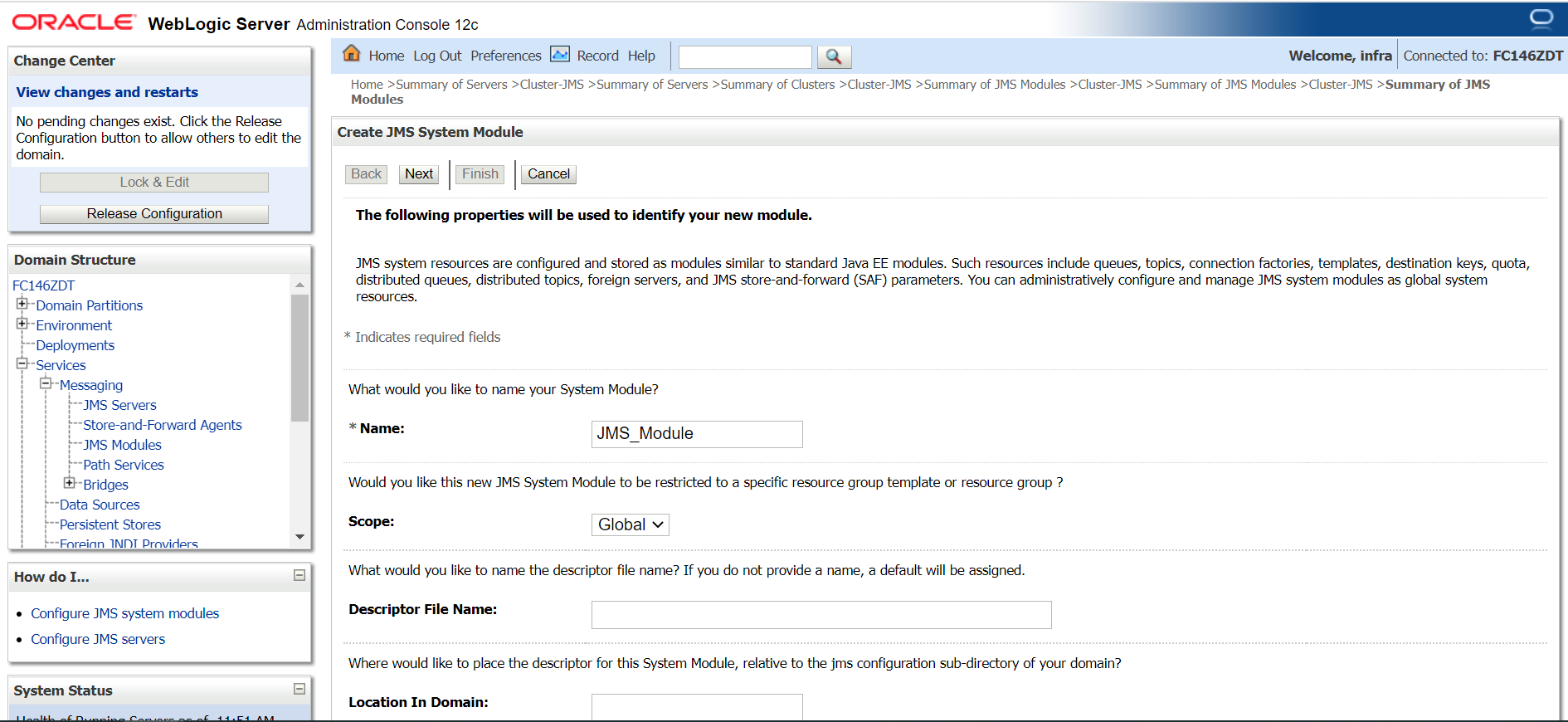

   Figure 5-2 Create JMS System Module





   Description of "Figure 5-2 Create JMS System Module"



3. Enter the Name as JMS_MODULE, and click Next.
   The Targets tab displays under the Create JMS System Module screen.

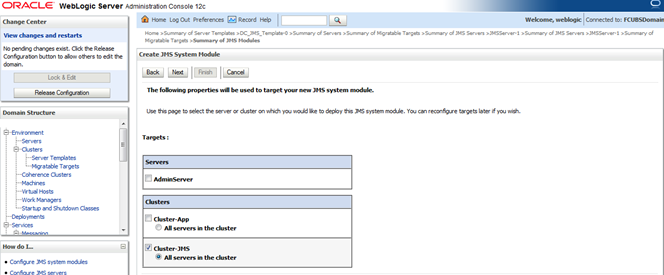

   Figure 5-3 Targets





   Description of "Figure 5-3 Targets"



4. Select the target as Cluster-JMS, and then click Next.
   Add resources to this JMS system module tab displays under the Create JMS System Module screen.

   Figure 5-4 Add resources to this JMS system module





   Description of "Figure 5-4 Add resources to this JMS system module"



5. Select the check box, and click Finish.
   The JMS_MODULE is created.

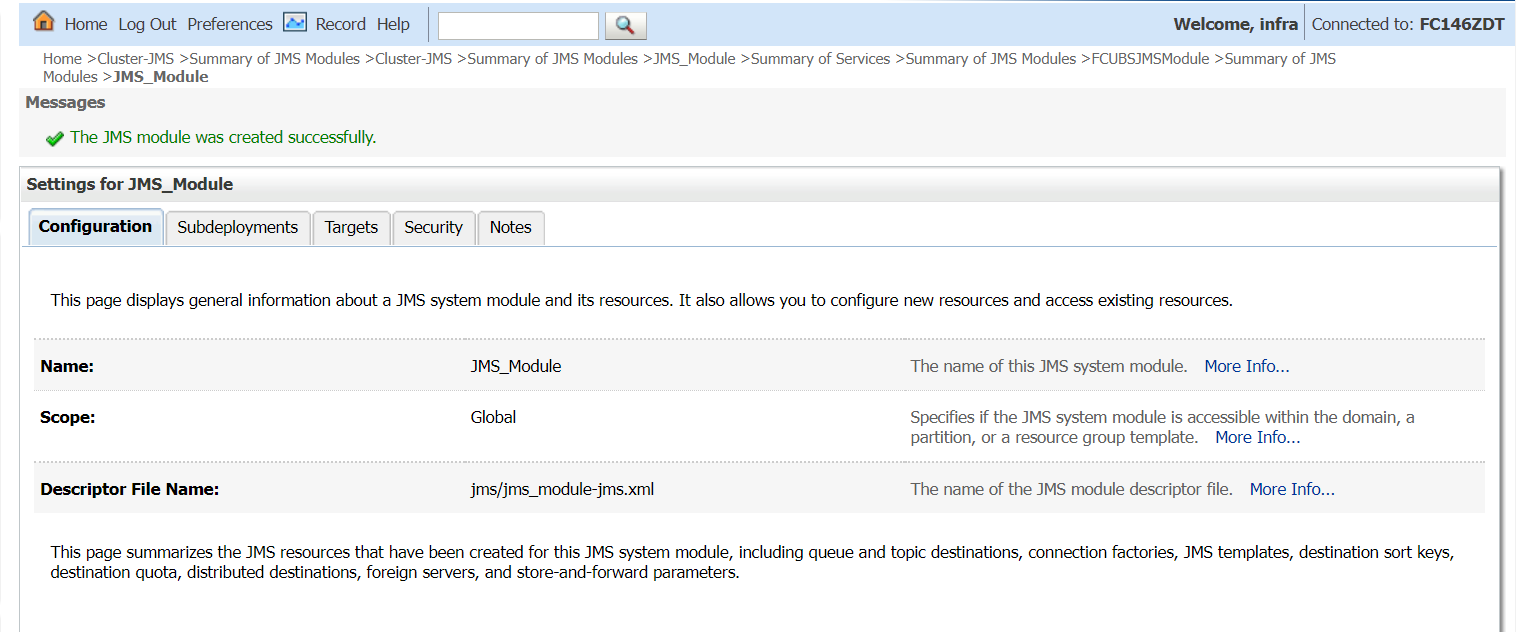

   Figure 5-5 Settings For JMS_MODULE - Messages





   Description of "Figure 5-5 Settings For JMS_MODULE - Messages"
