5.2 Create Sub Deployment

This topic explains systematic instructions to create the Subdeployment.

1. Under the Domain Structure left panel, navigate to the Services drop-down option.
2. Click Messaging, and then click JMS Modules.
   The Settings for JMS_Module screen displays.

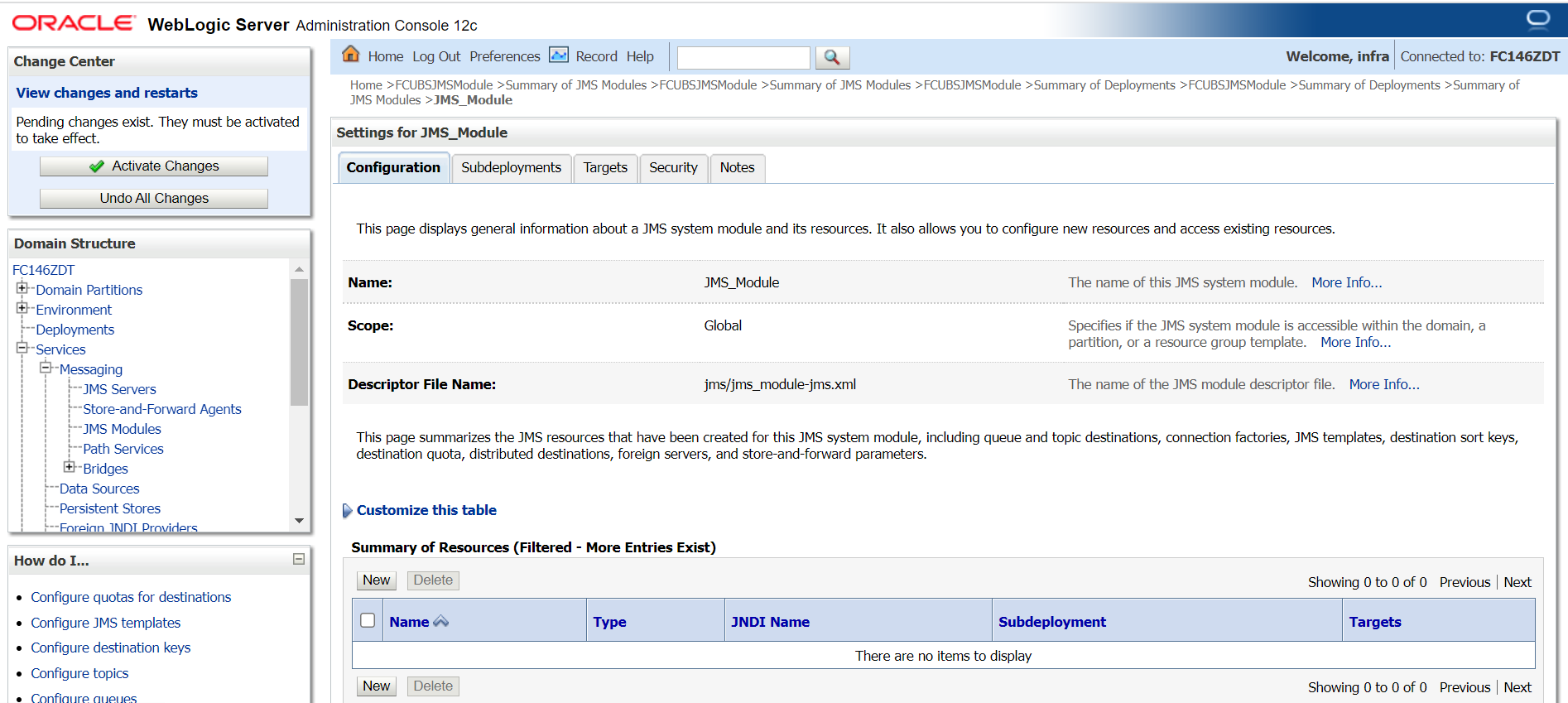

   Figure 5-6 Settings for JMS_Module





   Description of "Figure 5-6 Settings for JMS_Module"



3. Click the Subdeployments tab, and then click New.
   The Create a New Subdeployment screen displays.

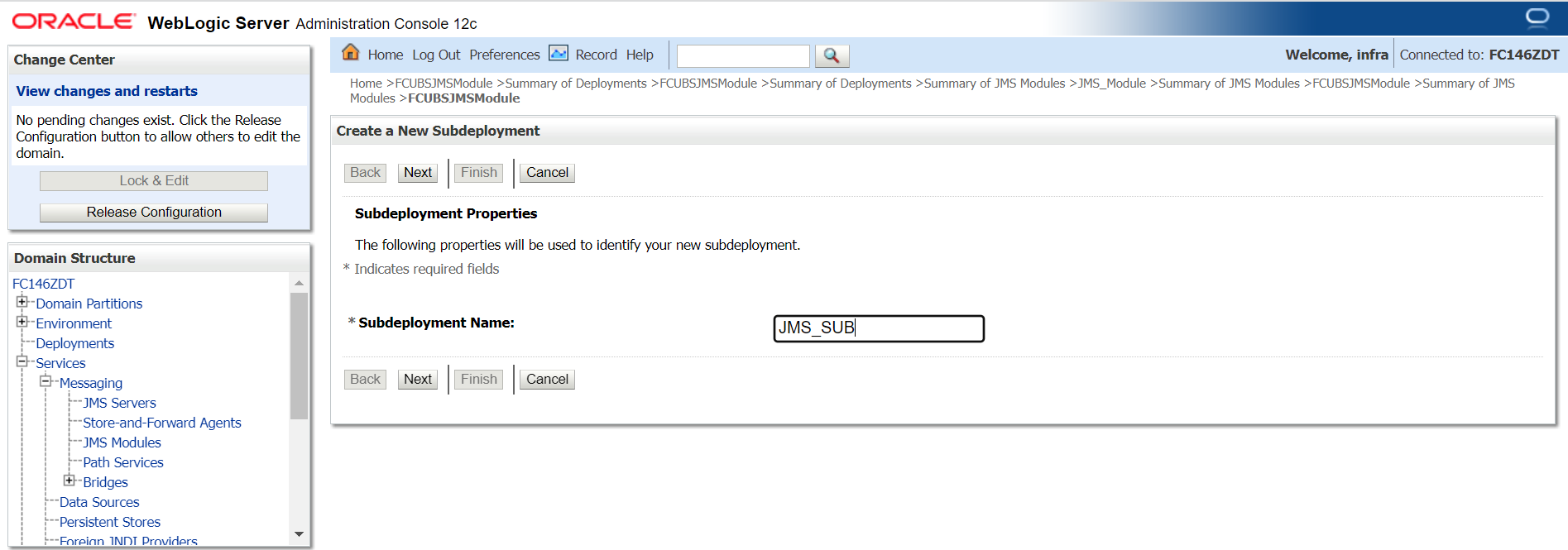

   Figure 5-7 Create a New Subdeployment





   Description of "Figure 5-7 Create a New Subdeployment"



4. Enter the Subdeployment Name as JMS_SUB, and then click Next.
   Under the Create a New Subdeployment screen, Targets tab displays.

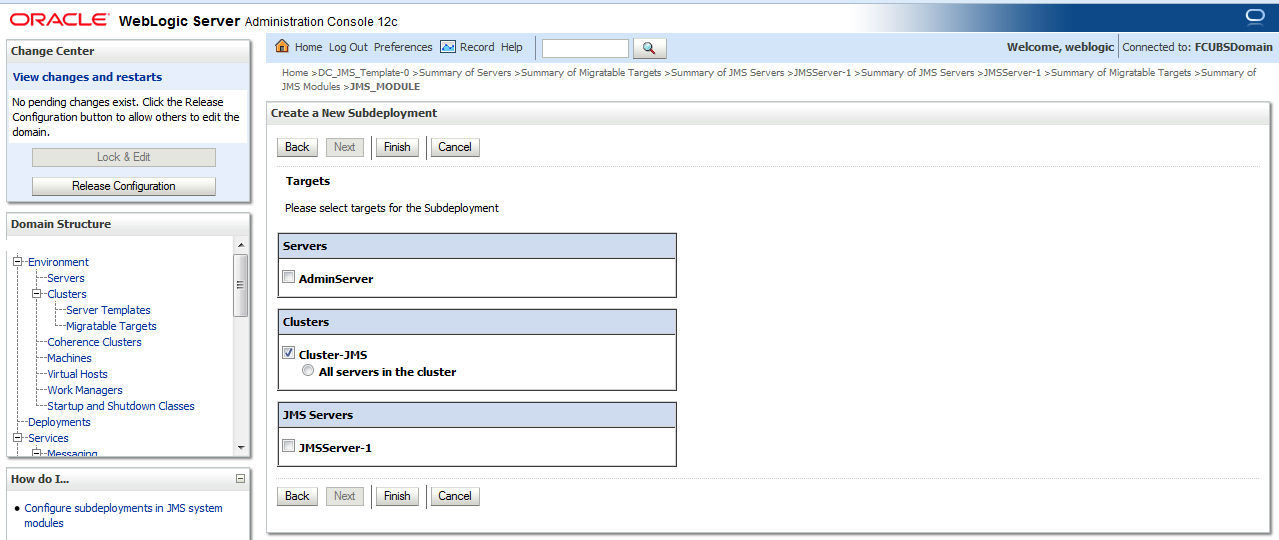

   Figure 5-8 Targets





   Description of "Figure 5-8 Targets"



5. Select the target as Cluster-JMS, and then click Finish.
   The JMS_SUB subdeployment is created.

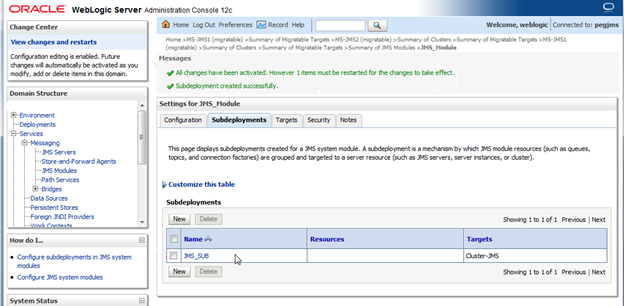

   Figure 5-9 Settings for JMS_Module- Messages





   Description of "Figure 5-9 Settings for JMS_Module- Messages"
