3 Prerequisites

The document assumes that the below are created before proceeding with the JMS creation -

• Machines

  Make sure that MAC-1 and MAC-2 machines are created.

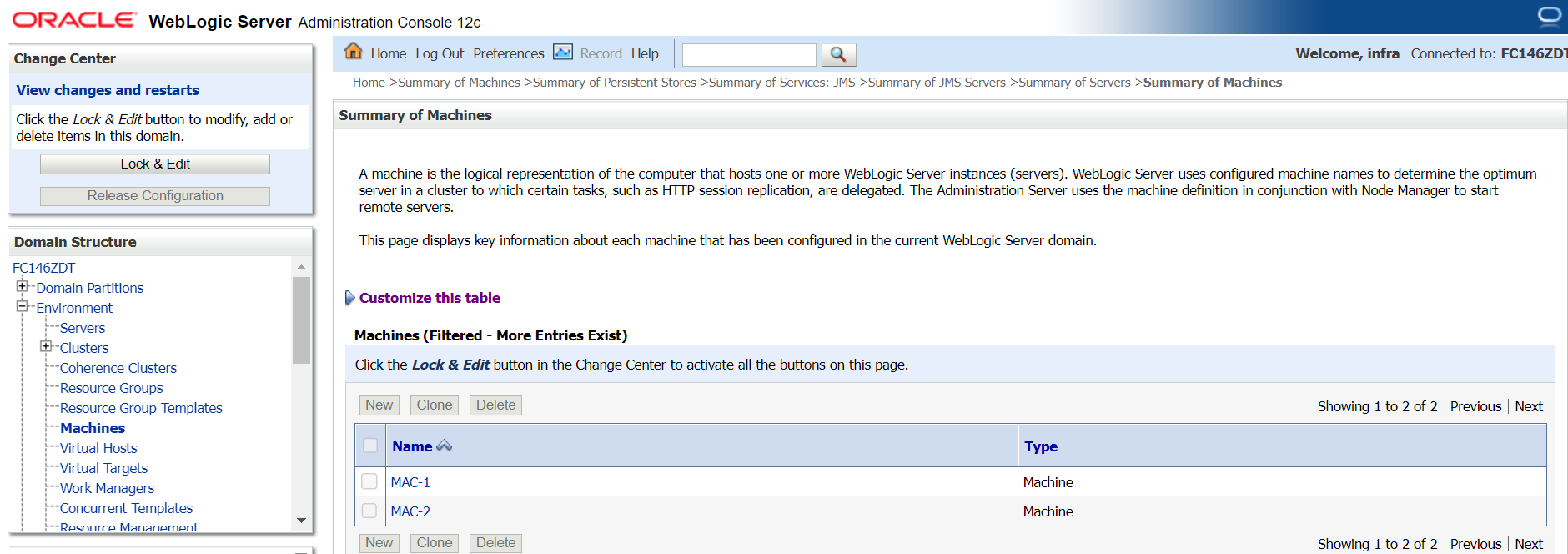

  Figure 3-1 Summary of Machines





  Description of "Figure 3-1 Summary of Machines"



• Dynamic Clusters and Managed Servers
  Make sure that the dynamic cluster for FCUBS (4 Managed Servers) and Dynamic cluster for JMS Deployment (2 Managed Servers) are created.

  Figure 3-2 Summary of Clusters





  Description of "Figure 3-2 Summary of Clusters"

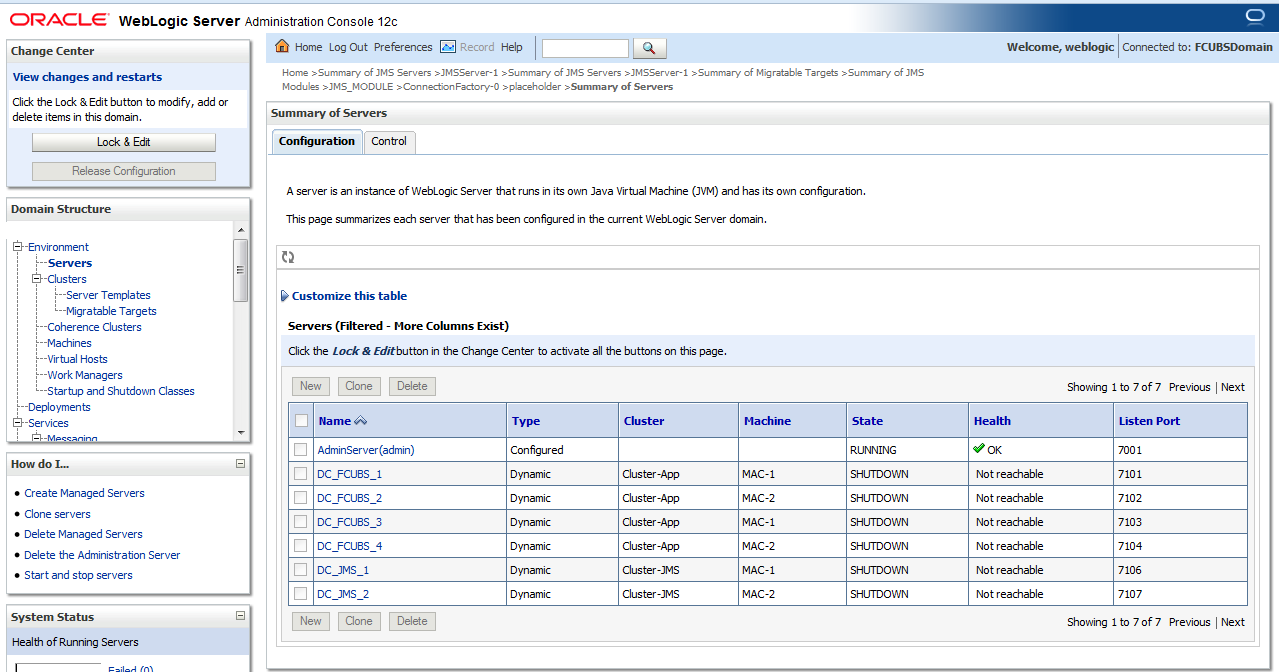

  Figure 3-3 Summary of Servers





  Description of "Figure 3-3 Summary of Servers"



• Data Source
  Make sure that Data Source required for the MDB EAR is created with target as Cluster-App.

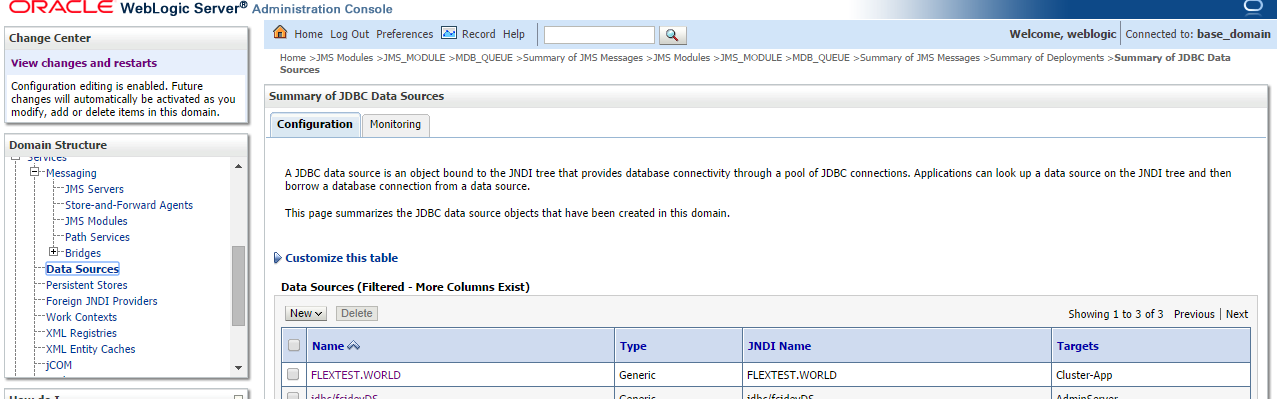

  Figure 3-4 Summary of JDBC Data Sources





  Description of "Figure 3-4 Summary of JDBC Data Sources"



• Shared Folder

  A shared folder for File Store Creation is required, and this folder should be accessible across both servers (For example, NFS mount).
