1.63.1 Maintain Component Details

This topic explains systematic instructions to maintain component details in the Interface Definition screen.

Note:

The fields which are marked in asterisk are mandatory.

Login to the Interface Definition screen.

1. On the Interface Definition screen, click Component Details.
   The Component Details screen displays.

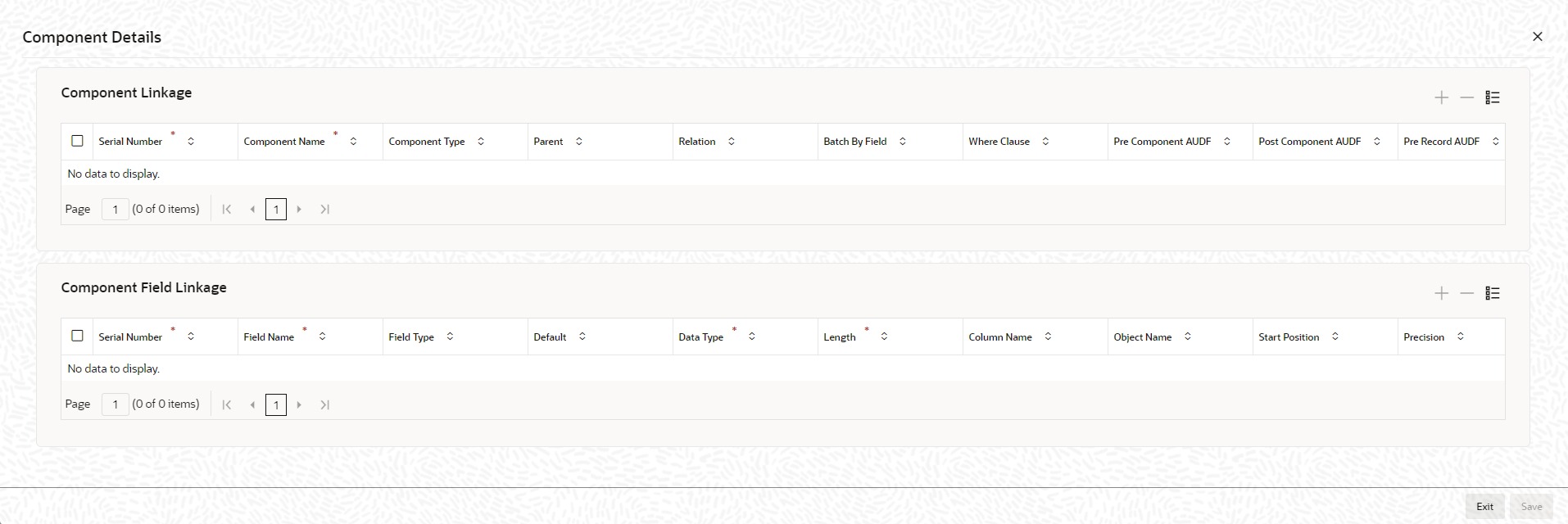

   Figure 1-68 Component Details





   Description of "Figure 1-68 Component Details"



2. On the Component Details screen, specify the fields.

   For more information on fields, refer to the field description table.

   Table 1-84 Component Details - Field Description

   Field	Description
   Serial Number	Specify the serial number.
   Component Name	Specify a name for the component.
   Component Type	Select the type of component from the drop-down list: Header Body Footer Batch Header Batch Footer Batch Body If the Header and Footer are defined in the component details section and opted for suppressing the start reference, then the system considers the first line as the Header and the bottom-most line as the Footer and continues the execution.
   Parent	Specify the parent component to which the component is inked.
   Relation	If the Parent component is specified, then specify the relation.
   Batch by Field	Specify the field in the component based on which want to create a batch. This is applicable only to outgoing interfaces.
   Where Clause	Specify the where clause for the component.
   Pre Component AUDF	Click Search and specify the AUDF that has to be executed before the component is processed if any. Use this to add any additional functionality required at the component level.
   Post Component AUDF	Click Search and specify the AUDF that has to be executed after the component is processed if any. Use this to add any additional functionality required at the component level.
   Pre Record AUDF	Click Search and specify the AUDF that has to be executed before the record is processed if any. Use this to add any additional functionality required at the record level.
   Post Record AUDF	Click Search and specify the AUDF that has to be executed after the record is processed if any. Use this to add any additional functionality required at the record level.
   Group By Clause	Enter the Group By Clause for the component in the text box.
   Order By Clause	Enter the Order By Clause for the component in the text box.
   Having Clause	Enter the Having Clause for the component in the text box.
   Callform Name	Click Search and specify the call form name for the component from the list of values.
   Field Name	Specify the field name.
   Field Type	Select the type of field from the drop-down list: Message Intermediate Start Identifier End Identifier Action
   Default	Enter the default value for the field in the text box.
   Data type	Select the data type from the drop-down list: Character Number Date
   Length	Specify the length of the field.
   Column Name	Specify the column name in the database of the field.
   Object Name	Click Search and specify the object name from which the field should be derived from the list of values.
   Start Position	Specify the start index of the field in the fixed-length format.
   Precision	If the field is of numeric type, then specify precision here.
   Translation	If the field value needs to be translated then click Search and specify the translation code that has to be used for the translation from the list of values.
   Un Translated	Select the Same Value option from the drop-down list, if the translation value is not present.
   Pre Field AUDF	Click Search and specify the AUDF that should be executed before the processing of the field from the list of values.
   Post Field AUDF	Click Search and specify the AUDF that should be executed after the processing of the field from the list of values.
   Primary Key	Check this box to indicate the primary key to identify the individual record in the incoming file.

3. Click Exit to end the transaction.
