1.3 Maintain Message Queue Mapping

This topic explains systematic instructions to maintain the mapping of Message Queues.

Note:

The fields which are marked in asterisk are mandatory.

1. On Homescreen, type MSDQMAP in the text box, and click Next.
   The Message Queue Mapping Maintenance screen displays

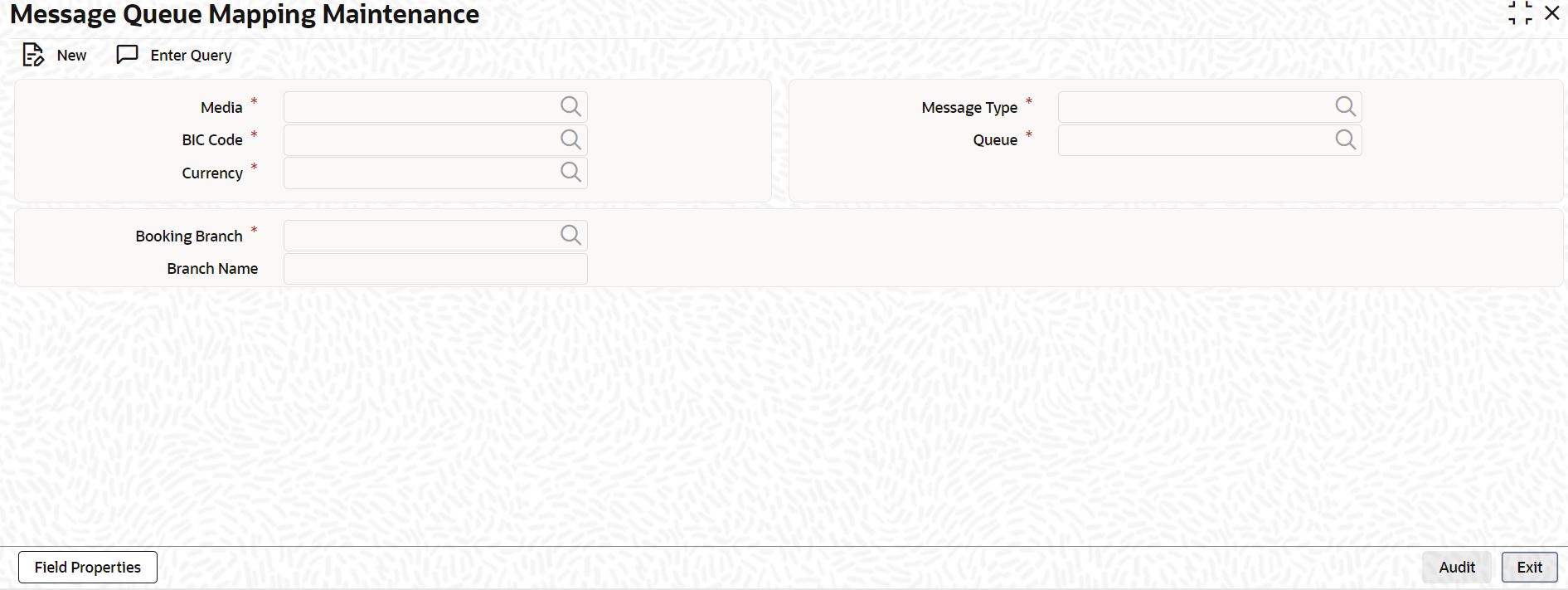

   Figure 1-4 Message Queue Mapping Maintenance





   Description of "Figure 1-4 Message Queue Mapping Maintenance"



2. On the Message Queue Mapping Maintenance screen, specify the fields.

   Note:

   The fields, which are marked with an asterisk, are mandatory.

   For more information on fields, refer to the field description table.

   Table 1-8 Message Queue Mapping Maintenance - Field Description

   Field	Description
   Media	Click Search and specify the Media from the list of values. This field represents the delivery media. For example, SWIFT
   BIC Code	Click Search and specify the BIC Code from the list of values. This field represents the receiver’s BIC for which a message is to be routed to a specific queue in a particular branch. Select ALL as a BIC Code to specify the wildcard for all entries.
   Currency	Click Search and specify the Currency from the list of values. This field indicates the currency of the incoming message. For example, In an MT103 it would be from tag 32A. This is an additional parameter to determine the Booking Branch and Queue. Select ALL as a currency code to maintain the wildcard for all entries.
   Booking Branch	Click Search and specify the Booking Branch from the list of values. This field indicates the branch in which incoming messages are routed. A set of all the branches having the same SWIFT BIC as that mentioned in the BIC Code field is displayed in the list of values.
   Branch Name	The system displays the Branch Name.
   Message Type	Click Search and specify the Message Type from the list of values. This field indicates the message type for which the routing procedure is required.
   Queue	Click Search and specify the Queue from the list of values.

   While processing MT700 and MT701 messages, the system ensures the following points:

   • MT700 and MT701 are routed to the branch using the incoming routing specifications maintained in the Message Queue Mapping Maintenance screen.
   • For MT700, in case the branch of the corresponding MT701 is different from that of the MT700, it is re-aligned to the branch of the MT700.
   • MT701 messages are processed only after the receipt of MT700.

   Note:

   It is allowed to maintain the same BIC for the main branch and the sub-branch as well.
3. Click Exit to end the transaction.
