1.16 Maintain Routing Rule Definition

This topic explains systematic instructions to maintain the Routing Rule definition.

  1. On Homescreen, type MSDRLDFN in the text box, and click Next.
    The Routing Rule Definition screen displays.

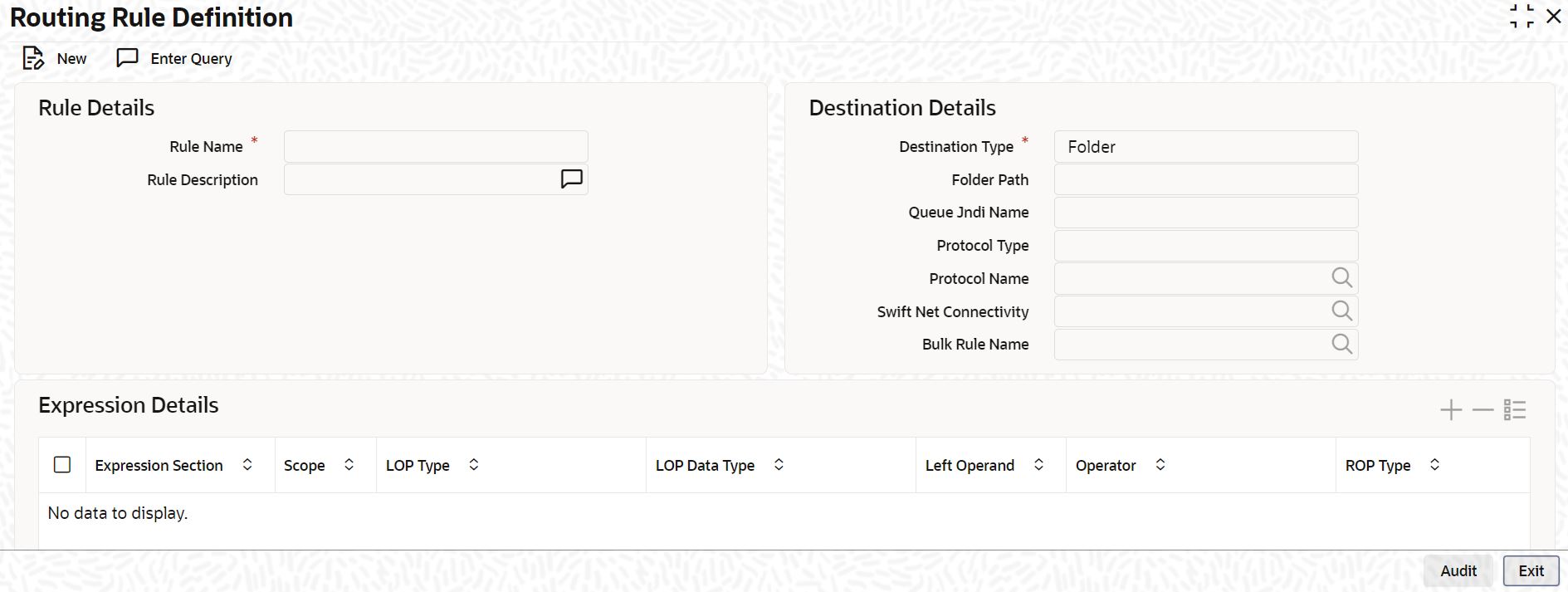

    Figure 1-17 Routing Rule Definition


    Description of Figure 1-17 follows
    Description of "Figure 1-17 Routing Rule Definition"

  2. On the Routing Rule Definition screen, specify the fields.

    Note:

    The fields, which are marked with an asterisk, are mandatory.

    For more information on fields, refer to the field description table.

    Table 1-19 Routing Rule Definition - Field Description

    Field Description
    Rule Name Specify the Rule Name.
    Description Type a description of the selected Rule Name.
    Destination Type Specify the type of destination to which the messages matching the rule criteria are being sent from the drop-down list:
    • SWIFT Net Connectivity
    • Bulker
    • Folder
    • Queue
    Folder Path Specify the path of the folder if the Destination Type is selected as a Folder.
    Queue JNDI Name Specify the JNDI name of the queue. This field is mandatory if the Destination Type is selected as a Queue.
    Protocol Type Specify the type of protocol from the drop-down list:
    • FTA
    • MQHA
    This field is mandatory if the Destination Type is selected as a SWIFT Net Connectivity.
    Protocol Name Click Search and specify the required protocol name for the selected protocol.
    SWIFTNet Connectivity Click Search and specify the name of the connector if the Destination Type is selected as a SWIFT Net Connectivity.
    Bulk Rule Name Click Search and specify the Bulk Rule Name from the list of values.
    Expression Section Specify the Expression Section.
    Scope Specify the Scope.
    Left Operand Type (LOP Type) Select the type of the left operand from the drop-down list:
    • Constant
    • Parameter
    • Expression
    Left Operand Data Type (LOP Data Type) Select the LOP data type from the drop-down list:
    • String
    • Date
    • Boolean
    • Number
    Left Operand Click Search and specify the left operand from the list of values.
    Operator Select the operator from the drop-down list:
    • Greater Than
    • Less Than
    • Equal to
    • Not Equal to
    • Greater Than or Equal to
    • Less Than or Equal to
    Right Operand Type (ROP Type) Select the type of the right operand from the drop-down list:
    • Constant
    • Parameter
    • Expression
    Right Operand Data Type (ROP Data Type) Select the ROP data type from the drop-down list:
    • String
    • Date
    • Boolean
    • Number
    Right Operand Click Search and specify the right operand from the list of values.
    Scope Specify the Scope.
    Logical Operators Select the logical operators from the drop-down list:
    • AND
    • OR
    Pre Defined Functions Select the predefined functions from the drop-down list:
    • Index Of
    • Substring
    • Length
    • Replace
    • Uppercase
    • Lowercase
    • Trim
    • Replace all
    Parameter Name Specify the Parameter Name.
    Parameter Value Specify the Parameter Value.
    Parameter Type Specify the Parameter Type.
    Expression For Select the expression for from the drop-down list:
    • Right Operand
    • Left Operand
    Final Expression Specify the Final Expression.
    Build Expression Click Build Expression to build the expression.
  3. Click Exit to end the transaction.
