1.14 Maintain Rule Group Definition

This topic explains systematic instructions to maintain the Rule Group definition.

Note:

The fields which are marked in asterisk are mandatory.

1. On Homescreen, type MSDRLGRP in the text box, and click Next.
   The Rule Group Definition screen displays.

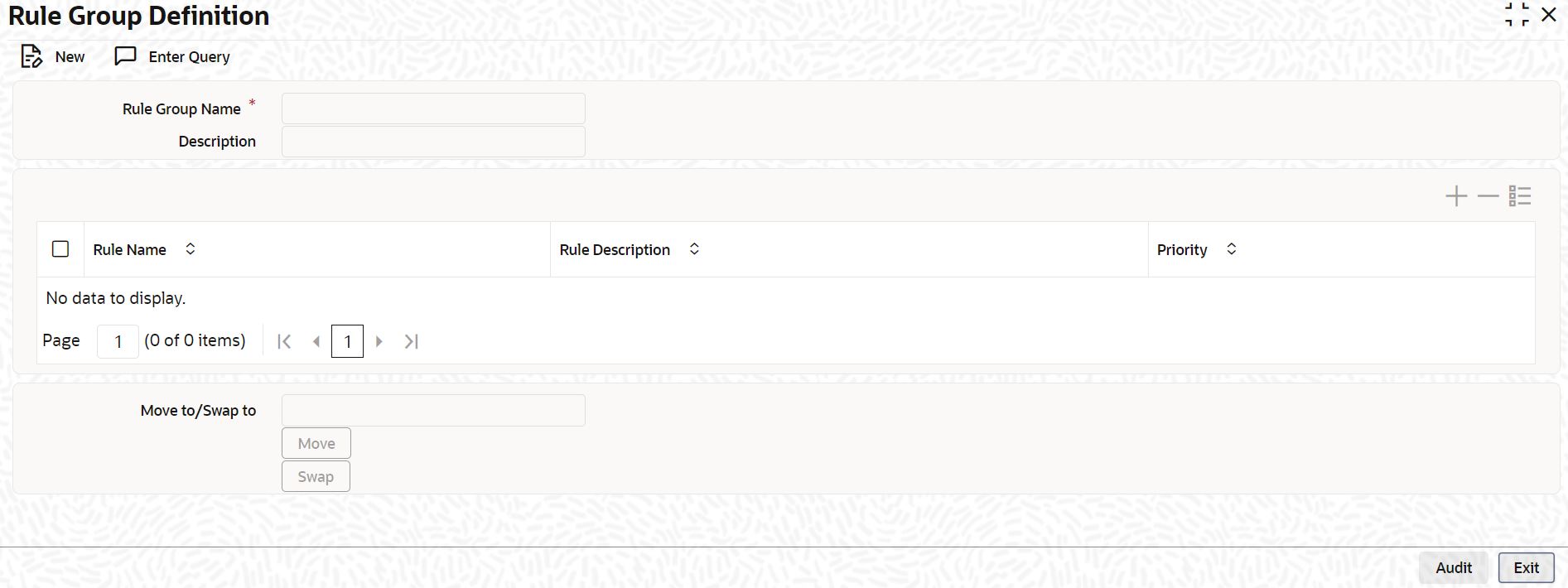

   Figure 1-15 Rule Group Definition





   Description of "Figure 1-15 Rule Group Definition"



2. On the Rule Group Definition screen, specify the fields.

   For more information on fields, refer to the field description table.

   Table 1-17 Rule Group Definition - Field Description

   Field	Description
   Rule Group Name	Specify the unique rule group name.
   Description	Type a description of the rule group.
   Rule Name	Click Search and specify the rule name from the list of values.
   Rule Description	Type a Rule Description.
   Priority	Specify the Priority.
   Move to/Swap to	Specify whether the priority must be swapped or moved.
   Move	Click Move to move the priority record.
   Swap	Click Swap to swap the priority record.

3. Click Exit to end the transaction.
