1.19 Process Protocol Parameter Definition Summary

This topic explains systematic instructions to process protocol parameter definition summary.

Note:

The fields which are marked in asterisk are mandatory.

1. On Homescreen, type MSSPTPRM in the text box, and click Next.
   The Protocol Parameter Definition Summary screen displays.

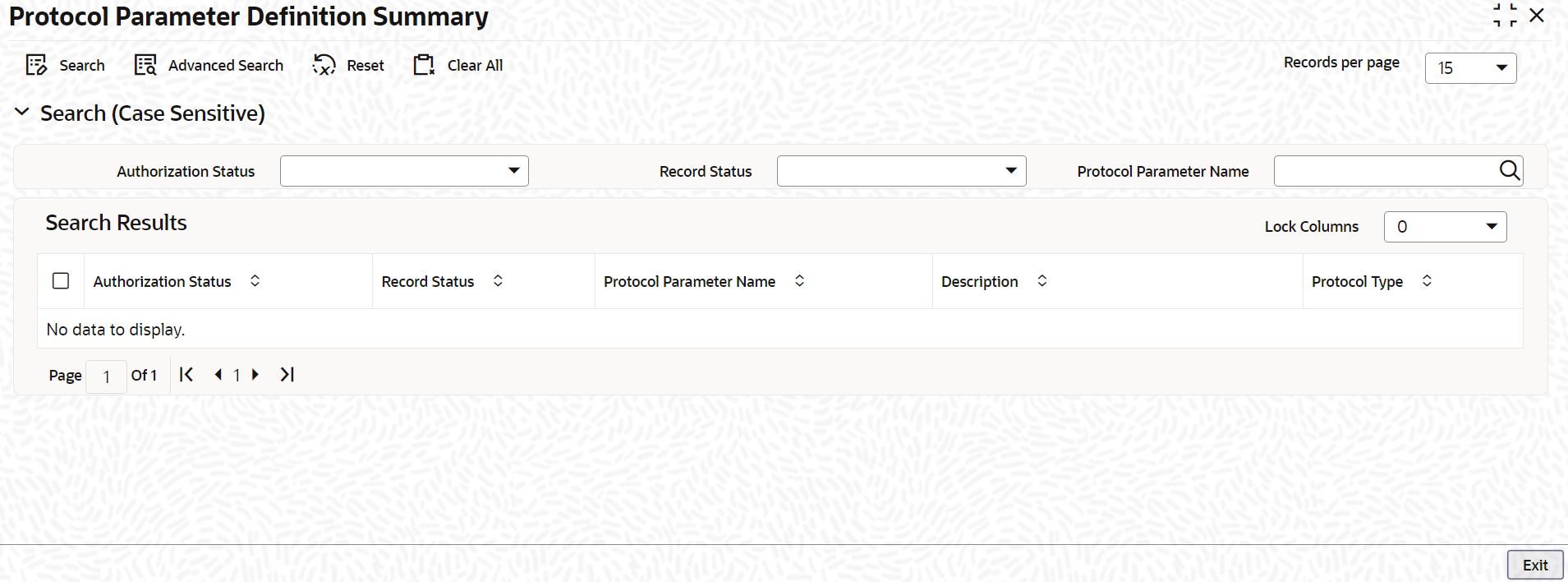

   Figure 1-20 Protocol Parameter Definition Summary





   Description of "Figure 1-20 Protocol Parameter Definition Summary"



2. On the Protocol Parameter Definition Summary screen, specify the fields.

   For more information on fields, refer to the field description table.

   Table 1-22 Protocol Parameter Definition Summary - Field Description

   Field	Description
   Protocol Parameter Name	Click Search and select the name of the protocol parameter from the list of values.
   Authorization Status	Select the authorization status from the drop-down list: Authorized Unauthorized Rejected
   Record Status	Select the record status from the drop-down list: Open Closed

3. Click Search after specifying the search parameters.
   The system identifies all records satisfying the specified criteria and displays the following details for each one of them:

   • Protocol Parameter Name
   • Description
   • Authorization Status
   • Record Status
   • Protocol Type
4. Click Exit to end the transaction.
