2.2.1 Facility Event Details

This topic describes about the procedure to view facility event details.

The Facility Event Details screen GEDFEVNT is used to view the event details related to the facility online.

  1. On Facilities Maintenance screen, click the Events button or on the Home screen, specify GEDFEVNT in the text box and click the Next icon.
    The Facility Event Details screen is displayed.

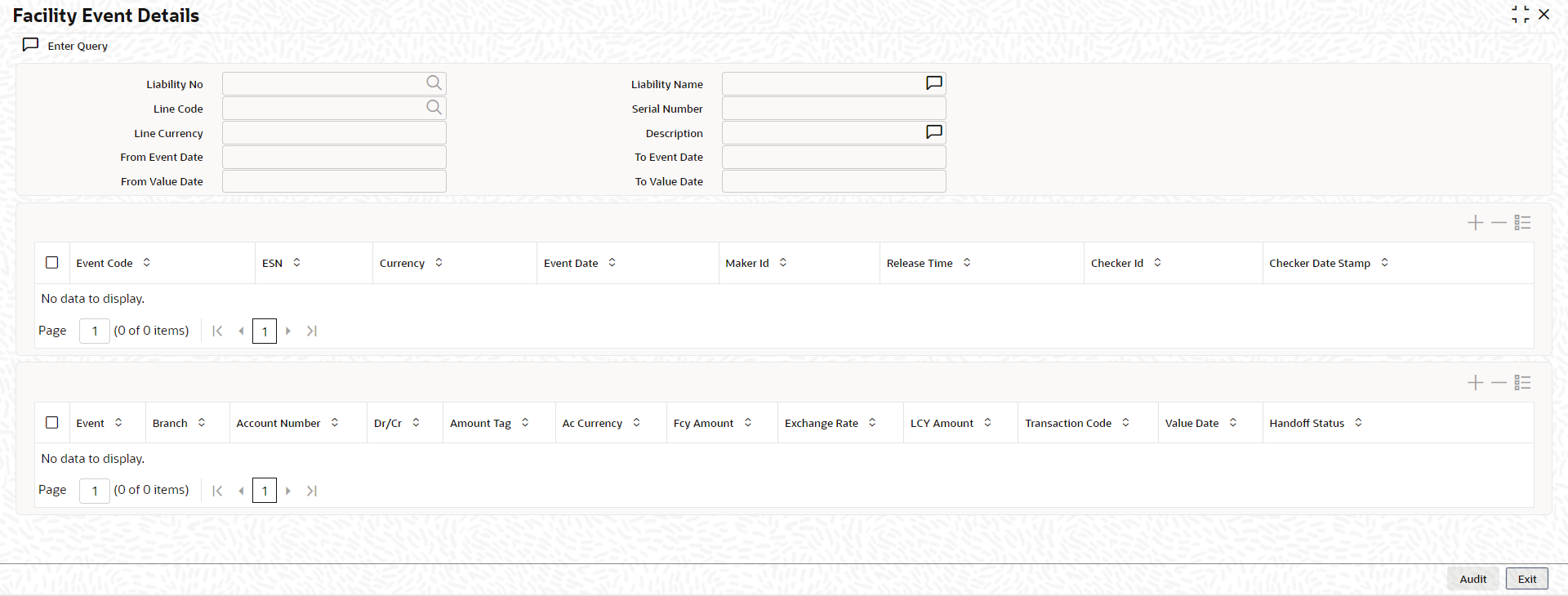

    Figure 2-5 Facility Event Details


    Description of Figure 2-5 follows
    Description of "Figure 2-5 Facility Event Details"

    For more information on fields, refer to the field description table.

    Table 2-16 Facility Event Details - Field Description

    Field Description
    Liability No Click this Search icon and select the liability number for which the facility is linked. The facilities has to be linked to a liability.
    Liability Name Displays the name based on the selected liability number.
    Line Code Click this Search icon and select the line code to be used for facility. If a line code is linked to a facility, then it is required to track the limits of the linked line.
    Serial No Serial number is the Enterprise Limits and Collateral Management generated unique identifier for the facility. The Serial No field is disabled and it gets defaulted from the Facilities Maintenance screen.
    Line Currency Displays the currency based on the selected line code. The currency that has been selected have the following implications.
    • The limit amount that has been specified for this Line-Liability combination is taken to be in this currency
    • The line that has been defined is available for Utilization only in the line currency, unless specified otherwise under Currency Restrictions in this screen.

    Once the entry is authorized, you cannot change the currency.

    If the limit allotted to this Line-Liability combination can be utilized by accounts and transactions in currencies other than the limit currency, the limit utilization is arrived at by using the mid-rate for the currency pair as of that day.
    Description Specify the facility description.
    From Event Date Specify the event start date.
    To Event Date Specify the event end date.
    From Value Date Specify the value start date.
    To Value Date Specify the value end date.
    The event details can be fetched based on the following filter conditions.
    • Liability Number
    • Line Code
    • Serial Number
  2. Click Execute Query to excute the query.

Parent topic: Facilities Maintenance
