24.1.1 Generic Wires ISO Outbound Investigation Request Input Detailed

The Generic Wires ISO Outbound Investigation Request Input Detailed screen allows user to manually initiate Investigation Request Transaction (camt.110) transactions.

1. On Homepage, specify PSDOIRID in the text box, and click next arrow.
   The Generic Wires ISO Outbound Investigation Request Input Detailed screen is displayed.

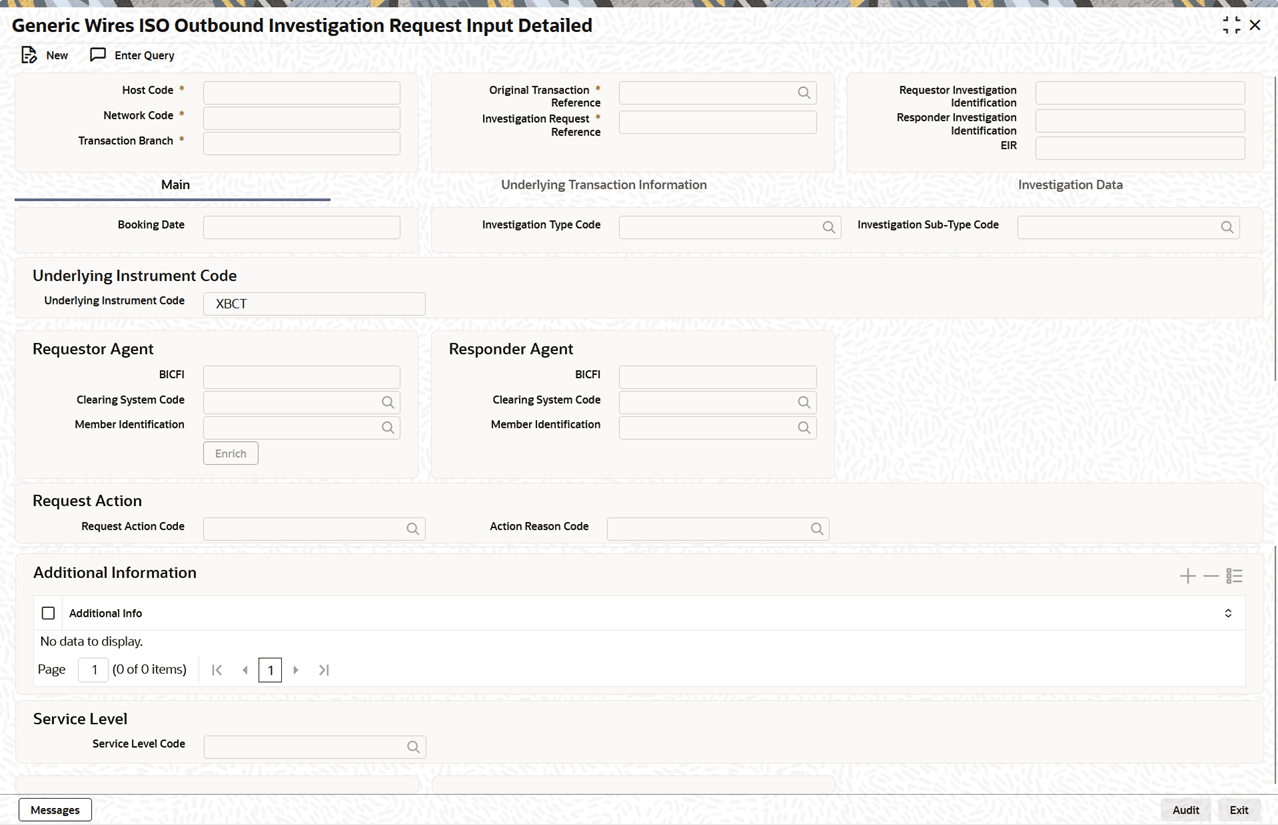

   Figure 24-1 Generic Wires ISO Outbound Investigation Request Input Detailed





   Description of "Figure 24-1 Generic Wires ISO Outbound Investigation Request Input Detailed"



2. On Generic Wires ISO Outbound Investigation Request Input Detailed screen, click New to specify the fields.
   For more information about the fields, refer to field description table.

   Table 24-1 Generic Wires ISO Outbound Investigation Request Input Detailed - Field Description

   Field	Description
   Host Code	System defaults the Host Code of the transaction branch when the user clicks the New button.
   Network Code	Select the Network Code from the list of values. SWIFT CBPRPlus MX networks defined in Network code definition (PMDNWCOD) for the host are also displayed.
   Transaction Branch	System defaults the transaction branch of the user’s logged in branch on clicking New button.
   Investigation Request Reference	System displays Investigation Request Reference Number on clicking New button.
   Original Transaction Reference	Specify the Original Transaction Reference from the list of values. The list contains all the Inbound/Outbound pacs.008, pacs.009, pacs.004, pain.013, pain.014 transactions processed.
   Requestor Investigation Identification	Unique identification is assigned by the requestor to unambiguously identify the investigation for the requestor.
   Responder Investigation Identification	Unique identification is assigned by the responder to unambiguously identify the investigation for the responder.
   UETR	The UETR field is auto-populated. Users can modify the value if required.

• Main Tab
  This topic explains the Main tab of the Generic Wires ISO Outbound Investigation Request Input Detailed screen.
• Underlying Transaction Information Tab
  This topic explains the Underlying Transaction Information tab of the Generic Wires ISO Outbound Investigation Request Input Detailed screen.
• Investigation Data Tab
  This topic explains the Investigation Data tab of the Generic Wires ISO Outbound Investigation Request Input Detailed screen.
• Messages Button
  This topic provides details of the All Messages screen.
• Generic Wires ISO Outbound Investigation Request Input Detailed Summary
  This topic provides the instructions to view the details of the selected records.
