5.3.1 Queue Creation

1. Goto Configuration View Tree > Services > In JMS_MODULE , select the module type and Click New.
2. Below is the example of the Distributed Queue.

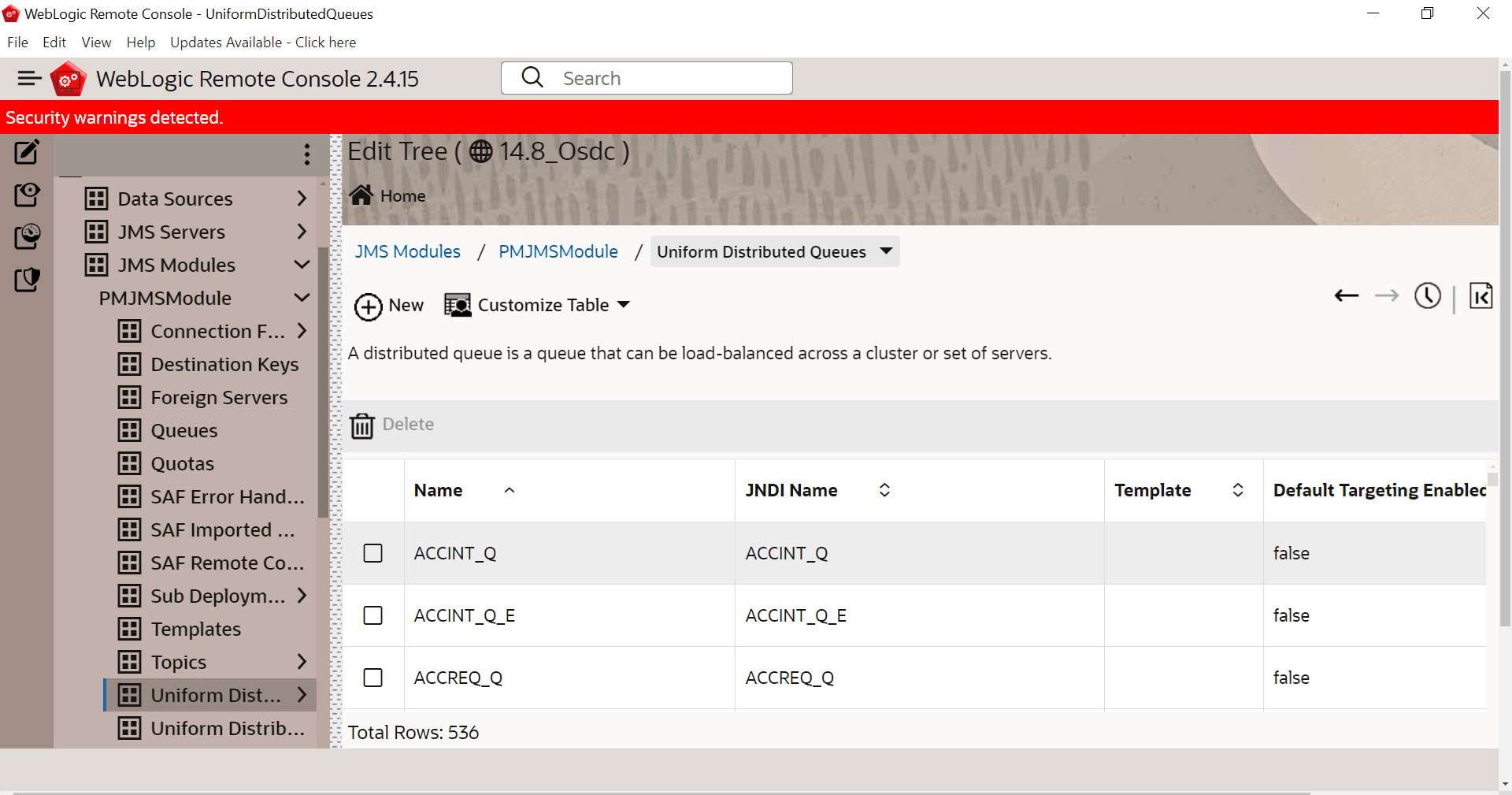

   Figure 5-10 Distributed Queue





   Description of "Figure 5-10 Distributed Queue"

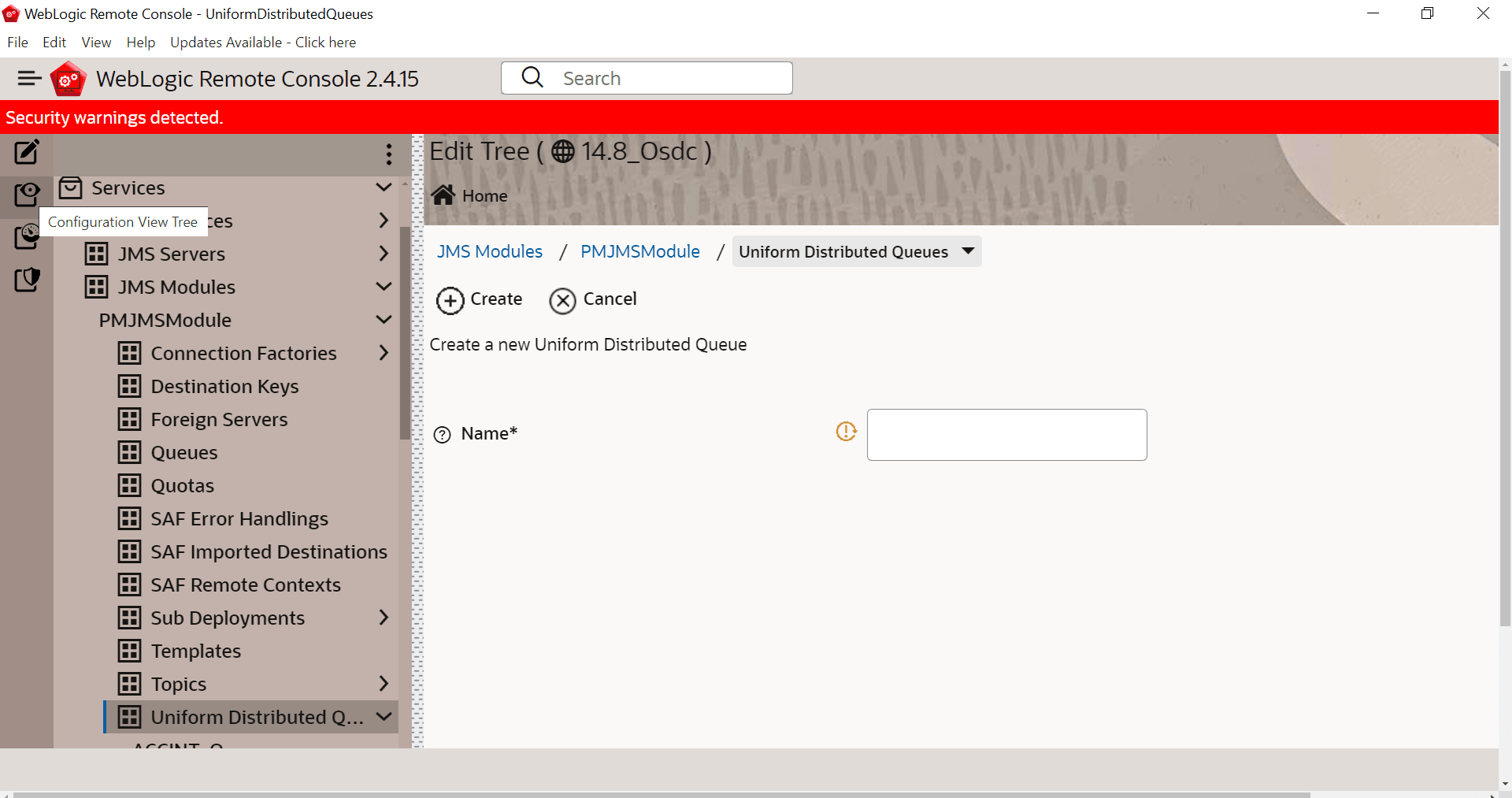

   Figure 5-11 Distributed Queue





   Description of "Figure 5-11 Distributed Queue"



3. Specify the Queue name and click Create.

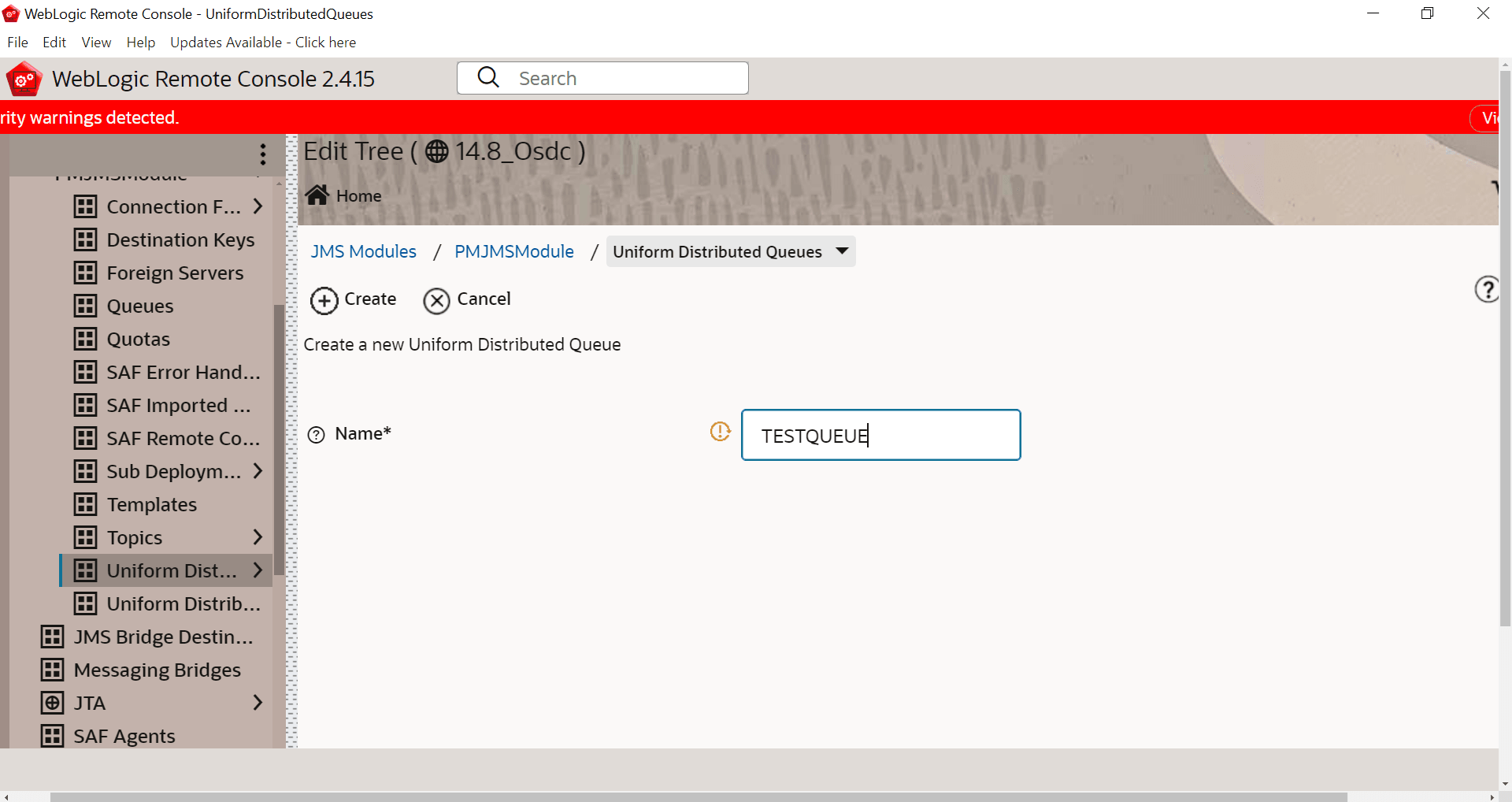

   Figure 5-12 Create a New JMS System Module Resource





   Description of "Figure 5-12 Create a New JMS System Module Resource"



4. Specify the JNDI Name of the Queue.
5. Scroll down and specify the Sub deployment Name and Save.
6. After the configuration, select the Shopping Cart and Commit the changes.

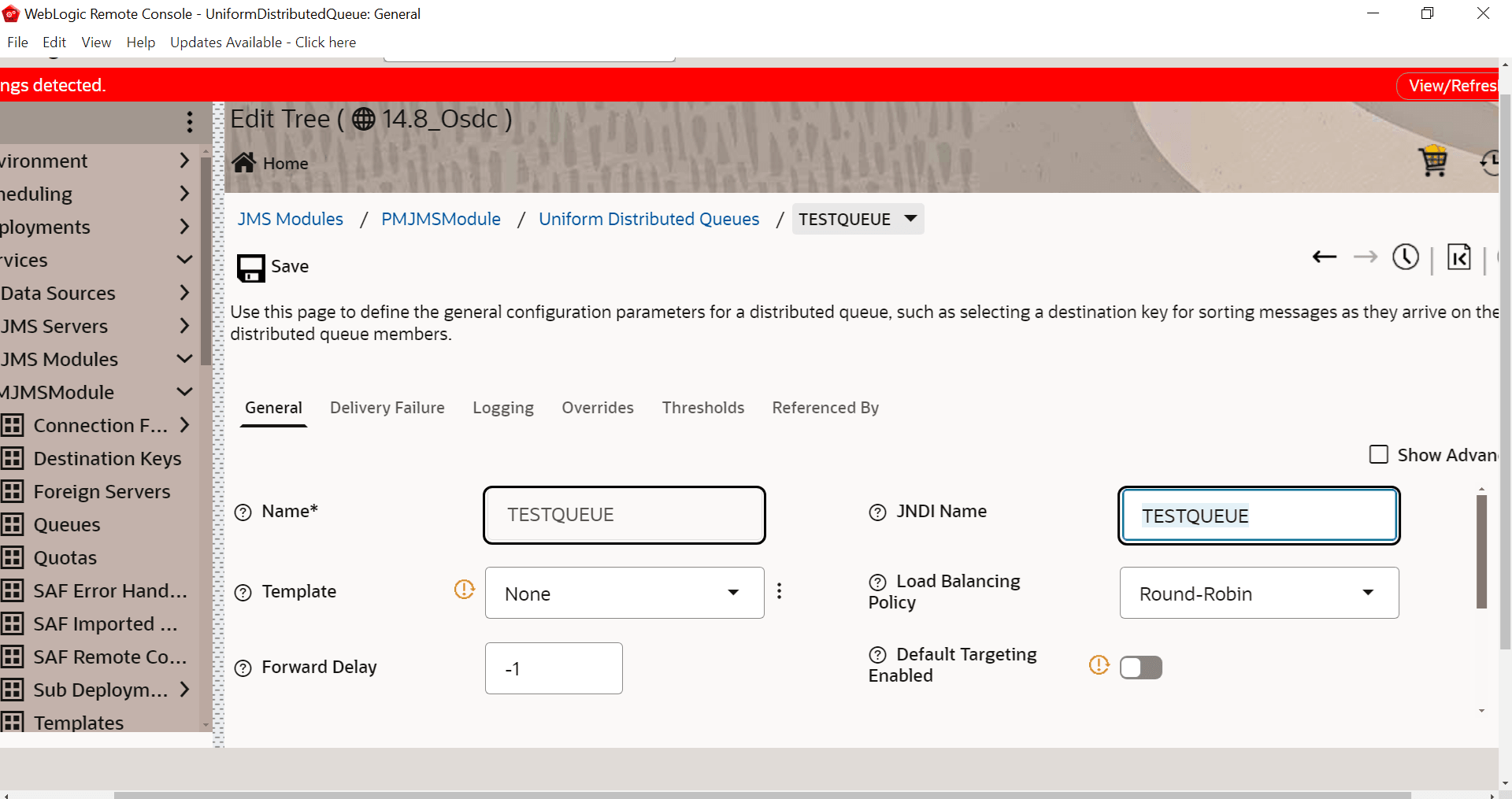

   Figure 5-13 Create a New JMS System Module Resource





   Description of "Figure 5-13 Create a New JMS System Module Resource"

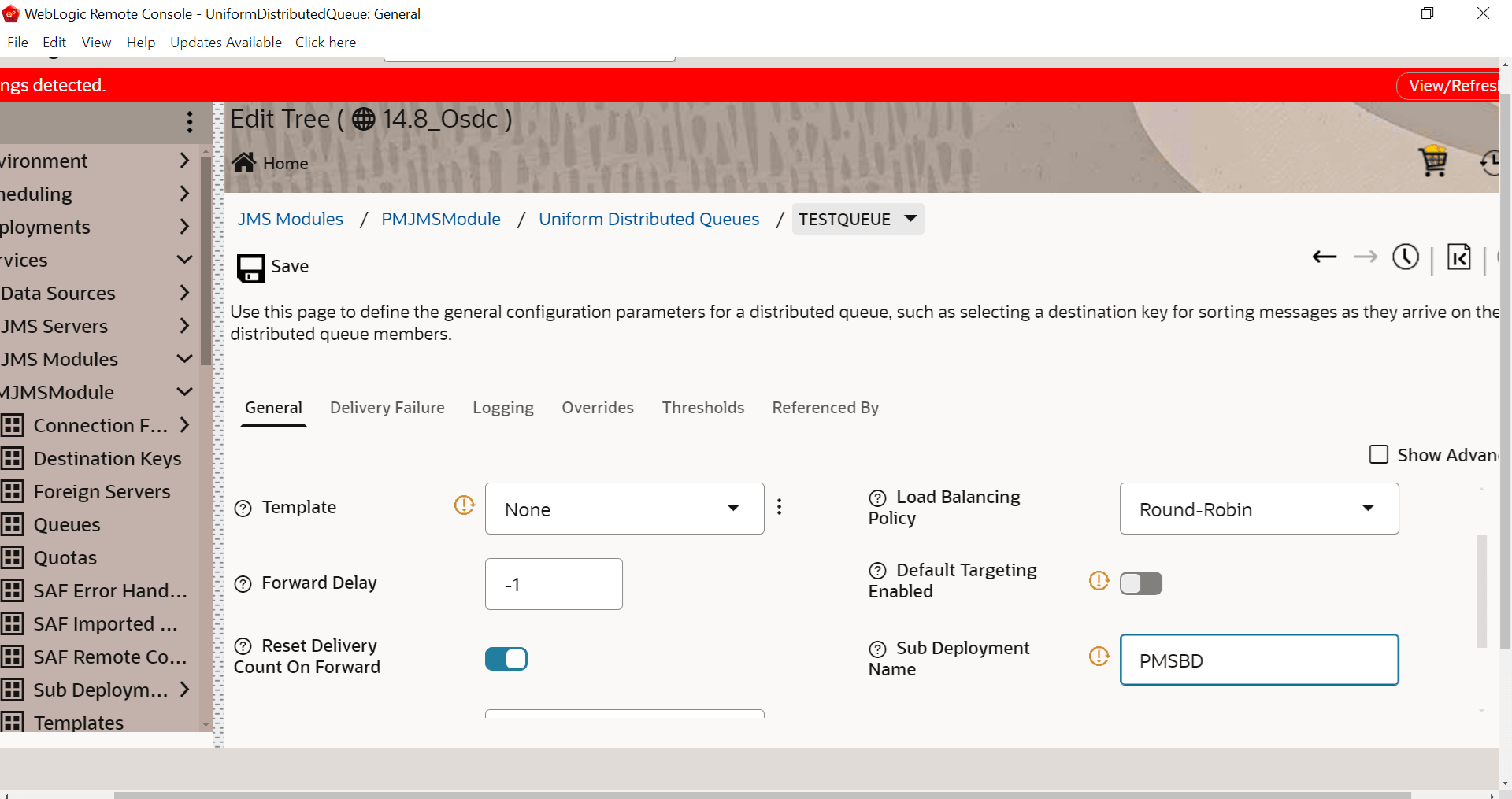

   Figure 5-14 Create a New JMS System Module Resource





   Description of "Figure 5-14 Create a New JMS System Module Resource"

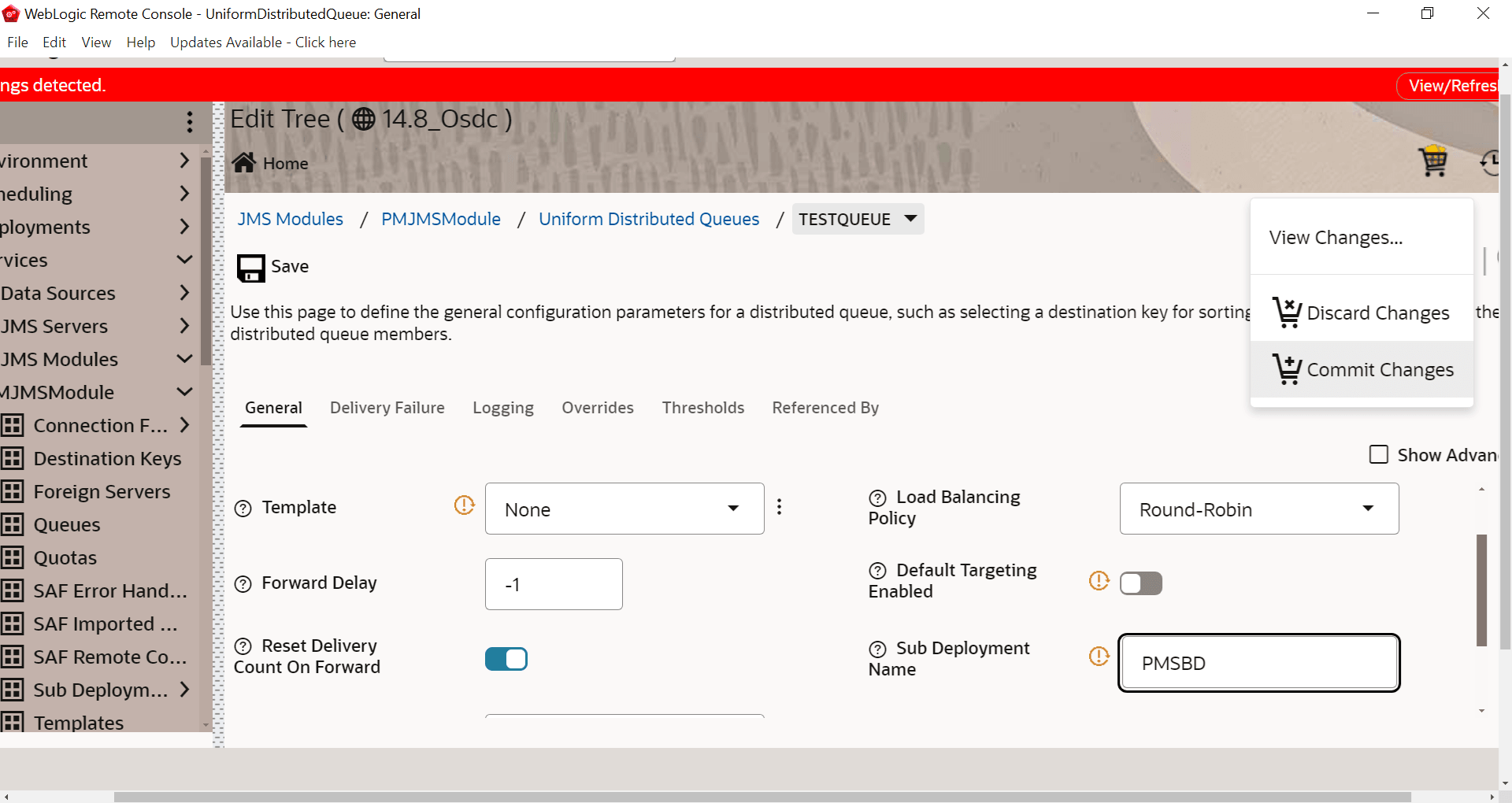

   Figure 5-15 Create a New JMS System Module Resource





   Description of "Figure 5-15 Create a New JMS System Module Resource"



7. Go to Monitoring Tree and Select Services.

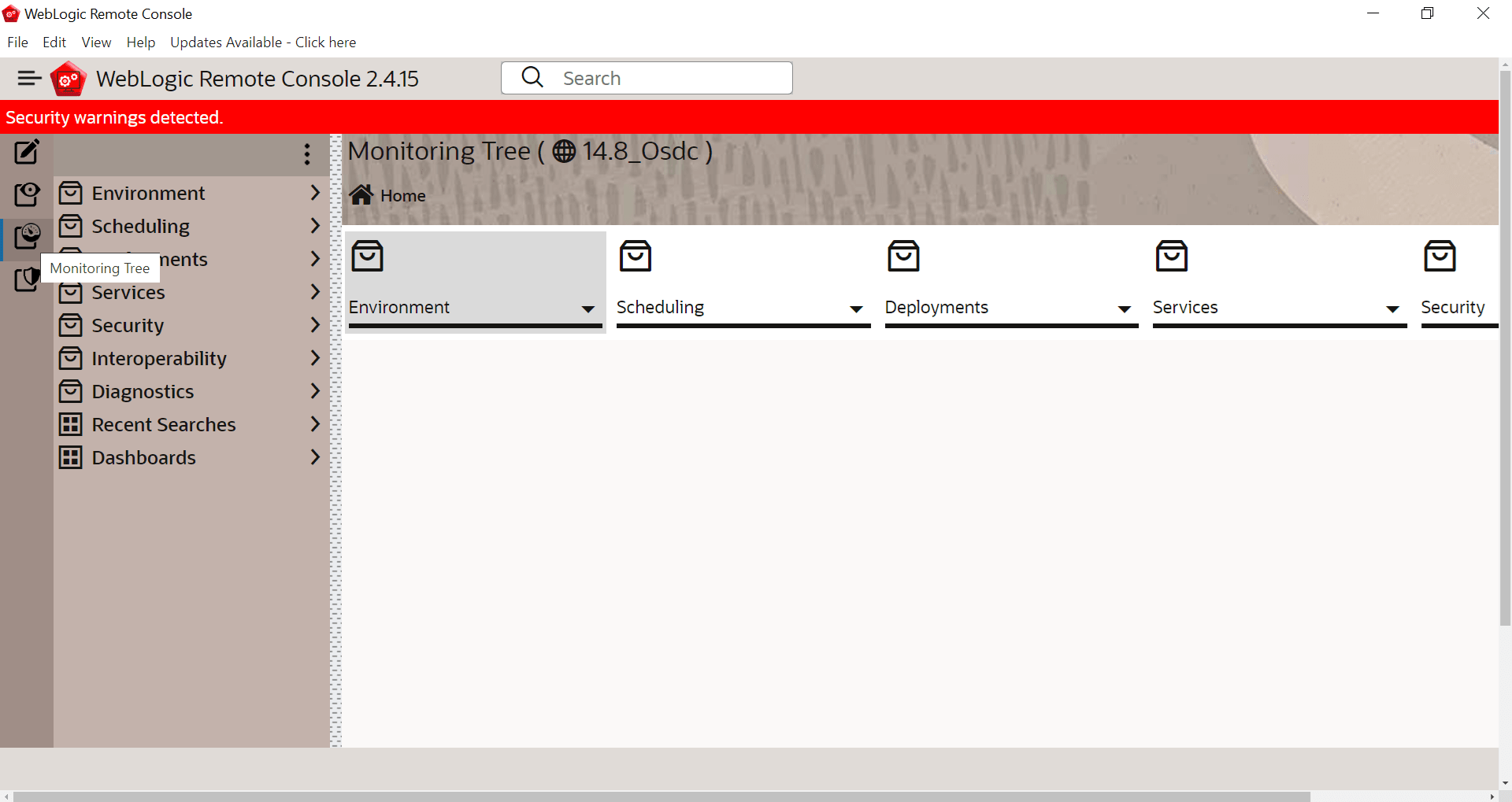

   Figure 5-16 Create a New JMS System Module Resource





   Description of "Figure 5-16 Create a New JMS System Module Resource"



8. Follow the hierarchy to see the message count in the Queues.

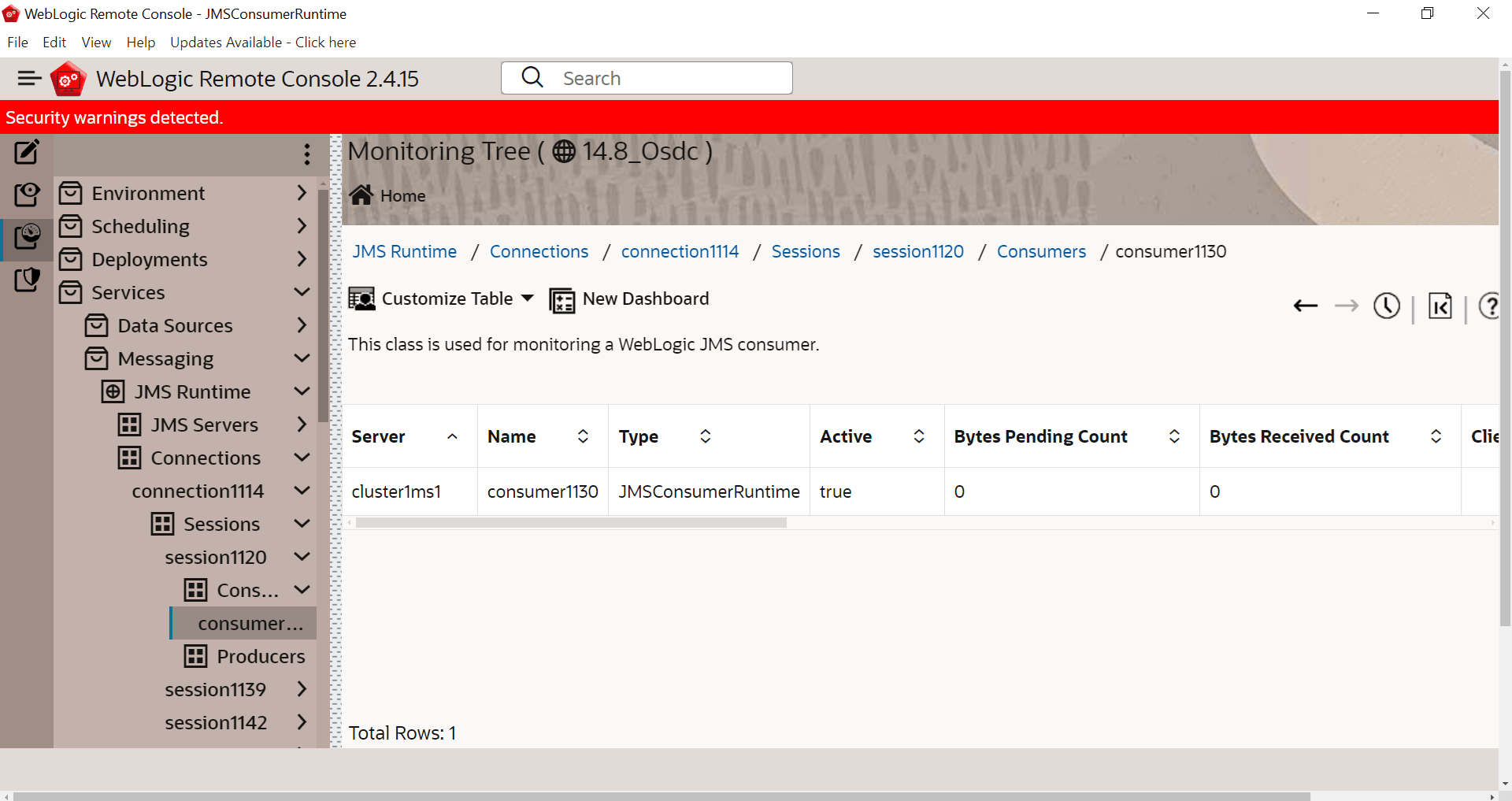

   Figure 5-17 Create a New JMS System Module Resource





   Description of "Figure 5-17 Create a New JMS System Module Resource"



9. Select Subdeployement as JMS_SUB and click Finish.
