5.3.2 Connection Factory Creation

  1. In JMS_MODULE Select on Connection Factory, click New and create the Connection Factory.

    Figure 5-18 Settings for JMS Module


    Description of Figure 5-18 follows
    Description of "Figure 5-18 Settings for JMS Module"

  2. Post Save, Commit the changes.
  3. Select Connection Factory and click Next.

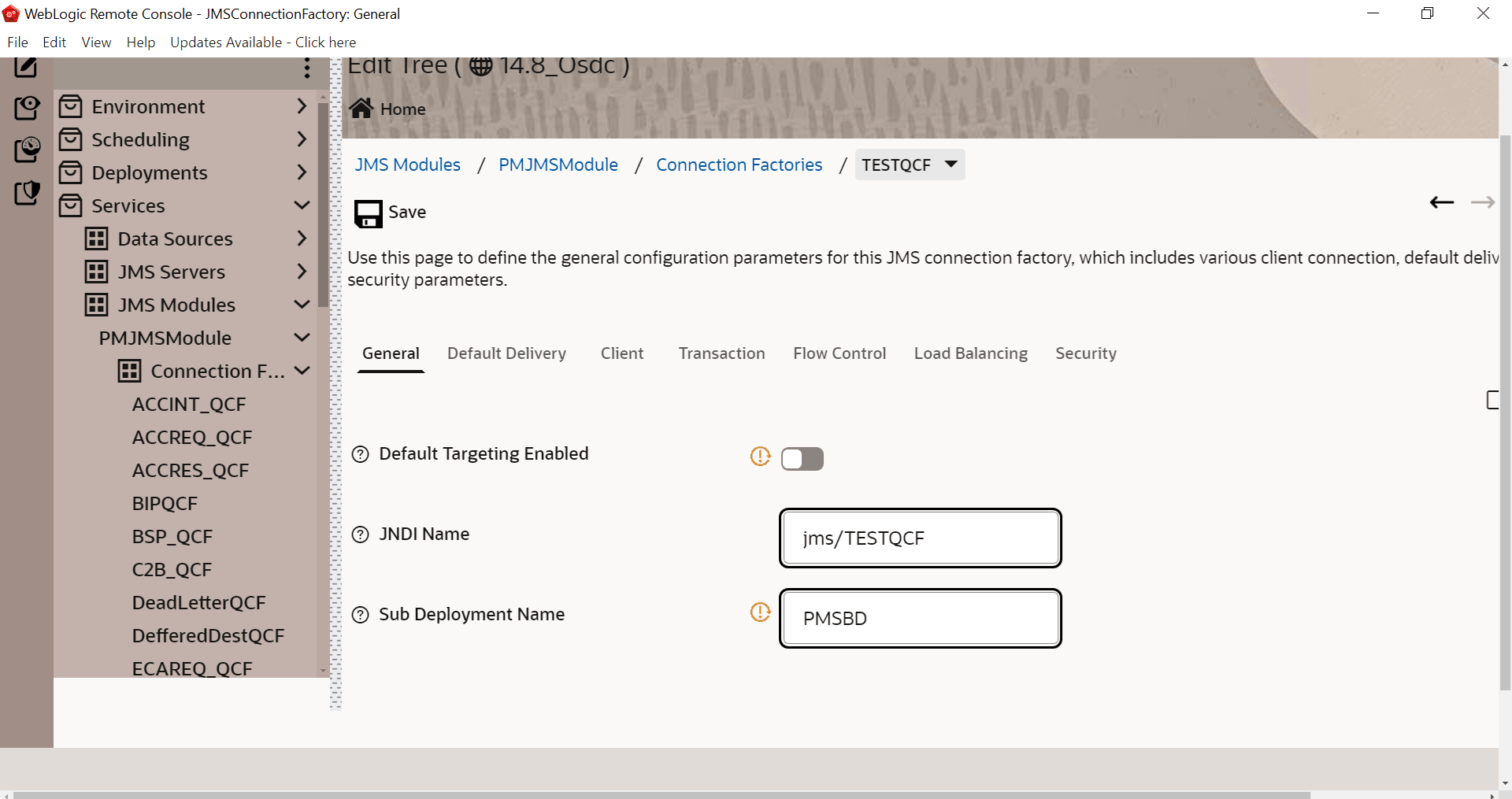

    Figure 5-19 Create a New JMS System Module Resource


    Description of Figure 5-19 follows
    Description of "Figure 5-19 Create a New JMS System Module Resource"

  4. Specify the JNDI Name and Sub-deployment Name, click Save and Commit the changes.
  5. Connection Factory is created.

Parent topic: Resource Creation
