1.4.5.5 View Performance Statistics

This topic provides the systematic instructions to view performance statistics.

You can view the performance statistics for function IDs and actions using MBean screen. The MBean screen displays the information available in the server (MBean) and the information from the database.

Specify the User ID and Password, and login to Homepage.

1. Under User Action, click the Performance Statistics. Or on the Homepage, type SMDMBEAN in the text box, and click the next arrow.

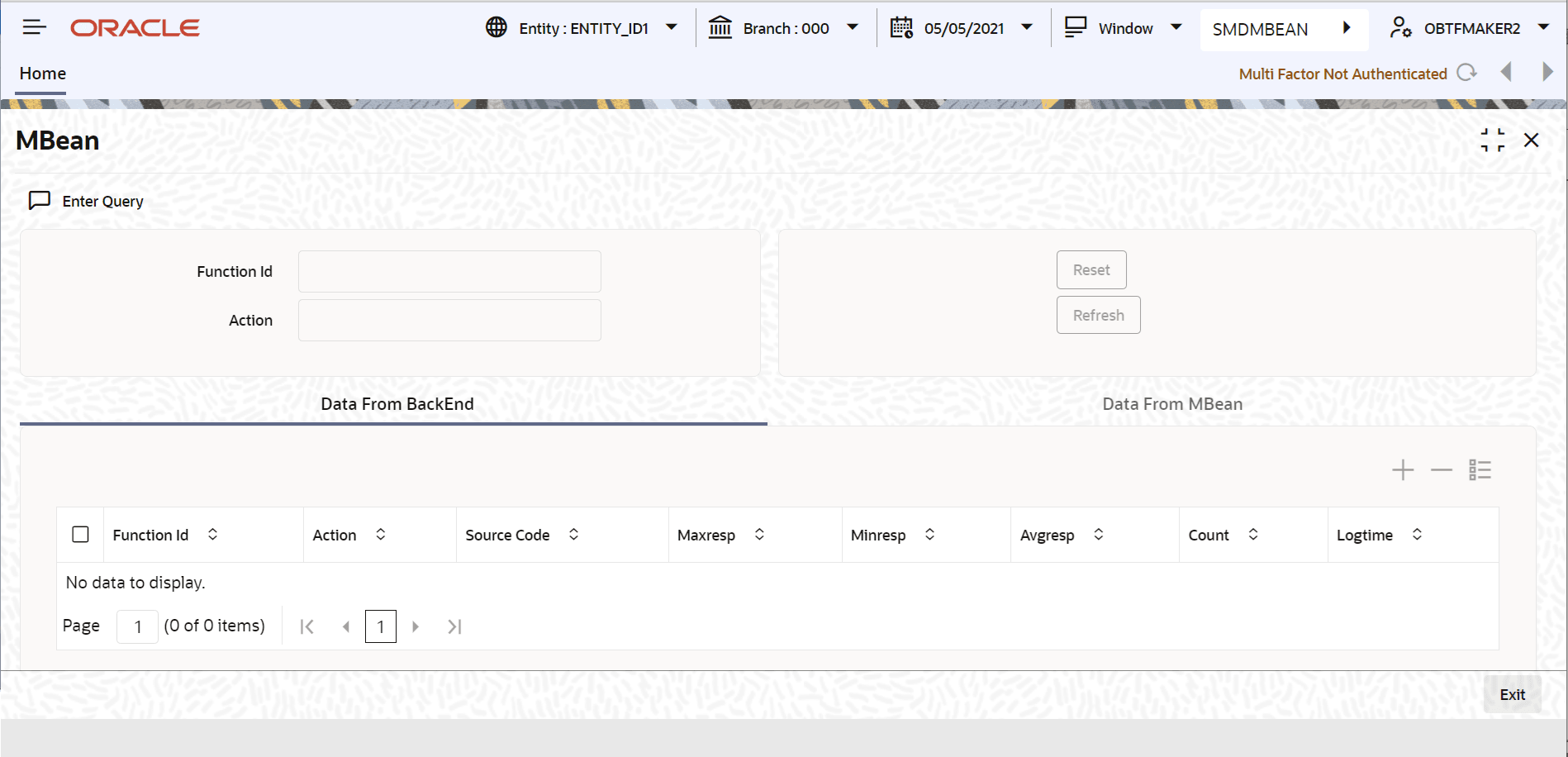

   The MBean screen is displayed:



   Description of the illustration 2.4.5.5_viewing-performance-statistics.png



2. On MBean screen, specify the fields.
   For information on fields, refer to Table 1-4:

   Table 1-4 Performance Statistics - Field Description

   Field	Description
   Function ID	Specify the function ID of the screen whose performance you want to view. The system will display the performance statistics of the function ID specified here.
   Action	Specify the action. The system will display the performance details of the above function ID for the action specified here. The system displays the following details based on the specified values: Function ID - function ID of the screen Action - action performed for this function id. Source Code - FCUBS_UI_MBEAN Maxresp - maximum time taken for a particular action Minresp - minimum time taken for a particular action Avgresp - average time taken for a particular action Count - number of occurrences of a particular action Logtime - log time of the action Menu Options
