4.2 Approot Object Conversion: Shared Application and User Authentication

Kindly make sure all dynamic package exceptions should have an entry in “CSTM_APPROOT_OBJECTS” table.

Example: Only package body will be considered as exception and package will be converted to METADATA link

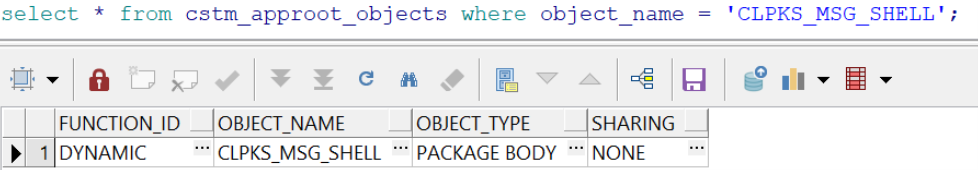

Figure 4-6 CSTM_APPROOT_OBJECTS

Description of "Figure 4-6 CSTM_APPROOT_OBJECTS"

For multi-tenant deployment setup using the installer with deployment model as ‘Shared Application and User Authentication’, follow the steps given below.

1. Double-click ‘FCUBSInstaller.bat’ batch file to launch Oracle FLEXCUBE Universal Installer. The following screen is displayed. Select Utilities option, configuration mode as “Application Root” and click ‘Next’ button.

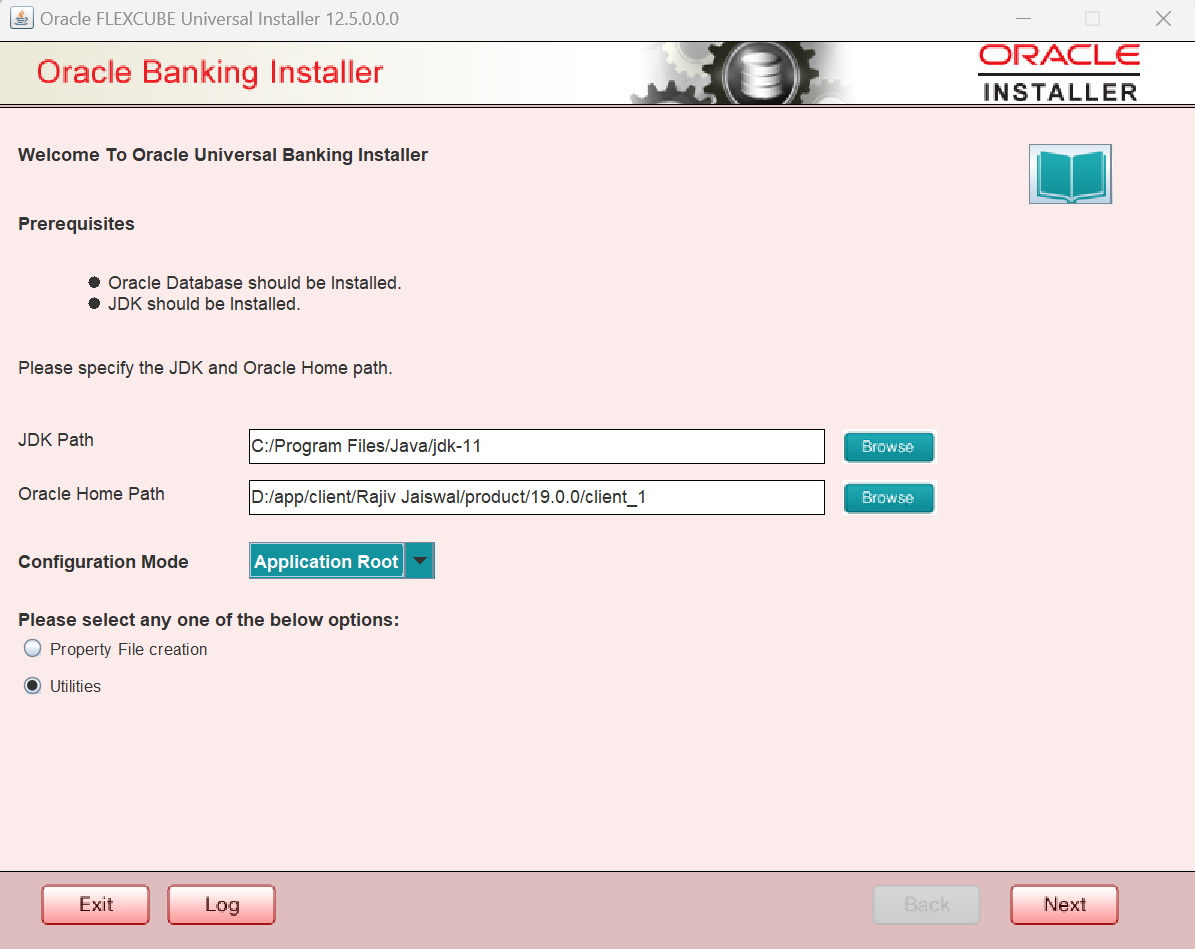

   Figure 4-7 Pre-requisites


   Description of "Figure 4-7 Pre-requisites"
2. Select ‘Approot object Conversion” in Utility Screen and click Next as shown below:

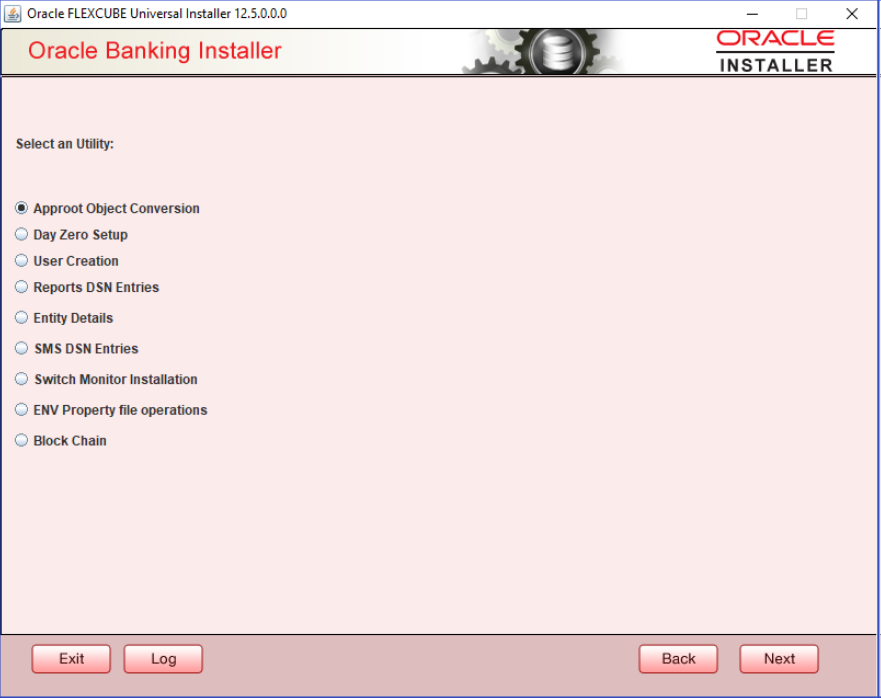

   Figure 4-8 App Root Object Conversion


   Description of "Figure 4-8 App Root Object Conversion"
3. In the Approot object conversion screen, Enter Application Name and the Application Root schema details where the conversion has to be applied and click on ‘Test Connection’.
4. Once the Connection is successful, ‘Finish’ button will be enabled.
5. User has to select the option ‘Shared Application and User Authentication’ and click on the ‘Finish’ button to complete object conversion.

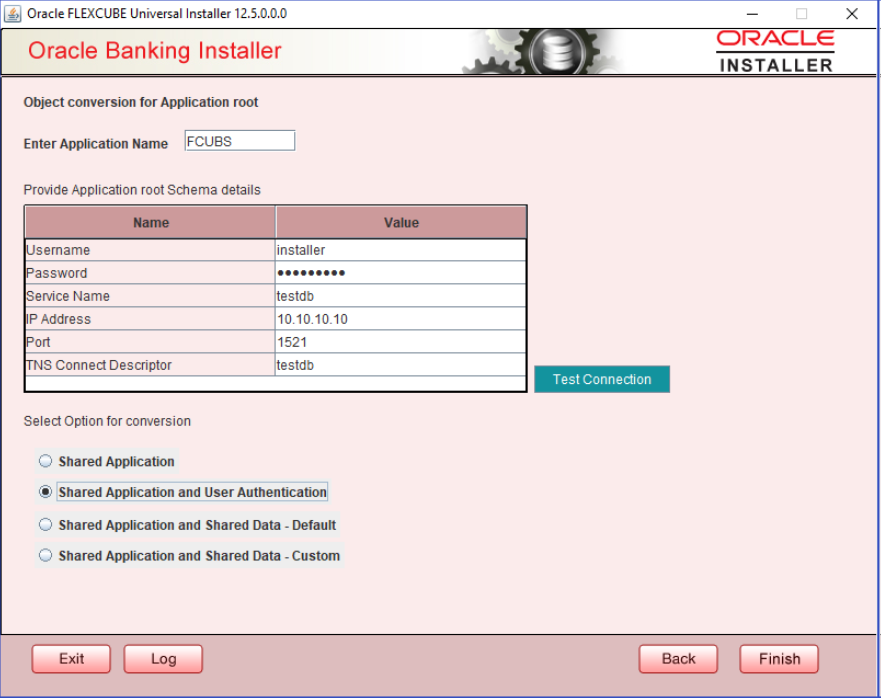

   Figure 4-9 Shared Application and User Authentication


   Description of "Figure 4-9 Shared Application and User Authentication"
6. Execution will take few minutes and post completion, a dialog box displays ‘Compilation Success’ message in the front end.

   Figure 4-10 Compilation Success


   Description of "Figure 4-10 Compilation Success"
7. This completes the setup and user can click on Exit to close the session.
