1.25 Treasury External Service Maintenance

This topic describes the systematic instruction to maintain external service.

  1. On the Home page, specify IFDTRXSE in the text box, and click next arrow.

    The Treasury External Service Maintenance screen is displayed.

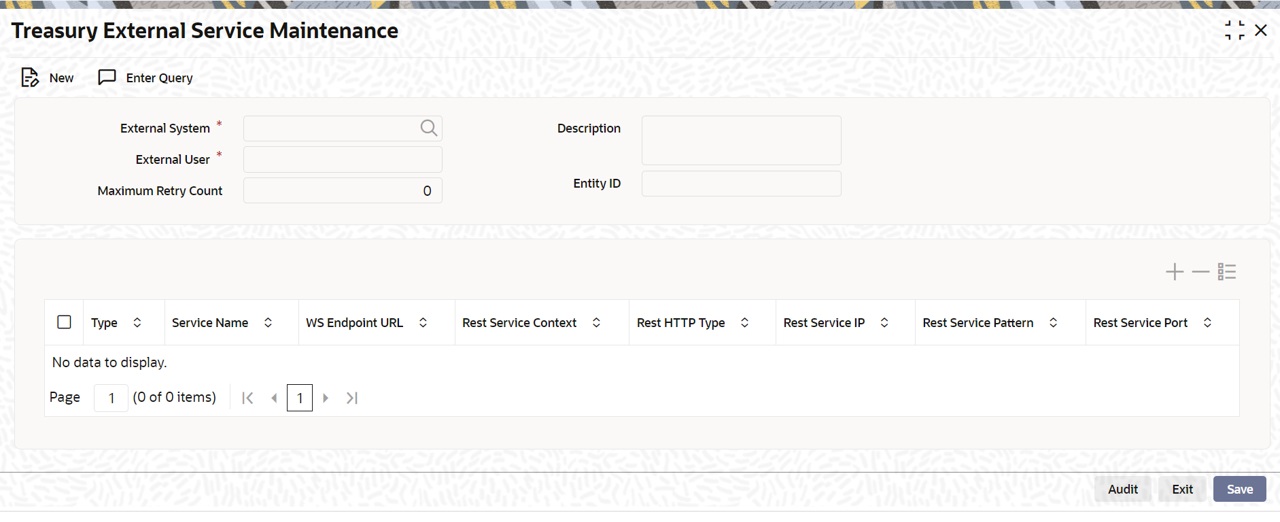

    Figure 1-28 Treasury External Service Maintenance

    Description of Figure 1-28 follows
    Description of "Figure 1-28 Treasury External Service Maintenance "
  2. On the Treasury External Service Maintenance screen, specify the fields.

    For more information on fields, refer to the below table.

    Table 1-28 Treasury External Service Maintenance- Field Description

    Field Description
    External System

    Specify the external system, Alternatively, you can select the external system from the option list. The list displays all valid values maintained in the system.

    Description

    The system displays the description based on the external system selected.

    External User

    Specify the external user.

    Maximum Retry Count

    Specify the field.

    Type

    Select the type from the drop-down list.

    Service Name

    Specify the service name. Alternatively, you can select the service name from the option list. The list displays all valid service name maintained in the system.

    WS Endpoint URL

    Specify the WS endpoint URL.

    Rest Service Context

    The system displays the rest service context.

    Rest Service IP

    The system displays the rest service IP.

    Rest Service Pattern

    The system displays the rest service pattern.
