1.1.5 Setting EMS FTP/FTPS Properties

Procedure for EMS FTP/FTPS configuration.

1. In the displayed Property file Creation - EMS FTP/FTPS, specify the fields.

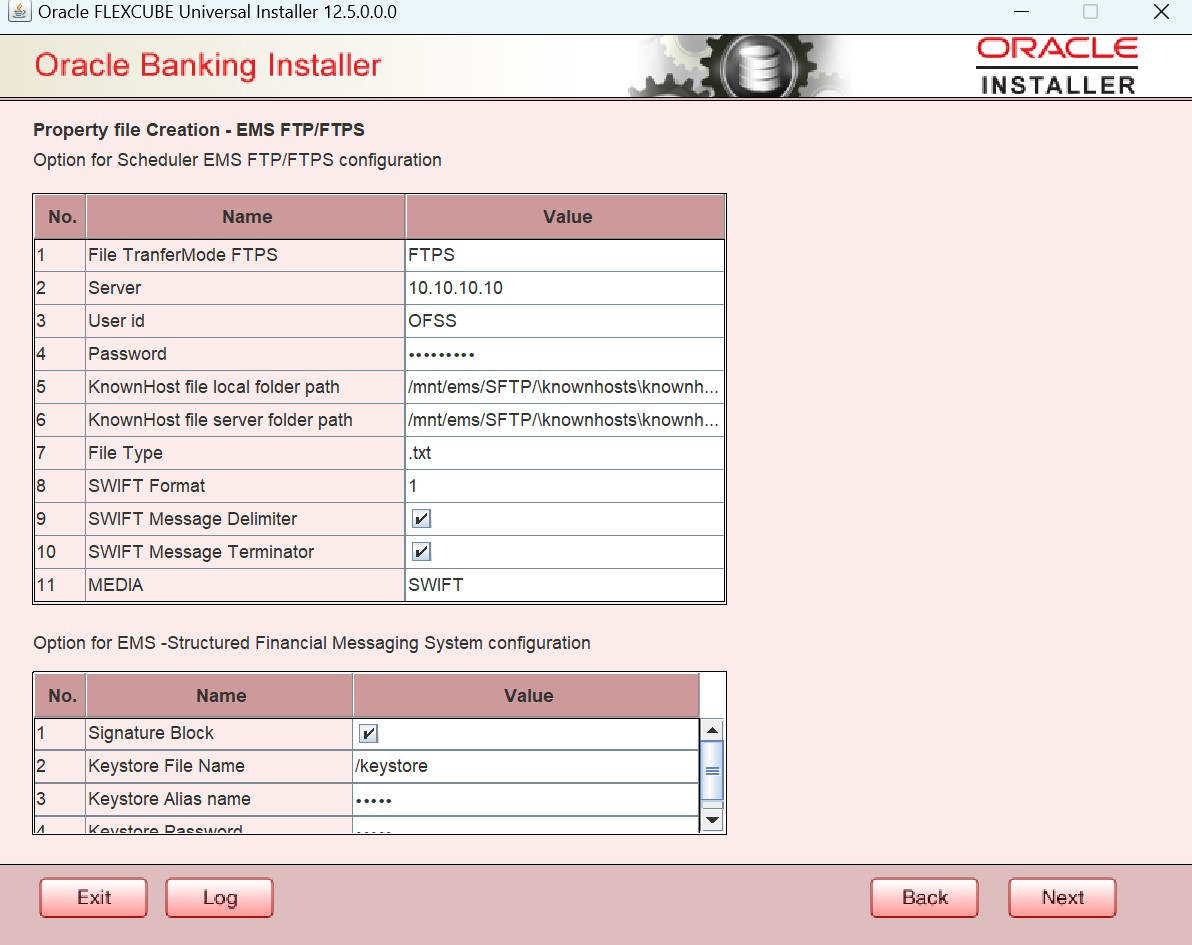

   Figure 1-11 Property file Creation - EMS FTP/FTPS


   Description of "Figure 1-11 Property file Creation - EMS FTP/FTPS"

   Table 1-7 Field Description

   Field	Description
   File Transfer Mode FTPS	Specify the mode of transferring files to EMS. Select one of the following: FTPS SFTP HTTP
   Server	Specify the server IP address for the selected file transfer mode.
   User ID	Specify the user ID to access the server of the file transfer mode.
   Password	Specify the password to for the above user ID.
   File Type	Specify the type of file that is transferred. By default, the Installer sets it as ‘.txt’.
   SWIFT Message Delimiter	Select check box if needed.
   SWIFT Message Terminator	Select check box if needed.
   Media	Specify the Media.
   Signature Block	Check this box to enable signature block
   Keystore File Name	Specify the keystore file name.
   Keystore Alias Name	Specify the keystore alias name.
   Keystore Password	Specify the keystore password. Once you have specified the above details, click ‘Next’ and system displays the next screen.
