8 Configure Weblogic Server

This section explains the systematic instructions to configure the Oracle WebLogic application server

To configure the Oracle WebLogic application server, follow the steps given below:

1. Start the Administrative Console of the WebLogic application server. Enter the Oracle WebLogic Admin Console URL in the address bar in an internet browser. For example:http://10.10.10.10:1001/console
   Oracle Weblogic Server - Welcome screen is displayed.

   Figure 8-1 Oracle Weblogic Server - Welcome





   Description of "Figure 8-1 Oracle Weblogic Server - Welcome"




   1. Specify the WebLogic administrator Username, Password
   2. Click Log In. The Oracle Weblogic Server - Home Page screen is displayed.

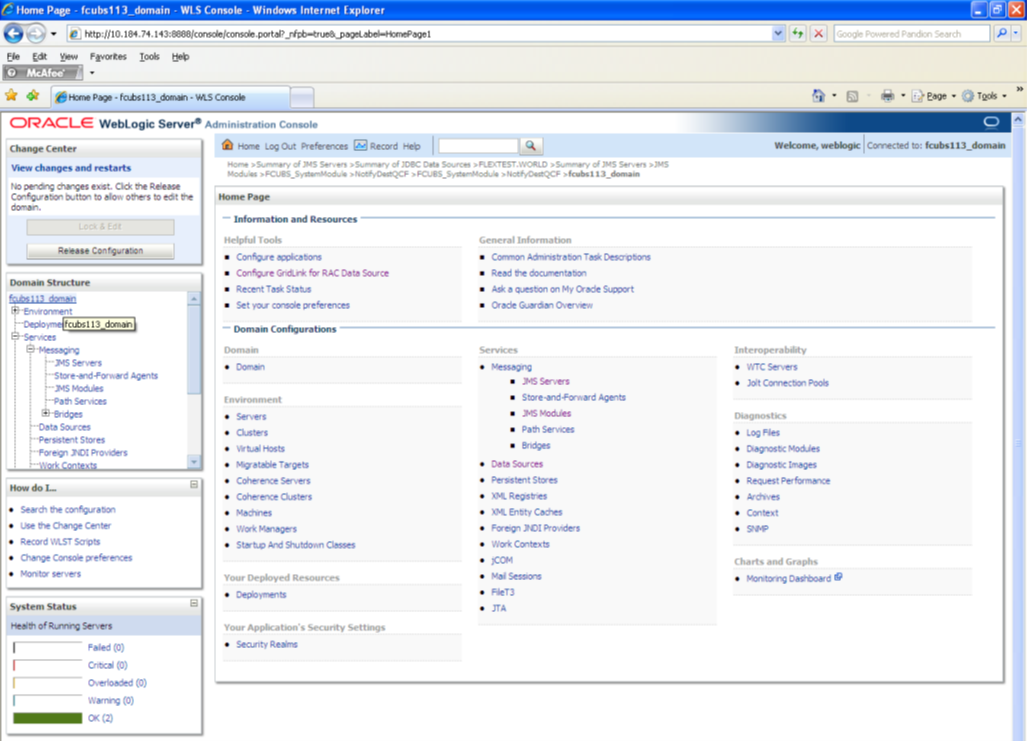

      Figure 8-2 Oracle Weblogic Server - Home Page





      Description of "Figure 8-2 Oracle Weblogic Server - Home Page"



2. Select the domain from the domain structure as shown below. (Eg: fcubs113_domain).
   Settings for fcubs113_domain screen is displayed.

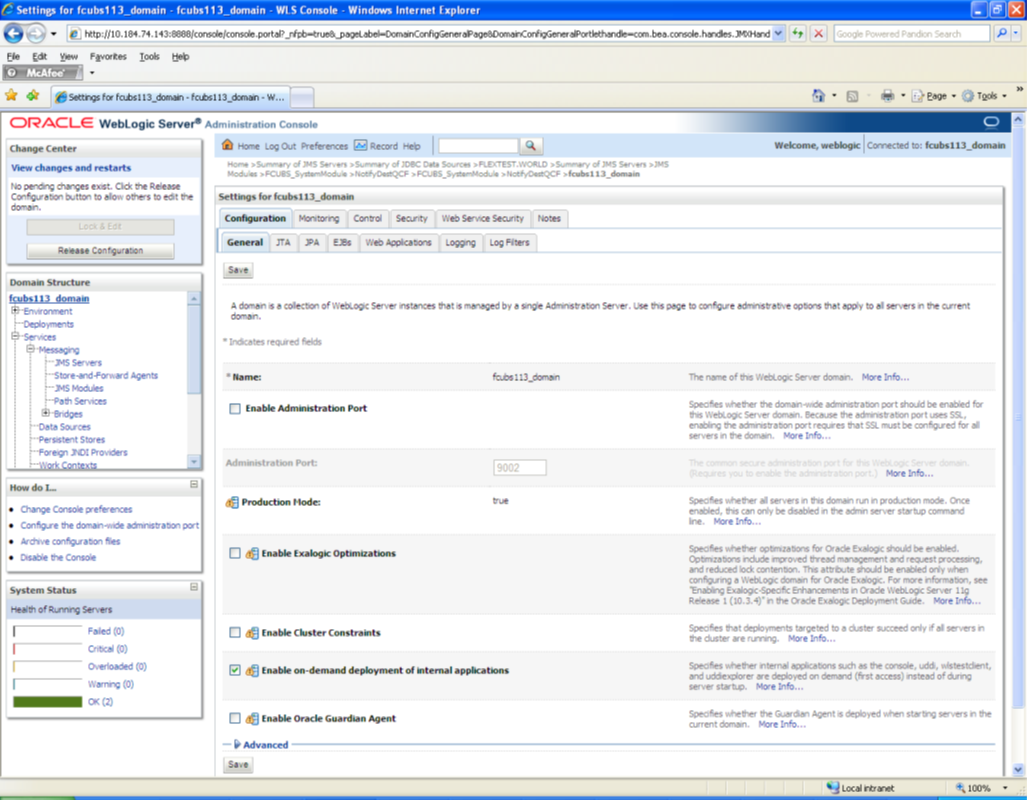

   Figure 8-3 Settings for fcubs113_domain





   Description of "Figure 8-3 Settings for fcubs113_domain"



3. Select Web Applications from the Confugurations.
   Settings for fcubs113_domain - Web Applications is displayed.

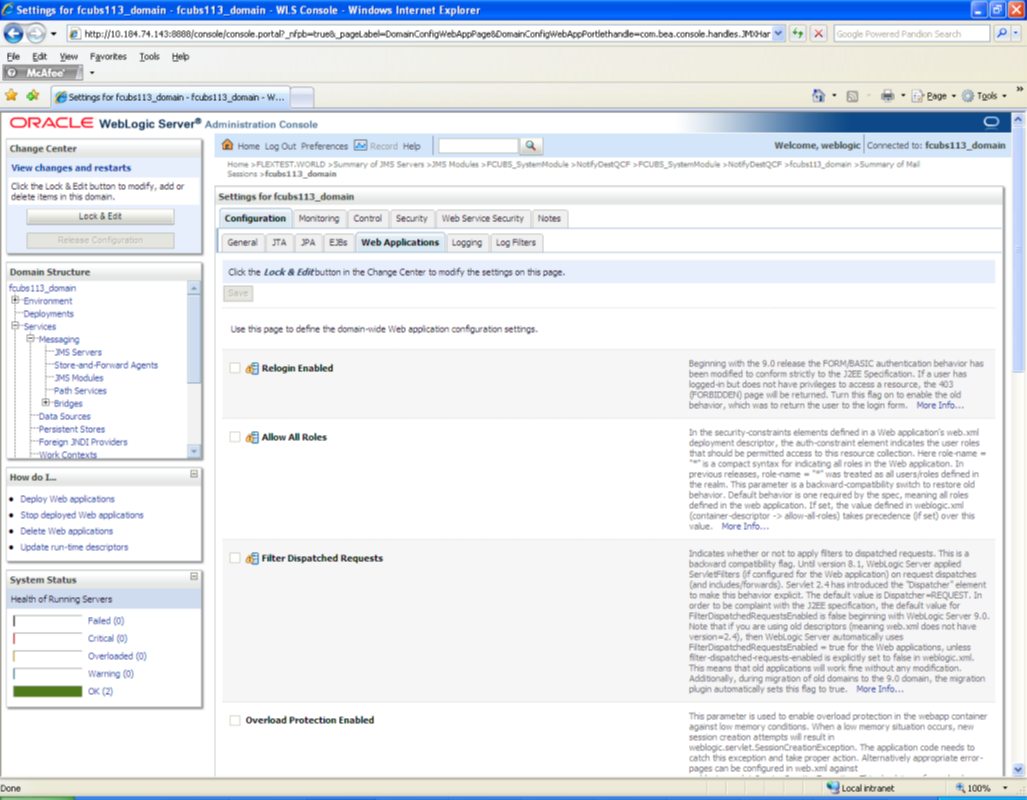

   Figure 8-4 Settings for fcubs113_domain - Web Applications





   Description of "Figure 8-4 Settings for fcubs113_domain - Web Applications"



4. Ensure to select the JSP Compiler Backwards Compatible and Archived Real Path Enabled options in this screen.

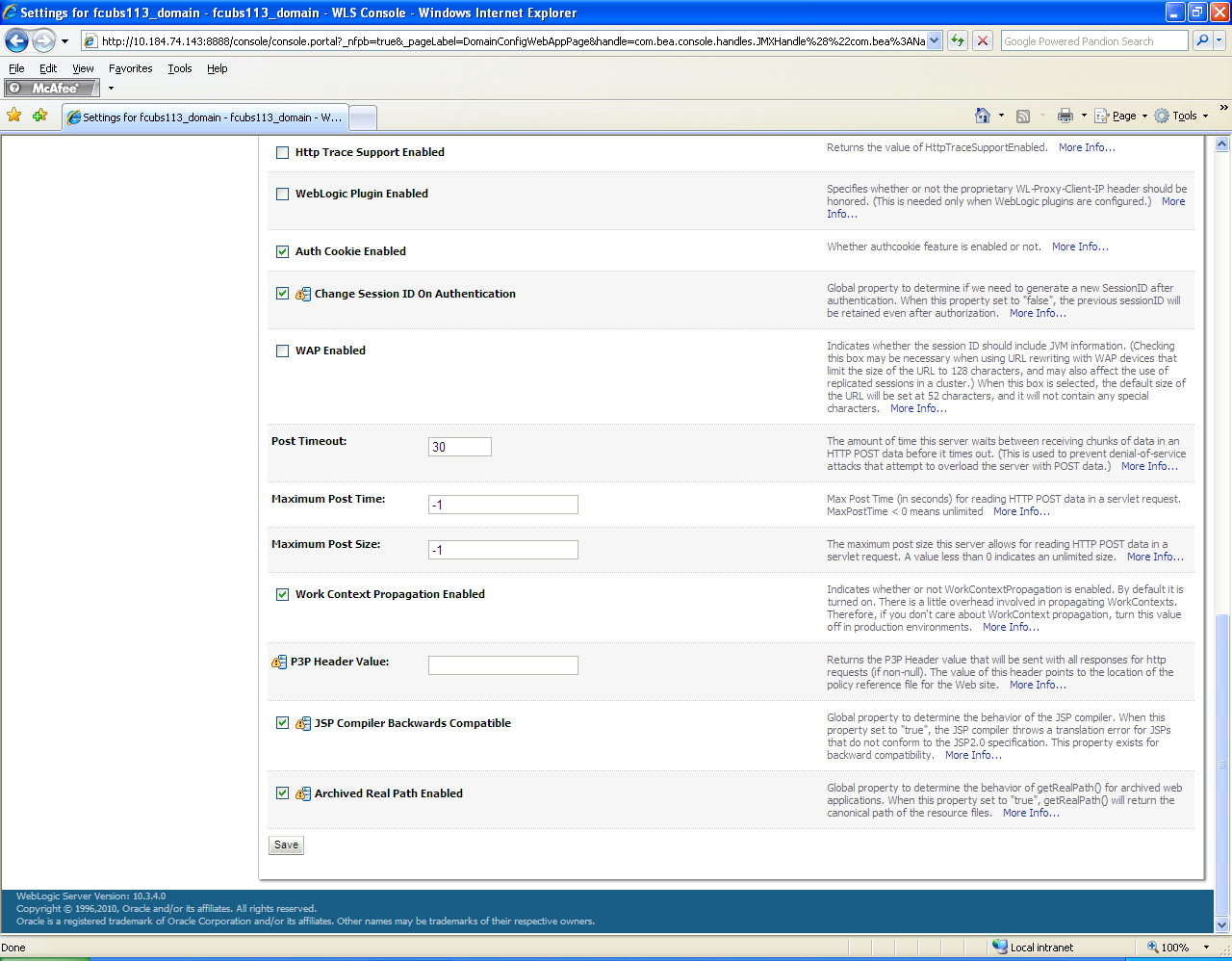

   Figure 8-5 Settings for fcubs113_domain - Web Applications Configuration Settings





   Description of "Figure 8-5 Settings for fcubs113_domain - Web Applications Configuration Settings"



5. Click on Save button and the message Settings are updated successfully is displayed.
   Thw Settings for fcubs113_domain - Messages screen is displayed.

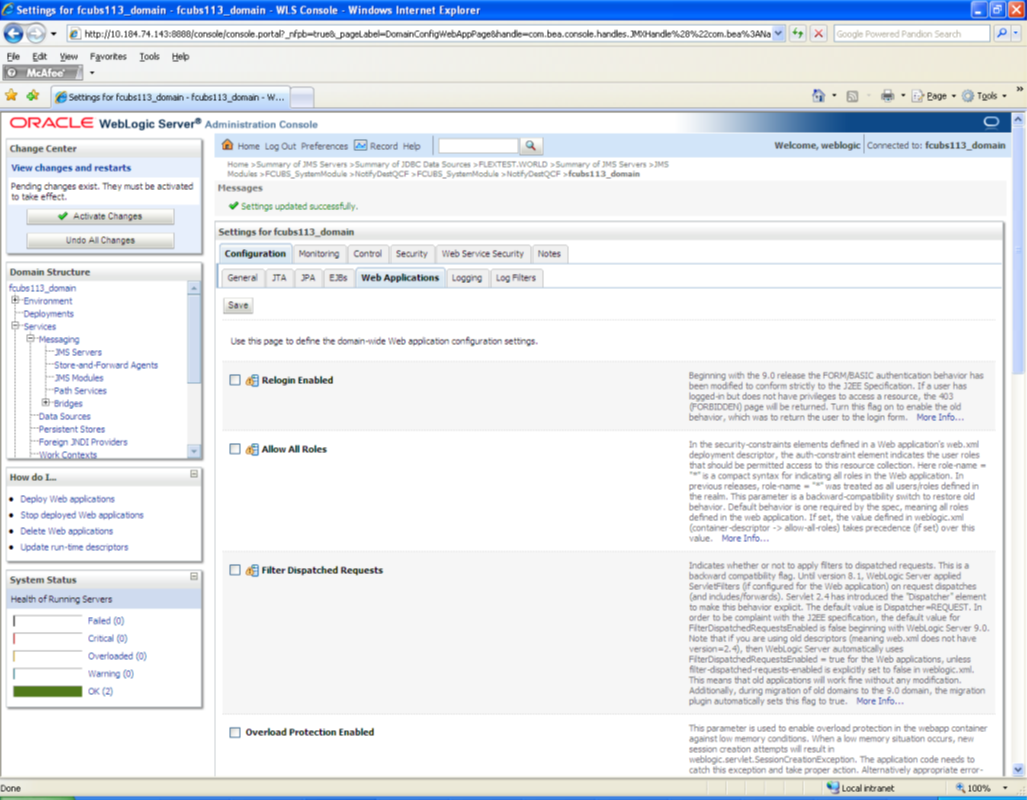

   Figure 8-6 Settings for fcubs113_domain - Messages





   Description of "Figure 8-6 Settings for fcubs113_domain - Messages"



6. Click the Activate Changes button under the Change Center. The message All the changes have been activated. No restarts are necessary is displayed.
