1.2.2 EXTERNAL ACCOUNT Implementation

This topic provides the API information for EXTERNAL ACCOUNT Implementation.

This API is used when the account number needs to be generated externally. Oracle Banking Virtual Account Management's account number generation will be suppressed and externally generated account number will be assigned.

The following API is configured using Oracle Banking Routing Hub:

1. ext_acc

• Host - Ext_Acc_Provider
• Version - 14.4
• API - /api-gateway/cmc-obrh-services/route/dispatch
• Headers –
  • SERVICE-CONSUMER - OBVAM_EXTERNAL_ACCOUNT
  • SERVICE-CONSUMER-SERVICE - ext_acc
  • REQUIRED_ACTION - VA / IBAN / VA_IBAN

Note:

VA / IBAN / VA_IBAN – Choose of the option based on Branch Parameter configuration.

Environment variables are used to set values for the headers. Set environment specific values for variables like User ID, Branch code.

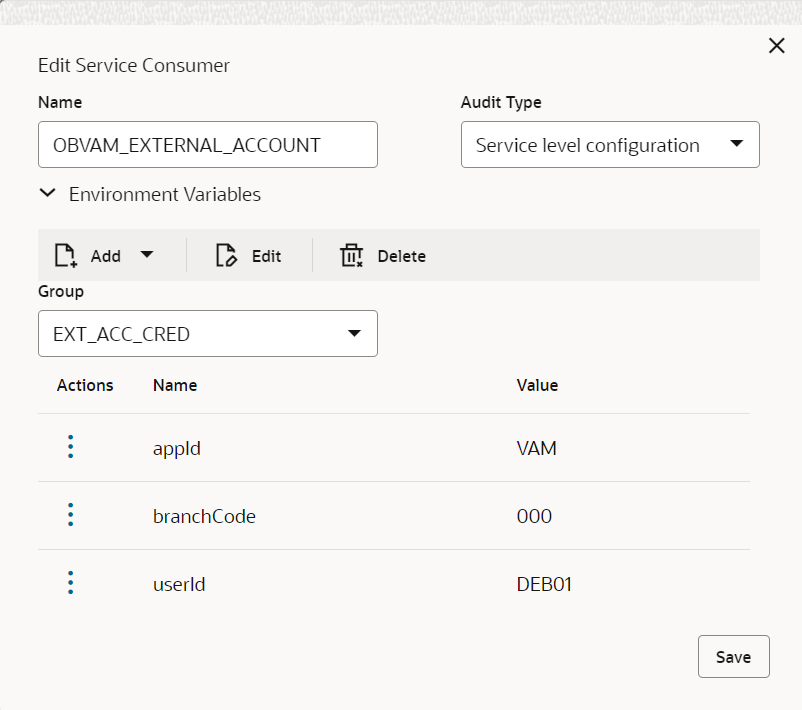

Figure 1-8 Edit Service Consumer - EXTERNAL ACCOUNT

Description of "Figure 1-8 Edit Service Consumer - EXTERNAL ACCOUNT"

Refer the Environment Variable Configuration topic to set the values in Edit Service Consumer screen.

The following Service Providers and Consumer Services needs to be configured in Oracle Banking Routing Hub:

• Service Providers - EXTERNAL ACCOUNT
  This topic describes about the service providers configuration for EXTERNAL ACCOUNT.
• Consumer Services - EXTERNAL ACCOUNT
  This topic describes about the consumer services required for EXTERNAL ACCOUNT Implementation.
