1.2.3 Oracle Banking Payments Implementation

This topic provides the API information for Oracle Banking Payments Implementation.

The following APIs is configured for Oracle Banking Payments Implementation using Oracle Banking Routing Hub:

1. PendingPaymentQuery
2. StrcAddressServiceCreate
3. StrcAddressServiceModify
4. StrcAddressServiceClose
5. StrcAddressServiceReopen
6. CreateExtVirtualAcc
7. ModifyExtVirtualAcc
8. CloseExtVirtualAcc
9. ReopenExtVirtualAcc

SERVICE-CONSUMER - OBVAM_OBPM

• API - /api-gateway/cmc-obrh-services/route/dispatch
• Host - OBPM
• Version - 14.4

Environment variables are used to set values for the headers. Set environment specific values for variables like User ID, Branch code.

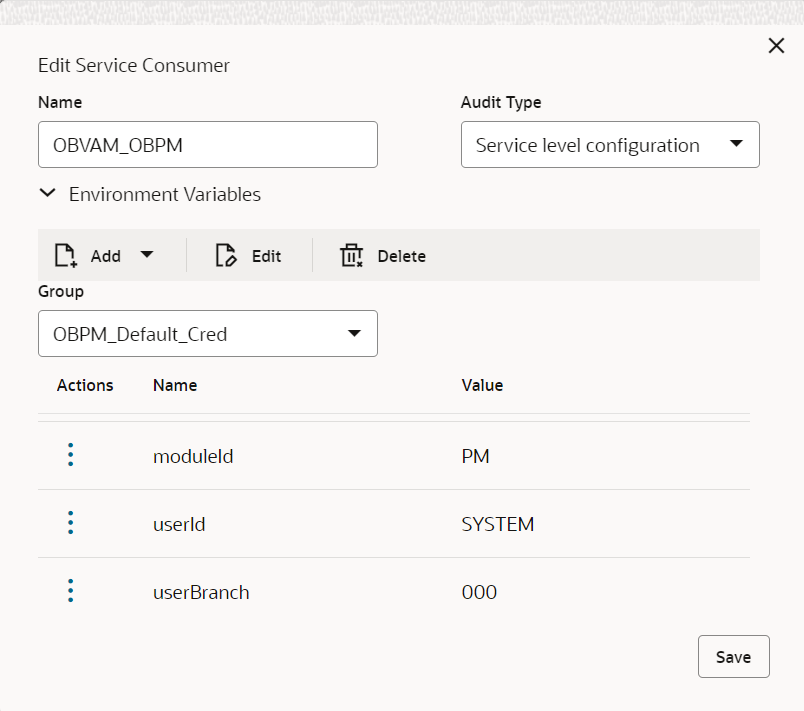

Figure 1-12 Edit Service Consumer - Oracle Banking Payments

Description of "Figure 1-12 Edit Service Consumer - Oracle Banking Payments"

Refer the Environment Variable Configuration topic to set the values in Edit Service Consumer screen.

The following Service Providers and Consumer Services needs to be configured in Oracle Banking Routing Hub:

• Service Providers - Oracle Banking Payments
  This topic describes about the service providers configuration for Oracle Banking Payments.
• Consumer Services - Oracle Banking Payments
  This topic describes about the consumer services required for Oracle Banking Payments Implementation.
